Superior MultiTransmitter Fibra
A wired integration module with 18 zones, full NC/NO/EOL/2EOL/3EOL support, Fibra communication up to 2,000 m, and built‑in power outputs for third‑party detectors.
Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.
Available Colours
Superior MultiTransmitter Fibra
A wired integration module that connects up to 18 third‑party wired devices to an Ajax system using Fibra communication. Superior MultiTransmitter Fibra brings modern automation, detailed notifications, and remote configuration to legacy wired detectors, enabling installers to upgrade existing systems without replacing infrastructure.
Designed for professional-grade installations, it supports all major wiring schemes, provides multiple power outputs, and delivers advanced sabotage protection suitable for high‑security environments.
Key Features
- 18 wired zones with NC, NO, EOL, 2EOL, and 3EOL support
- Automatic EOL resistance scanning for fast installation
- Pulse or bistable operating modes
- Over 10 event types including intrusion, fire, panic, medical, gas, and malfunction
- Fibra wired communication up to 2,000 m
- Four 12 V power outputs (1 fire, 3 general)
- Zero power consumption from Fibra line
- Two tamper inputs plus support for Ajax Case tamper board
- Short‑circuit and spoofing protection
- Remote configuration and diagnostics via Ajax apps

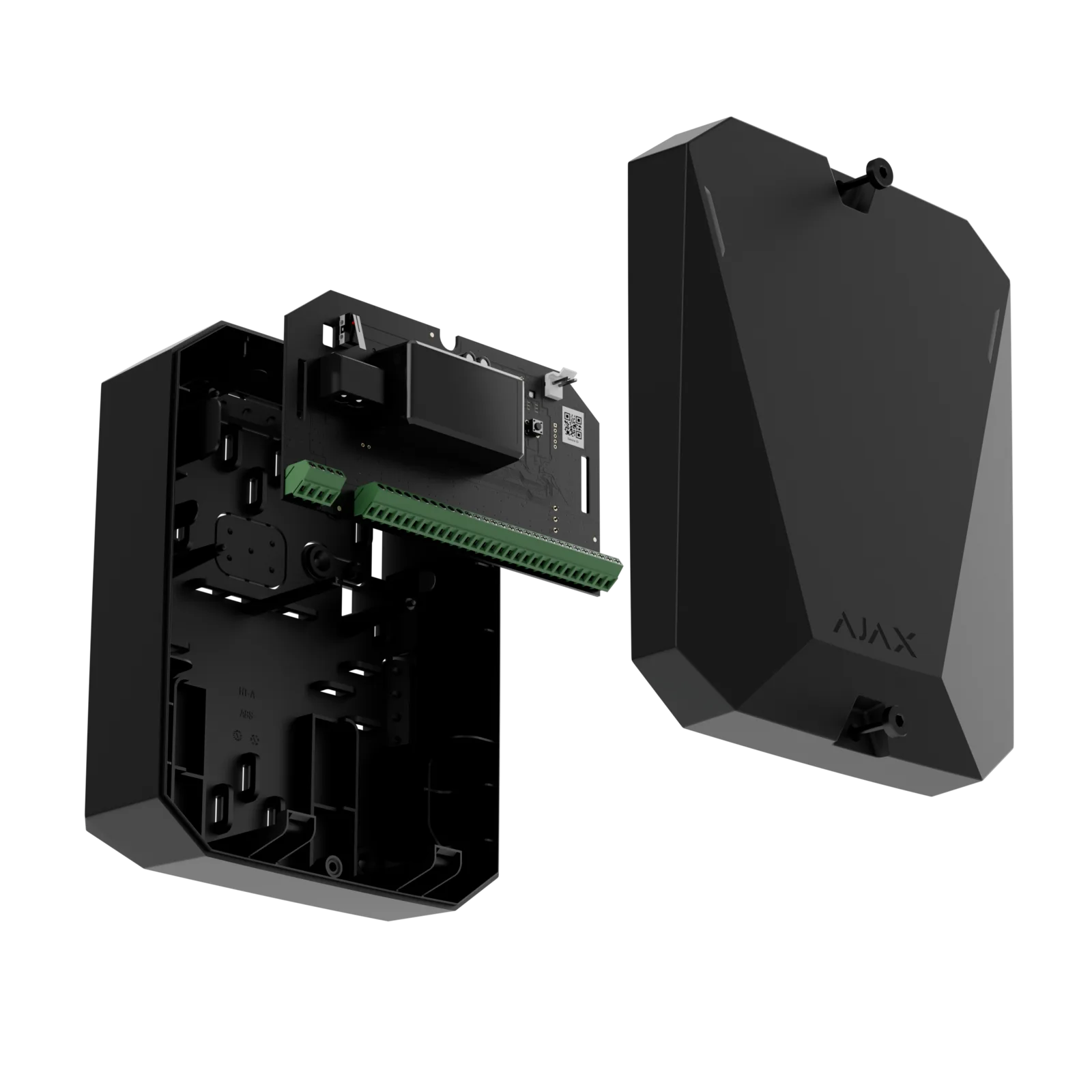

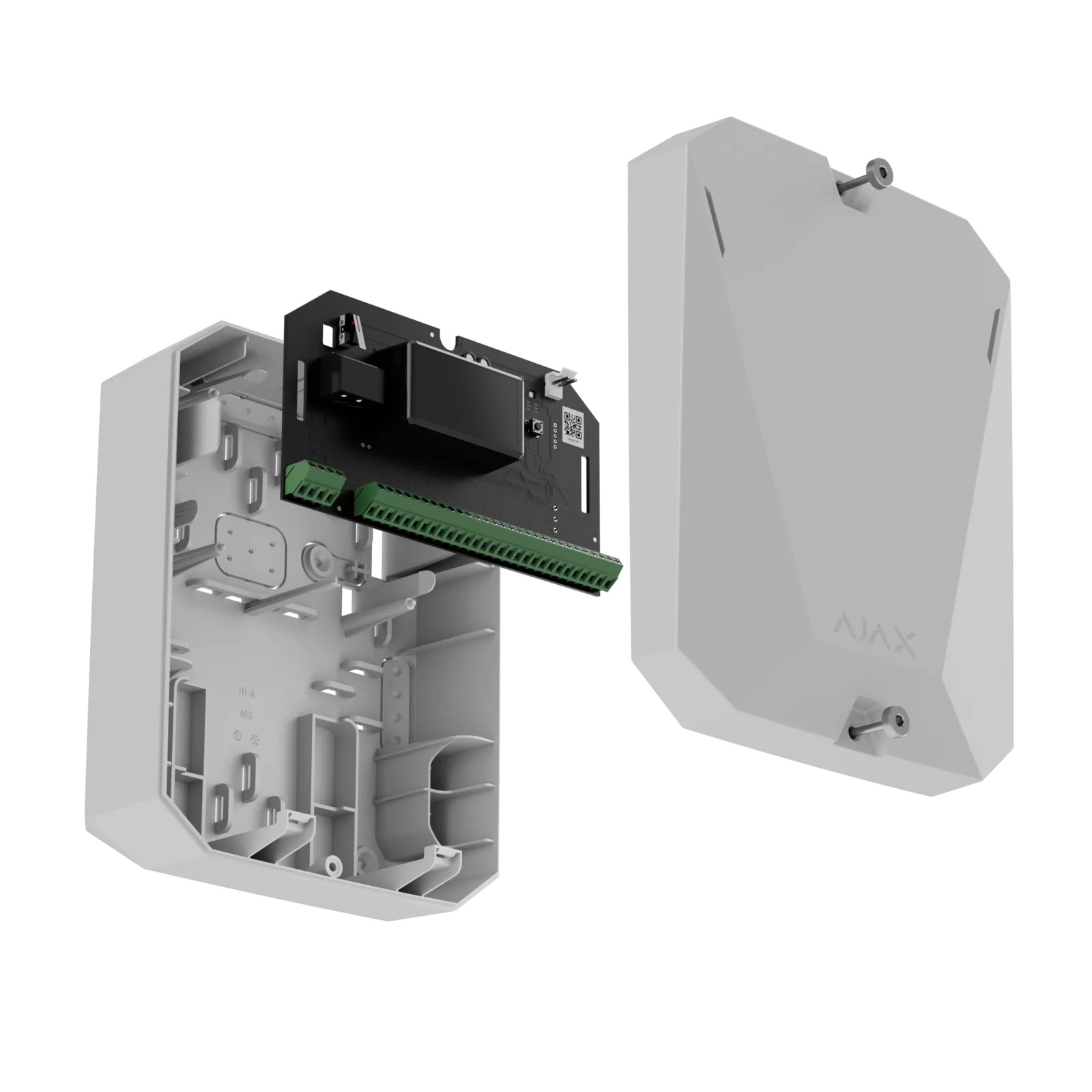

- Available in casing or board‑only versions
System Integration
Superior MultiTransmitter Fibra allows installers to integrate:
- PIR motion detectors
- IR barriers
- Gas and smoke sensors
- Float and level sensors
- Thermostats
- Panic and medical buttons
- Any third‑party NC/NO/EOL‑based device
Once connected, each device becomes fully addressable in the Ajax system:
- Assign event type and room
- Configure alarm behaviour
- Trigger automation scenarios
- Monitor device status and malfunctions
- Receive detailed notifications in real time
This enables hybrid systems that combine Ajax wireless devices with existing wired infrastructure.
Reliability & Supervision
Superior MultiTransmitter Fibra is engineered for high‑security installations:
- Encrypted Fibra communication with device authentication
- Communication loss detection within 3 seconds
- Instant detection of cable breaks or shorts (EOL/2EOL/3EOL)
- Dual tamper protection (lid + removal)
- Short‑circuit protection on power outputs
- Automatic self‑diagnostics with real‑time reporting
- Stable operation from –10°C to +40°C
- Up to 400 m cable length per zone
These features make it suitable for commercial, industrial, and mission‑critical environments.
Compliance
- EN 50131 Grade 3
- PD 6662:2017
- INCERT
- SSF
- NFA2P
- CE certified
Specifications
| Communication | Fibra wired communication technology, two‑way encrypted, up to 2,000 m range (U/UTP cat.5 24 AWG) |
| Zones | 18 wired zones, supports NC, NO, EOL, 2EOL, 3EOL |
| EOL Resistance | 1 kΩ to 30 kΩ with 100 Ω increments, automatic EOL scanning |
| Event Types | Over 10 types including intrusion, fire, panic, medical, gas, malfunction, tamper |
| Operating Modes | Pulse or bistable |
| Cable Length | Up to 400 m per zone (0.22 mm² copper conductor) |
| Power Supply (Module) | 100–240 V AC mains |
| Backup Power | 12 V DC battery up to 7 Ah (not included), 30 h charge cycle |
| Power Outputs for Devices | 4 × 10.5–15 V DC outputs (1 fire, 3 general), up to 1 A total |
| Tamper Protection | Two tampers (lid + removal), support for Ajax Case tamper board, spoofing protection, short‑circuit detection |
| Communication Loss Detection | Within 3 seconds (Fibra) |
| Operating Temperature | -10°C to +40°C |
| Operating Humidity | Up to 75% |
| Protection Class | IP40 |
| Dimensions (Casing Version) | 197 × 240 × 100 mm |
| Dimensions (Board Only) | 185 × 99 × 38 mm |
| Weight | 795 g (black), 867 g (white), 221 g (board only) |
| Compatibility | Superior Hub Hybrid (2G/4G), future Fibra‑compatible range extenders |
| Compliance | EN 50131 Grade 3, PD 6662:2017, INCERT, SSF, NFA2P |
| Complete Set | Module, casing (if applicable), power cable, terminal block, 12 V battery cable, installation kit, quick start guide |
| Warranty | 24 months |
