Case A Fibra (106)
A compact one‑slot wired casing for secure installation of Ajax Fibra devices, featuring tamper protection, cable management, and professional mounting aids.
Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.
Available Colours

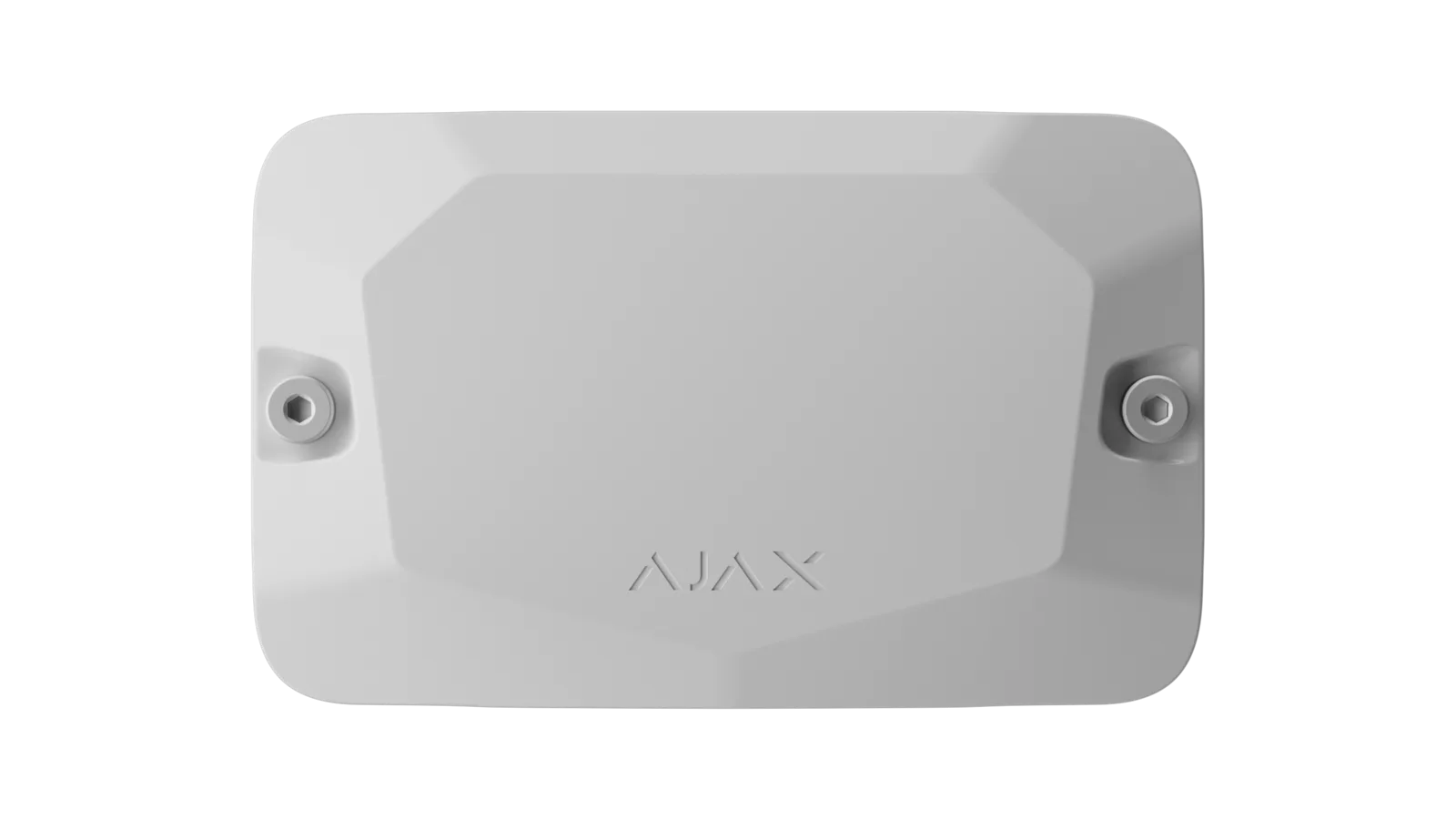

Case A Fibra (106)
Case A (106) is a compact, one‑slot protective casing designed for secure installation of Ajax Fibra wired devices. Built for professional environments, it provides tamper protection, structured cable routing, and precise mounting aids to ensure clean, reliable, and compliant installations. Its durable construction and Grade 3 certification make it suitable for high‑security applications.

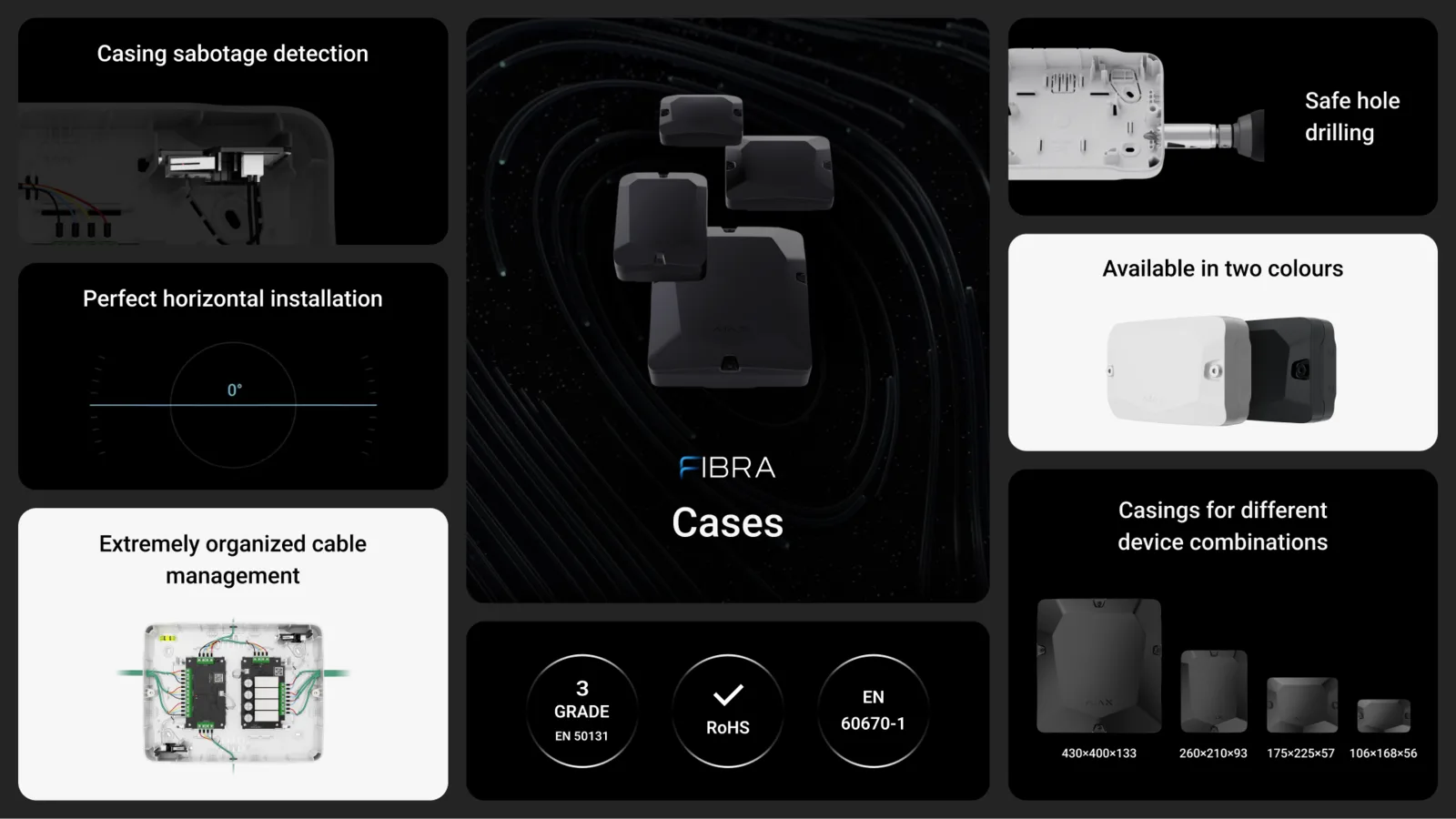

Key Features
- One‑slot casing for a single Ajax Fibra device
- Compatible with Superior LineSplit, LineProtect, MultiRelay, and MultiTransmitter IO (4×4)
- Pre‑installed tamper board for lid‑open and detachment detection
- Plastic latches for fast device installation and removal
- Cable fasteners and perforated routing zones for clean wiring
- Stoppers for safe drilling and stable mounting
- Built‑in bubble level for accurate alignment
- Lid and device can be rotated 180° for flexible installation
- Non‑falling screws to prevent accidental drops during assembly
How It Works
Case A (106) houses a single Ajax Fibra device, securing it with internal latches and protecting it with a tamper board that detects lid opening or removal from the surface. Cable routing is simplified through perforated entry points and fastening guides, while stoppers prevent drill bits from damaging the installed device. The casing ensures a clean, professional installation that meets Grade 3 security requirements.
Installation & Placement
- Designed for indoor installations
- Mount using the integrated bubble level and angled mounting holes
- Use perforated zones for Ø16 mm or Ø20 mm cable entries
- Secure the device using plastic latches
- Rotate the lid or device 180° if required for cable alignment

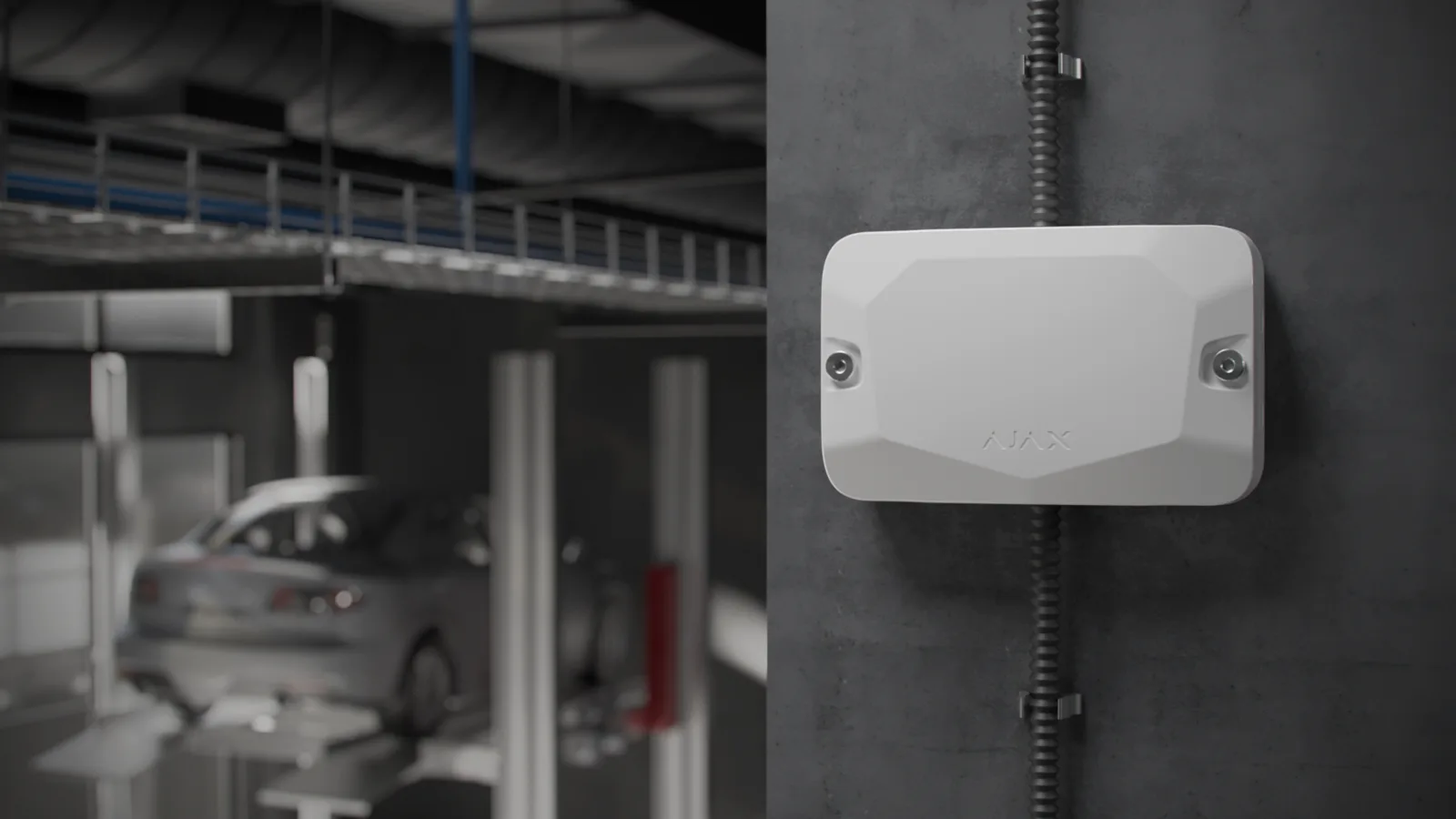

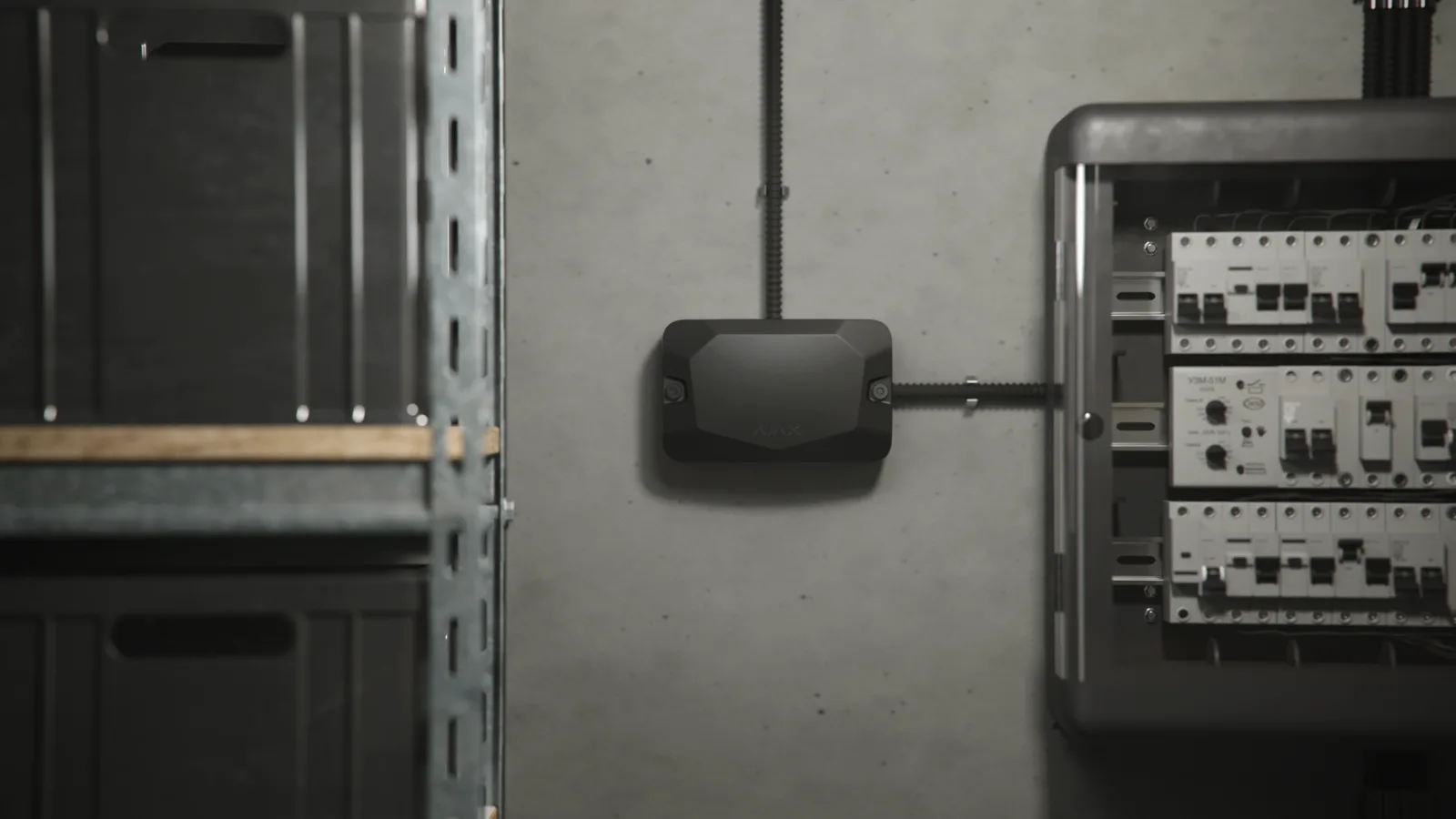

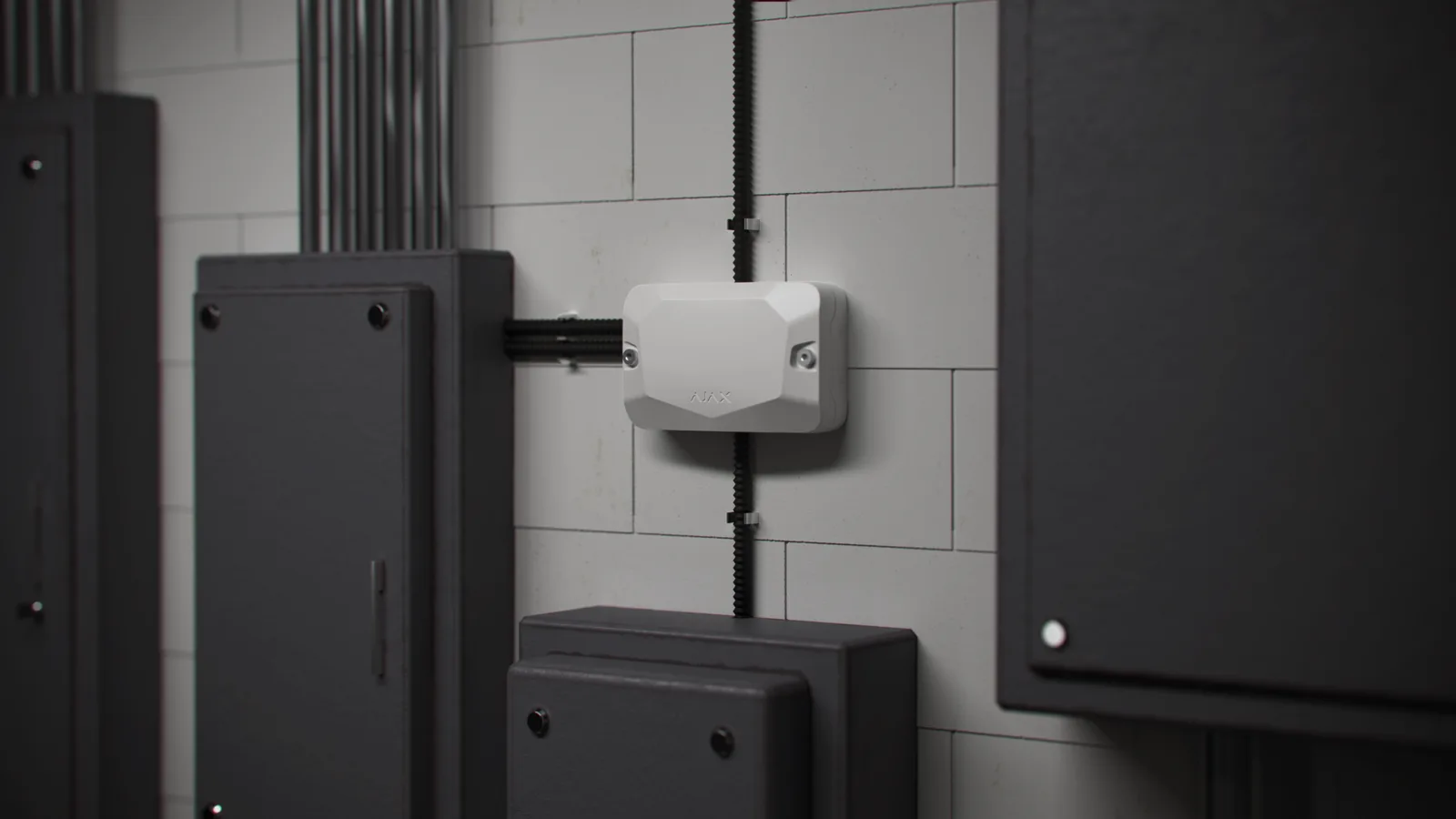

- Suitable for:
- Control cabinets
- Technical rooms
- Structured wiring enclosures
- High‑security commercial sites
Reliability & Supervision
- Tamper board detects lid opening and casing detachment
- Durable ABS construction for long‑term stability
- Multiple‑use design allows reinstallation after reconfiguration
- IP20 protection for indoor electrical environments
- Grade 3 compliance ensures suitability for high‑risk facilities
Compliance
- EN 50131 Grade 3
- EN 60670‑1
- PD 6662:2017
- INCERT certified
- Operating humidity up to 75%
- Operating temperature from −10 °C to +40 °C
Specifications
| Product Type | One‑slot protective casing for Ajax Fibra devices |
| Compatible Devices | Superior LineSplit Fibra, Superior LineProtect Fibra, Superior MultiRelay Fibra, Superior MultiTransmitter IO (4×4) Fibra |
| Slots | 1 device slot (use Case B/C/D for more devices) |
| Mounting Features | Plastic latches, non‑falling screws, bubble level, angled mounting holes |
| Cable Management | Perforated zones, cable fasteners, stoppers for drilling support |
| Lid Features | Lid can be rotated 180°, latches hold lid during installation |
| Tamper Protection | Tamper board included for lid‑open and detachment detection |
| Installation Environment | Indoor use only |
| Dimensions | 106 × 168 × 56 mm |
| Weight | 186 g |
| Operating Temperature | −10 °C to +40 °C |
| Operating Humidity | Up to 75% |
| Protection Class | IP20 |

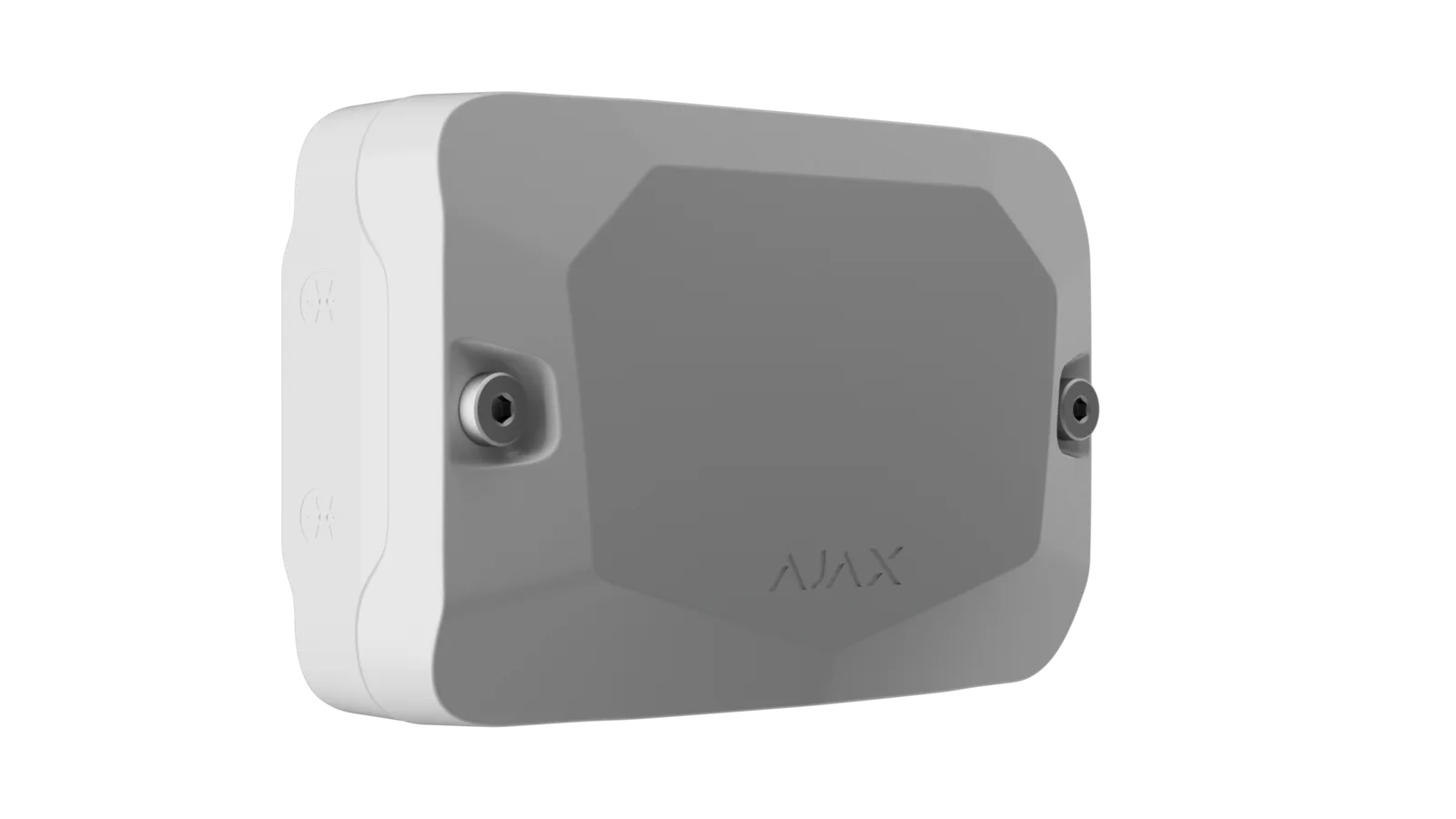

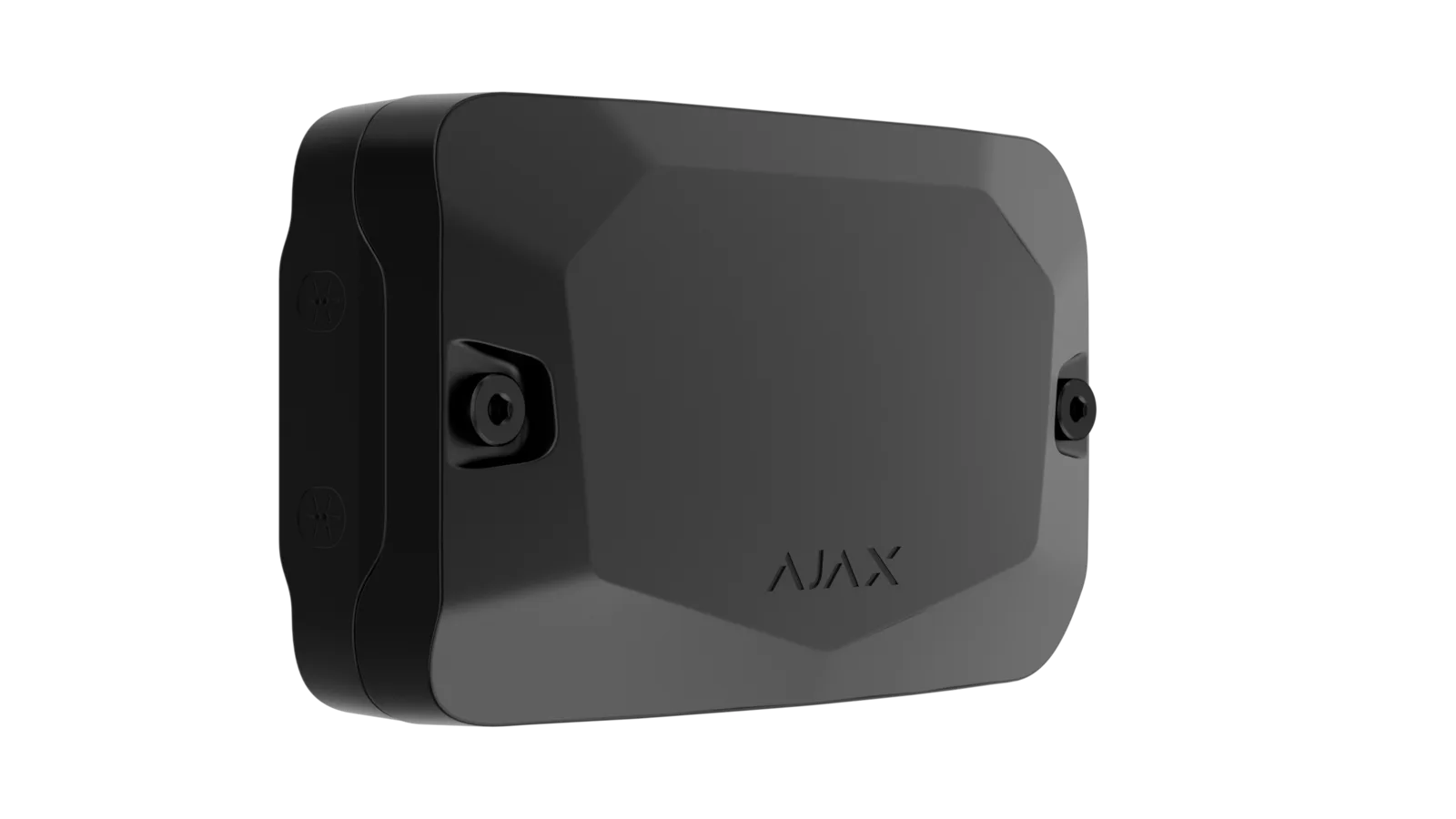

| Colours | Black, White |
| Complete Set | Case A (106), tamper board, installation kit, quick start guide |
| Compliance | EN 50131 Grade 3, EN 60670‑1, PD 6662:2017, INCERT |
