Case C Fibra (260)

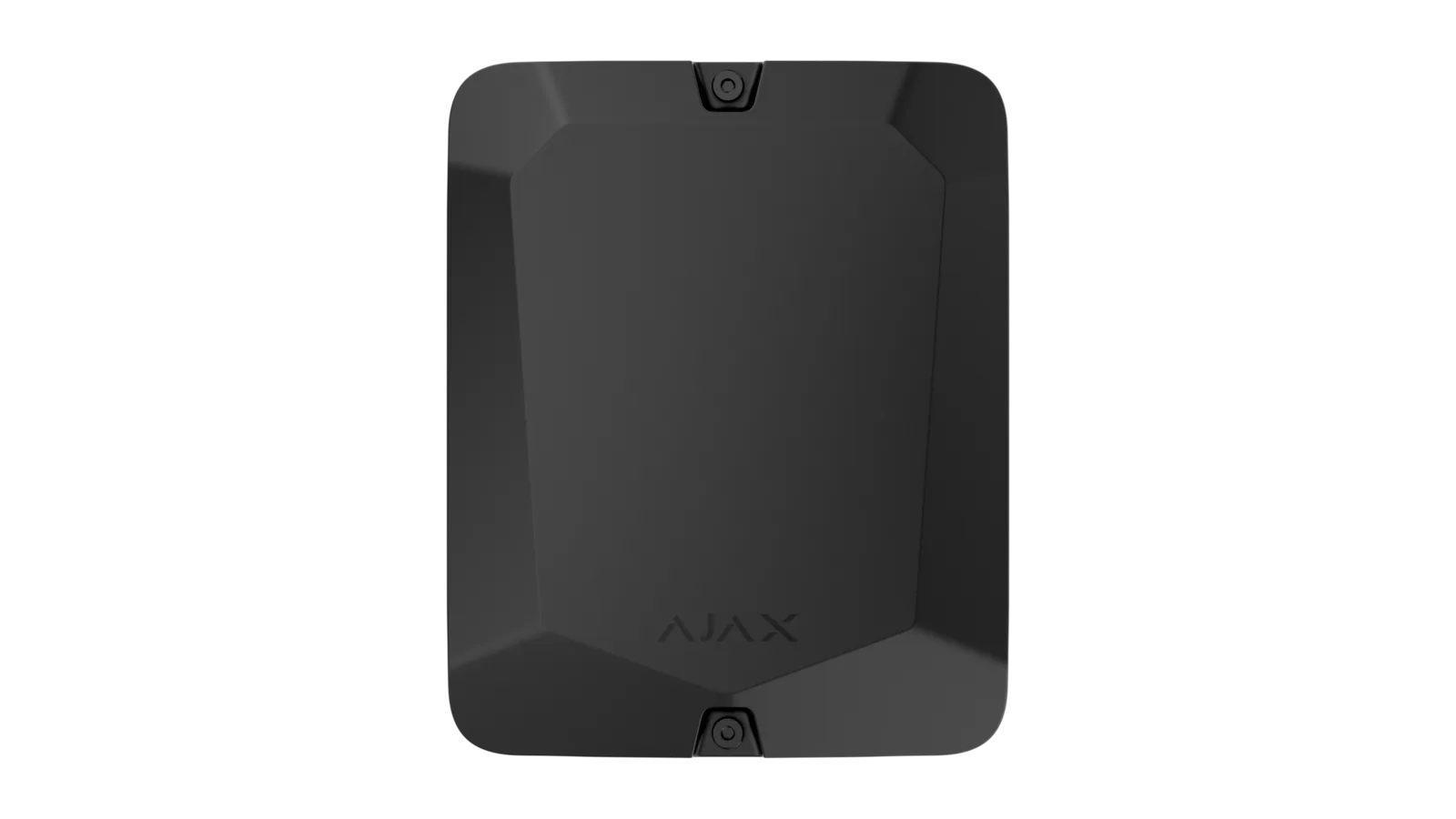

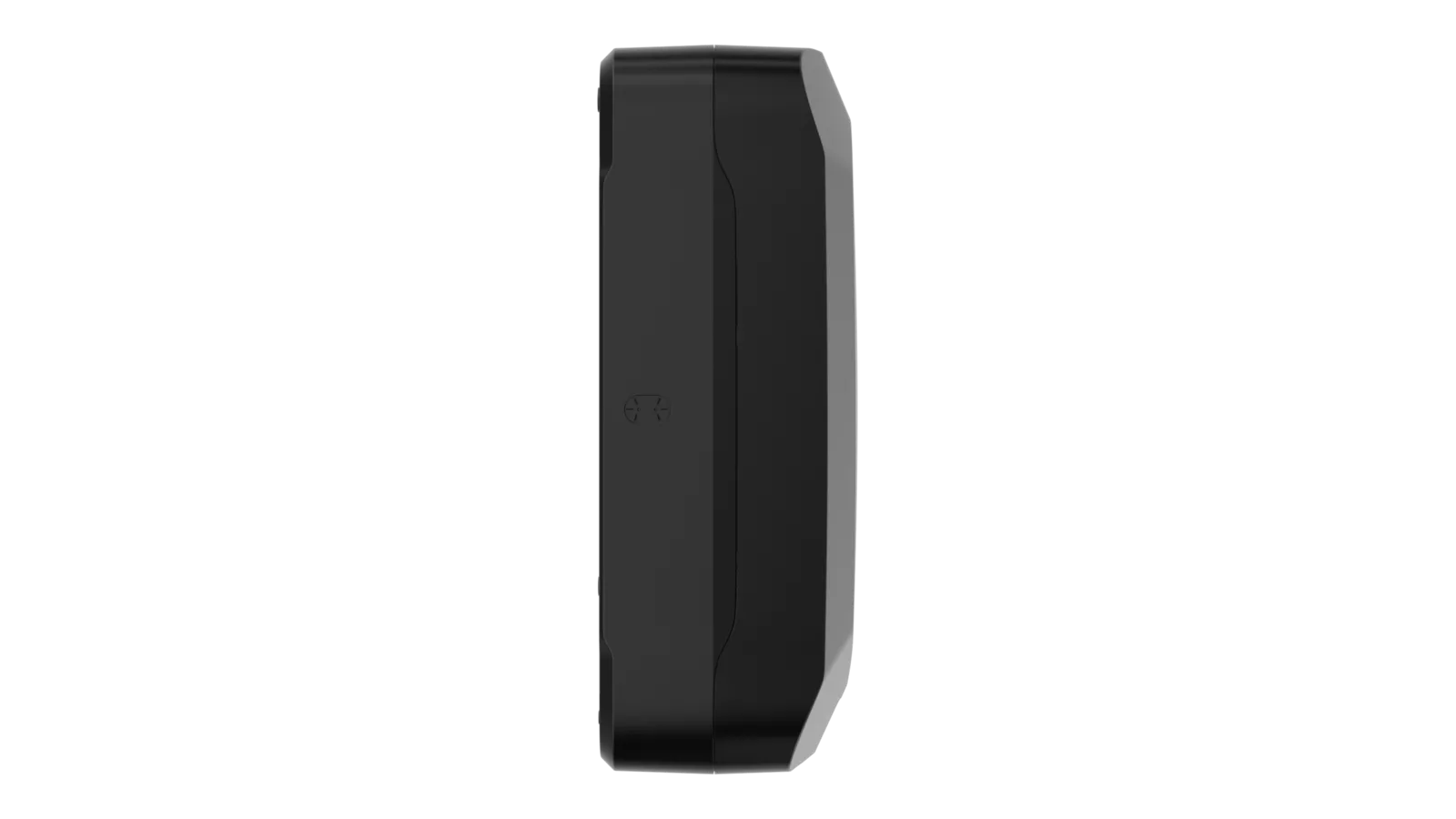

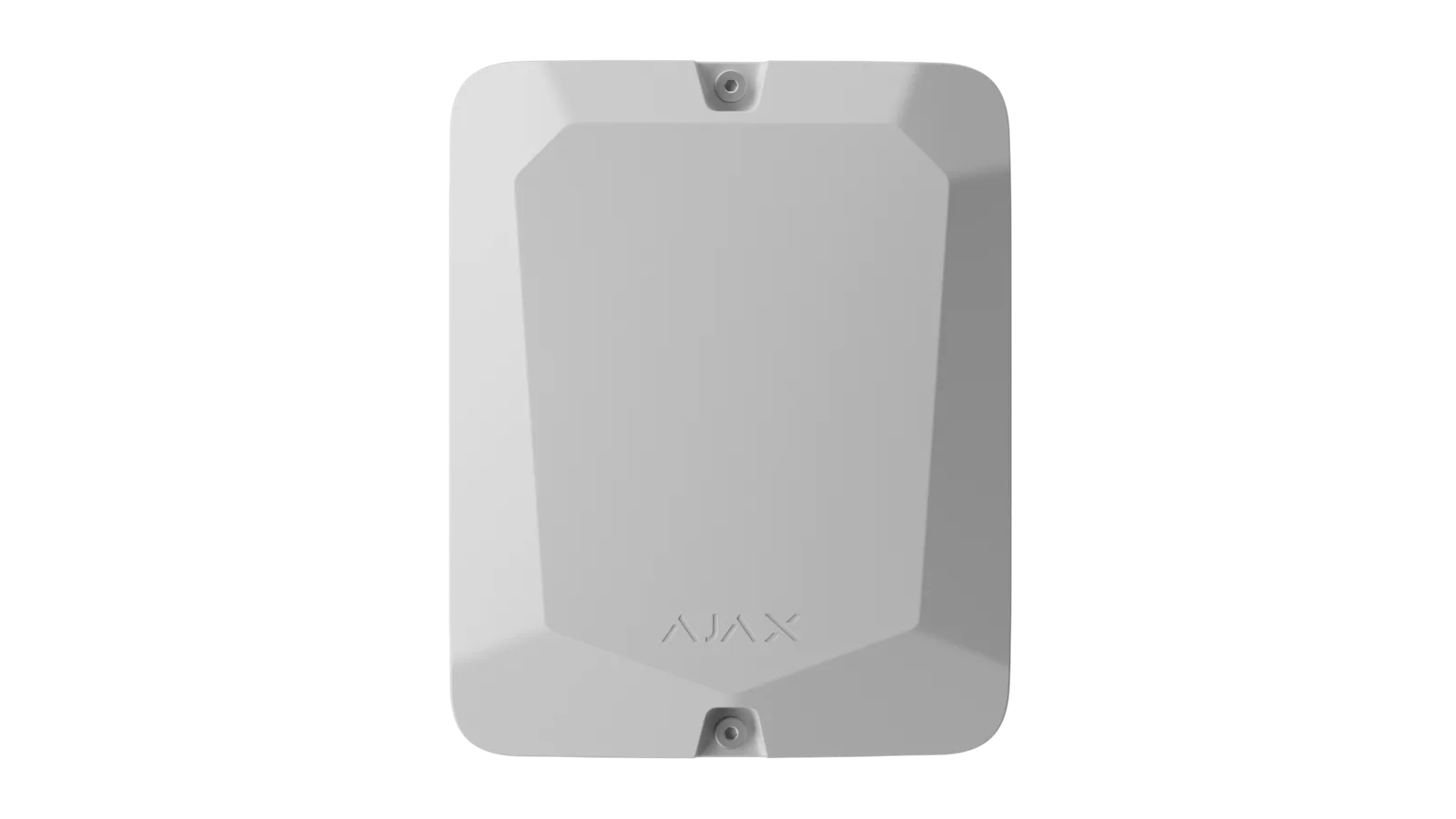

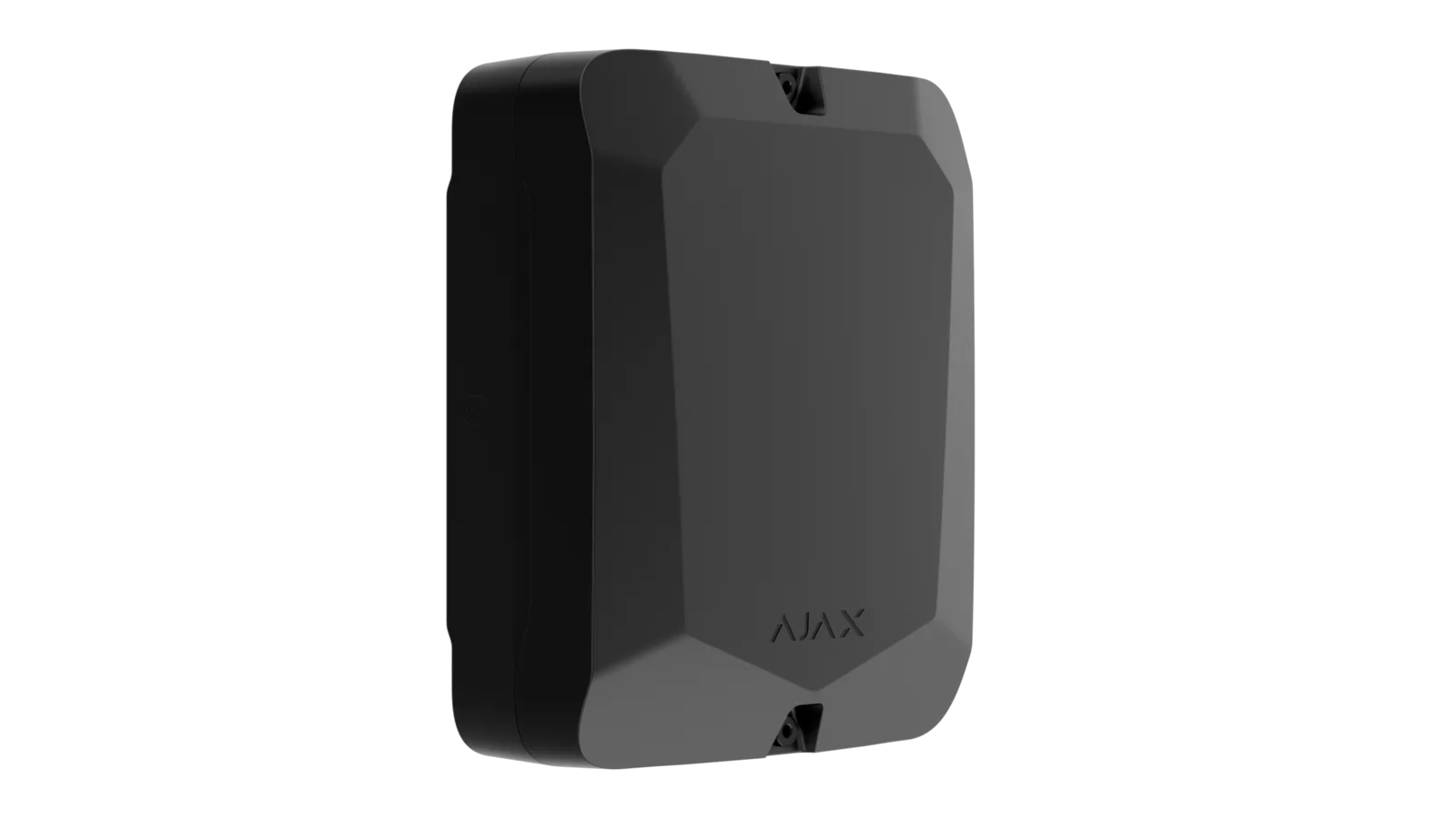

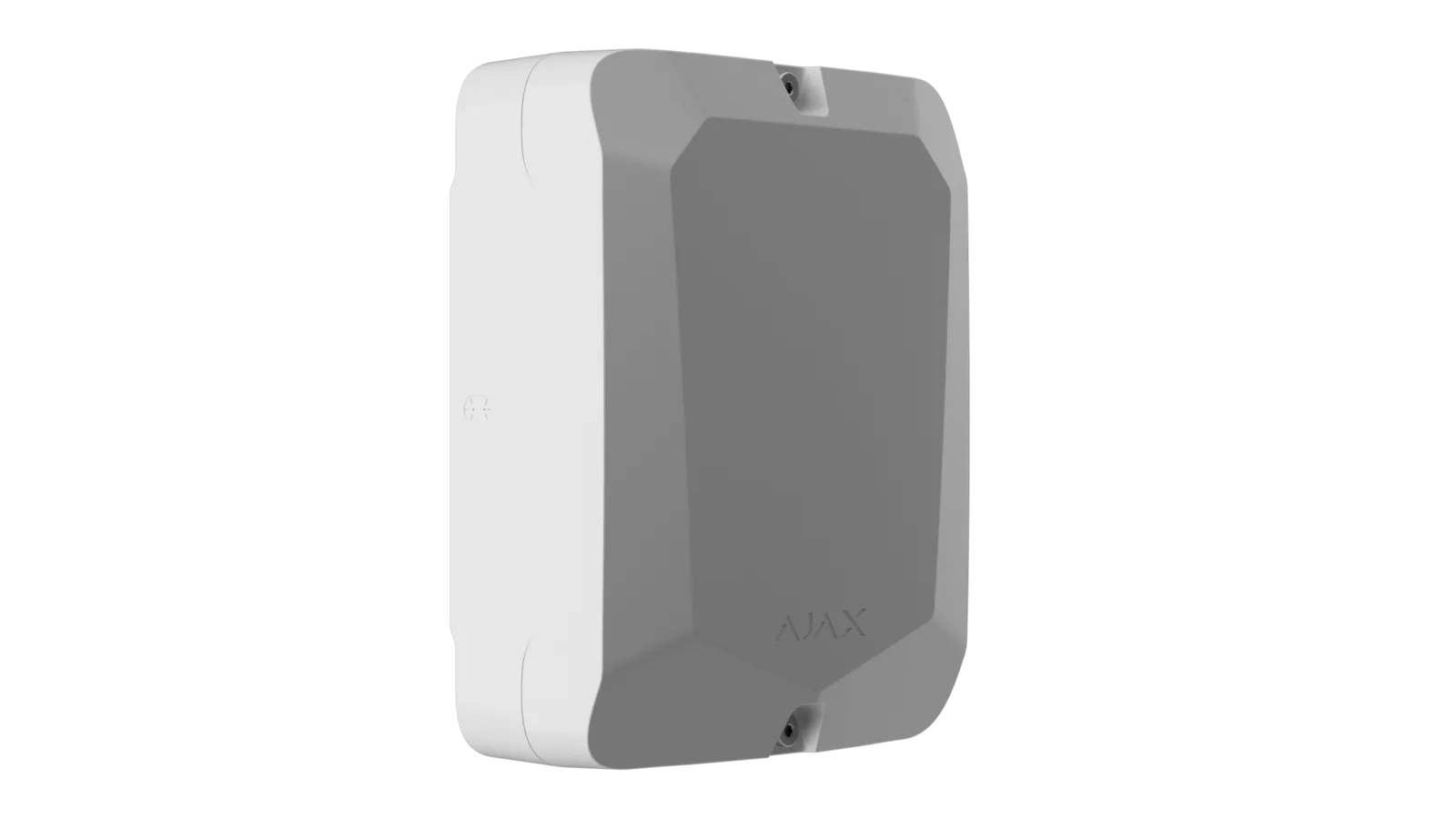

Case C (260) is a secure protective casing designed specifically for LineSupply Fibra power modules and a 7Ah backup battery. It provides a professional‑grade installation environment with tamper protection, structured cable routing, and robust mounting features. With Grade 3 compliance and durable construction, it is ideal for high‑security commercial and industrial sites requiring stable power delivery and reliable backup.

Key Features

• Dedicated casing for LineSupply (45 W) and LineSupply (75 W) Fibra
• Integrated battery holders for a 7Ah backup battery (not included)
• Pre‑installed tamper board for lid‑open and detachment detection
• Plastic rails for secure module installation and easy removal
• Perforated cable entry zones for Ø20 mm or Ø32 mm drilling
• Cable fasteners and stoppers for clean, safe wiring
• Built‑in bubble level for precise horizontal alignment
• Lid latches and non‑falling screws for safe, error‑free installation
• Multiple‑use design suitable for reconfiguration and maintenance

How It Works

Case C (260) houses a single LineSupply Fibra module and a 7Ah backup battery. The module slides into plastic rails for secure positioning, while the battery is held in place with dedicated brackets to prevent movement. A tamper board connects to the LineSupply module to detect lid opening or casing removal. Cable routing is simplified through perforated entry points and fastening guides, while drilling stoppers prevent accidental damage to the installed hardware.

Installation & Placement

• Designed for indoor installations
• Mount using the integrated bubble level and angled mounting holes
• Use perforated zones for Ø20 mm or Ø32 mm cable entries
• Slide LineSupply Fibra into the plastic rails for secure mounting
• Install a 7Ah battery using the built‑in holders

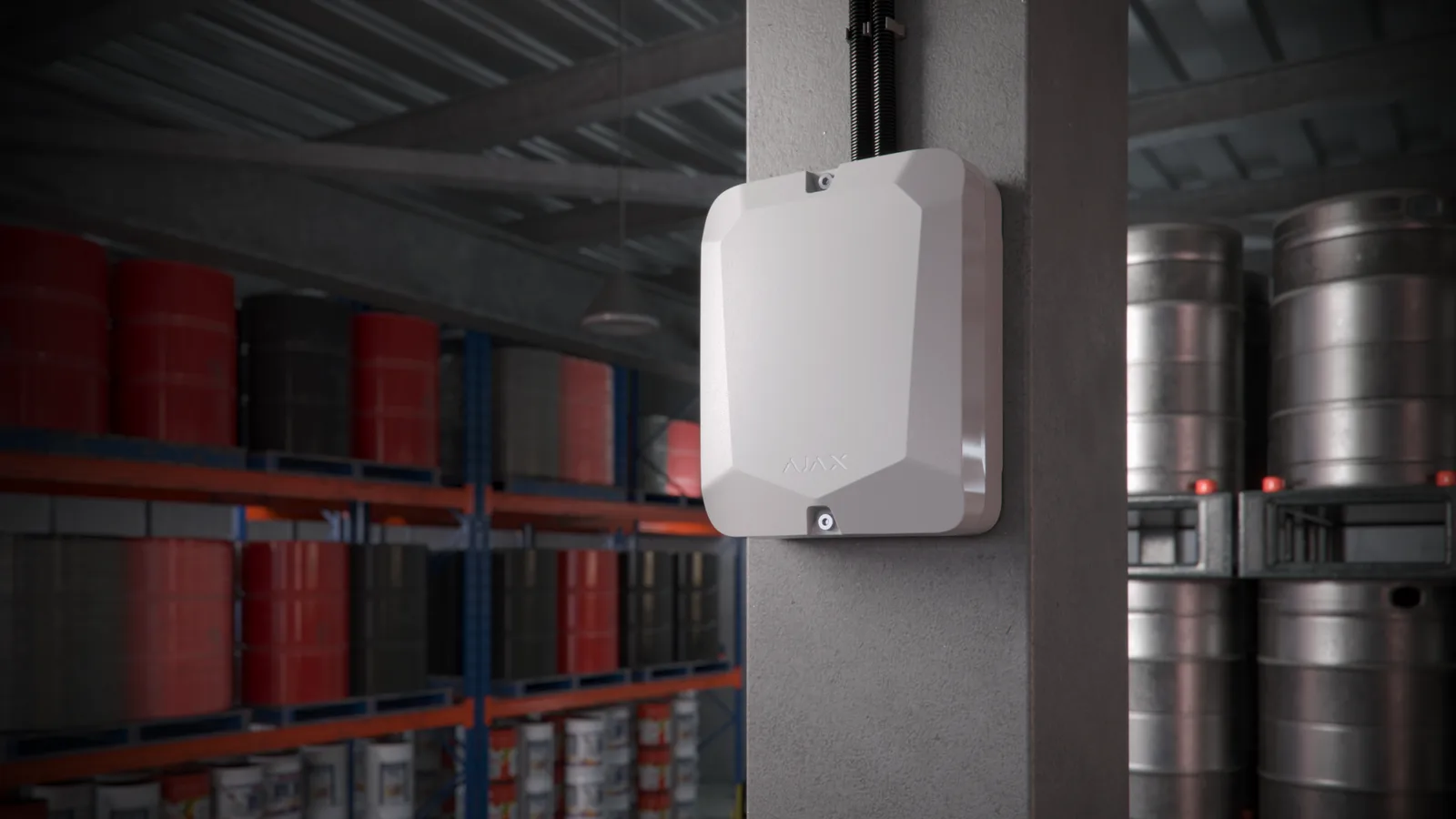

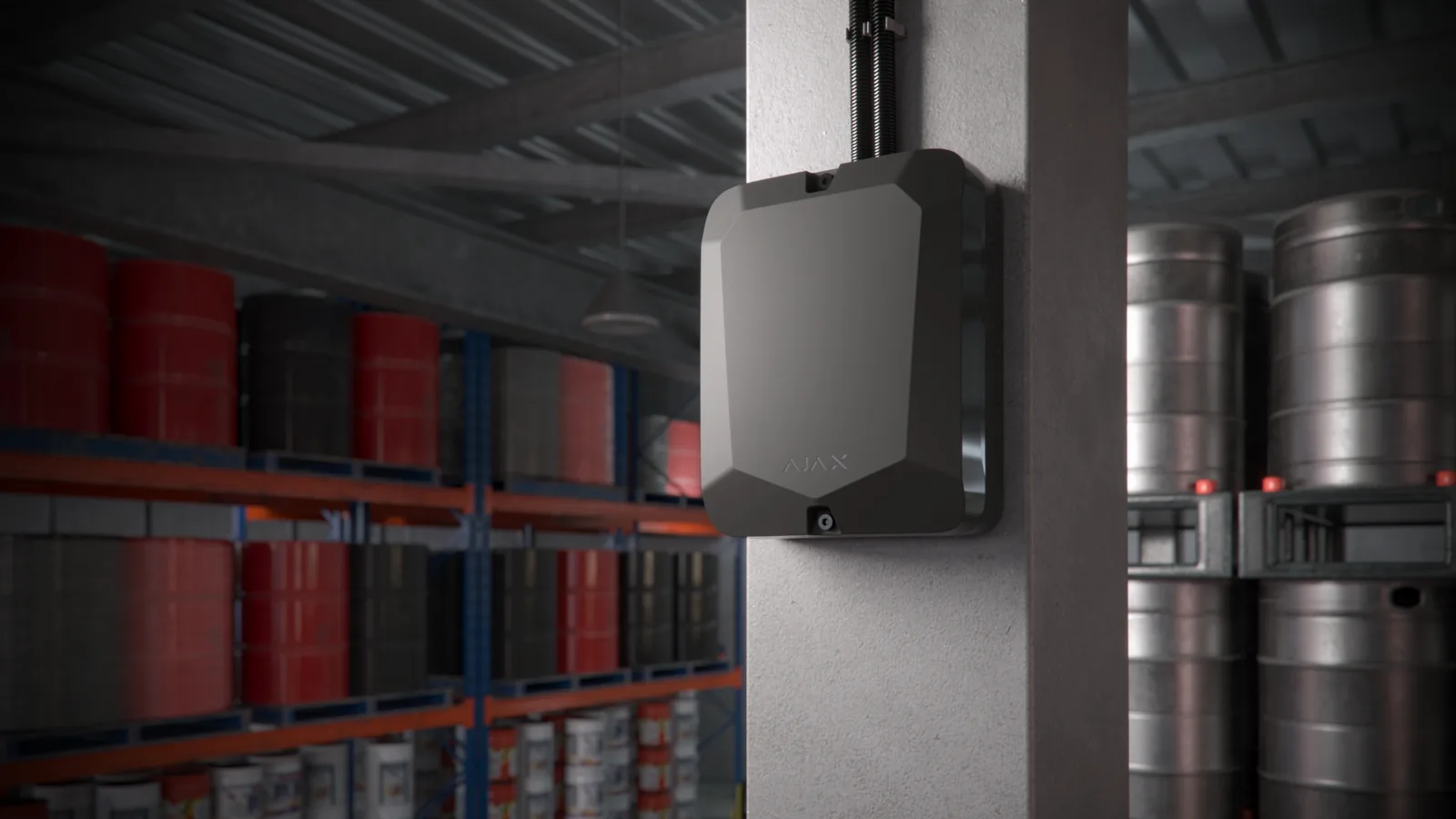

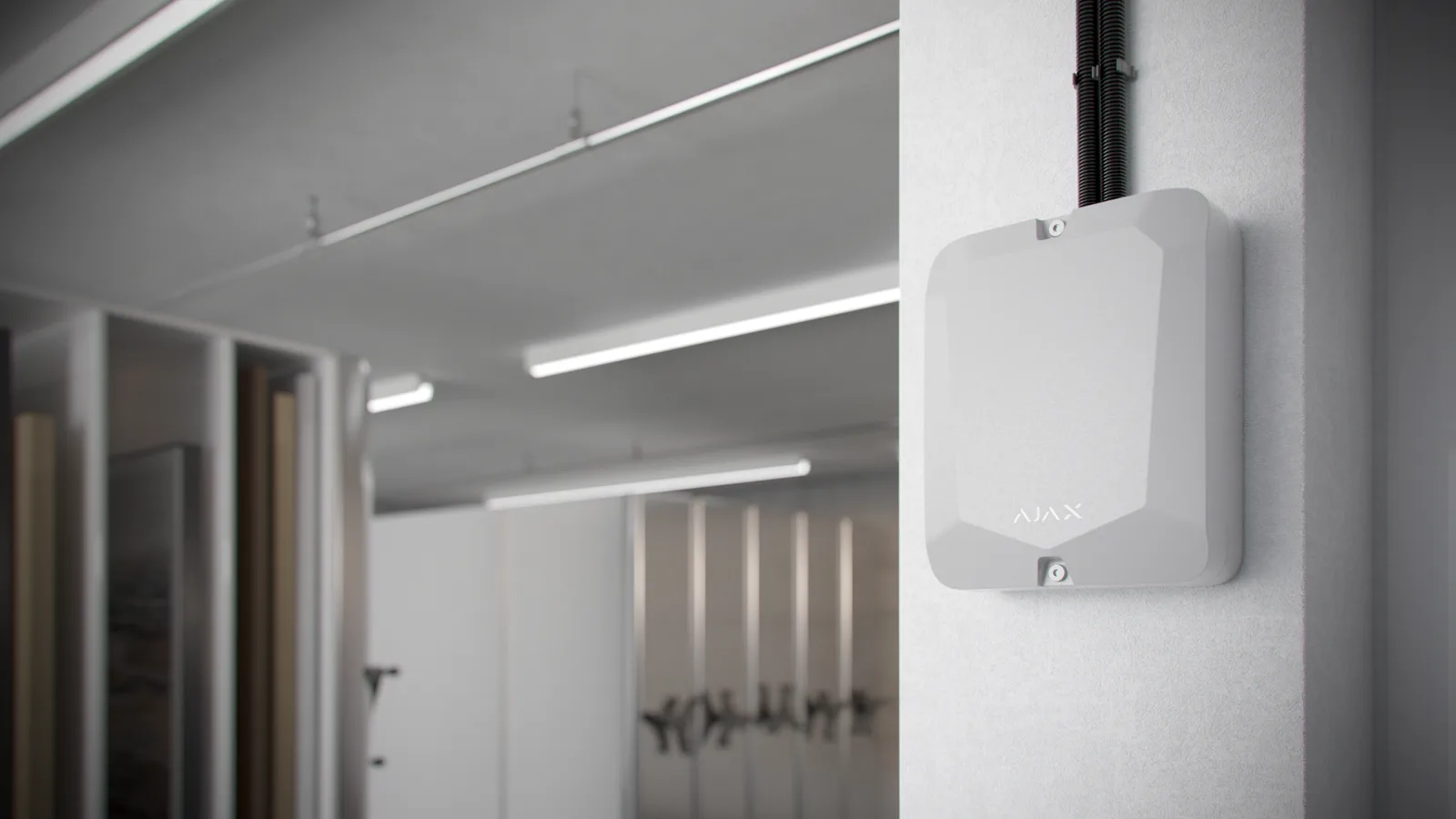

• Suitable for:
  • Power distribution cabinets
  • Technical rooms
  • Industrial and commercial security infrastructure
  • High‑security Grade 3 installations

Reliability & Supervision

• Tamper detection for lid opening and casing detachment
• Durable ABS construction for long‑term stability
• Battery retention system prevents accidental dislodgement
• IP20 protection for indoor electrical environments
• Grade 3 compliance ensures suitability for high‑risk facilities

Compliance

• EN 50131 Grade 3
• PD 6662:2017
• INCERT certified
• Operating humidity up to 75%
• Operating temperature from −10 °C to +40 °C
