Curtain Outdoor Jeweller
A wireless dual-technology curtain motion detector for outdoor and indoor perimeter protection with pet immunity and advanced false alarm filtering.
Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.
Available Colours
Curtain Outdoor Jeweller

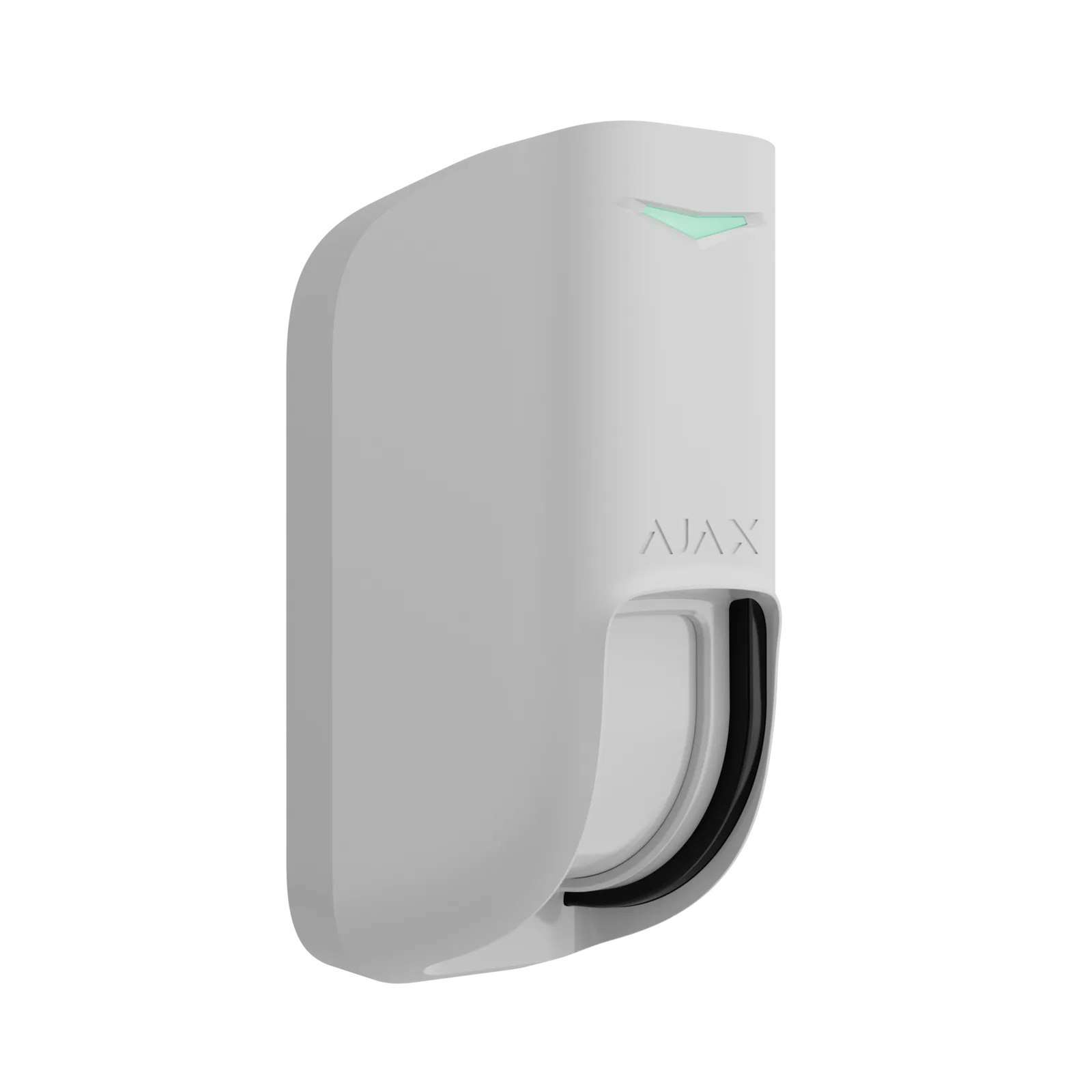

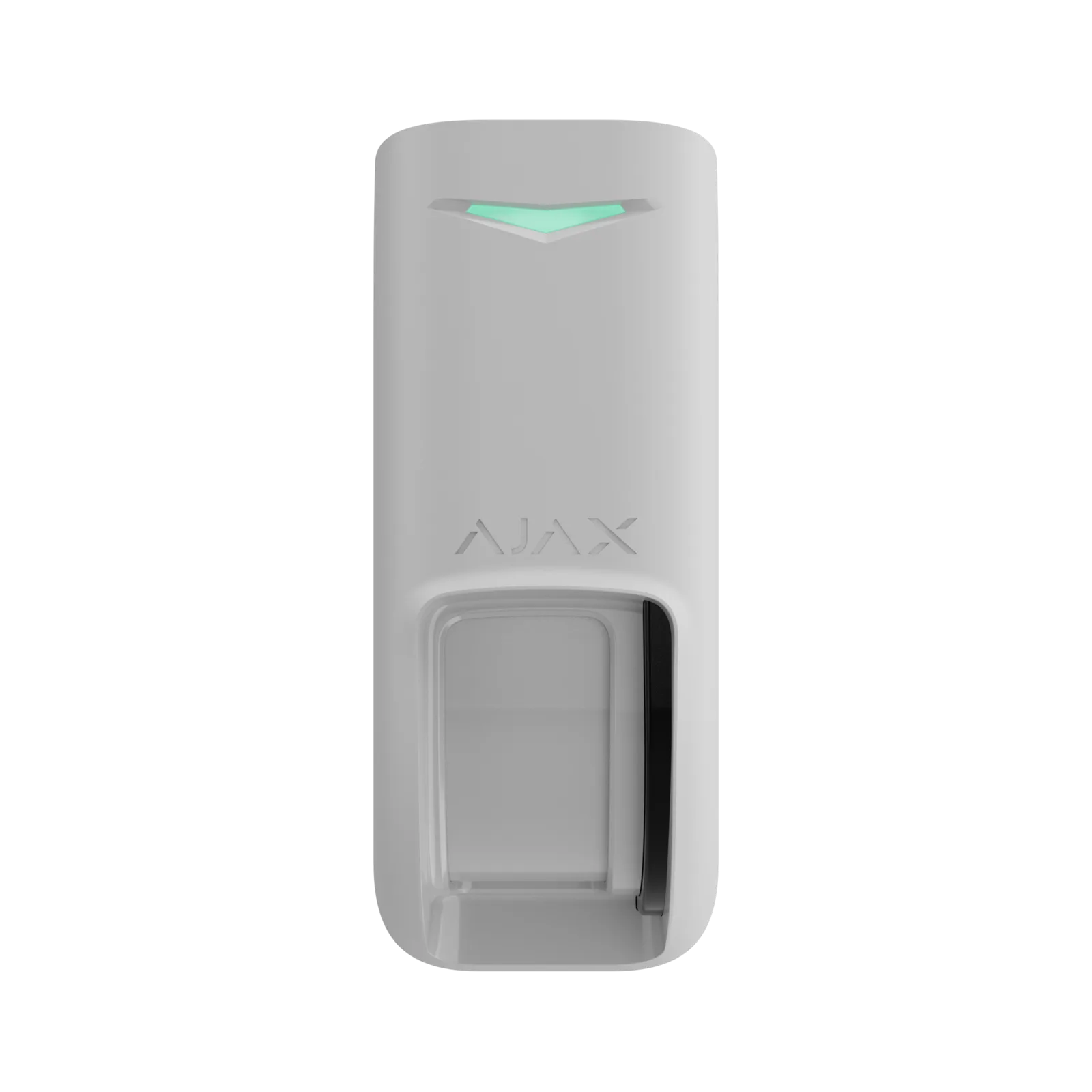

The Ajax Curtain Outdoor Jeweller is a wireless dual‑technology curtain motion detector designed for precise perimeter protection in both outdoor and indoor environments. With two PIR sensors, a K‑band microwave sensor, and an adjustable detection range up to 12 m, it delivers highly targeted coverage of doors, windows, fences, and narrow access paths while maintaining a near‑zero chance of false alarms.
Its unique optical system forms a narrow “curtain” of detection, with a vertical viewing angle of up to 85° and a horizontal angle of 8°. Pet immunity, temperature compensation, and SmartDetect algorithms ensure reliable detection of human movement while ignoring pets, vegetation, and thermal noise.
Key Features
- Wireless dual‑technology curtain detector for outdoor and indoor use
- Two PIR sensors + K‑band microwave sensor for advanced false alarm filtering
- Adjustable detection range up to 8–12 m via enclosure slider
- Vertical viewing angle up to 85°, horizontal 8°
- Pet immunity mode for animals up to 100 cm in height
- Jeweller & Wings radio communication with up to 1,700 m range (open space)
- IP55‑rated enclosure for harsh outdoor conditions
- Up to 3 years battery life on pre‑installed CR123A cells
- Anti‑masking, tamper, and accelerometer for sabotage protection
How It Works
Curtain Outdoor Jeweller creates a narrow, elongated detection zone that acts as a virtual barrier along doors, windows, fences, or building facades. Two PIR sensors monitor infrared changes in the protected area, while a K‑band microwave sensor verifies motion events to filter out thermal interference and environmental noise.
The detector’s range is adjusted mechanically via a slider on the enclosure, and sensitivity is configured in Ajax apps. In regular mode, any motion in the detection zone triggers an alarm; in pet immunity mode, the detector ignores animals up to 100 cm tall while still detecting human movement. Jeweller and Wings protocols provide encrypted, two‑way communication with the hub, including firmware updates and status supervision.
Installation & Placement
- Designed for outdoor and indoor perimeter protection
- Recommended installation height: 2.4 m (regular mode) or 1 m (pet immunity mode)
- Mount using SmartBracket, the included angle mount, or a third‑party bracket

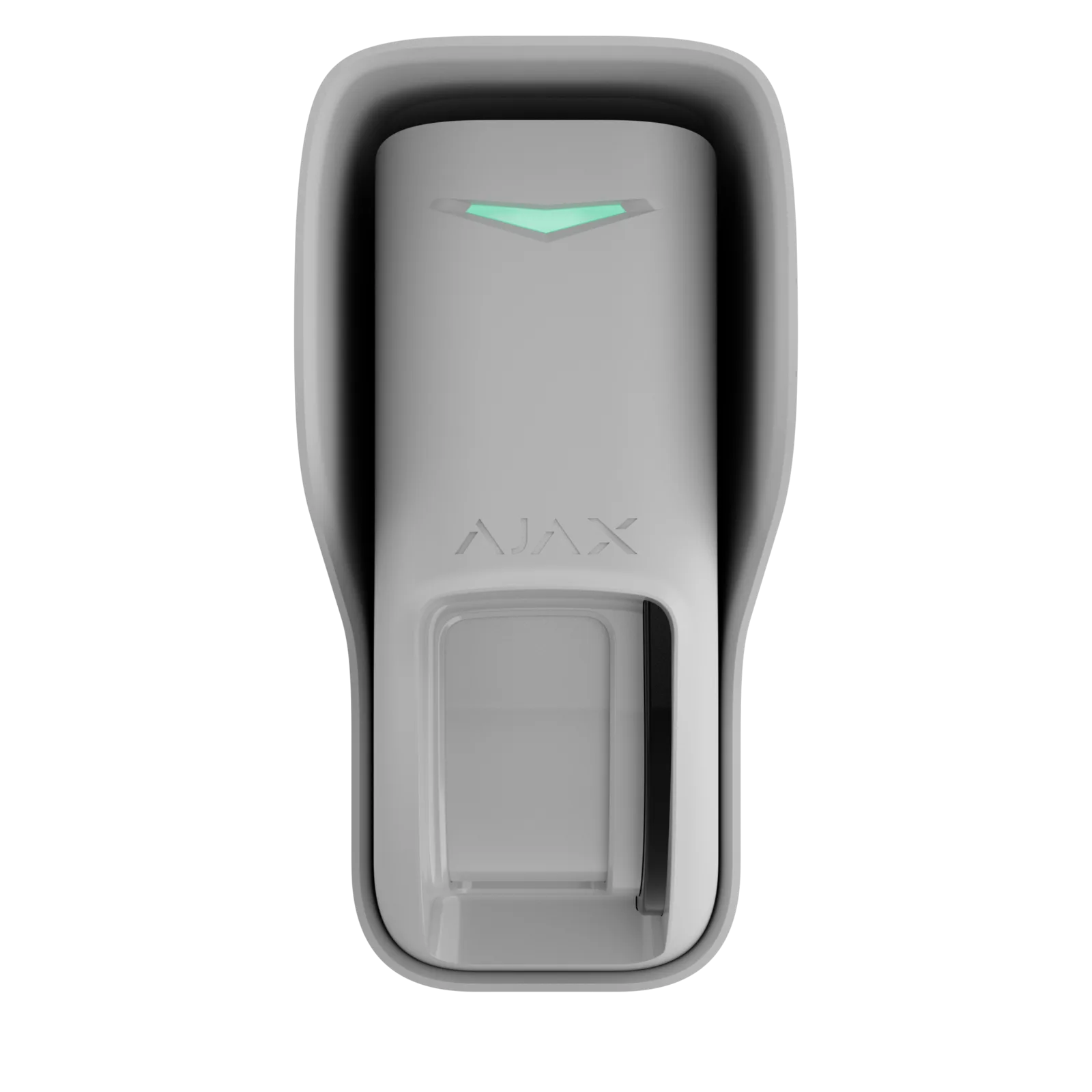

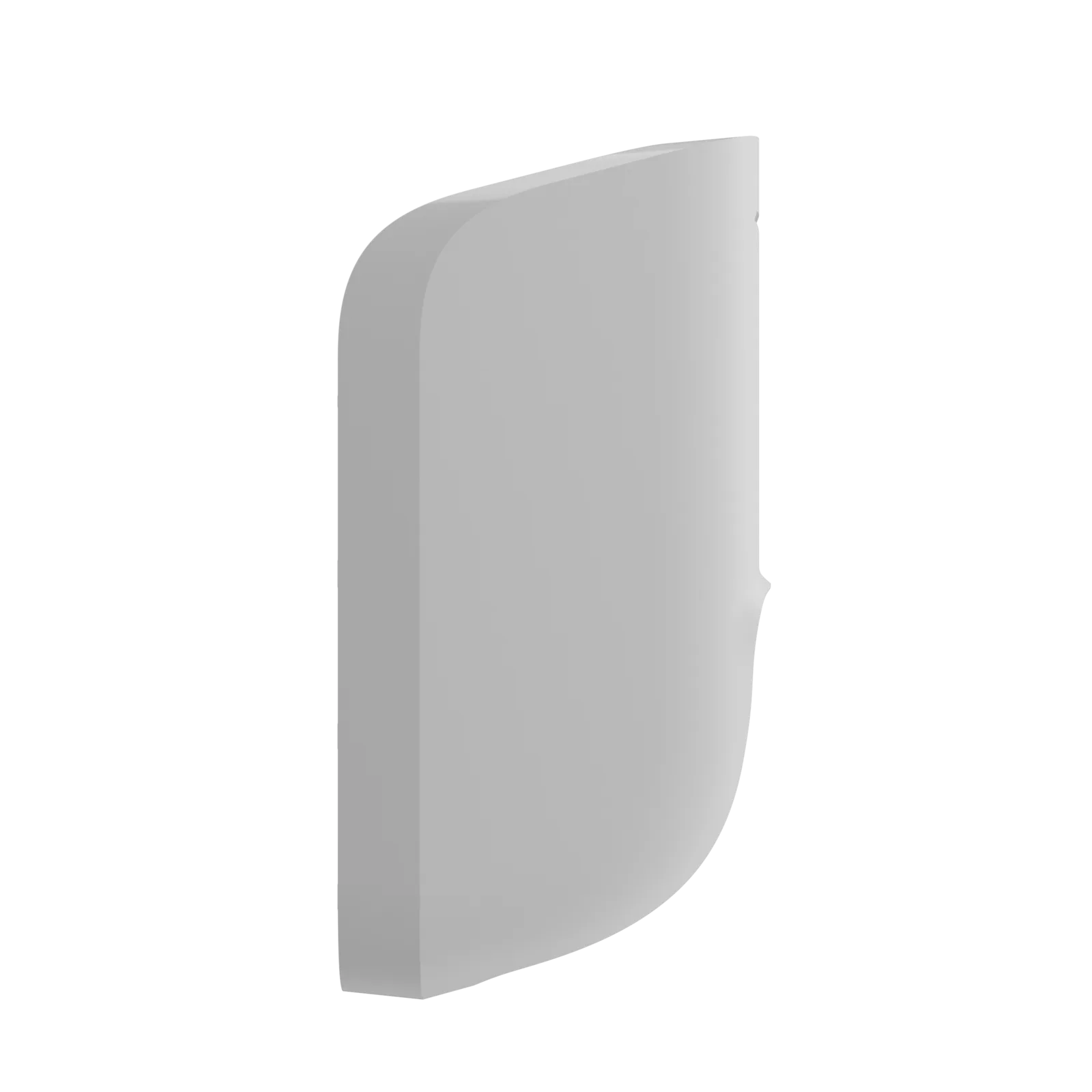

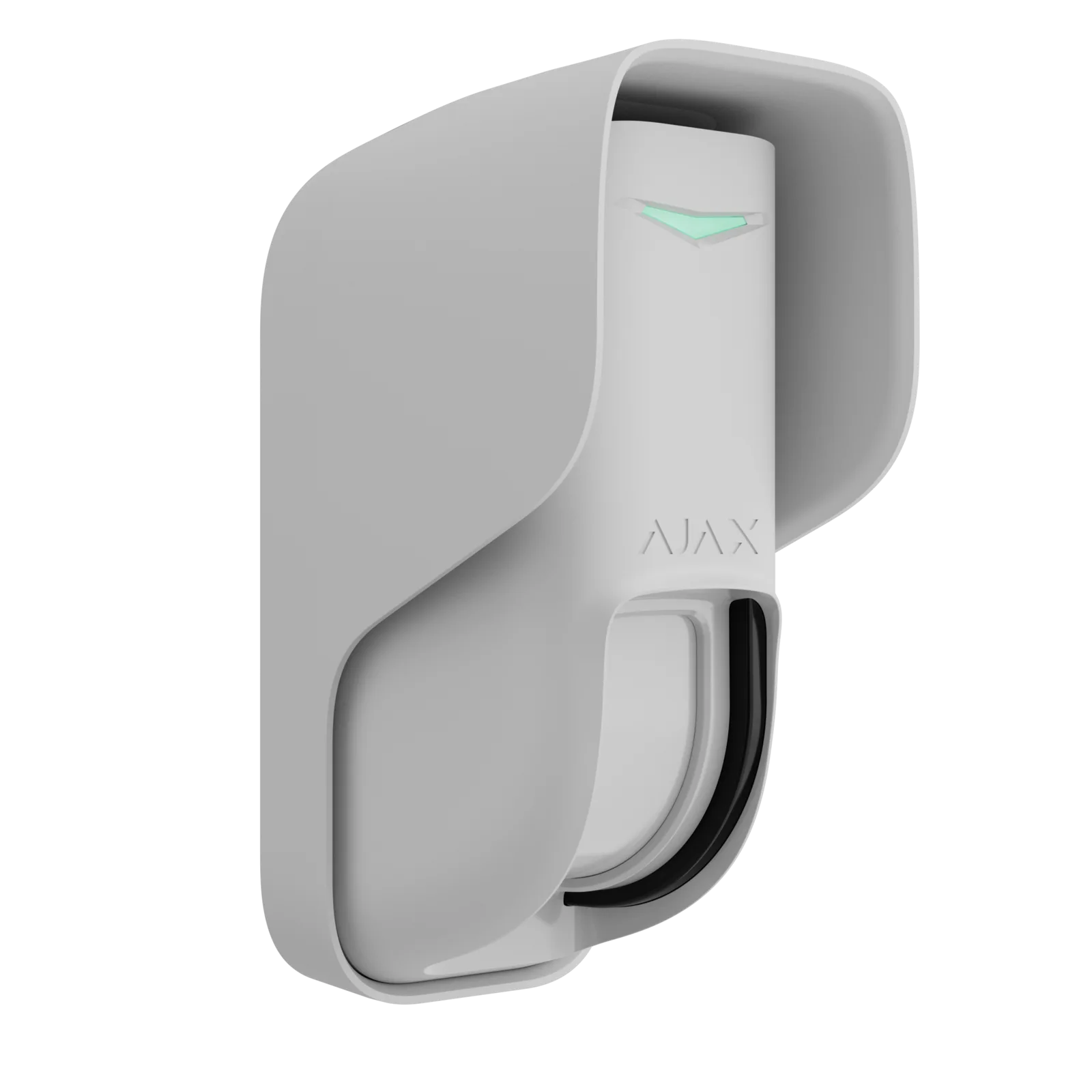

- Hood included to protect masking sensors from rain and snow

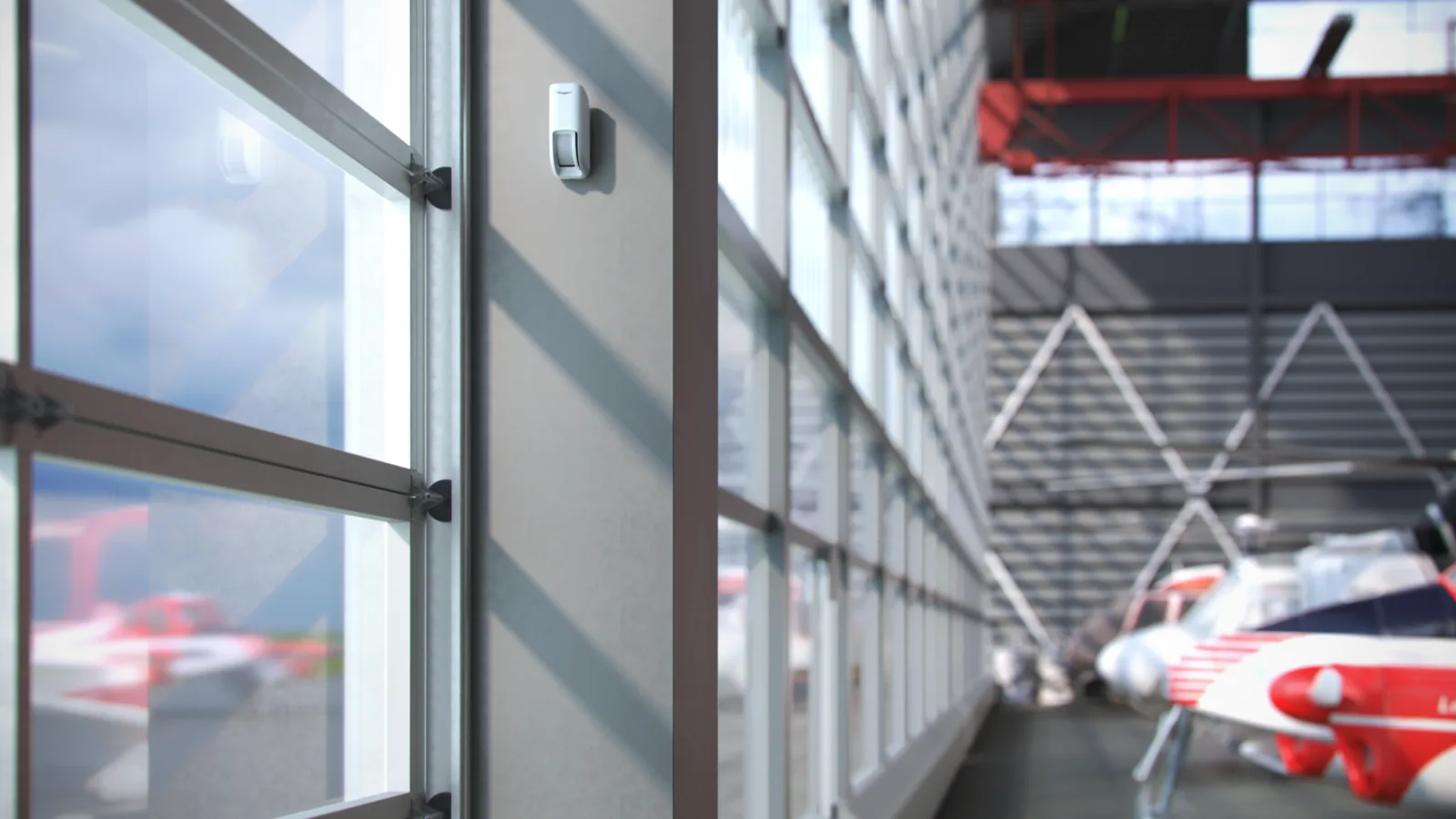

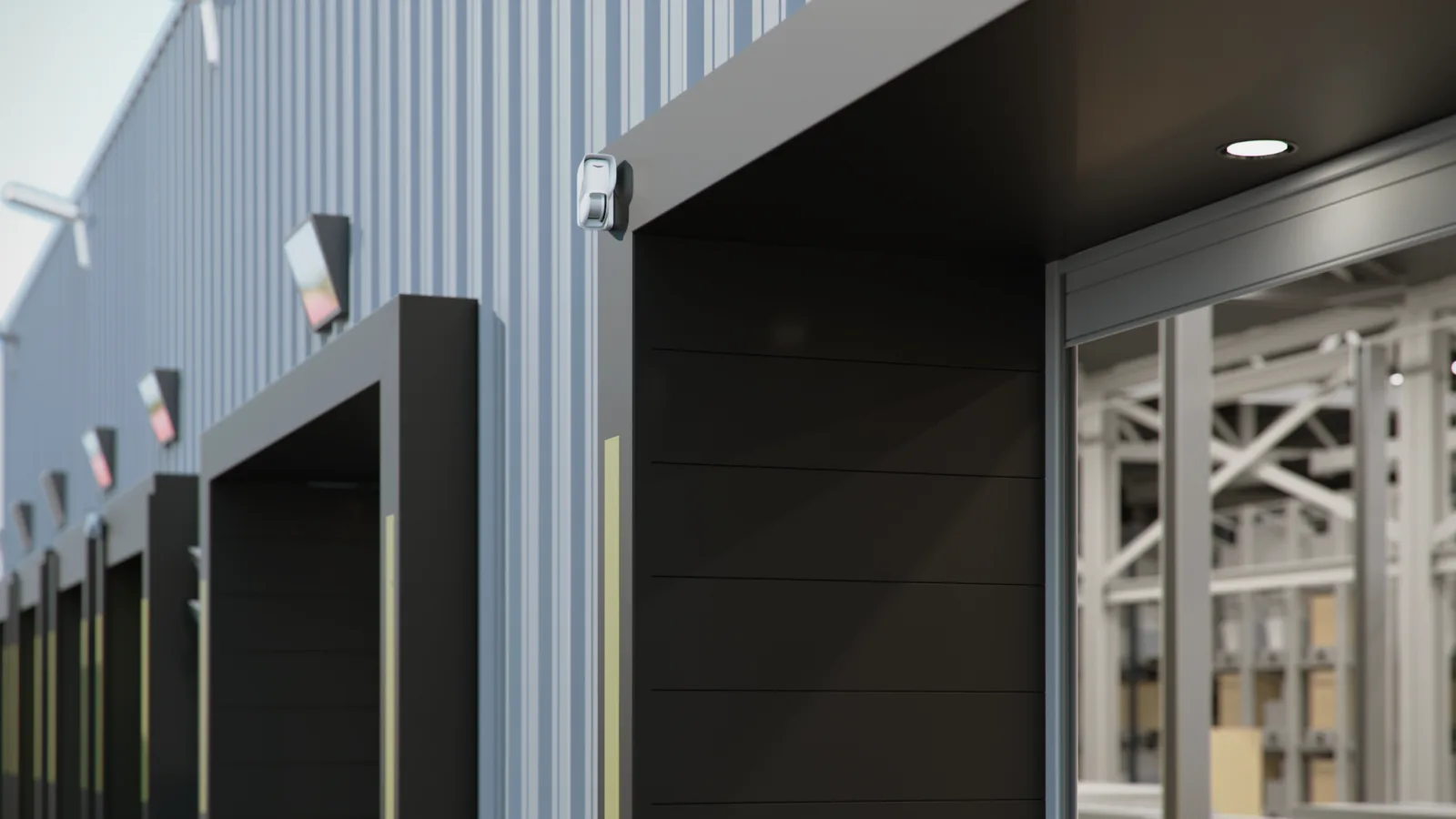

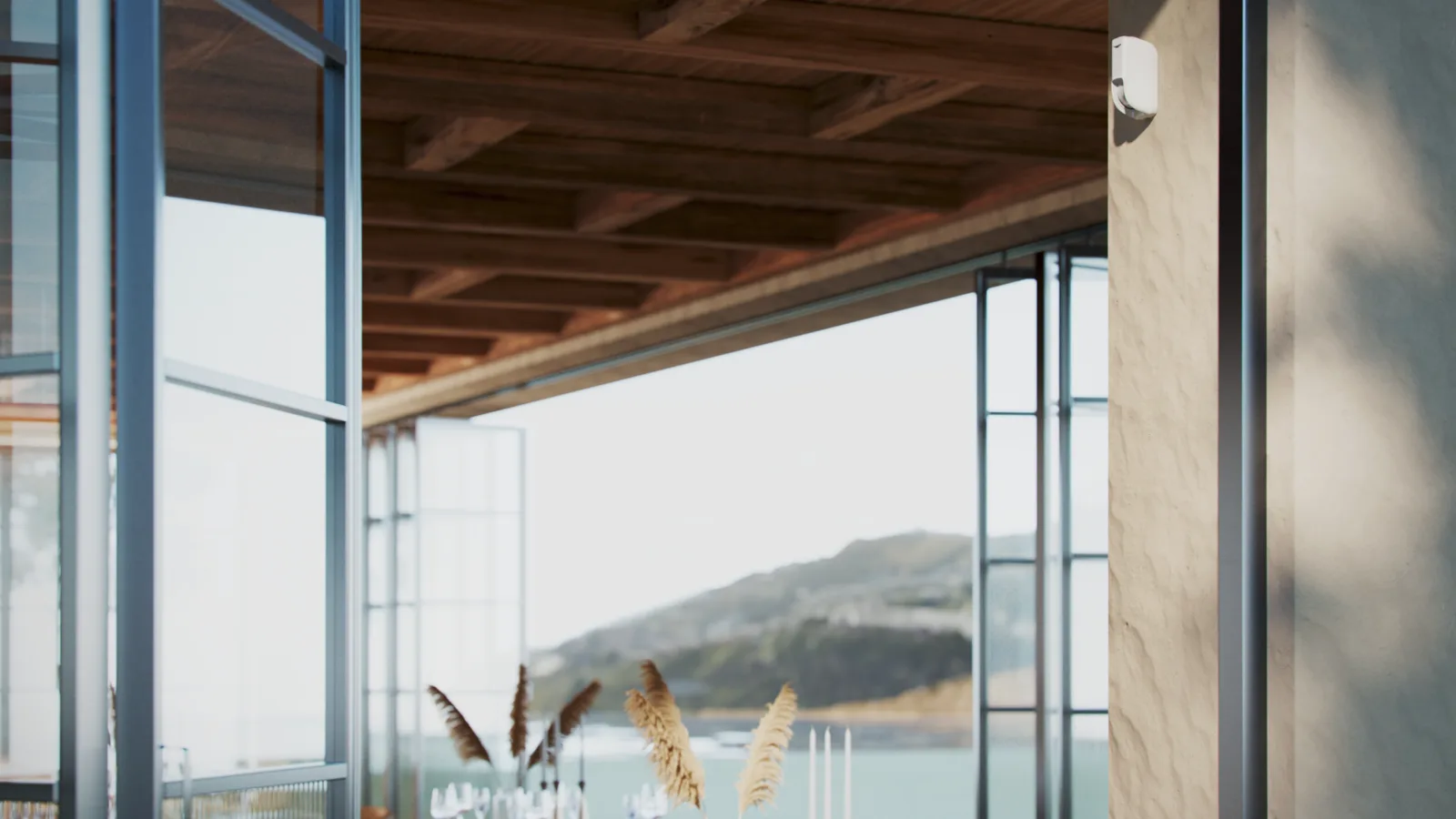

- Ideal for protecting doors, windows, gates, walkways, and perimeter lines
- Configure detection range and operating mode to avoid high‑traffic or nuisance areas
Reliability & Supervision
- Dual‑technology detection (PIR + microwave) with SmartDetect algorithm
- Temperature compensation for effective detection from −25 °C to +60 °C
- Anti‑masking system to detect attempts to block the detector’s view
- Tamper switch and accelerometer to detect removal, movement, or interference
- Encrypted Jeweller & Wings communication with frequency hopping and regular polling
- Automatic self‑diagnostics and status reporting via Ajax apps
Compliance
- EN 50131 Grade 2
- IP55 protection class
- Operating humidity up to 95%
Specifications
| Detector Type | Wireless dual-technology curtain motion detector |
| Application | Outdoor and indoor use |
| Sensitive Elements | 2 × PIR sensors, 1 × K-band microwave sensor |
| Motion Detection Distance | Up to 8–12 m (26–39 ft), adjustable via enclosure slider |
| Motion Detection Angles | Horizontal: 8°, Vertical: 85°/15° (depends on installation height) |
| Motion Detection Speed | 0.3 to 2.0 m/s (1 to 6.6 ft/s) |
| Pet Immunity | Up to 100 cm (3.3 ft) in height (pet mode) |
| Recommended Installation Height | 2.4 m (7.9 ft); 1 m (3.3 ft) in pet immunity mode |
| Communication Technology | Jeweller and Wings proprietary wireless protocols |
| Radio Range | Up to 1,700 m (5,500 ft) in open space |
| Frequency Bands | 866.0–866.5, 868.0–868.6, 868.7–869.2, 905.0–926.5, 915.85–926.5, 921.0–922.0 MHz (region dependent) |
| Encryption | Block encryption with dynamic key, frequency hopping |
| Power Supply | 2 × CR123A batteries (pre-installed) |
| Battery Life | Up to 3 years (calculated) |
| Operating Temperature | −25 °C to +60 °C (−13 °F to +140 °F) |
| Operating Humidity | Up to 95% |
| Protection Class | IP55 |
| Dimensions | 141 × 60 × 72 mm (without angle mount); 141 × 76 × 84 mm (with angle mount) |
| Sabotage Protection | Tamper, accelerometer, anti-masking system, device authentication |
| Compliance | EN 50131 Grade 2 |
