Curtain Outdoor HighPoint (PhOD) Jeweller
A wireless outdoor dual‑technology curtain detector with extended photo verification, long‑range detection, and high‑mount installation for precise perimeter protection.
Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.
Available Colours
Curtain Outdoor HighPoint (PhOD) Jeweller

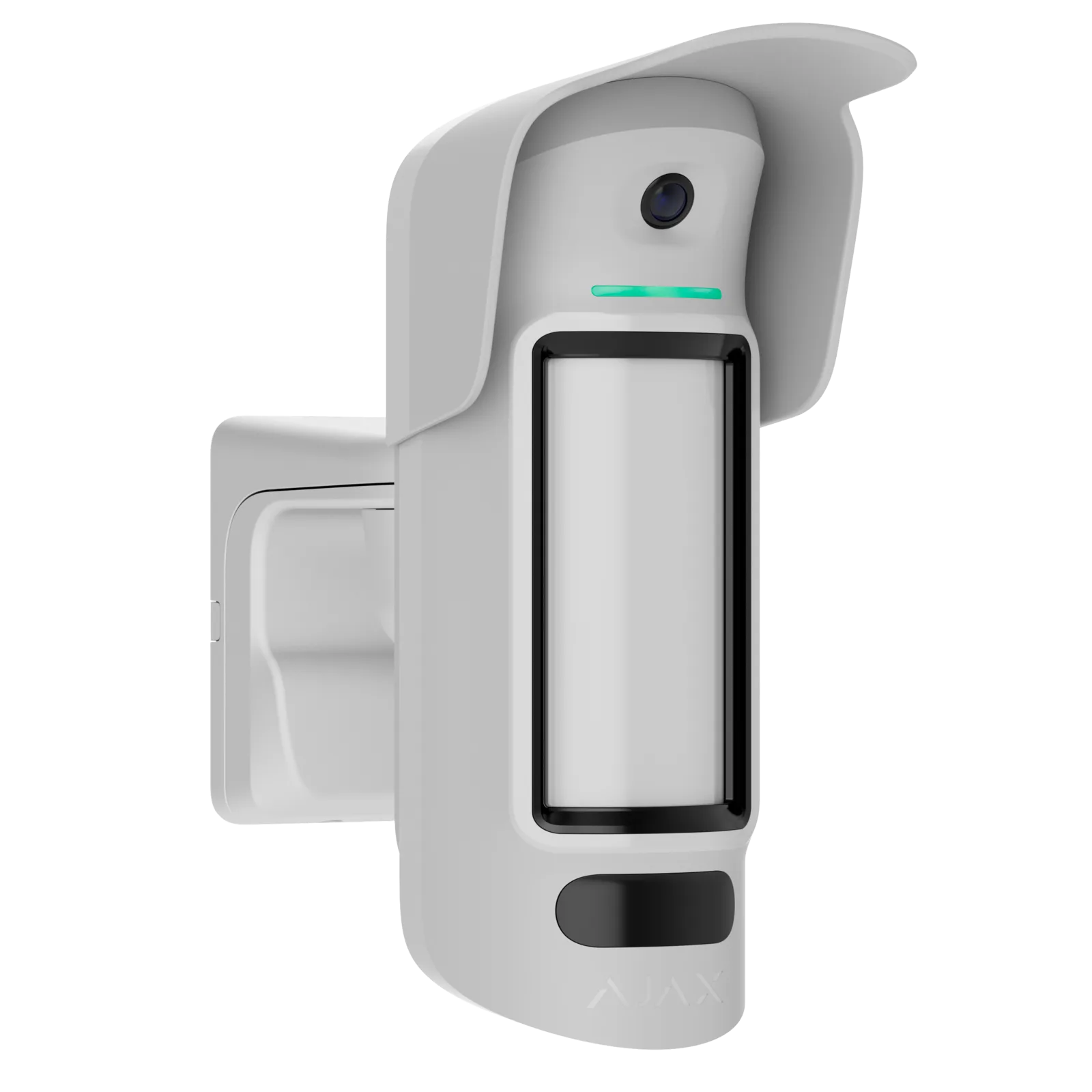

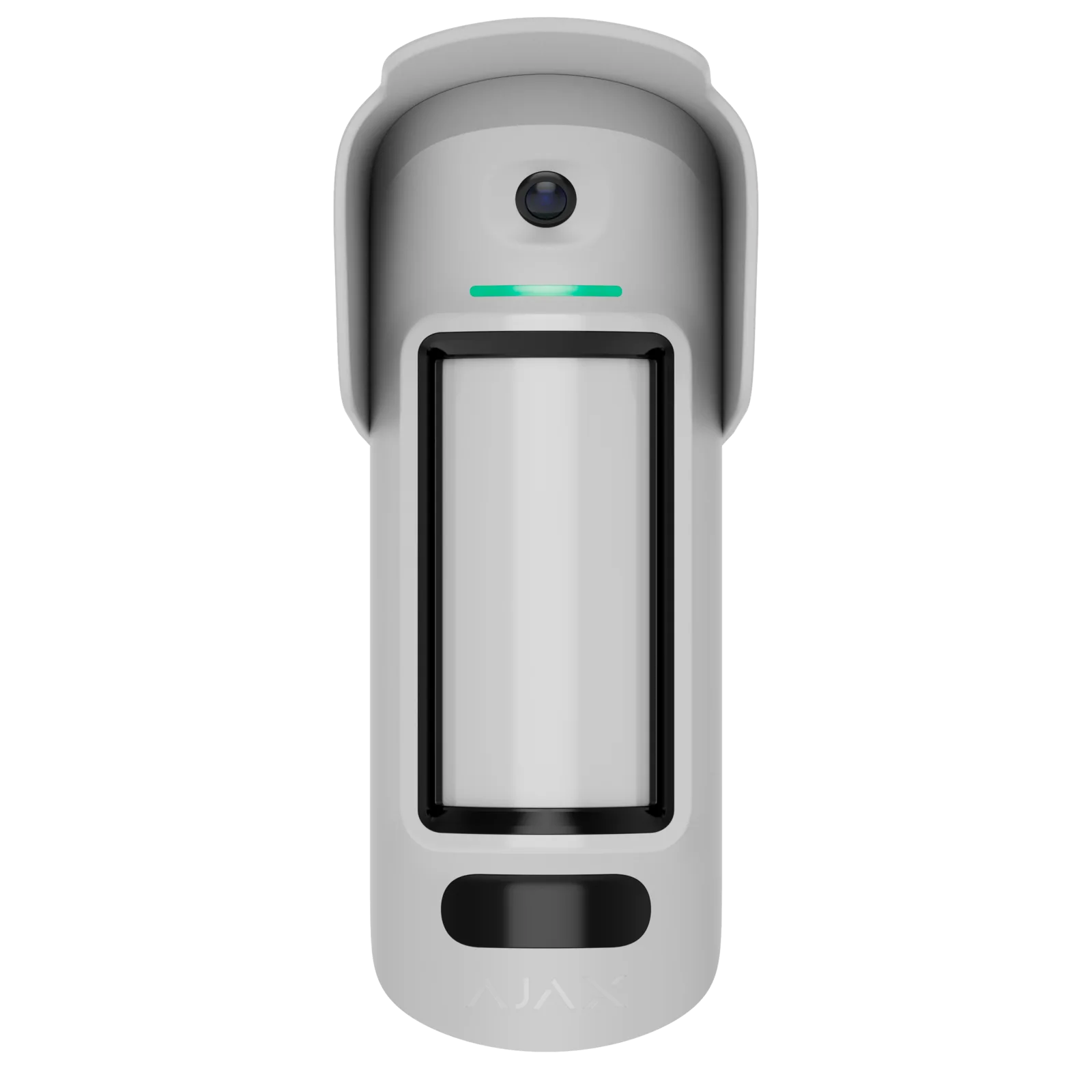

Curtain Outdoor HighPoint (PhOD) Jeweller is a high‑mount wireless curtain detector designed for long‑range outdoor perimeter protection. Using two PIR sensors, a K‑band microwave sensor, and an integrated camera, it provides accurate motion detection up to 15 metres and delivers rapid photo verification for situational awareness. Its narrow main detection zone and wide pre‑alarm zone ensure early visual confirmation without triggering unnecessary alarms.
Key Features
- Dual‑technology detection using two PIR sensors and a K‑band microwave sensor
- Up to 15 m detection range with narrow 7° horizontal targeting
- Pre‑alarm detection zone for early photo capture before an intruder reaches the main zone
- HDR imaging for clear photos in mixed lighting
- IR illumination for low‑light and night conditions
- Multiple photo verification modes including alarm, on demand, schedule, scenario, and tamper events
- Jeweller & Wings wireless communication with up to 1,700 m range
- Up to 3 years battery life on 6 × CR123A cells
- IP55‑rated enclosure for harsh outdoor environments
- Anti‑masking, tamper, and magnetometer for sabotage protection

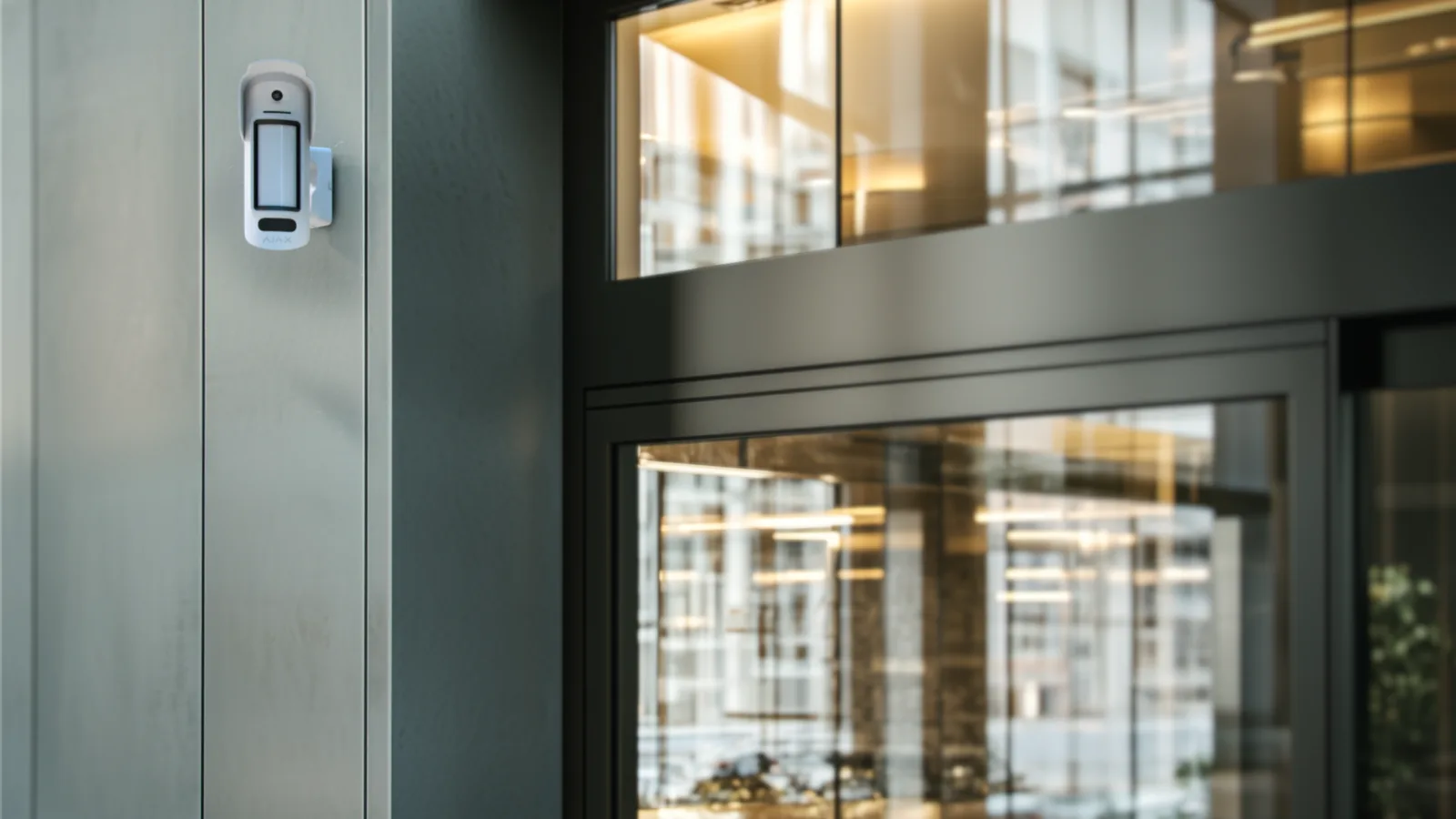

- High‑mount installation at 2–4 m for extended coverage
How It Works
The detector uses two PIR sensors to monitor near‑ and far‑field movement, while the K‑band microwave sensor verifies motion events to eliminate false triggers. A pre‑alarm detection zone allows the device to capture photos early, even before the intruder enters the main detection area. When motion is confirmed, the built‑in camera captures a configurable series of photos and transmits them via the Wings protocol. HDR and IR illumination ensure clear images in any lighting conditions.
Installation & Placement

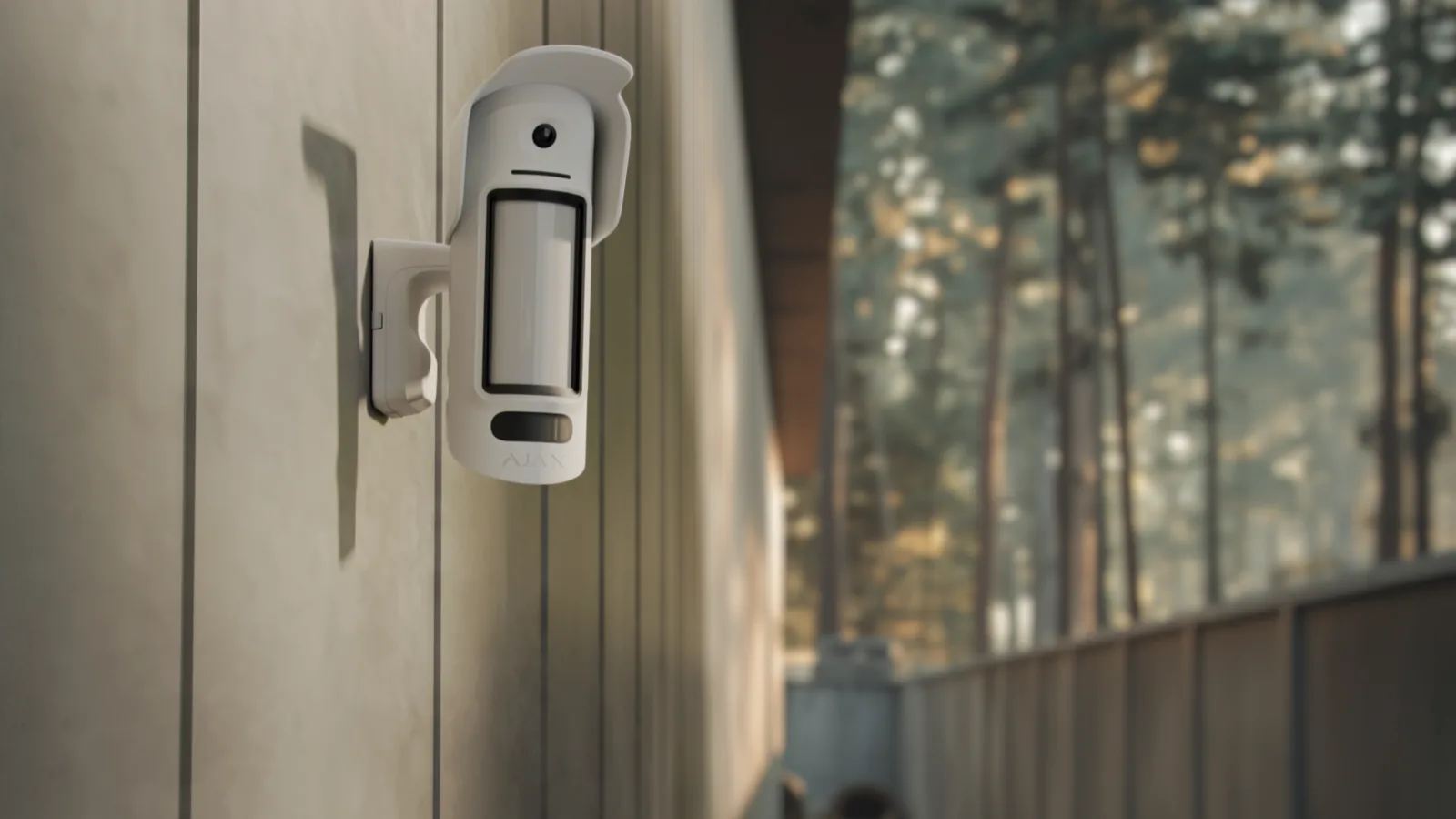

- Install at 2–4 m height on a vertical surface

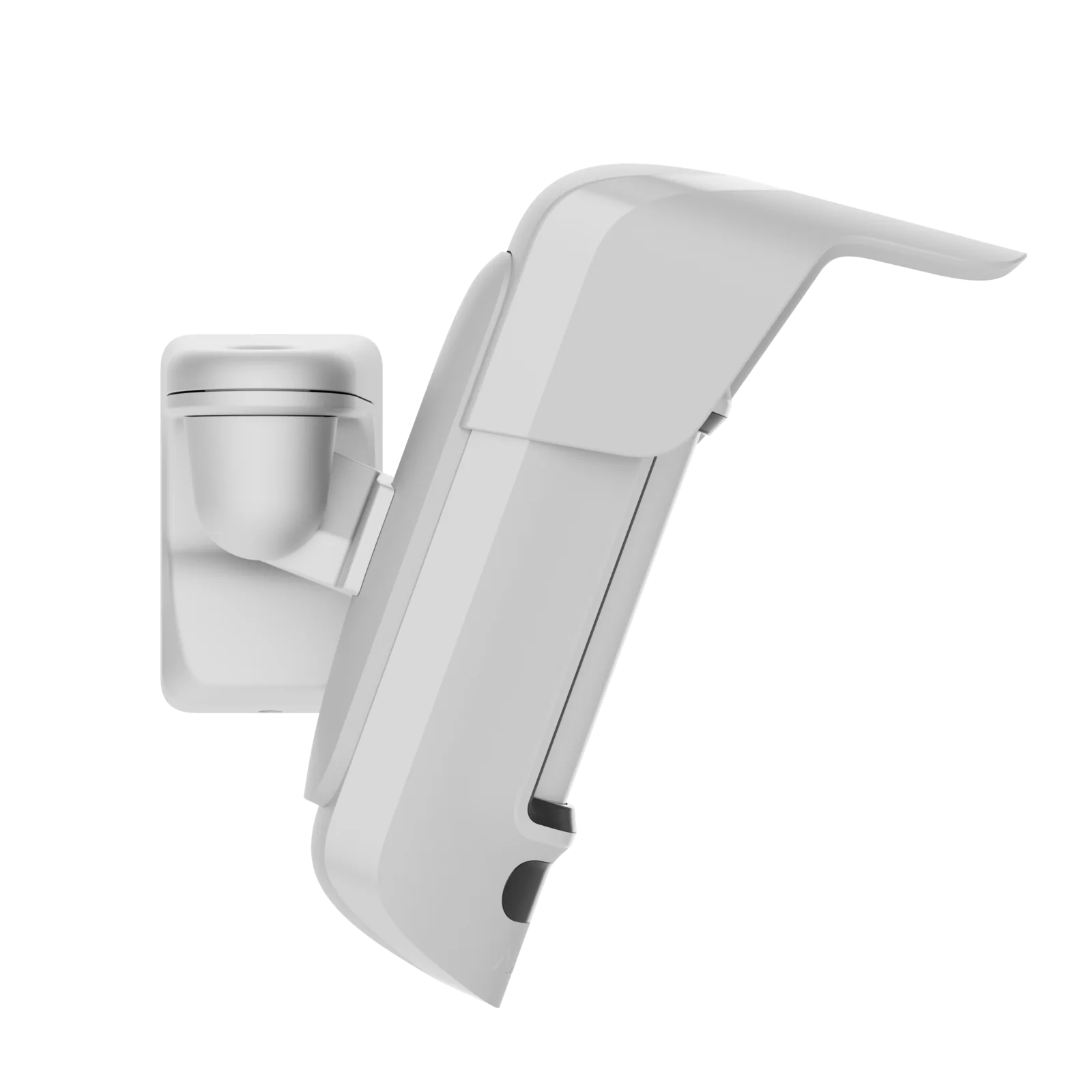

- Use the swivel mount to adjust the viewing angle
- Aim sensors perpendicular to the intrusion path
- Suitable for outdoor and indoor perimeter protection
- Hood included to protect the anti‑masking system from rain and snow
- Configure sensitivity, photo modes, and pre‑alarm behaviour via Ajax apps
Reliability & Supervision
- Dual‑technology detection ensures accurate threat identification
- Anti‑masking system detects attempts to block or obscure sensors
- Tamper switch and magnetometer detect removal or repositioning
- Encrypted Jeweller & Wings communication with frequency hopping
- Regular polling ensures continuous device supervision
- Over‑the‑air firmware updates supported
Compliance
- EN 50131 Grade 2
- PD 6662:2017
- IP55 protection class
- Operating humidity up to 95%
Specifications
| Detector Type | Wireless dual‑technology curtain motion detector with photo verification |
| Installation Height | 2–4 m (6.6–13.1 ft) |
| Sensitive Elements | 2 × PIR sensors, 1 × K‑band microwave sensor |
| Motion Detection Distance | Up to 15 m (49 ft) |
| Main Detection Angles | Horizontal: 7°, Vertical: 73° |
| Pre‑Alarm Detection Angles | Horizontal: 43°, Vertical: 88° |
| Motion Detection Speed | 0.3–2.0 m/s (1–6.6 ft/s) |
| False Alarm Filtering | Dual‑technology detection, SmartDetect algorithm, temperature compensation |
| Pet Immunity | Not supported |
| Photo Verification Modes | Alarm, on demand, scenario, schedule, arming/disarming, anti‑masking, tamper, magnetometer |
| Photo Resolution | 320×240 px (default), up to 640×480 px |
| Photos in Series | 1–5 images (320×240), 1–3 images (640×480) |
| First Photo Delivery Time | Up to 9 s (320×240), up to 20 s (640×480) |
| Camera Viewing Angles | Horizontal: 121°, Vertical: 92.5° |
| IR Illumination | Yes, for low‑light conditions |
| HDR Imaging | Yes |
| Communication | Jeweller and Wings wireless protocols |
| Radio Range | Up to 1,700 m (5,550 ft) in open space |
| Frequency Bands | 866.0–866.5, 868.0–868.6, 868.7–869.2, 905.0–926.5, 915.85–926.5, 921.0–922.0 MHz (region dependent) |
| Encryption | Block encryption with dynamic key, frequency hopping |
| Power Supply | 6 × CR123A batteries (pre‑installed) |
| Battery Life | Up to 3 years |
| Optional Power | 12–24 V⎓ external supply (batteries act as backup) |
| Operating Temperature | −25 °C to +60 °C (−13 °F to +140 °F) |
| Operating Humidity | Up to 95% |
| Protection Class | IP55 |
| Dimensions | 234 × 98 × 275 mm (with swivel mount), 234 × 98 × 137 mm (without) |
| Weight | 1,109 g (with mount), 620 g (without) |
| Compliance | EN 50131 Grade 2, PD 6662:2017 |
