DualCurtain Outdoor Jeweller
A wireless outdoor bidirectional curtain motion detector with two independent optical systems, anti-masking, pet immunity, and up to 1,700 m Jeweller communication.
Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.
Available Colours
DualCurtain Outdoor Jeweller
DualCurtain Outdoor Jeweller is a wireless outdoor curtain motion detector designed to protect windows, doors, fences, and narrow perimeters. It features two independent optical systems, each equipped with dual PIR sensors and advanced optics for precise motion detection. With pet immunity, temperature compensation, and anti-masking protection, the detector ensures reliable performance in harsh outdoor environments. Jeweller radio technology provides long‑range, encrypted communication with the hub.
Key Features
- Two independent optical systems with dual PIR sensors
- Up to 15 m detection range per side
- Near Area Detection for close‑range coverage
- Pet immunity and temperature compensation
- Anti‑masking protection and tamper detection
- Jeweller wireless communication up to 1,700 m
- Adjustable detection distance and beam direction
- Up to 4 years of battery life
- IP54 weather protection
- Outdoor and indoor installation
How It Works

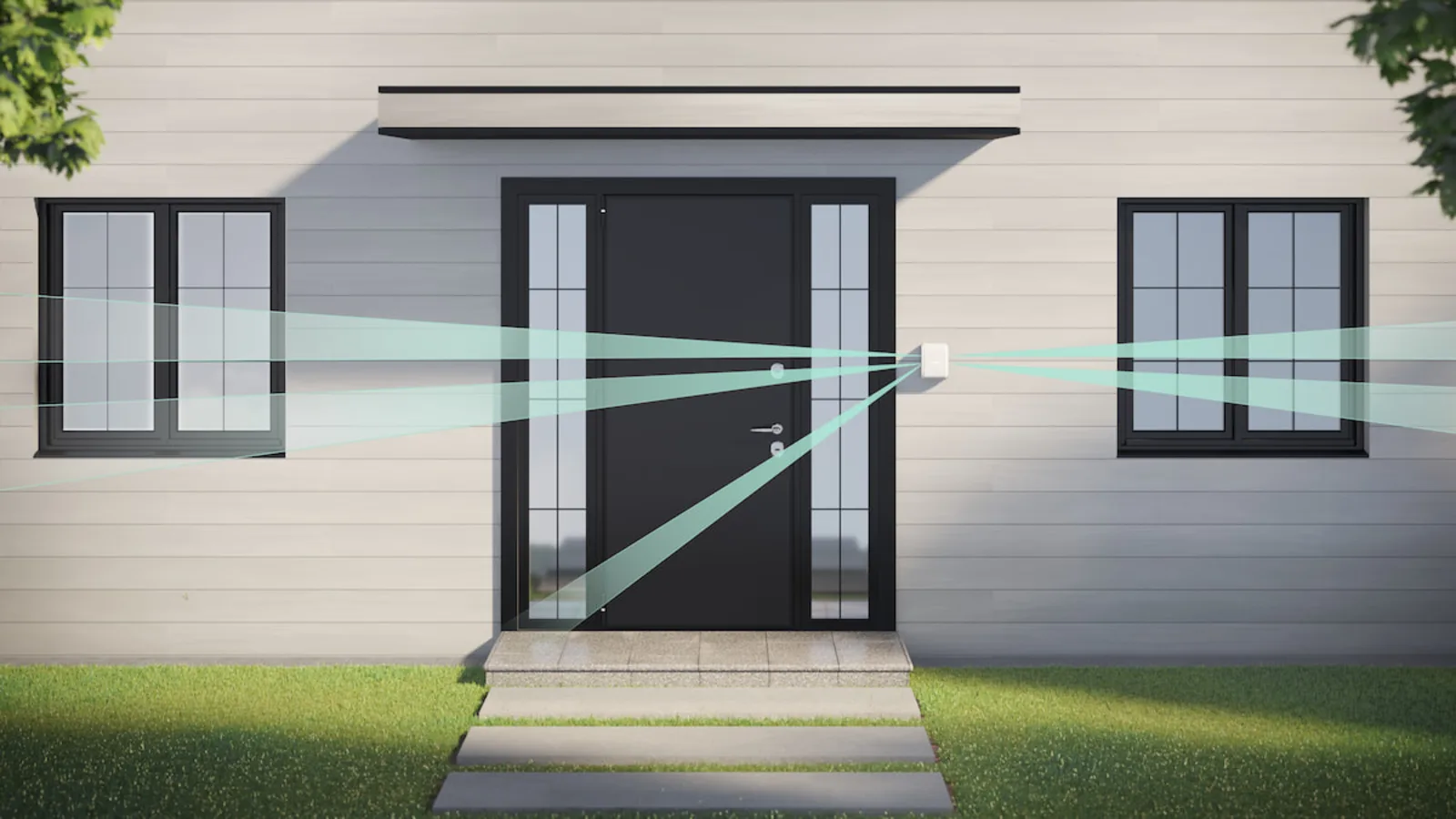

DualCurtain Outdoor uses two optical systems positioned on each side of the detector. Each system contains two PIR sensors that must trigger simultaneously to generate an alarm, reducing false activations from animals or environmental factors. The ELSA digital algorithm analyzes signal patterns, waveform characteristics, and timing to distinguish human movement from natural interferences. Near Area Detection adds a downward‑angled field of view to eliminate blind spots close to the detector body.
Installation & Placement
- Suitable for outdoor and indoor perimeter protection

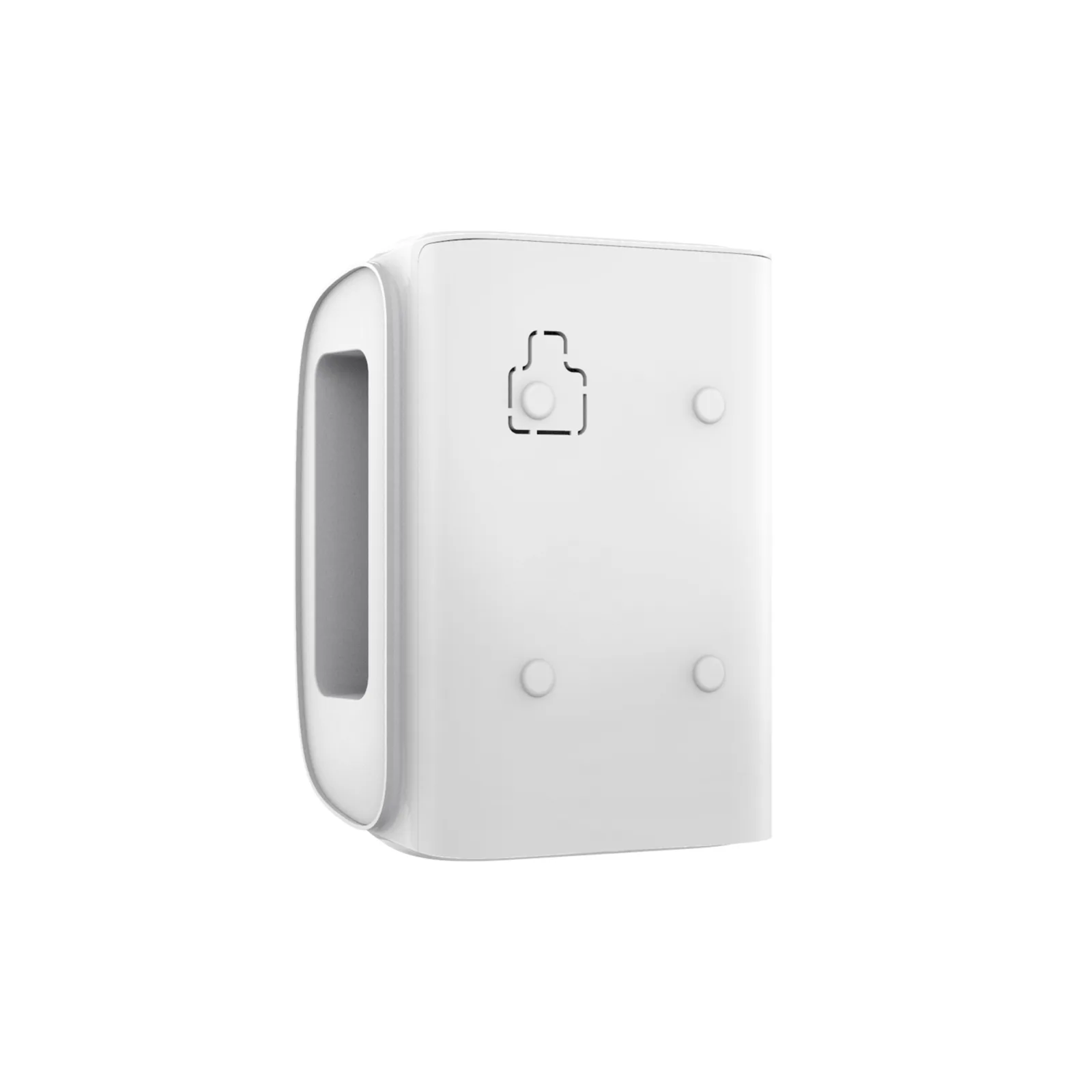

- Mounts using the SmartBracket panel
- Adjustable detection distance and beam direction per side
- Supports Near Area Detection for close‑range coverage
- Ideal for:
- Windows and doorways
- Fences and gates
- Shopfronts and narrow passages
- Building facades and perimeter walkways
Reliability & Supervision
- Anti‑masking sensors detect covering, painting, or blocking
- Tamper alarm triggers on removal or opening
- Encrypted Jeweller communication with dynamic key protection
- Adjustable ping interval from 12 to 300 seconds
- Up to 4 years of autonomous battery operation
- Resistant to temperature changes and natural interferences
Compliance
- EN 50131 Grade 2
- PD 6662:2017
- UL369, ULC S306
- Operating temperature: −25 °C to +60 °C
- Operating humidity: up to 95%
- Protection class: IP54
Specifications
| Product Type | Wireless outdoor bidirectional curtain motion detector |
| Communication Technology | Jeweller two-way encrypted radio communication |
| Line Requirements | N/A — wireless device |
| Alarm Type | Motion detection via dual PIR sensors per side |
| Volume | N/A |
| Alarm Duration | N/A |
| Sound Frequency | N/A |
| Chime Feature | No |
| LED Features | Status indication via internal LED |
| Event Indication | Motion alarms per side, masking detection, tamper alerts |
| Tamper Protection | Tamper-resistant enclosure with instant removal detection |
| Backup Battery | 2 × CR123A batteries, up to 4 years operation |
| Power Supply | 2 × CR123A batteries, 3 V |
| Installation Height | Outdoor/indoor wall mounting using SmartBracket |
| Dimensions | 174 × 123 × 88 mm |
| Weight | 615 g |
| Operating Temperature | -25 °C to +60 °C |
| Operating Humidity | Up to 95% |
| Protection Class | IP54 |
| Colours | White |
| Complete Set | DualCurtain Outdoor, SmartBracket, 2 × CR123A batteries (pre-installed), installation kit, quick start guide |
| Compliance | EN 50131 Grade 2, PD 6662:2017, UL369, ULC S306 |
