MotionCam Outdoor HighMount (PhOD) Jeweller
A wireless outdoor PIR and microwave motion detector with extended photo verification, dual‑technology detection, and installation heights up to 4 m.
Coming Soon
Available Colours
MotionCam Outdoor HighMount (PhOD) Jeweller
MotionCam Outdoor HighMount (PhOD) Jeweller is a wireless outdoor motion detector designed for high‑mount installation between 2 and 4 metres. With dual PIR sensors, a K‑band microwave sensor, and an integrated camera for photo verification, it provides reliable intrusion detection for commercial, industrial, and residential sites. The detector eliminates blind zones, filters out false alarms, and delivers visual confirmation of events in seconds.

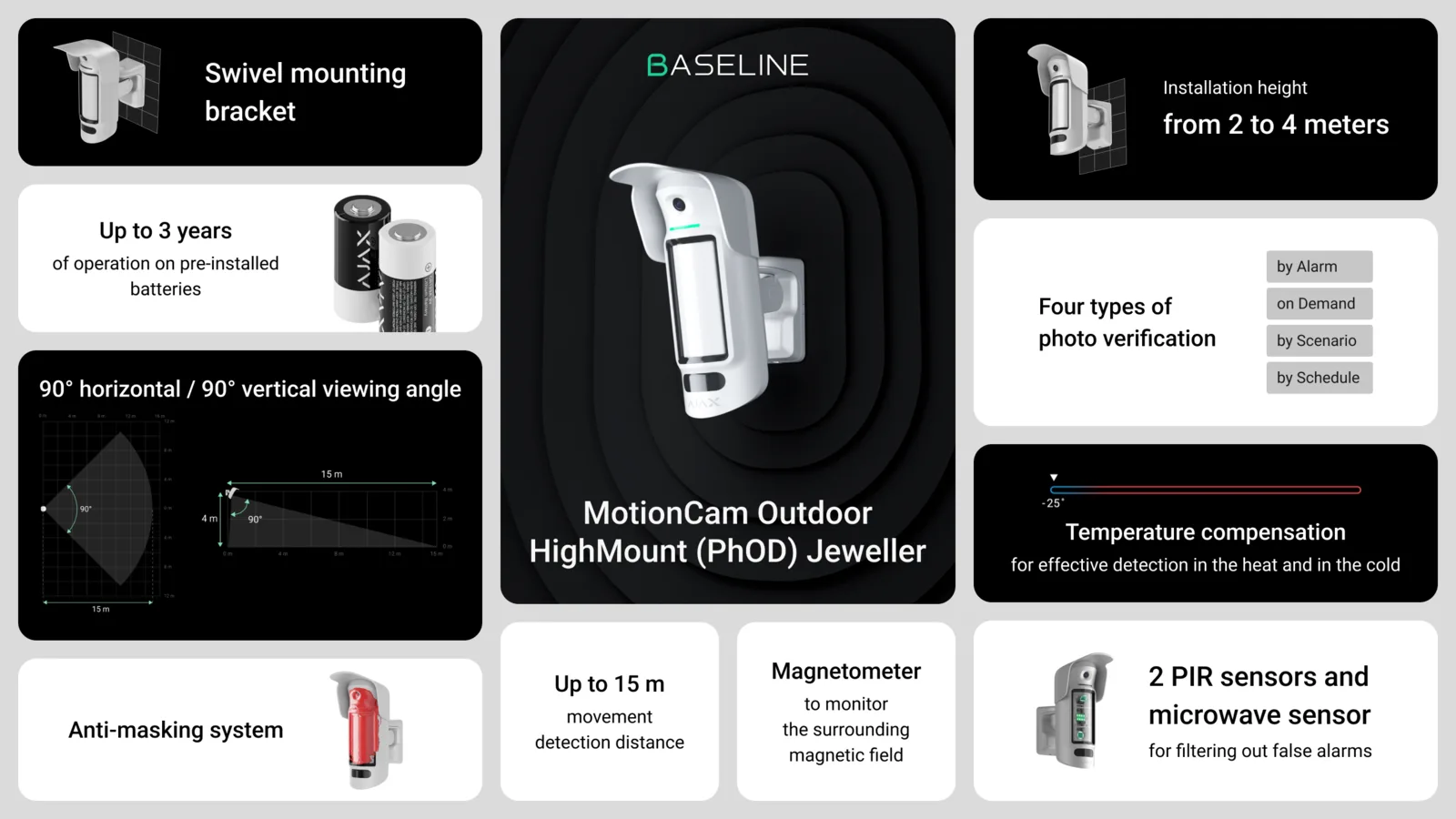

Key Features
- Dual‑technology detection using two PIR sensors and a K‑band microwave sensor
- High‑mount installation at 2–4 m for extended coverage with no blind spots
- Up to 15 m detection range with adjustable sensitivity
- 90° horizontal and vertical viewing angles
- SmartDetect and thermal interference filtering to prevent false alarms
- Temperature compensation for consistent detection in all climates
- Photo verification by alarm, scenario, schedule, arming/disarming, or on demand
- HDR camera with IR illumination for low‑light conditions
- Up to 5 photos per series, delivered in as little as 9 seconds
- Jeweller & Wings radio communication with up to 1,700 m range
- IP55‑rated enclosure for outdoor durability
- Anti‑masking, tamper, and magnetometer for sabotage protection
- Up to 3 years battery life on 6 × CR123A cells
- Optional 12–24 V⎓ external power supply
- EN 50131 Grade 2 certified
How It Works
The detector uses two PIR sensors to monitor near‑ and far‑field movement, while a K‑band microwave sensor verifies motion events to eliminate false triggers. SmartDetect and LISA algorithms analyse thermal patterns, movement speed, and IR intensity to distinguish real threats from environmental noise. When movement is detected, the built‑in camera captures a series of photos, providing instant visual verification.
Installation & Placement

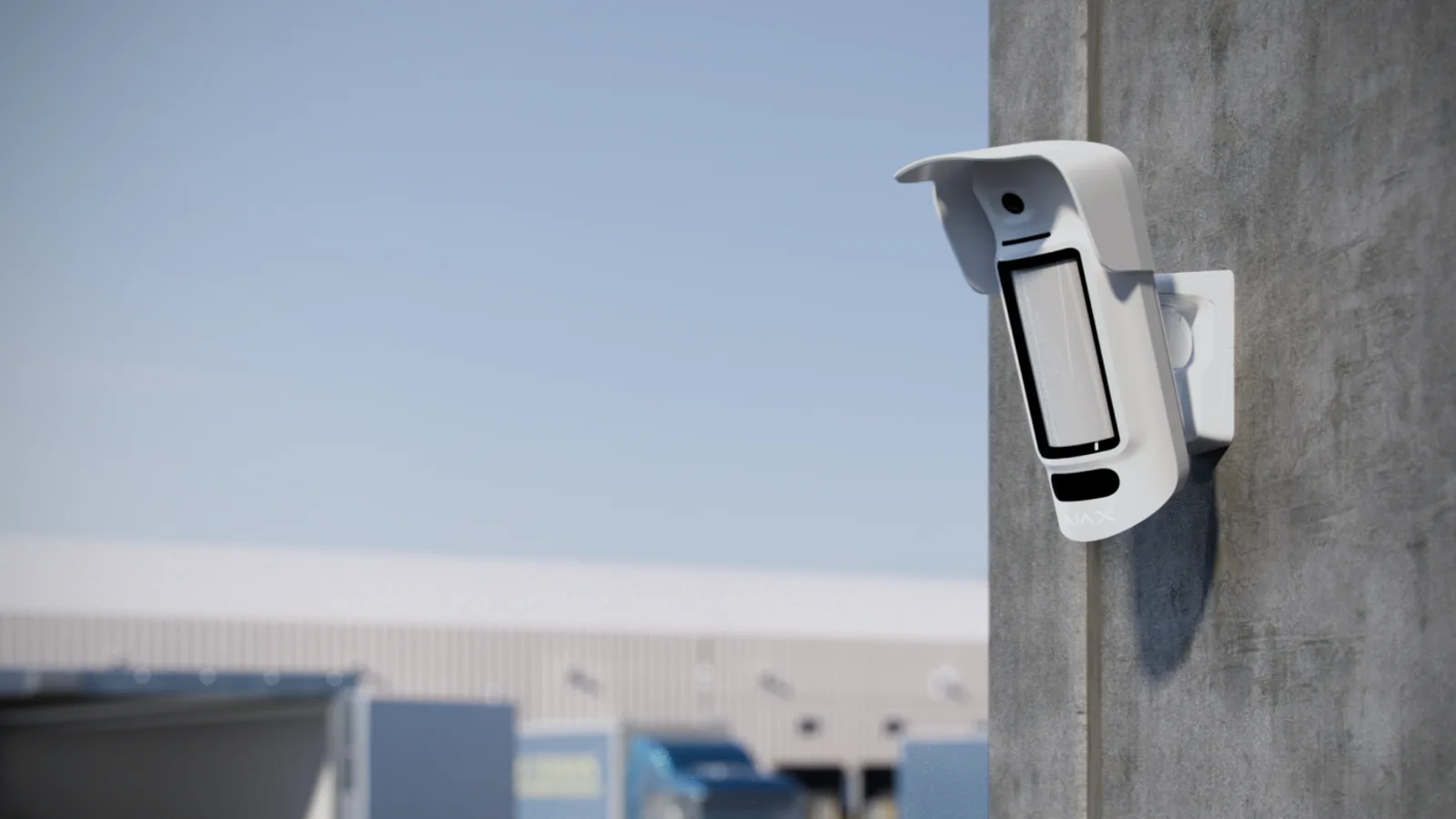

- Install at 2–4 m height on a vertical surface
- Use the metal swivel mount to adjust the viewing angle
- Direct sensors perpendicular to the expected intrusion path
- Suitable for outdoor and indoor perimeter protection

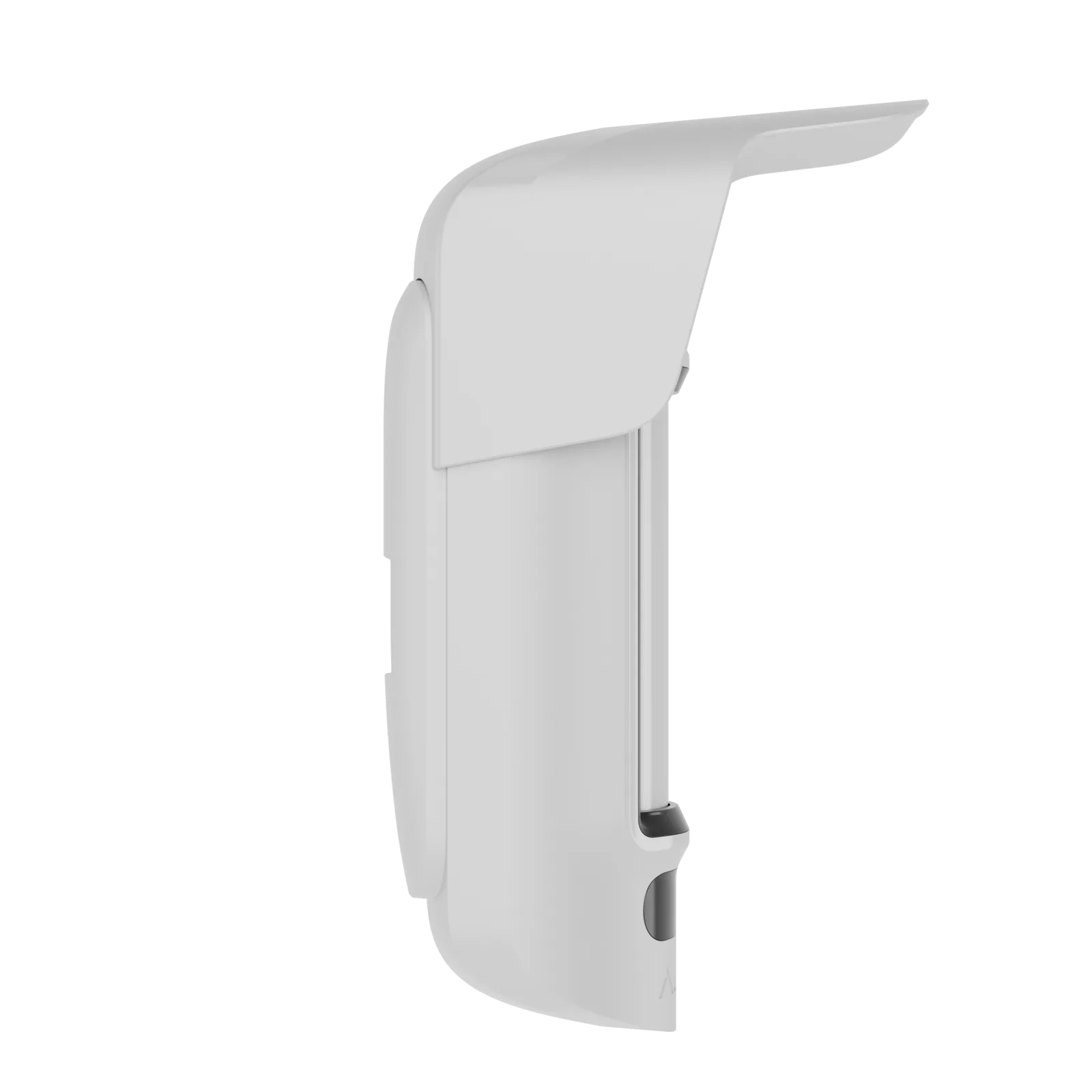

- Hood included to protect anti‑masking sensors from rain and snow
- Configure sensitivity and photo settings via Ajax apps
Reliability & Supervision
- Dual‑technology detection ensures accurate threat identification
- Temperature compensation maintains detection accuracy from −25 °C to +60 °C
- Anti‑masking system detects attempts to block or obscure sensors
- Tamper switch and magnetometer detect removal or repositioning
- Encrypted Jeweller & Wings communication with frequency hopping
- Regular polling ensures continuous device supervision
- Over‑the‑air firmware updates
Compliance
- EN 50131 Grade 2
- PD 6662:2017
- IP55 protection class
- Operating humidity up to 95%
Specifications
| Detector Type | Wireless PIR and microwave motion detector with photo verification |
| Installation Height | 2–4 m (6.6–13 ft) |
| Sensitive Elements | 2 × PIR sensors, 1 × K-band microwave sensor |
| Motion Detection Distance | Up to 15 m (49 ft) |
| Motion Detection Angles | Horizontal: 90°, Vertical: 90° |
| Motion Detection Speed | 0.3–2.0 m/s (1–6.6 ft/s) |
| Photo Verification | Photo by alarm, scenario, schedule, arming/disarming, and on demand |
| Photo Resolution | 320×240 px (default), up to 640×480 px |
| Photos in Series | 1–5 images (320×240), 1–3 images (640×480) |
| First Photo Delivery Time | Up to 9 s (320×240), up to 20 s (640×480) |
| Camera Viewing Angles | Horizontal: 115°, Vertical: 84° |
| IR Illumination | Yes, for low-light conditions |
| False Alarm Filtering | SmartDetect algorithm, thermal interference filter, temperature compensation |
| Anti-Masking | Yes (PIR sensors only) |
| Tamper Protection | Yes |
| Magnetometer | Detects tilt, shift, or removal |
| Communication | Jeweller and Wings proprietary wireless protocols |
| Radio Range | Up to 1,700 m (5,550 ft) in open space |
| Frequency Bands | 866.0–866.5, 868.0–868.6, 868.7–869.2, 905.0–926.5, 915.85–926.5, 921.0–922.0 MHz (region dependent) |
| Encryption | Block encryption with dynamic key, frequency hopping |
| Power Supply | 6 × CR123A batteries (pre-installed) |
| Battery Life | Up to 3 years |
| Optional Power | 12–24 V⎓ external power supply |
| Operating Temperature | −25 °C to +60 °C (−13 °F to +140 °F) |
| Operating Humidity | Up to 95% |
| Protection Class | IP55 |
| Dimensions (with swivel mount) | 234 × 98 × 230 mm |
| Dimensions (without swivel mount) | 234 × 98 × 137 mm |
| Weight | 620 g (without mount), 1,010 g (with mount) |
| Compliance | EN 50131 Grade 2, PD 6662:2017 |
