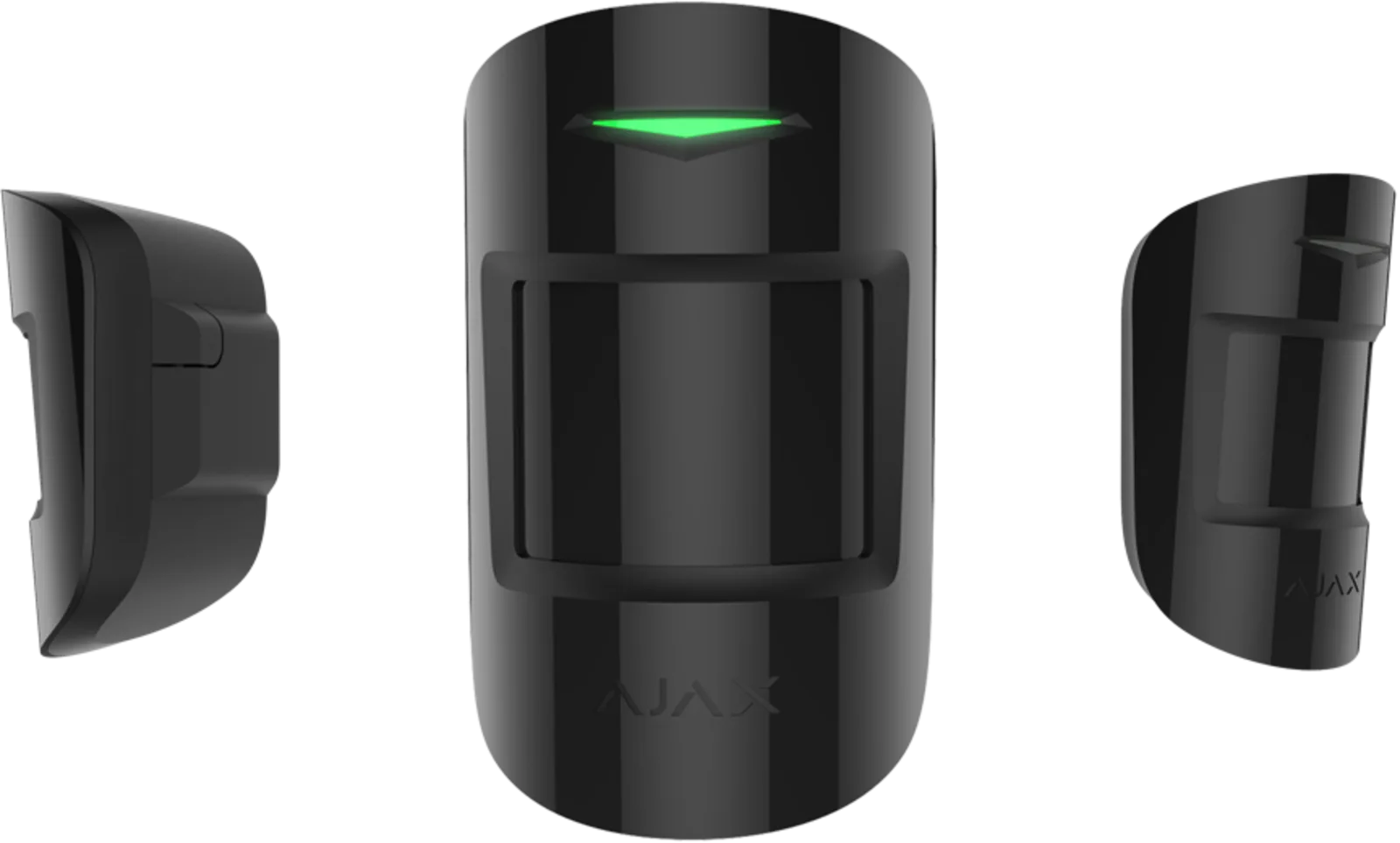

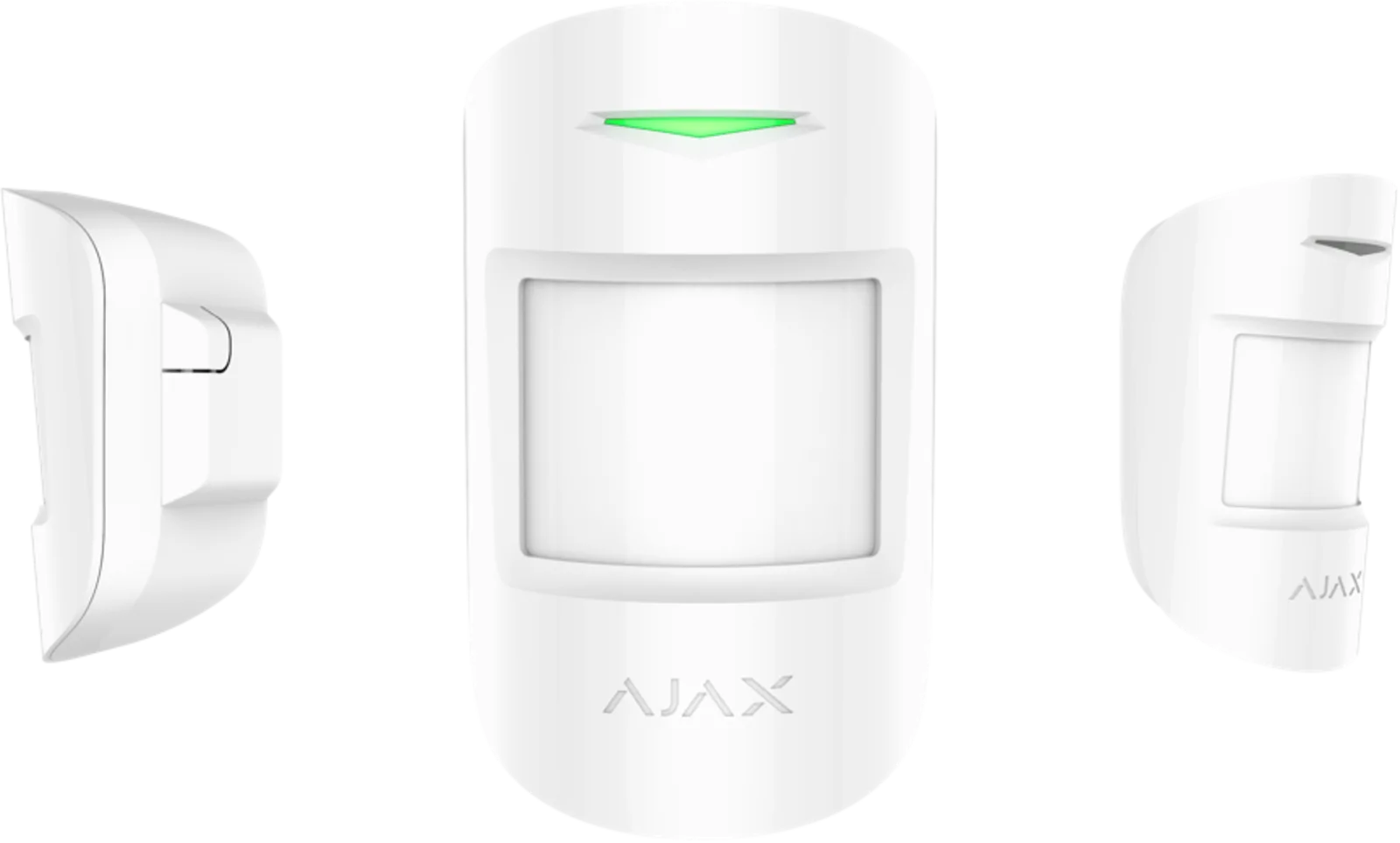

CombiProtect PIR with GlassBreak Jeweller

CombiProtect Jeweller is a wireless indoor detector that combines PIR motion detection with advanced glass break detection in a single device. Using SmartDetect and DualTone algorithms, it provides accurate intrusion detection while minimising false alarms. With long-range Jeweller communication, pet immunity, and up to five years of battery life, it is ideal for homes, offices, retail spaces, and commercial environments.

Key Features

• PIR motion detection up to 12 m with an 88.5° horizontal angle
• Glass break detection up to 9 m with a 180° horizontal angle
• SmartDetect algorithm for false alarm prevention
• DualTone two-factor glass break verification
• Pet immunity up to 20 kg and 50 cm
• Temperature compensation for stable detection in heat and cold
• Up to 5 years of autonomous operation
• Jeweller wireless communication up to 1,200 m
• Tamper alarm and device authentication
• Three sensitivity levels for motion and glass break
• Two colour options: white and black

How It Works

CombiProtect Jeweller uses a PIR sensor to analyse infrared changes caused by human movement. The SmartDetect algorithm evaluates thermal patterns, movement speed, and IR intensity to distinguish real threats from pets or environmental noise. The electret microphone monitors low- and high-frequency sound signatures to detect glass break events using the DualTone algorithm.

The detector communicates with the hub via encrypted Jeweller radio technology, ensuring fast alarm delivery, regular polling, and protection against spoofing. All settings, including sensitivity and testing modes, can be configured remotely through Ajax apps.

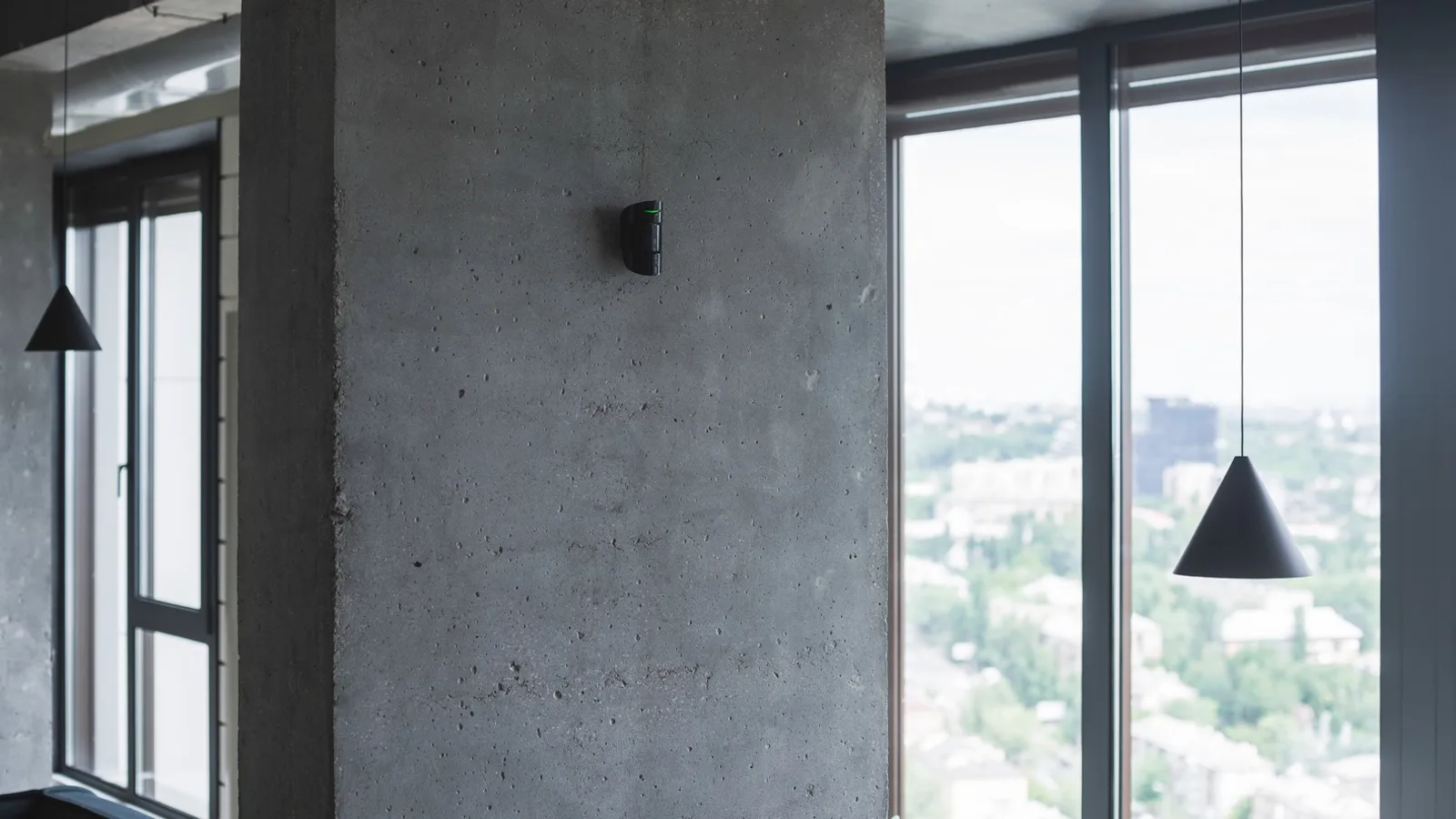

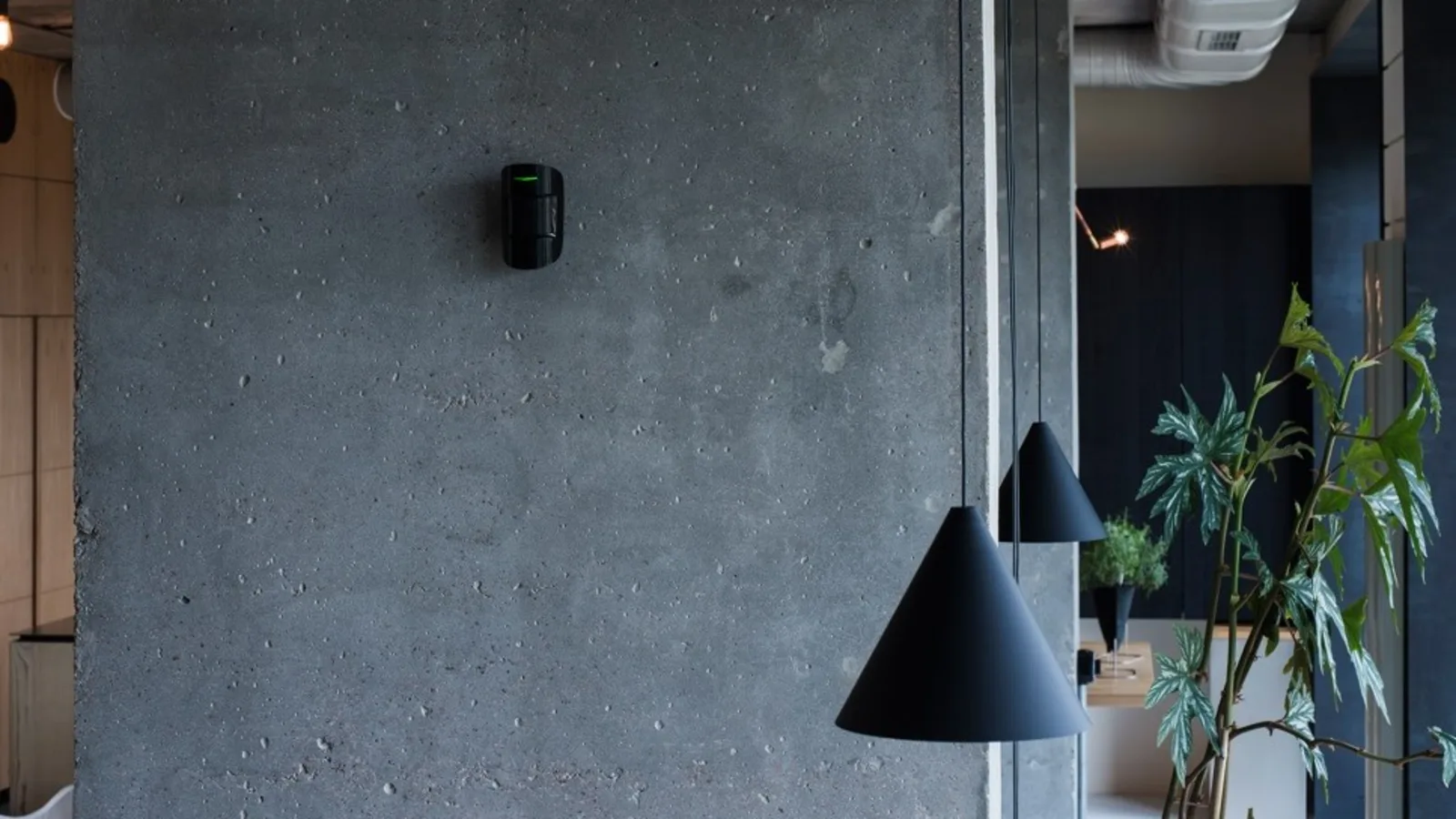

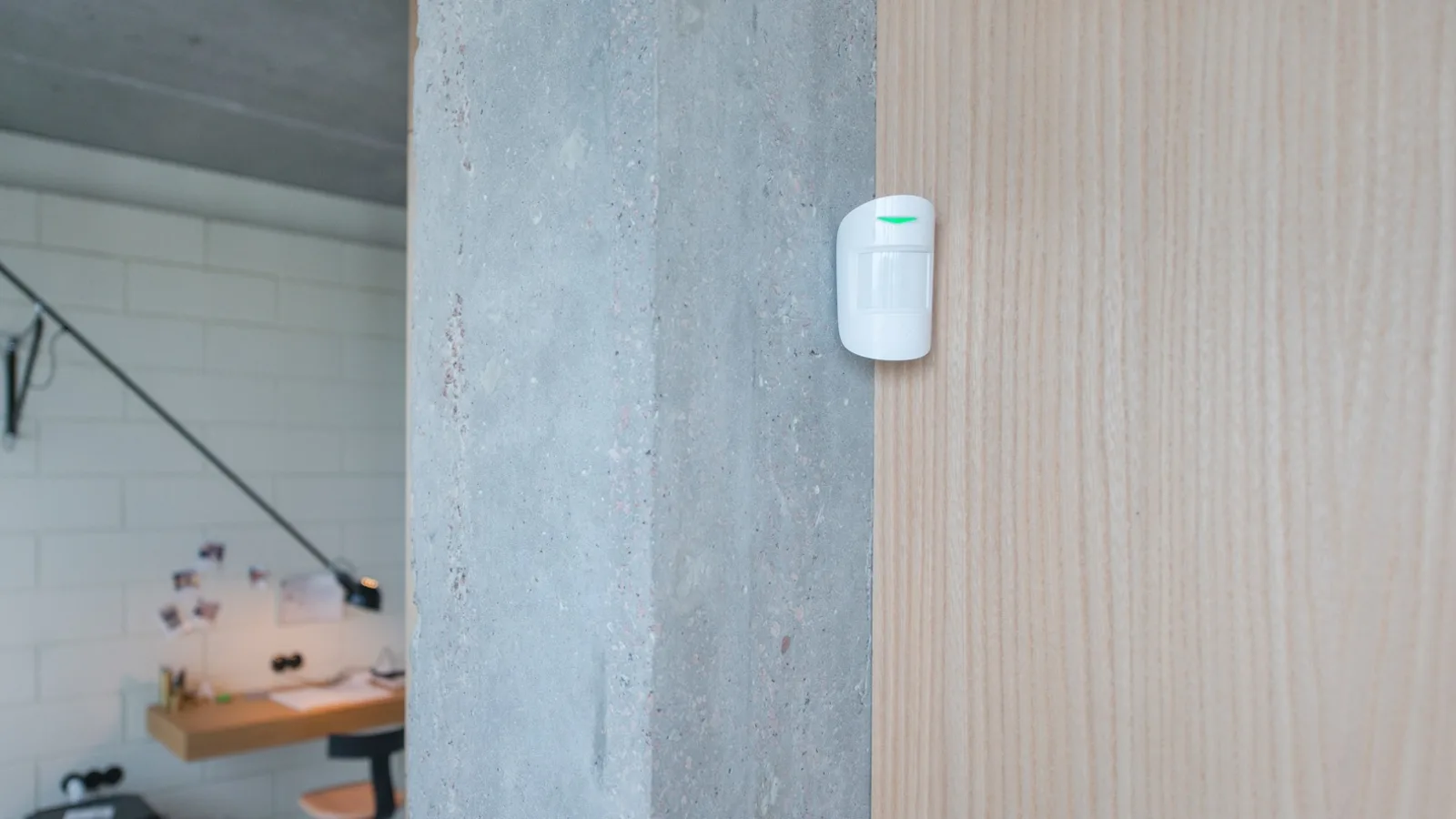

Installation & Placement

• Designed for indoor installation only
• Recommended mounting height: 2.4 m
• Install with the lens perpendicular to the expected intrusion path
• Suitable for:
  • Homes and apartments
  • Offices and commercial spaces
  • Warehouses and industrial facilities
  • Schools, medical centres, and public buildings
• Mount using the SmartBracket panel without opening the enclosure
• Pair with the hub by scanning the QR code

Reliability & Supervision

• Tamper alarm for enclosure removal
• Device authentication to prevent spoofing
• Communication loss detection (as fast as 36 seconds depending on settings)
• Regular polling for real-time status
• Low battery warnings months in advance
• Holding screw for secure mounting

Compliance

• EN 50131 Grade 2
• PD 6662:2017
• INCERT
• SSF
• UL
• Operating temperature: −10 °C to +40 °C
• Operating humidity: up to 75%
• Dimensions: 110 × 65 × 50 mm
• Colours: White, Black
