MotionCam HDR Outdoor Jeweller
A wireless outdoor PIR motion detector with an integrated HDR camera for instant visual alarm verification, dual PIR sensing, advanced false‑alarm filtering, and long‑range encrypted communication.
Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.
Available Colours
MotionCam Outdoor Jeweller

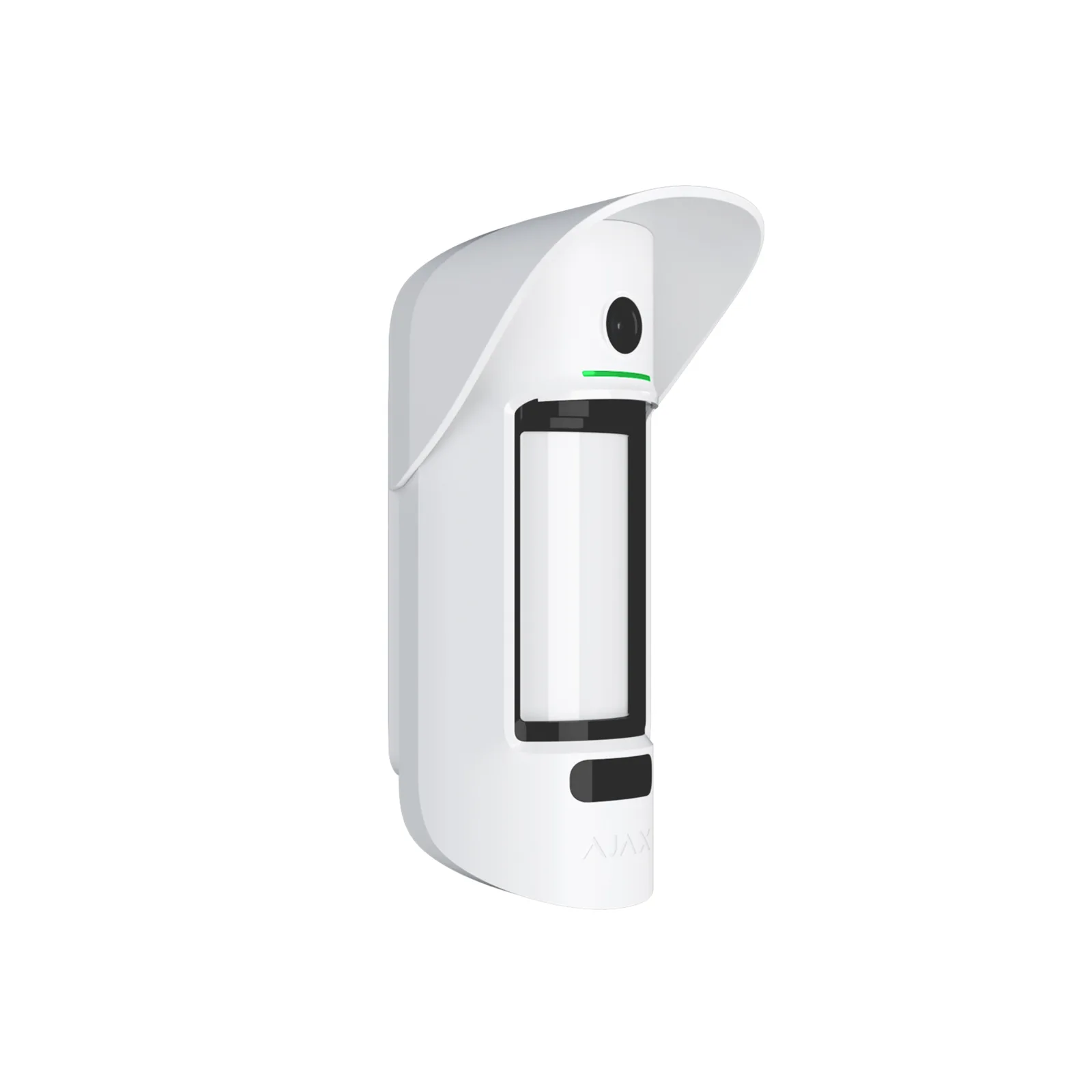

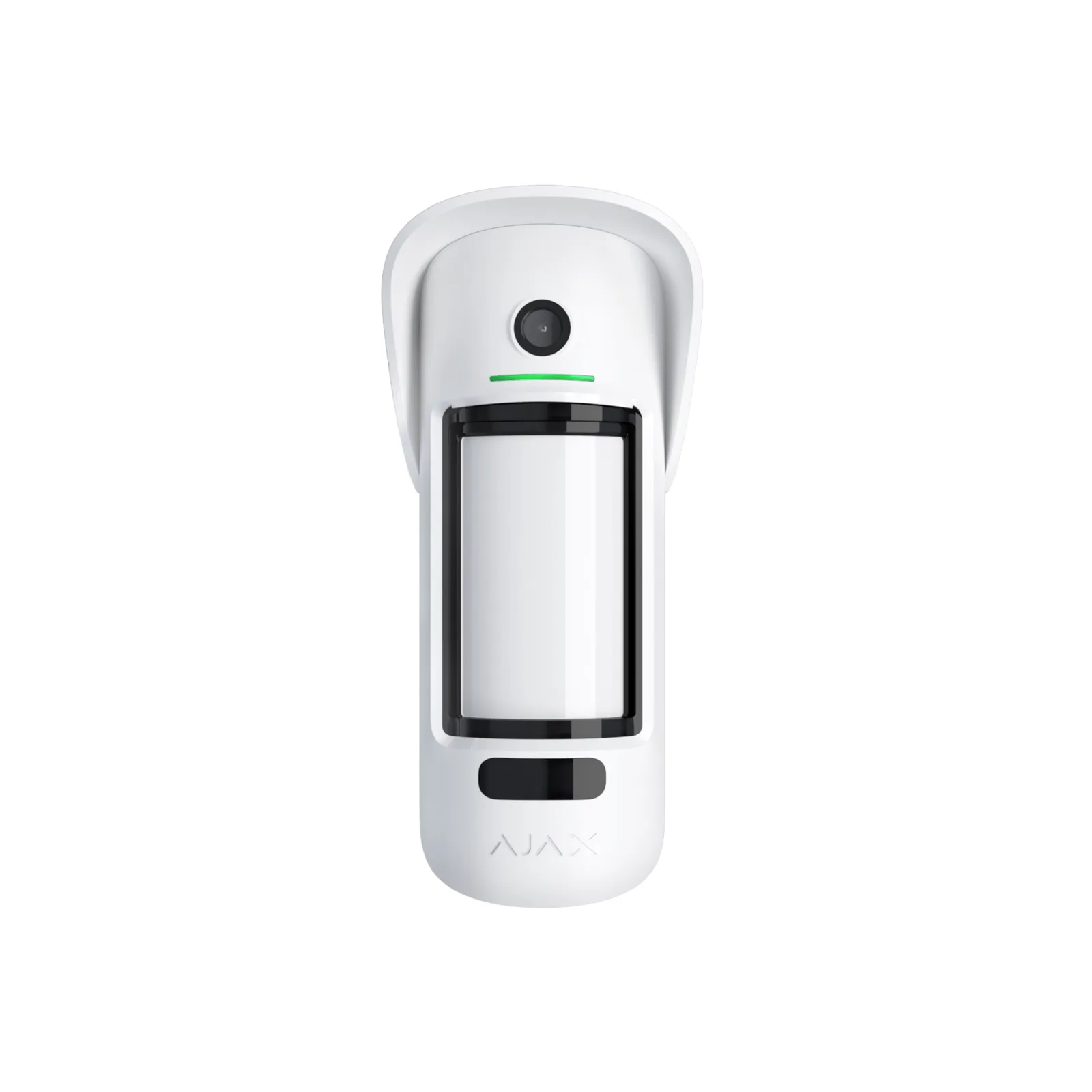

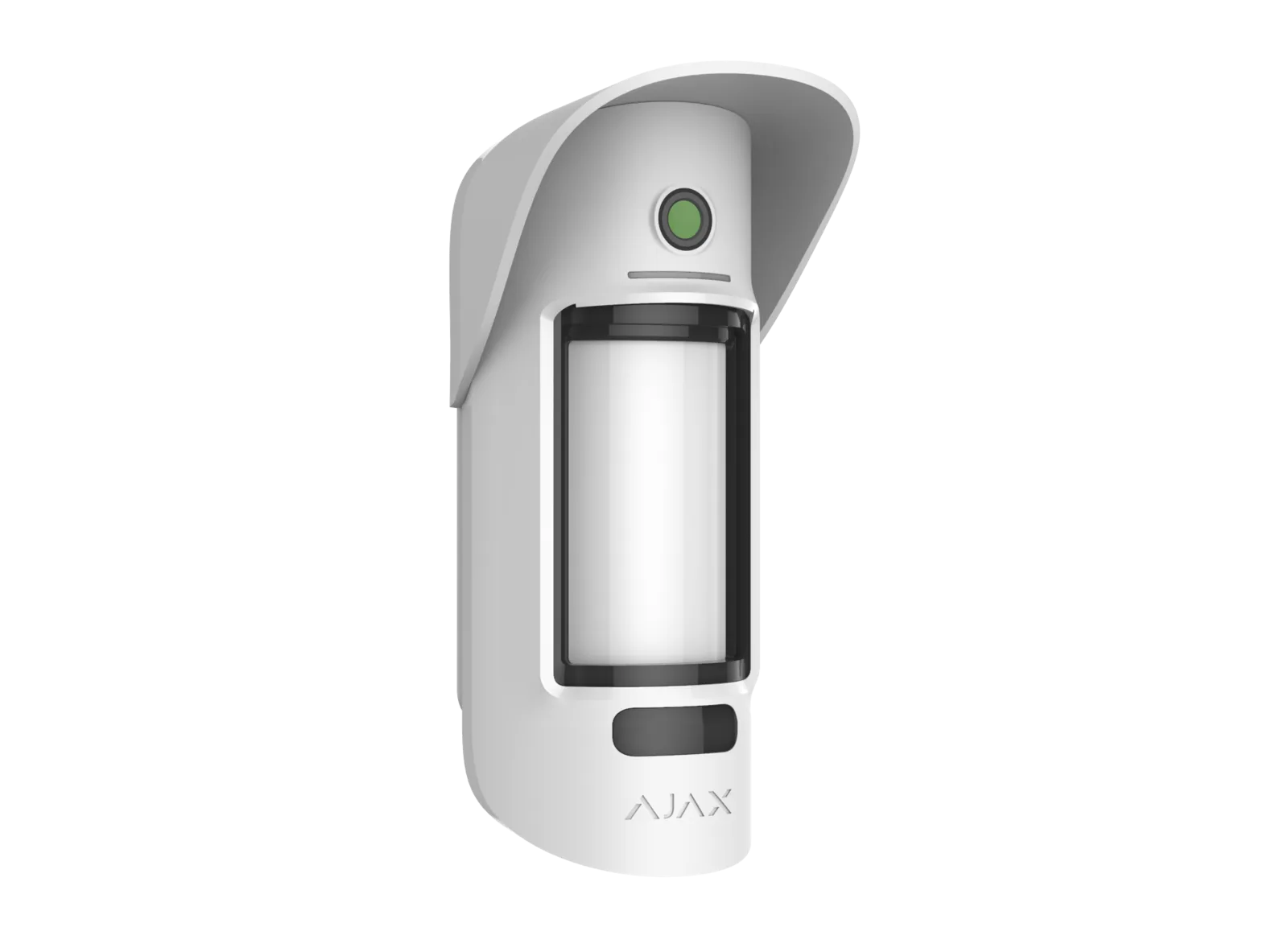

MotionCam Outdoor is a wireless outdoor motion detector with a built‑in HDR camera designed to verify alarms instantly. Using two independent PIR sensors and the LISA two‑step algorithm, it distinguishes real threats from environmental interference. When motion is detected, the detector captures an animated series of photos and delivers them securely via the Wings radio protocol, giving users and monitoring centres clear visual context within seconds.
Key Features
- Dual PIR sensors with LISA correlation and spectral analysis

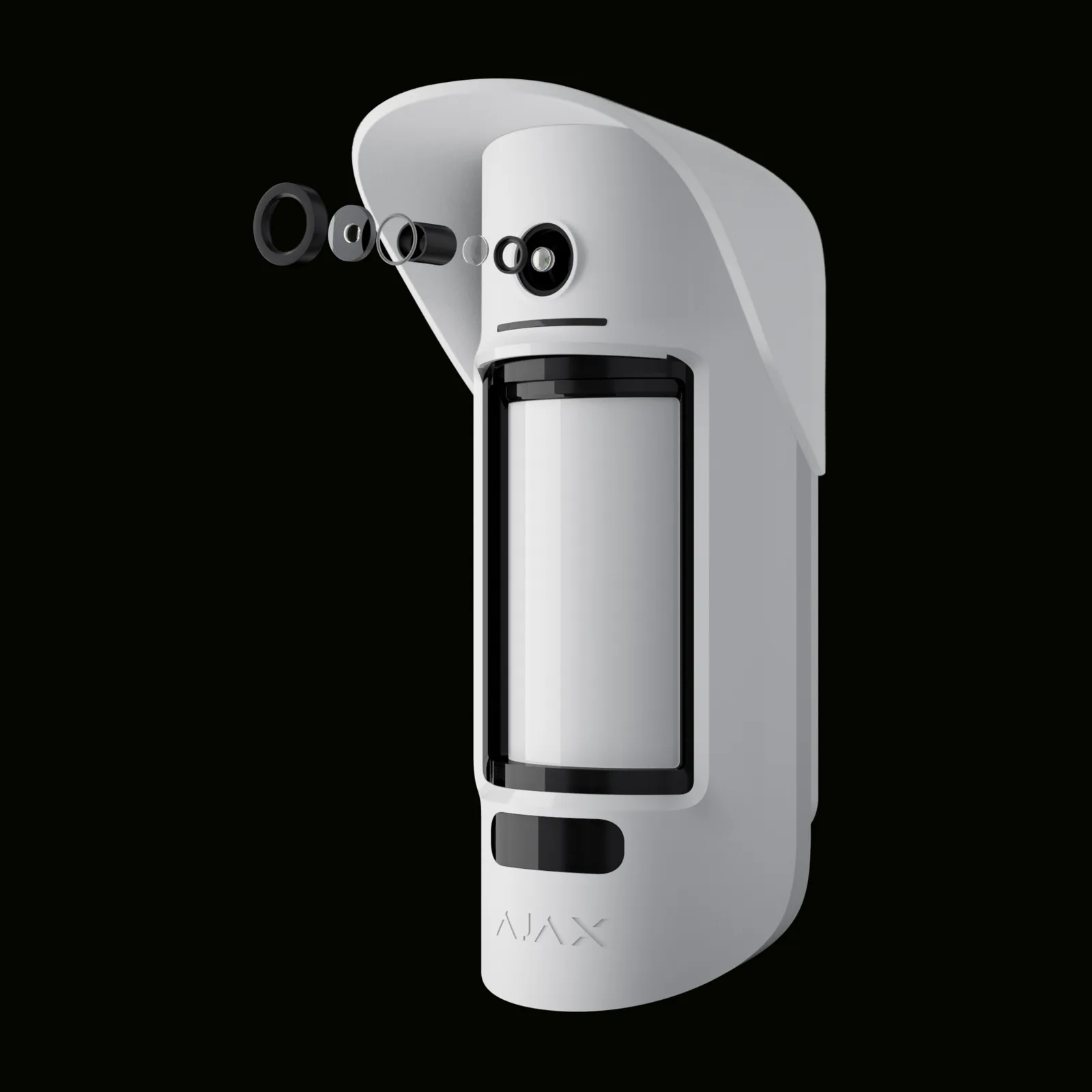

- Photo verification with HDR imaging and IR backlight
- Up to 5‑frame photo series
- Motion detection distance adjustable from 3 to 15 m
- Pet immunity for animals up to 80 cm tall
- Two encrypted radio protocols: Jeweller (events) and Wings (photos)
- Communication range up to 1,700 m
- IP55 weather protection with bundled hood
- Operates from −25 °C to +60 °C
- Up to 3 years of battery life
- Anti‑masking, tamper detection, and jamming protection
- Remote configuration and testing via Ajax apps
How It Works
MotionCam Outdoor uses two PIR sensors to detect movement. When both sensors register activity, the LISA algorithm performs correlation and spectral analysis to confirm the threat. If validated, the detector triggers an alarm and captures a series of HDR photos. Wings transmits the images securely and quickly, while Jeweller ensures reliable delivery of alarms and status updates.
Installation & Placement
- Designed for outdoor or indoor perimeter protection
- Recommended mounting height: 0.8–1.3 m
- Ideal for:
- Residential yards
- Commercial perimeters
- Industrial sites
- Driveways and loading areas
- Mounts using the SmartBracket panel
- Hood included to protect anti‑masking sensors from rain and snow
Reliability & Supervision
- Anti‑masking sensors detect covering, painting, or obstruction
- Tamper alarm triggers on removal from the bracket
- Jamming detection and device authentication protect against sabotage
- Regular hub polling ensures continuous supervision
- Temperature compensation maintains detection accuracy in extreme weather
Compliance
- EN 50131 Grade 2
- PD 6662:2017
- UL / ULC
- Operating temperature: −25 °C to +60 °C
- Protection class: IP55
Specifications
| Product Type | Wireless outdoor PIR motion detector with camera |
| Communication Technology | Jeweller and Wings encrypted radio protocols |
| Line Requirements | N/A — wireless |
| Alarm Type | Dual PIR motion detection with photo verification |
| Volume | N/A |
| Alarm Duration | N/A |
| Sound Frequency | N/A |
| Chime Feature | No |
| LED Features | Internal LED indication for identification and testing |
| Event Indication | Motion alarms, photo verification, tamper alerts, anti‑masking, communication faults |
| Tamper Protection | Anti‑masking, tamper alarm, jamming detection, device authentication |
| Backup Battery | 4 × CR123A batteries (pre‑installed) |
| Power Supply | 3 V (4 × CR123A) |
| Installation Height | 0.8–1.3 m recommended |
| Dimensions | 206 × 108 × 93 mm |
| Weight | 470 g |
| Operating Temperature | -25 °C to +60 °C |
| Operating Humidity | Up to 95% |
| Protection Class | IP55 |
| Colours | White |
| Complete Set | MotionCam Outdoor detector, SmartBracket panel, Hood, 4 × CR123A batteries, installation kit, user guide |
| Compliance | EN 50131 Grade 2, PD 6662:2017, UL, ULC |
