Superior GlassProtect Fibra
A wired glass break detector with an electret microphone, DualTone false‑alarm filtering, and up to 9 m detection range using Fibra communication.
Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.
Available Colours
Superior GlassProtect Fibra

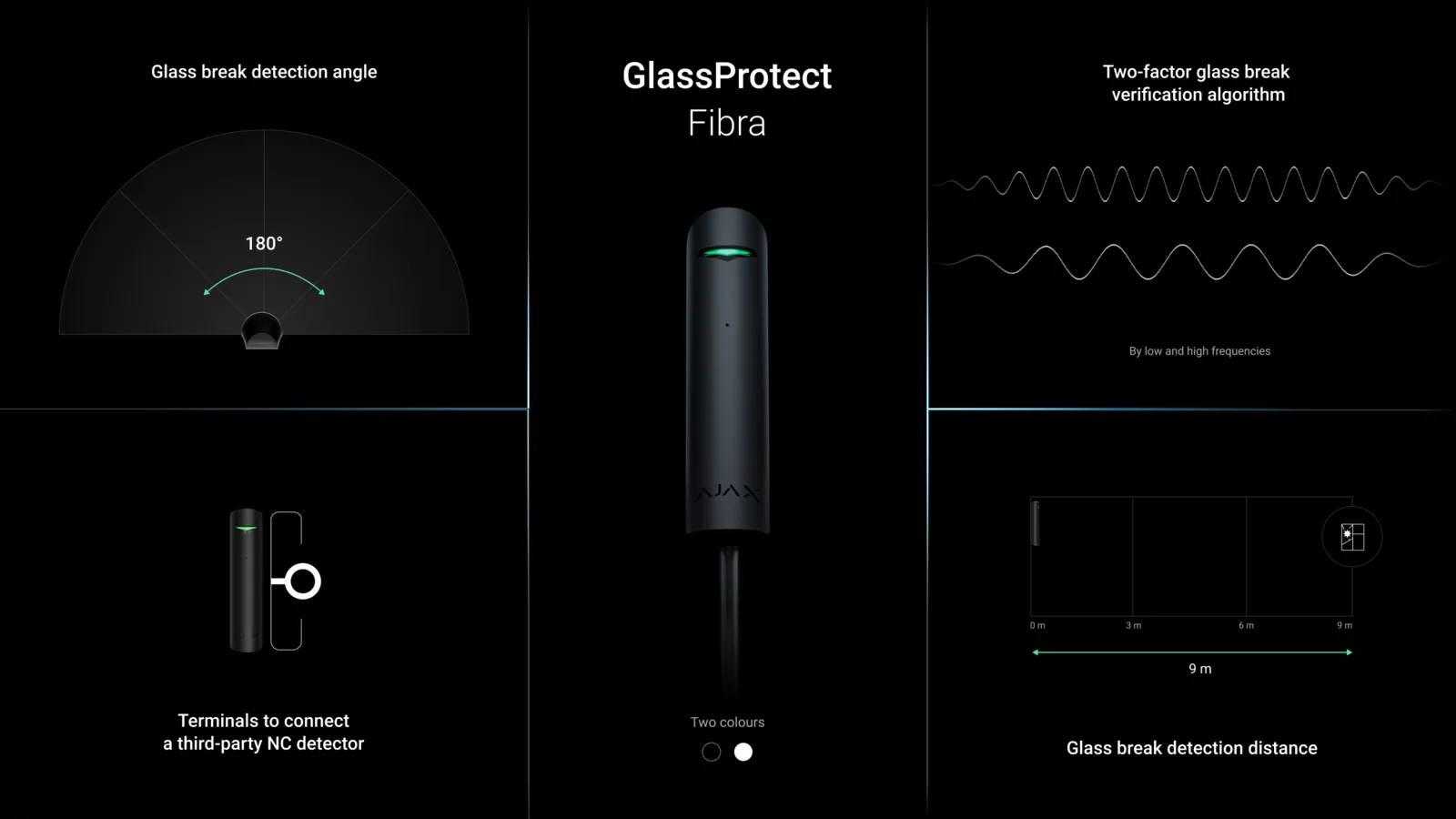

Superior GlassProtect Fibra is a wired glass break detector designed for high‑security indoor environments. It uses a sensitive electret microphone and the DualTone digital algorithm to distinguish real glass break events from background noise. With a detection range of up to 9 meters and a 180° horizontal angle, the detector provides wide coverage for windows, glass doors, and display cases. Fibra wired communication ensures stable, encrypted, long‑distance connectivity with the hub.
Key Features
- Up to 9 m glass break detection range
- 180° horizontal detection angle
- Electret microphone with DualTone verification
- Three sensitivity levels
- Fibra wired communication up to 2,000 m
- Terminals for third‑party NC detector integration
- Low power consumption (up to 0.036 W)
- Two tamper protections: enclosure and removal
- Remote configuration via Ajax apps
How It Works
Superior GlassProtect Fibra detects glass break events using an electret microphone tuned to the acoustic signature of breaking glass. The DualTone algorithm analyzes two sound components — the low‑frequency impact and the high‑frequency shattering — and triggers an alarm only when both occur within 1.5 seconds. This two‑stage verification significantly reduces false alarms from pets, traffic, or ambient noise. Fibra communication provides encrypted, two‑way data exchange with the hub, ensuring reliable operation even in large facilities.
Installation & Placement
- Designed for indoor installation only
- Suitable for:
- Offices and coworking spaces
- Schools and medical centres
- Retail stores and showrooms
- Museums and residential properties
- Mounts using the included installation kit
- Supports cable routing through perforated enclosure sections
- Third‑party NC detectors can be connected via terminals
Reliability & Supervision
- Two tamper buttons detect enclosure opening and removal
- Protection against short circuits on the Fibra line
- Device authentication prevents spoofing
- Encrypted communication with dynamic key protection
- Regular polling ensures real‑time device status
- Power consumption optimized via TDMA scheduling
Compliance
- EN 50131 Grade 2
- PD 6662:2017
- INCERT
- SSF
- Operating temperature: −10 °C to +40 °C
- Operating humidity: up to 75%
- Protection class: IP50
Specifications
| Product Type | Wired glass break detector |
| Communication Technology | Fibra wired communication with encryption and device authentication |
| Line Requirements | 4‑core cable; up to 2,000 m using U/UTP Cat.5 (4×2×0.51 mm) cable |
| Alarm Type | Glass break detection via electret microphone |
| Volume | N/A |
| Alarm Duration | N/A |
| Sound Frequency | DualTone algorithm verifies low‑frequency impact and high‑frequency shattering |
| Chime Feature | No |
| LED Features | Internal LED indication for identification and testing |
| Event Indication | Glass break alarms, tamper alerts, communication faults |
| Tamper Protection | Two tampers: enclosure opening and removal from surface |
| Backup Battery | N/A — powered from Fibra line |
| Power Supply | 5–30 V⎓, up to 0.036 W consumption |
| Installation Height | Flexible — indoor installation only |
| Dimensions | 90.5 × 21 × 18.5 mm |
| Weight | White: 18 g; Black: 16 g |
| Operating Temperature | -10 °C to +40 °C |
| Operating Humidity | Up to 75% |
| Protection Class | IP50 |
| Colours | White, Black |
| Complete Set | Superior GlassProtect Fibra, installation kit, quick start guide |
| Compliance | EN 50131 Grade 2, PD 6662:2017, INCERT, SSF |
