Superior MotionProtect Plus Fibra
A wired indoor PIR motion detector with an additional K-band microwave sensor for enhanced false‑alarm filtering in thermally complex environments.
Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.
Available Colours
Superior MotionProtect Plus Fibra
Superior MotionProtect Plus Fibra is a wired indoor motion detector designed for environments where traditional PIR detectors struggle. By combining a PIR sensor with a K‑band microwave sensor, it verifies motion events and dramatically reduces false alarms caused by airflow, heaters, fireplaces, or rapid temperature changes. SmartDetect filtering, temperature compensation, and pet immunity further enhance reliability. Fibra wired communication ensures stable, encrypted connectivity over long distances.
Key Features
- Dual detection: PIR sensor with K‑band microwave verification
- Up to 12 m motion detection distance
- 88.5° horizontal viewing angle
- SmartDetect false‑alarm filtering
- Pet immunity up to 20 kg and 50 cm
- Fibra wired communication up to 2,000 m
- Low power consumption (up to 0.086 W)
- Temperature compensation for stable detection
- Remote configuration via Ajax apps
- Tamper alarm and short‑circuit protection
How It Works
Superior MotionProtect Plus Fibra uses a PIR sensor to detect infrared changes caused by human movement. When the PIR sensor triggers, the K‑band microwave sensor activates to verify the event, filtering out false alarms caused by thermal interference. The SmartDetect algorithm analyzes thermal patterns, movement speed, and IR intensity to distinguish real threats from noise. Fibra communication provides encrypted, two‑way data exchange with the hub, ensuring fast alarm delivery and continuous supervision.

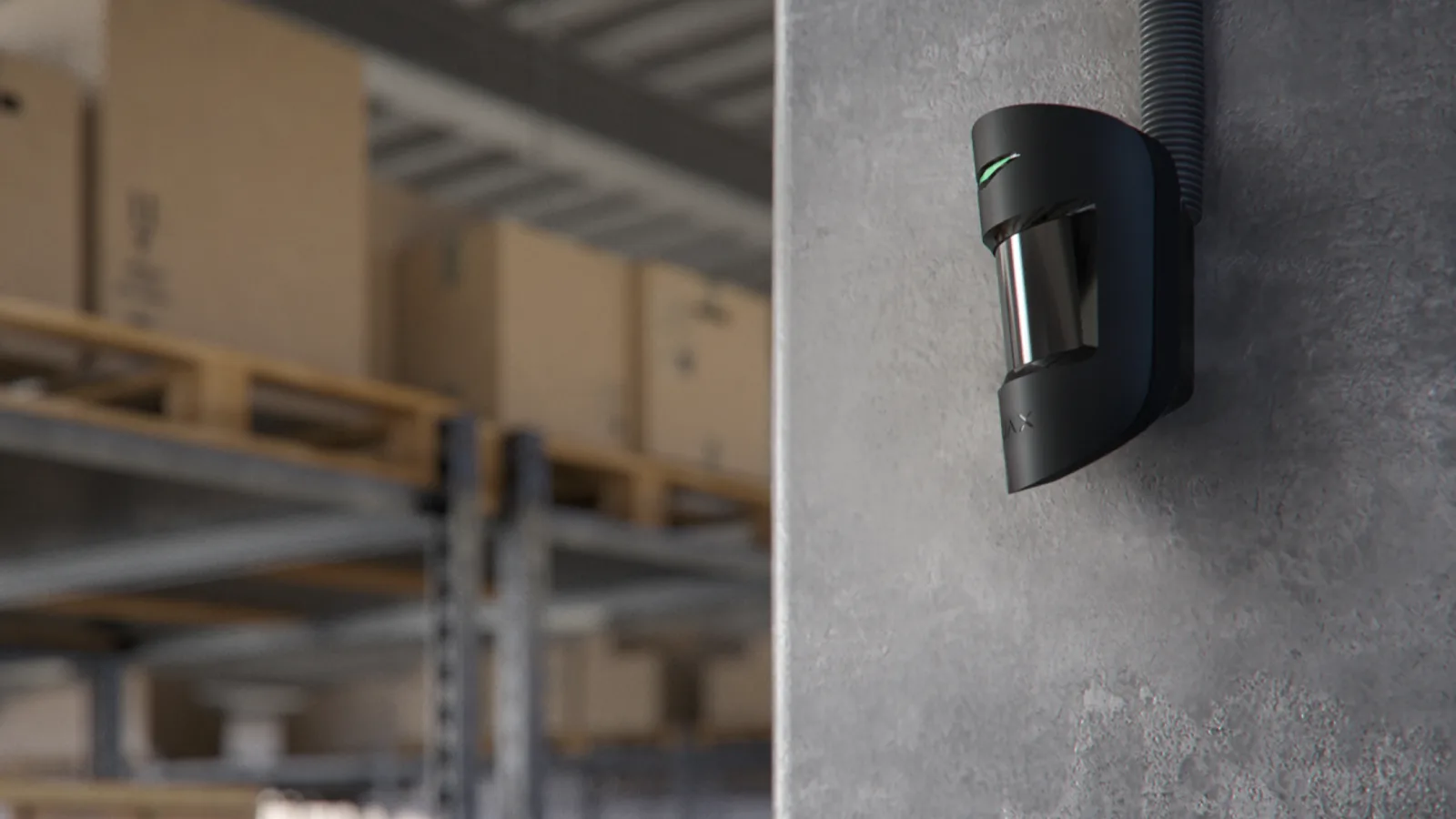

Installation & Placement
- Designed for indoor installation only
- Recommended mounting height: 2.4 m
- Ideal for:
- Offices and coworking spaces
- Restaurants and retail stores
- Residential properties
- Industrial and warehouse environments
- Mounts using the SmartBracket panel with removable terminal board
- Supports cable routing through multiple perforated sections
Reliability & Supervision
- Tamper detection for enclosure opening and removal
- Short‑circuit protection on the Fibra line
- Device authentication prevents spoofing
- Encrypted communication with dynamic key protection
- Regular polling ensures real‑time device status
- Temperature compensation ensures consistent detection
- Low power consumption via TDMA scheduling
Compliance
- EN 50131 Grade 2
- PD 6662:2017
- INCERT
- SSF
- NFA2P
- Operating temperature: −10 °C to +40 °C
- Operating humidity: up to 75%
- Protection class: IP50
Specifications
| Product Type | Wired PIR + microwave motion detector |
| Communication Technology | Fibra wired communication with encryption and device authentication |
| Line Requirements | 4‑core cable; up to 2,000 m using U/UTP Cat.5 (4×2×0.51 mm) cable |
| Alarm Type | PIR motion detection with K-band microwave verification |
| Volume | N/A |
| Alarm Duration | N/A |
| Sound Frequency | N/A |
| Chime Feature | No |
| LED Features | Internal LED indication for identification and testing |
| Event Indication | Motion alarms, tamper alerts, communication faults |
| Tamper Protection | Tamper alarm for enclosure opening and removal; device authentication; short‑circuit protection |
| Backup Battery | N/A — powered from Fibra line |
| Power Supply | 5–30 V⎓, up to 187 mW consumption |
| Installation Height | Recommended 2.4 m |
| Dimensions | 110 × 67 × 62 mm |
| Weight | Black: 86 g; White: 98 g |
| Operating Temperature | -10 °C to +40 °C |
| Operating Humidity | Up to 75% |
| Protection Class | IP50 |
| Colours | White, Black |
| Complete Set | Superior MotionProtect Plus Fibra, SmartBracket mounting panel, installation kit, quick start guide |
| Compliance | EN 50131 Grade 2, PD 6662:2017, INCERT, SSF, NFA2P |
