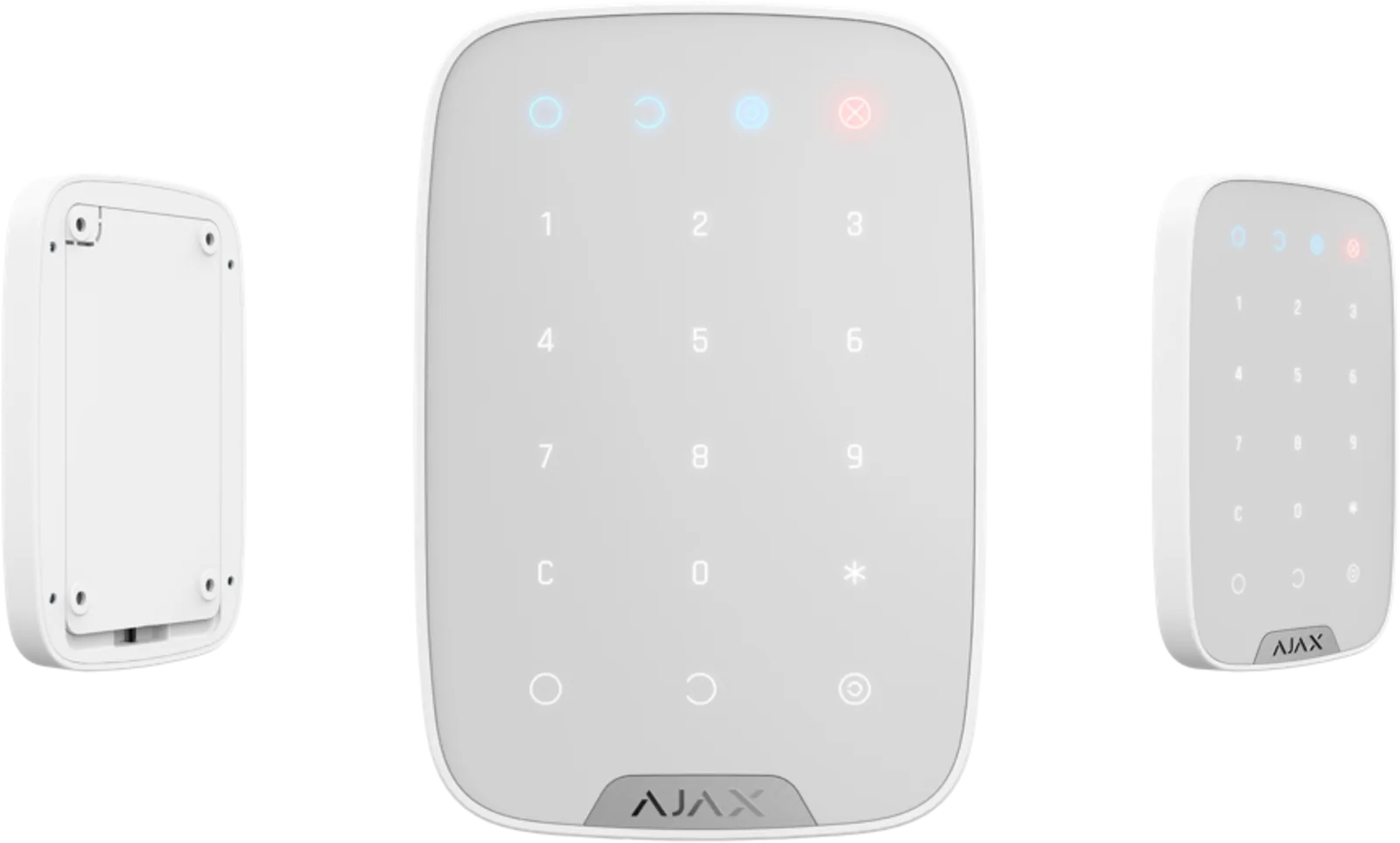

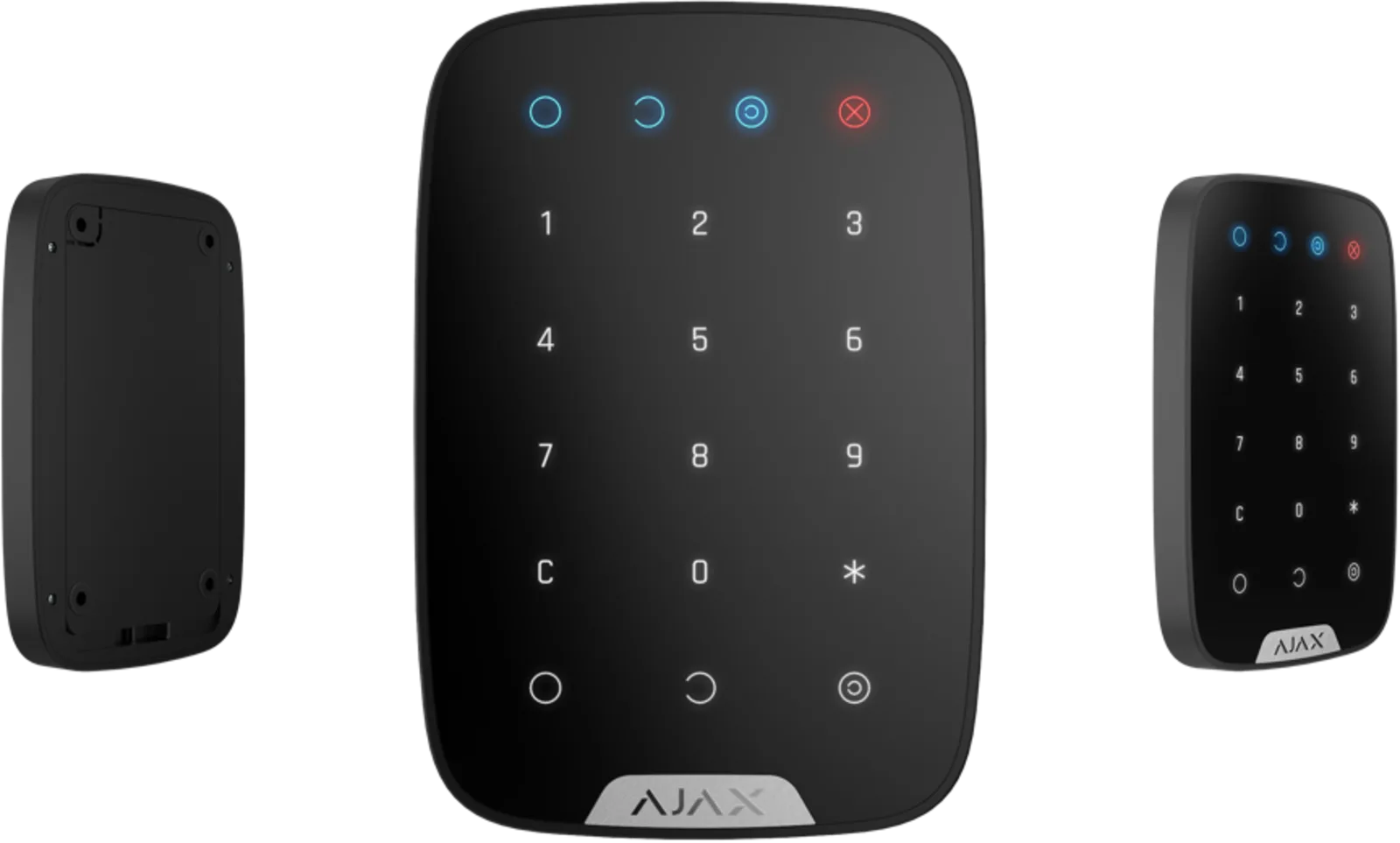

KeyPad Jeweller

A wireless touch keypad designed for fast, intuitive control of Ajax security systems. Installed near entry points, KeyPad Jeweller allows users to arm or disarm the system using personal passcodes, a general passcode, or quick arming without entering a code. With encrypted two‑way communication, anti‑tamper protection, and automatic lockout after incorrect attempts, it provides secure and reliable access control for residential and commercial environments.

The keypad operates for up to two years on pre‑installed AAA batteries and connects to the system via the Jeweller wireless protocol, ensuring long‑range, interference‑resistant communication. Its illuminated touch panel activates on approach, making it easy to use day or night.

Key Features

• Wireless touch keypad for arming and disarming
• Up to 200 personal passcodes plus a general passcode
• Duress code for silent alarm activation
• Function button configurable as a panic button or fire alarm mute
• Auto‑lock after repeated incorrect passcode attempts
• Encrypted two‑way communication via Jeweller protocol
• Up to 1,700 m communication range in open space
• Up to 2 years of battery life from 4 × AAA cells
• Tamper protection and jamming detection
• Remote configuration and diagnostics via Ajax apps
• SmartBracket mounting panel for fast installation

How It Works

KeyPad Jeweller communicates with the hub using encrypted two‑way radio. Users can enter a personal passcode, a shared passcode, or initiate arming without entering a code. The keypad logs each action, allowing the system to identify who armed or disarmed the premises.

A duress code enables silent disarming while sending an immediate alarm to monitoring centres. The keypad also includes a configurable Function button that can trigger a panic alarm or mute interconnected fire detector alarms.

Installation & Placement

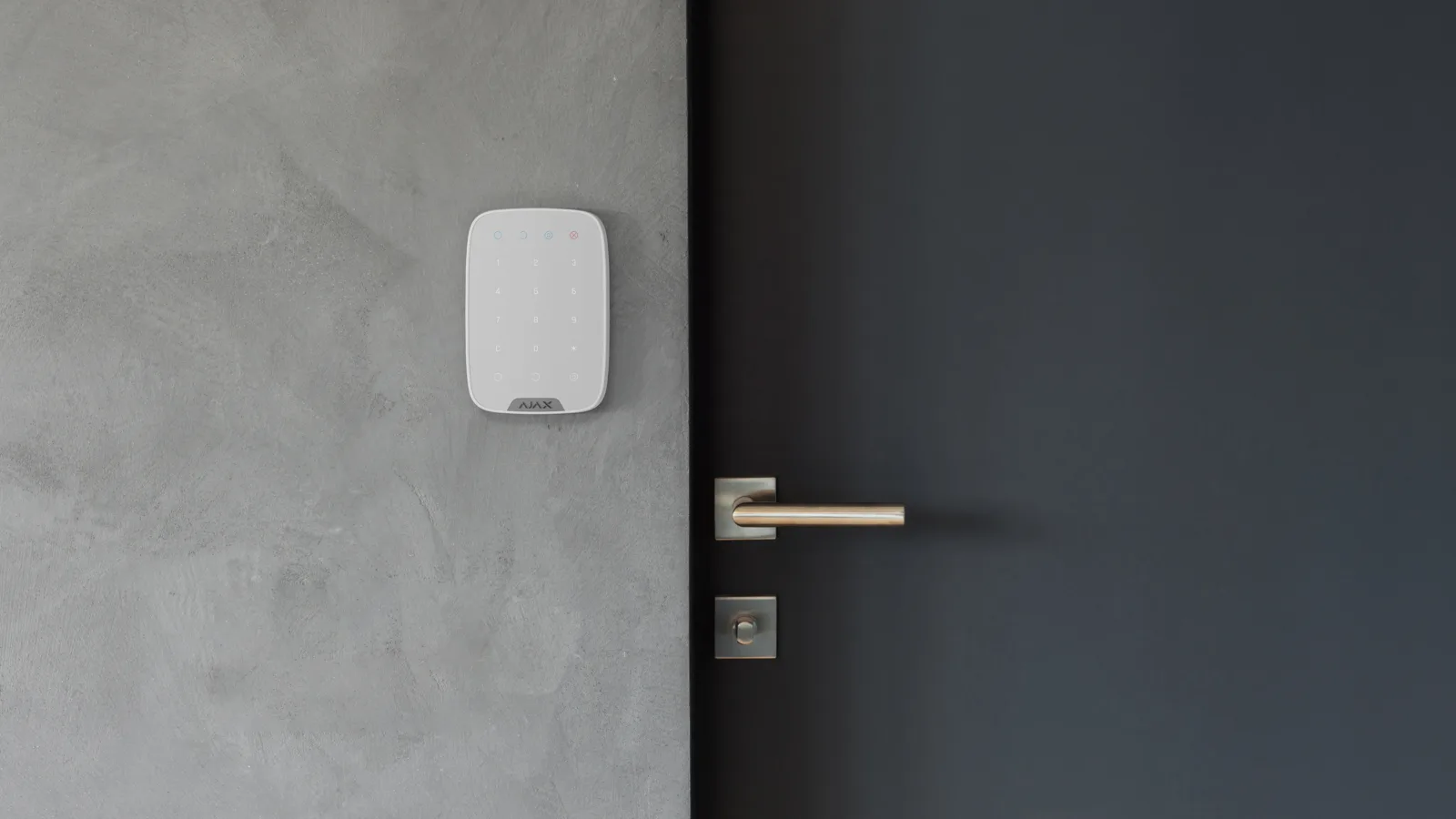

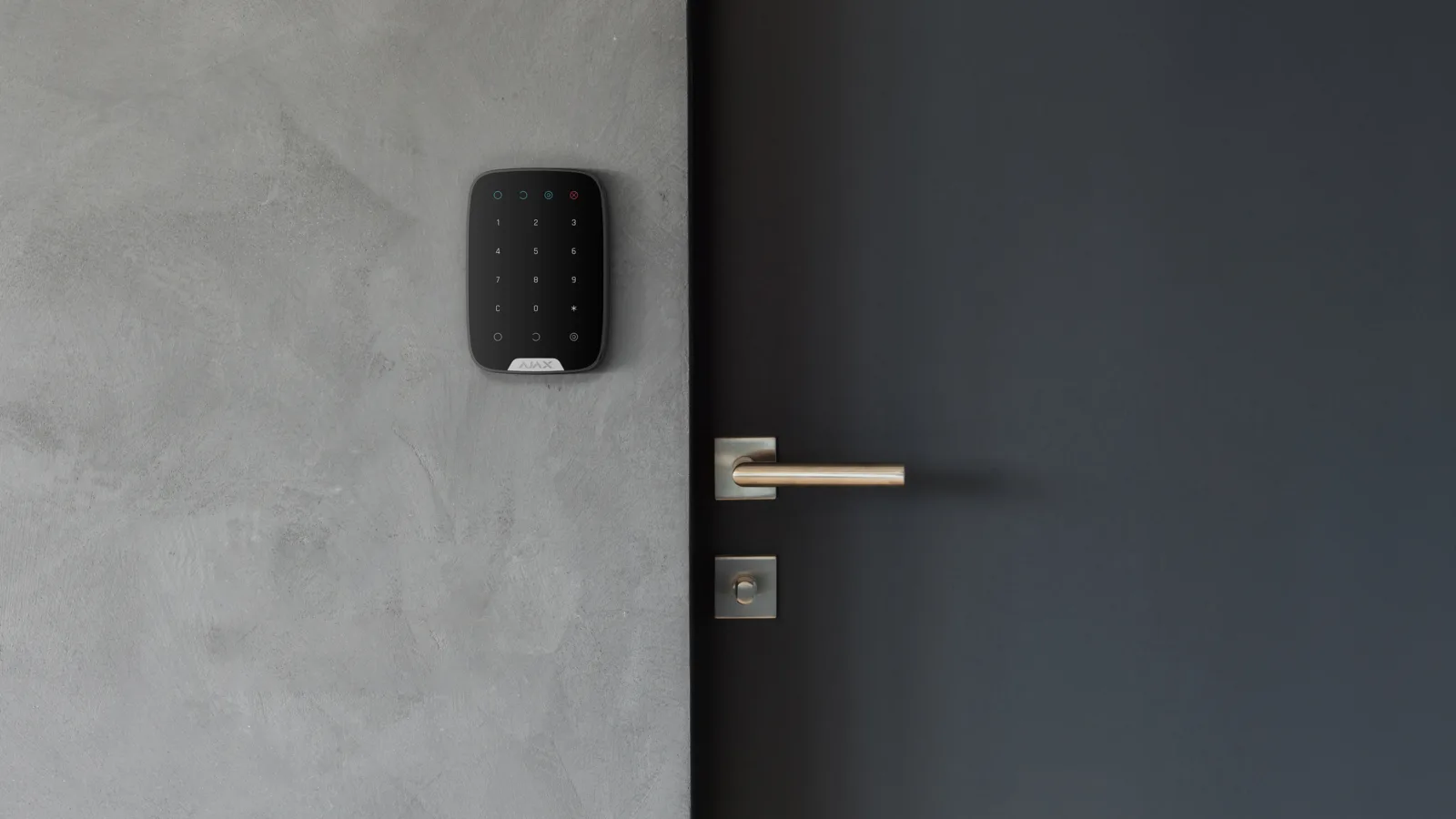

• Mount indoors near the main entry point
• Install using the SmartBracket panel
• Pre‑installed batteries allow immediate operation
• Pair with the hub via QR code in the Ajax app

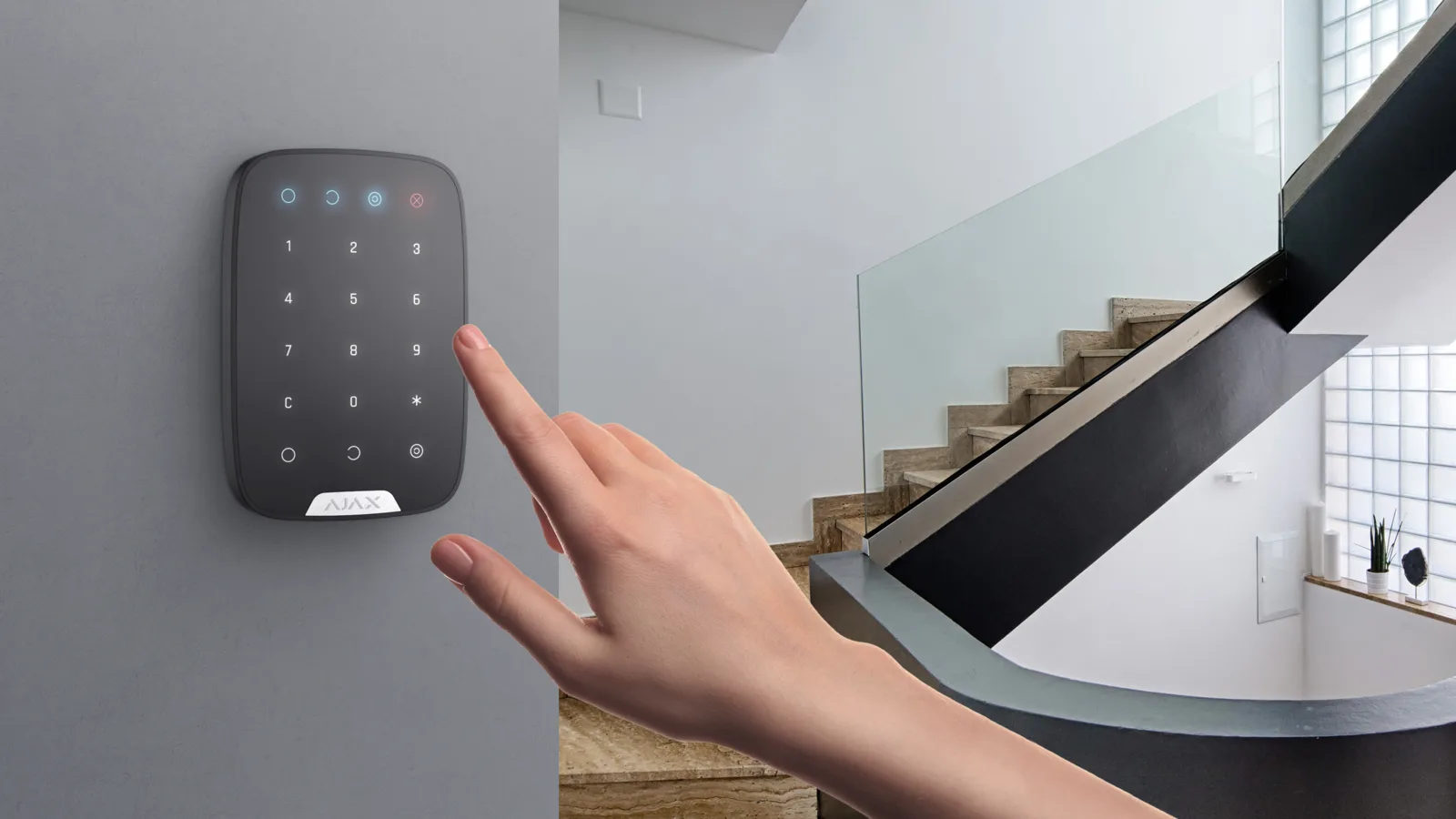

The keypad activates its touch panel when approached, providing clear visibility even in low‑light environments.

Reliability & Supervision

KeyPad Jeweller continuously exchanges encrypted data with the hub, supporting:

• Regular polling
• Tamper monitoring
• Jamming detection
• Spoofing protection
• Auto‑lock after incorrect passcodes

These features ensure secure operation and immediate reporting of faults or sabotage attempts.

Compliance

• EN 50131 Grade 2
• CE certified
• UL Listed
