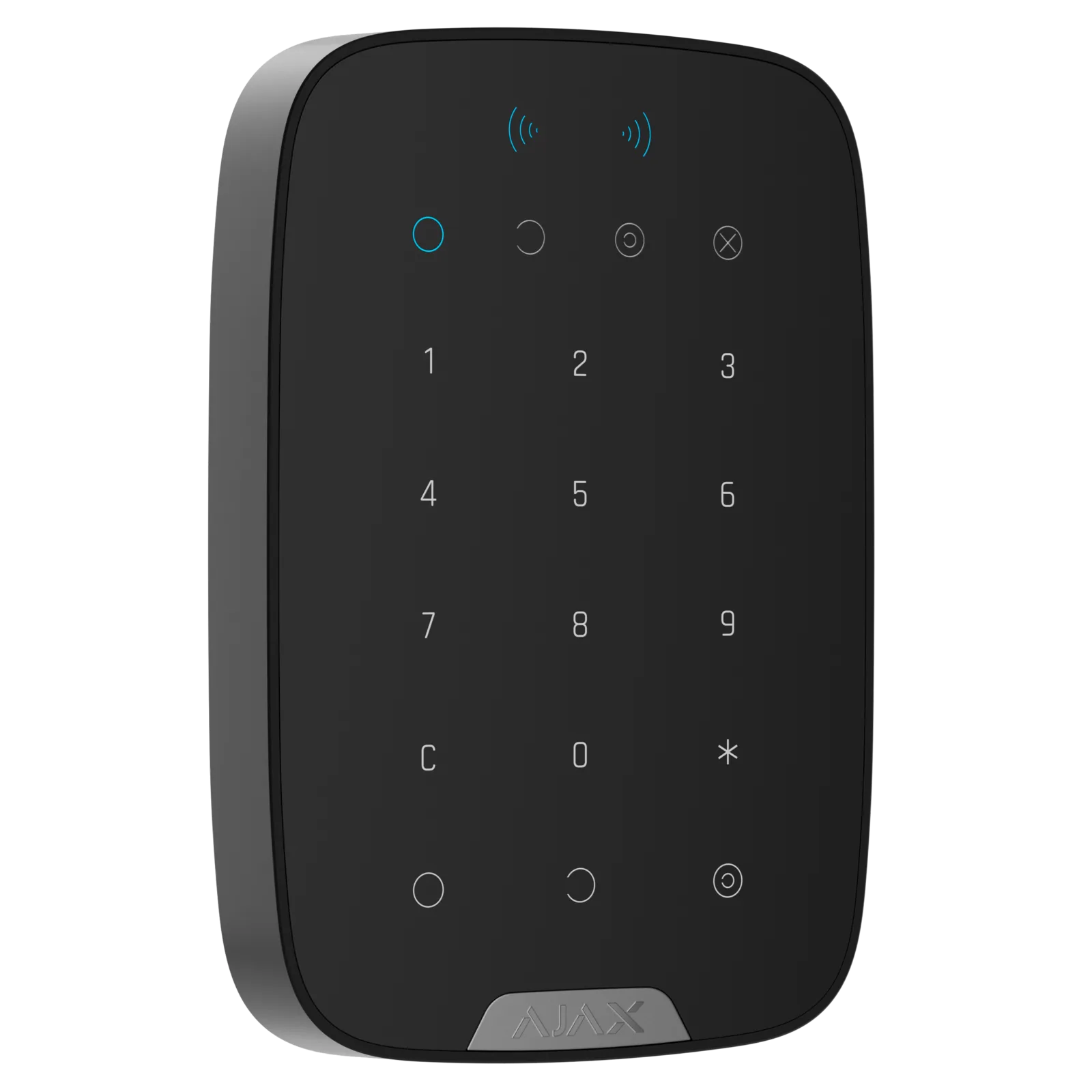

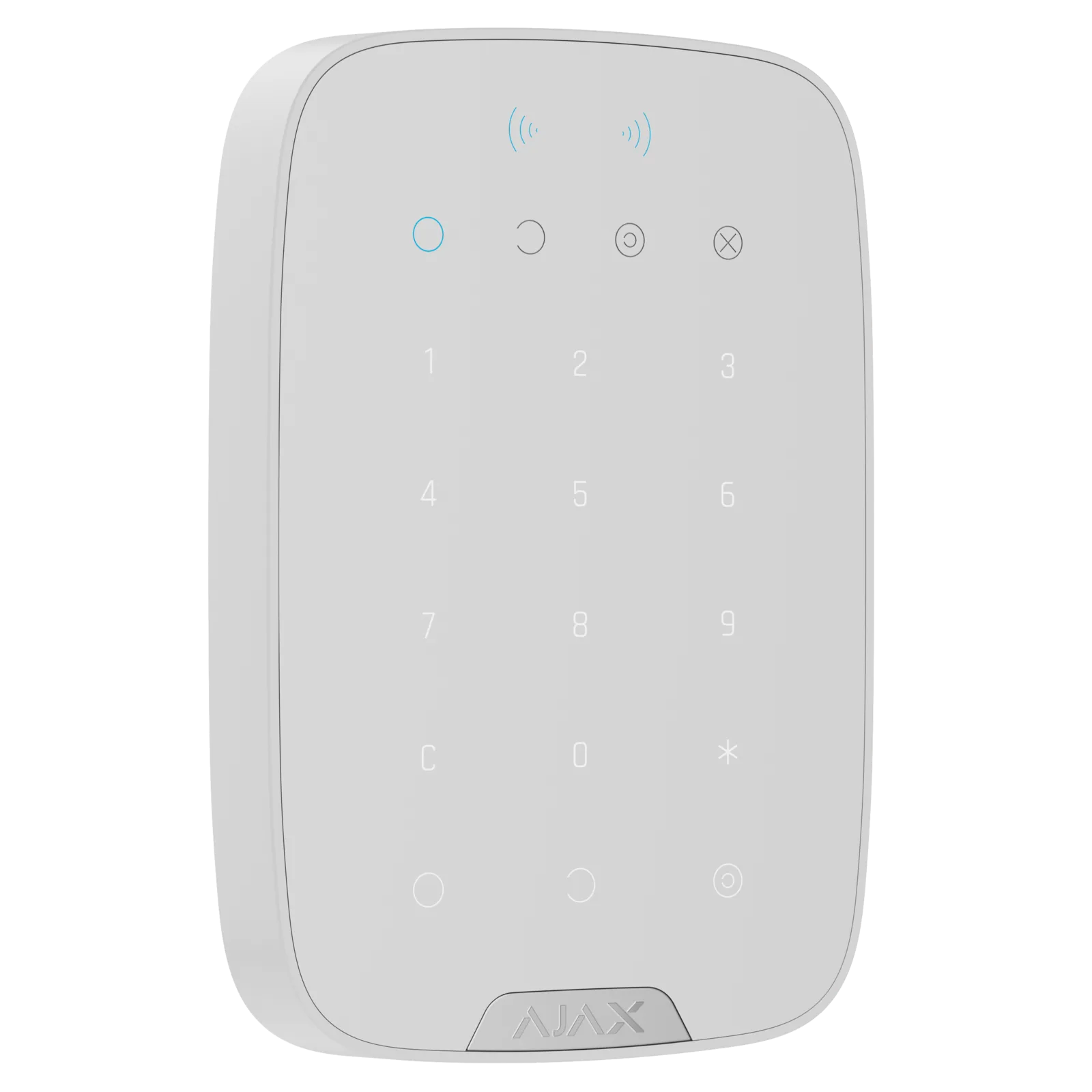

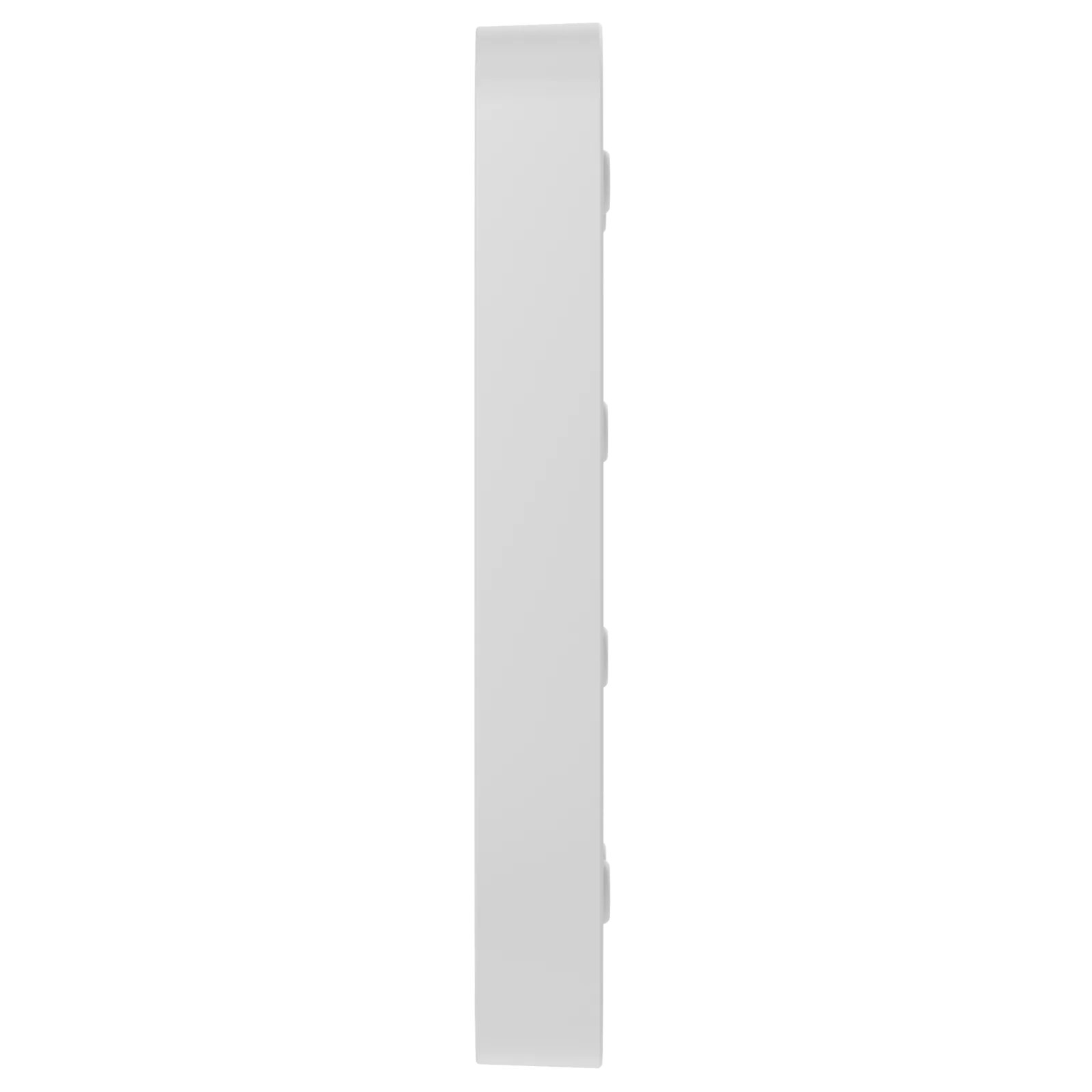

KeyPad Plus Jeweller

KeyPad Plus Jeweller is a wireless touch keypad designed for secure arming and disarming of Ajax security systems. It supports authentication via Pass cards, Tag key fobs, and multiple types of access codes, all protected by DESFire® encryption. With long‑range Jeweller communication, advanced anti‑sabotage features, and up to 4.5 years of battery life, it provides reliable access control for residential, commercial, and industrial environments.

Key Features

• Authentication via Pass cards, Tag key fobs, and multiple access code types
• DESFire® EV1/EV2 technology with 128‑bit encryption and copy protection
• Up to 1,700 m wireless communication range in open space
• Built‑in panic button
• Duress codes for silent alarm activation
• Auto‑wake on Delay when Entering (with supported firmware)
• Up to 200 personal access codes and up to 99 codes for unregistered users (hub‑dependent)
• LED indicators for security mode and malfunctions
• Frequency hopping and dynamic key encryption
• Up to 4.5 years of battery life
• Remote configuration via Ajax apps
• SmartBracket mounting panel for quick installation

How It Works

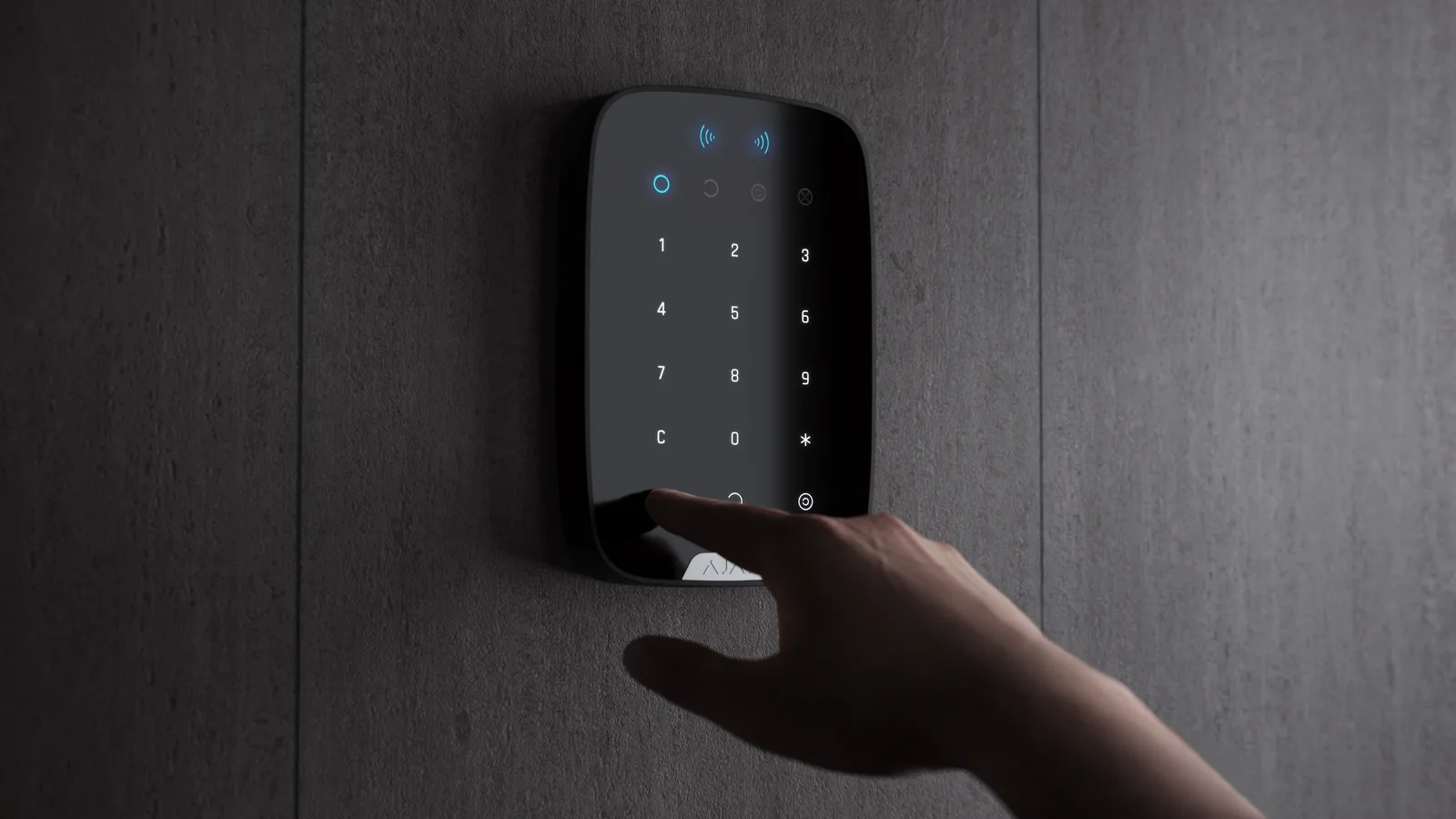

KeyPad Plus Jeweller communicates with the hub using encrypted two‑way Jeweller radio technology. Users authenticate by entering a code or presenting a Pass or Tag device, which is verified using DESFire® encryption. The keypad displays system status via LED indicators and supports group control and Night Mode.

If a duress code is entered, the keypad simulates normal disarming while silently sending an alarm to the security company. The built‑in panic button can trigger alarms or automation scenarios. Regular polling ensures real‑time supervision, and the keypad locks temporarily if incorrect codes are repeatedly entered.

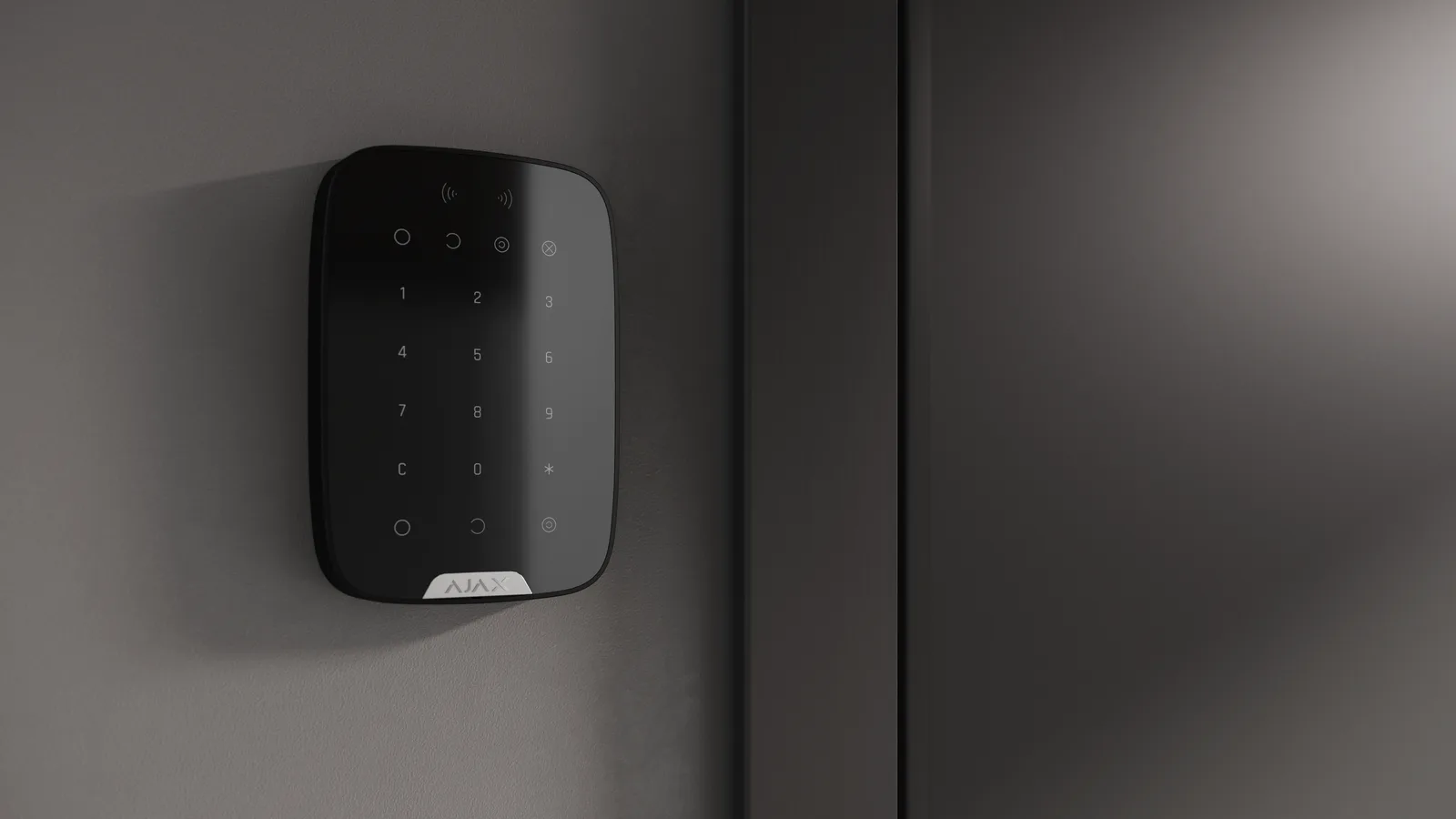

Installation & Placement

• Designed for indoor installation only
• Mount at a convenient height for user interaction
• Suitable for:

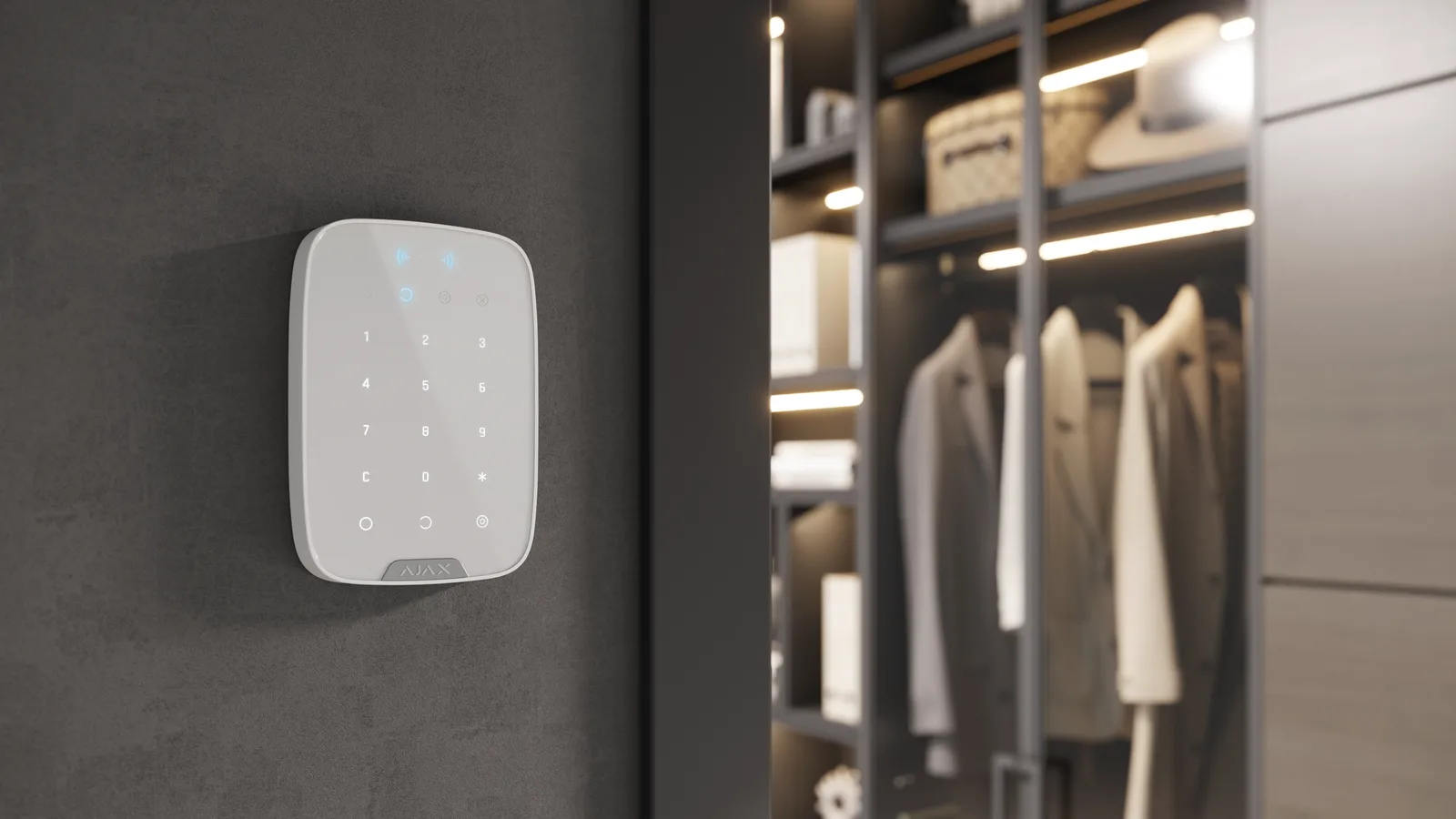

  • Homes and apartments
  • Offices and commercial spaces
  • Educational institutions
  • Medical centres

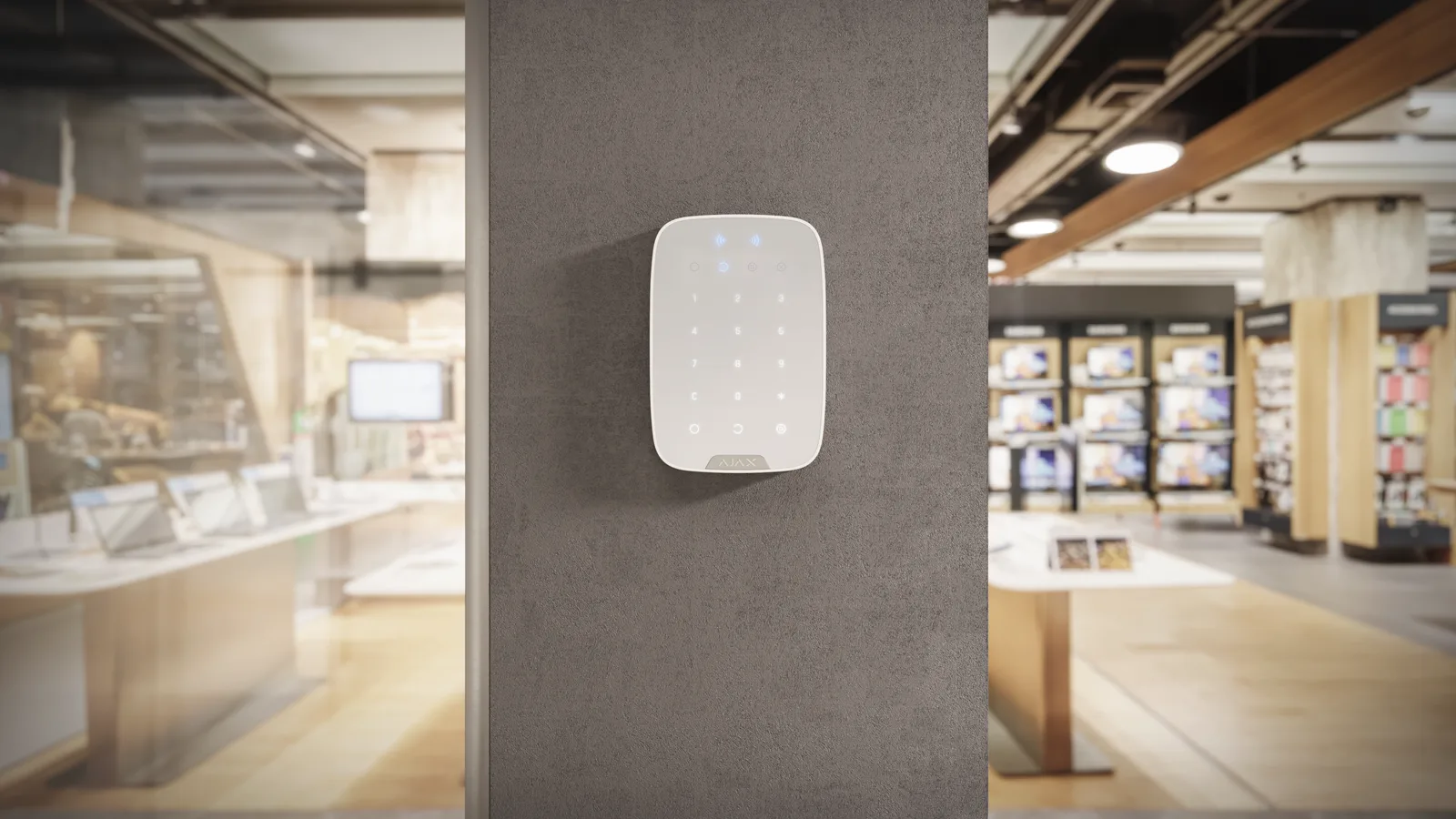

  • Retail stores
  • Warehouses and industrial facilities
• Install using the SmartBracket panel without opening the enclosure
• Pair with the hub by scanning the QR code
• Configure and test via Ajax mobile or desktop apps

Reliability & Supervision

• Tamper alarm for enclosure removal
• Protection against code guessing
• Device authentication to prevent spoofing
• Communication loss detection (as fast as 36 seconds depending on settings)
• Frequency hopping to resist jamming
• Data encryption with dynamic keys
• Regular polling for real‑time status
• Copy‑protected Pass and Tag devices

Compliance

• EN 50131 Grade 2
• PD 6662:2017
• UL985, UL1023, UL2610
• ANSI/SIA CP‑01‑2019
• Operating temperature: −10 °C to +40 °C
• Operating humidity: up to 75%

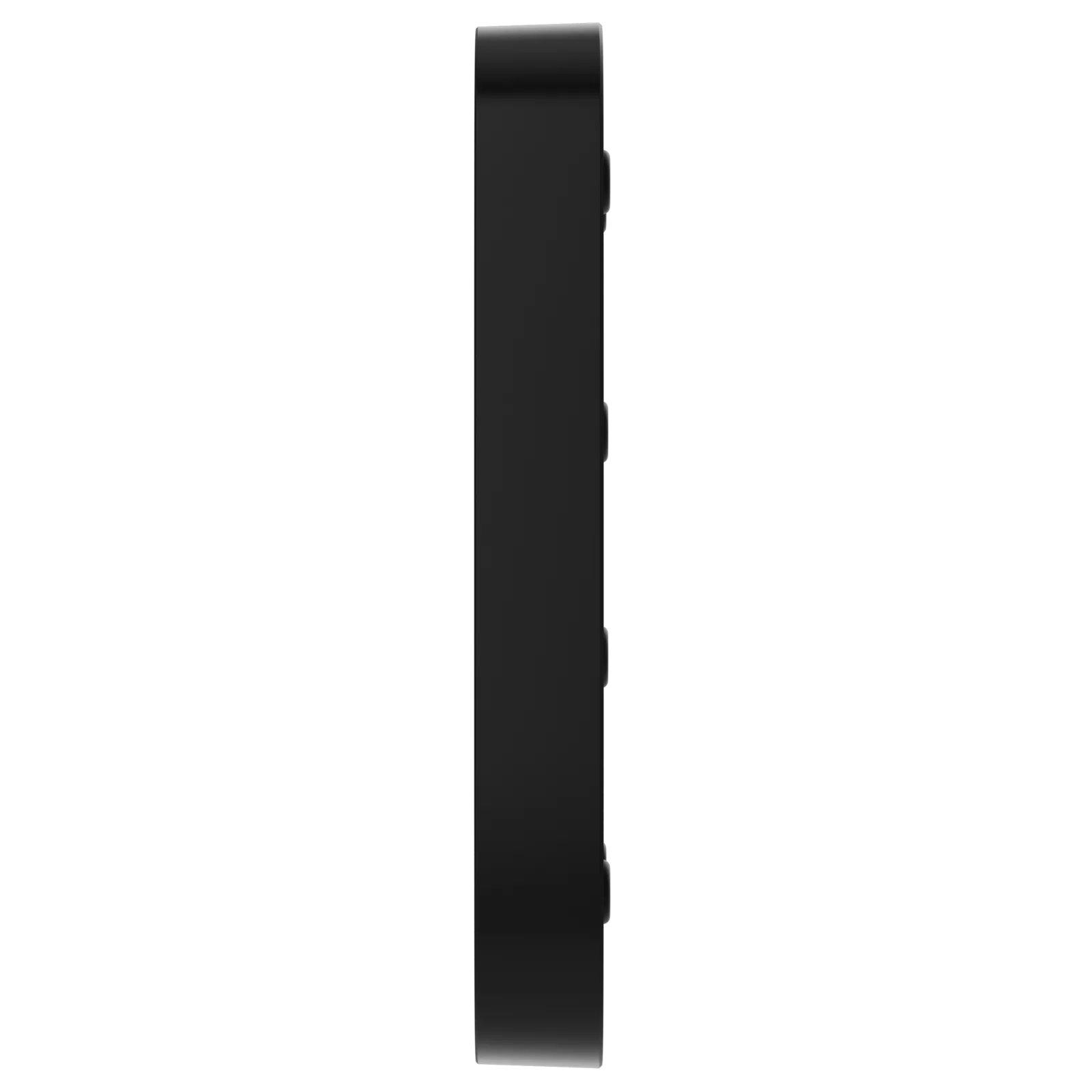

• Dimensions: 165 × 113 × 20 mm

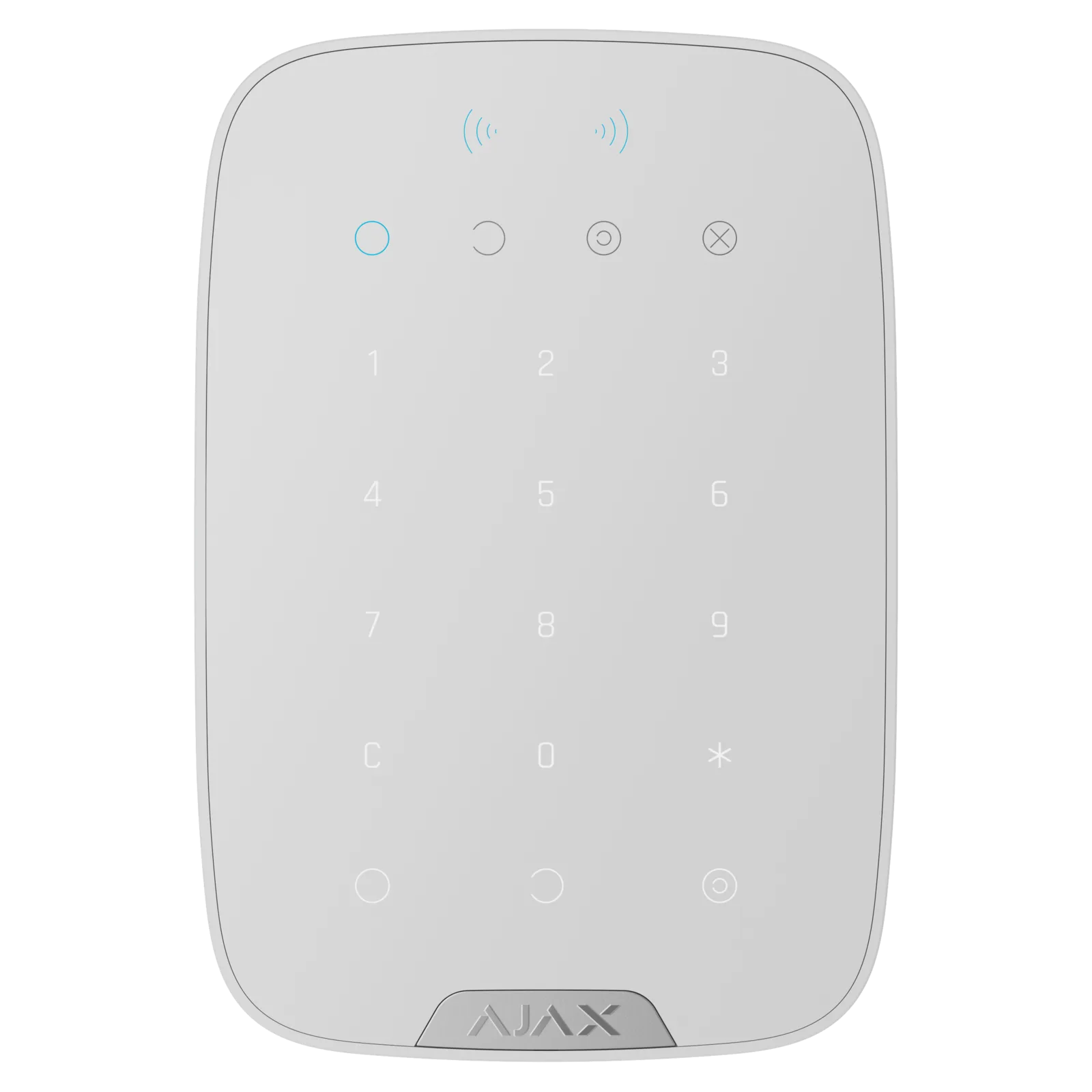

• Colours: White, Black
