Superior KeyPad Fibra
A wired indoor keypad with secure access codes, duress protection, and encrypted Fibra communication.
Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.
Available Colours

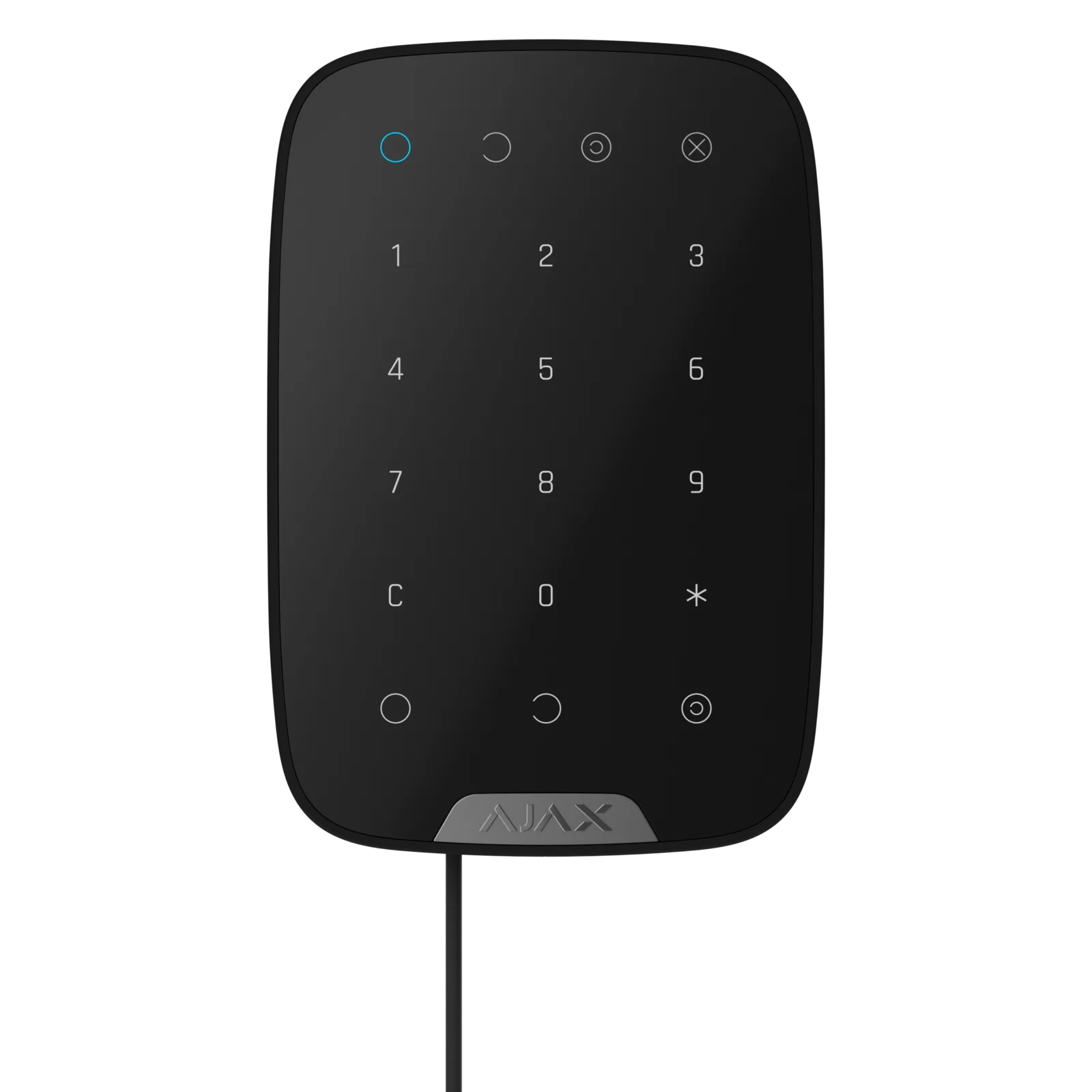

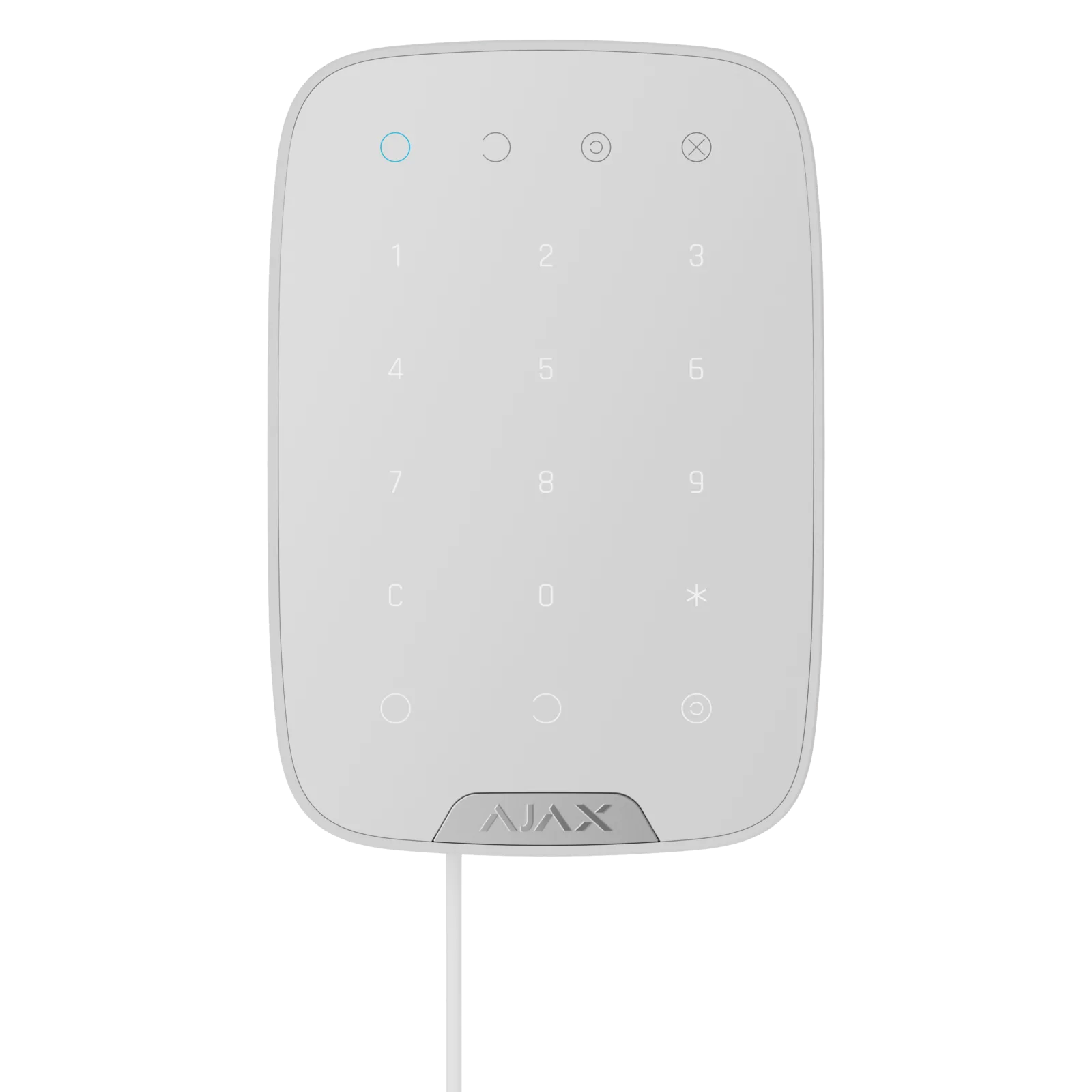

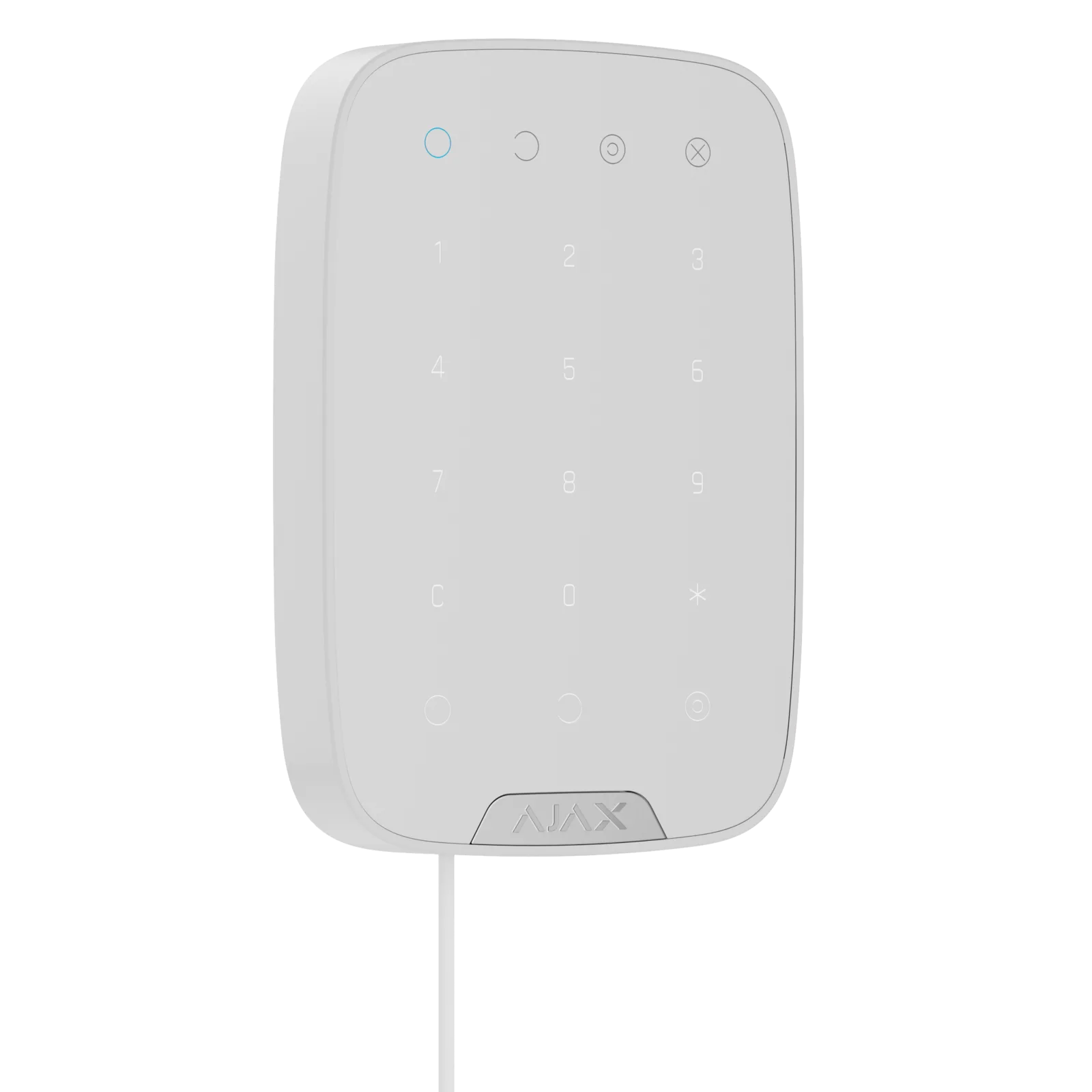

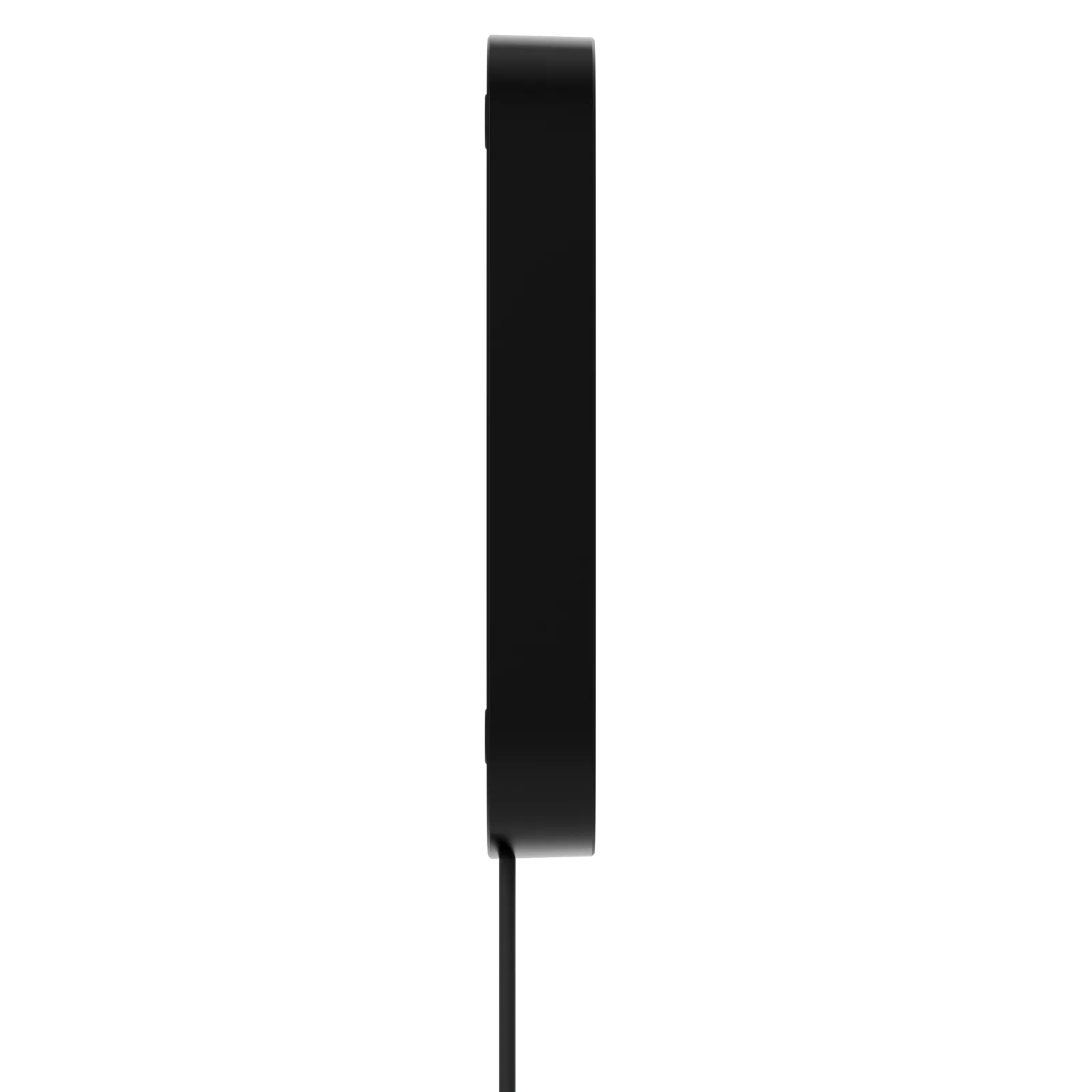

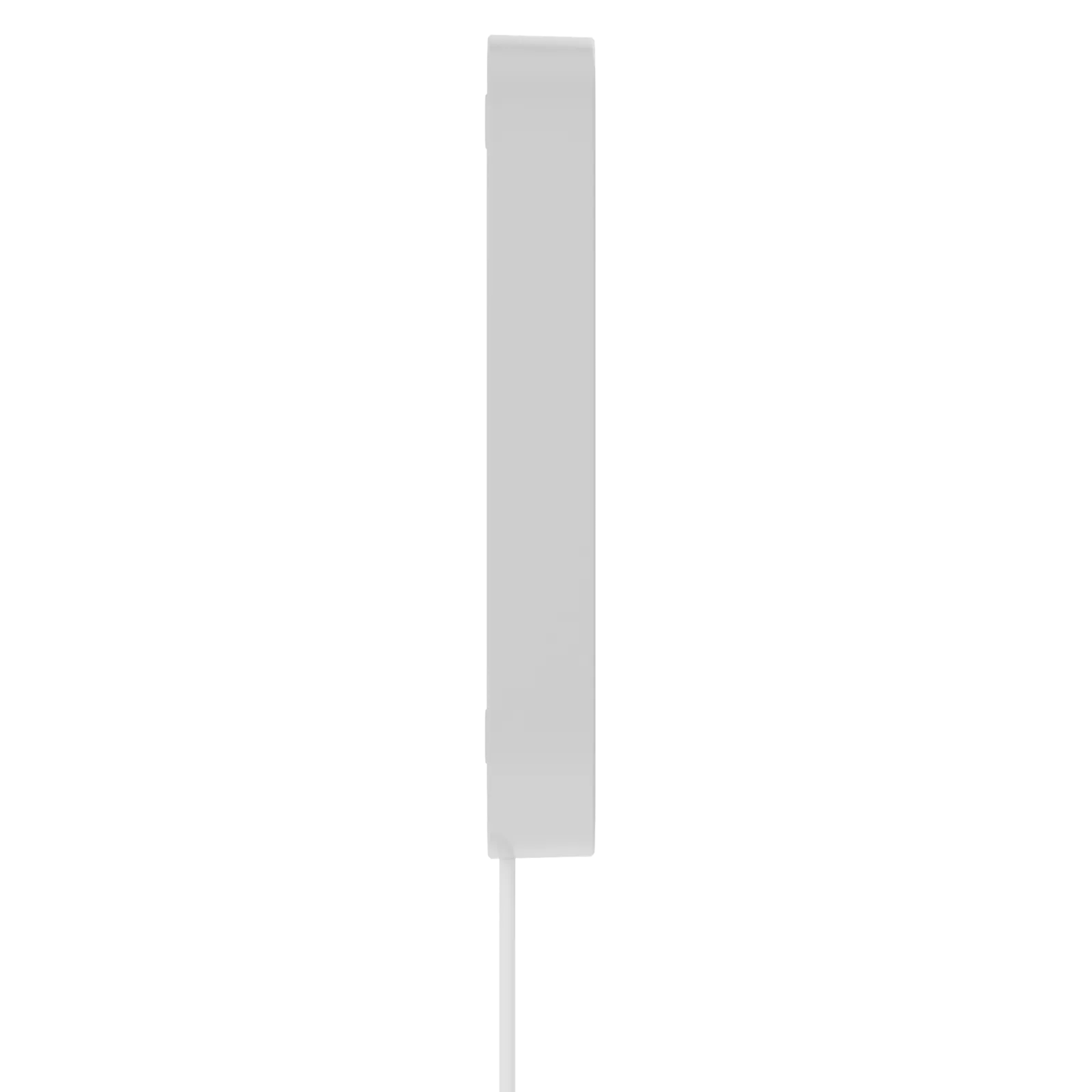

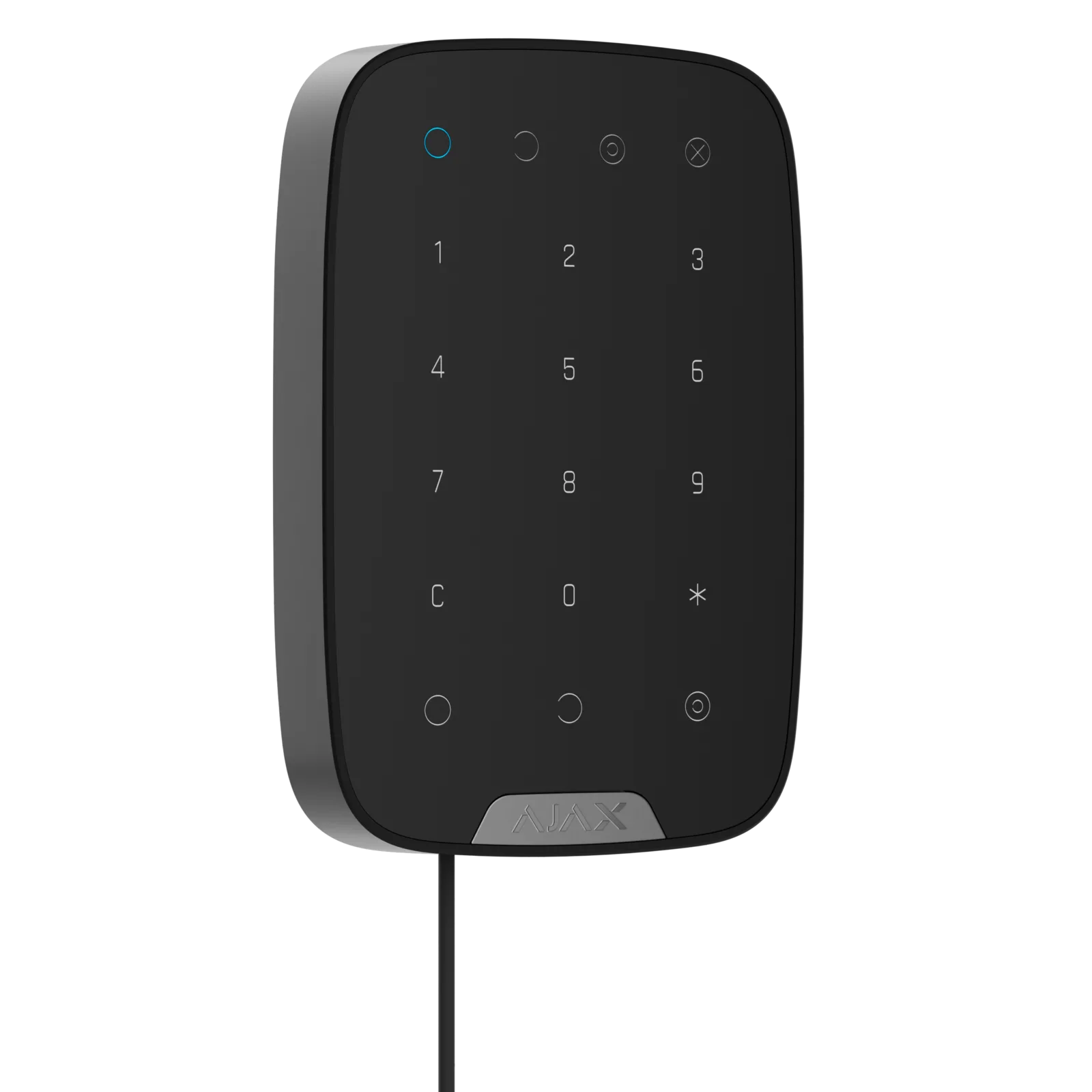

Superior KeyPad Fibra
Superior KeyPad Fibra is a wired indoor keypad designed for secure control of Ajax security systems. It supports multiple access code types, duress codes, and a built‑in panic button, all delivered over encrypted Fibra communication. With low power consumption, advanced anti‑sabotage protection, and a minimalist two‑colour design, it provides reliable access control for high‑security environments.
Key Features
- Four types of access codes: general, personal, unregistered user codes, and RRU codes
- Duress code support to silently trigger alarms
- Built‑in panic button
- Security mode indication
- Encrypted Fibra communication up to 2,000 m
- Protection against code guessing
- Tamper alarm and device authentication
- Energy consumption up to 400 µA
- Remote configuration and testing via Ajax apps
- Installation without disassembling the enclosure
- Two colour options: white and black
How It Works
Superior KeyPad Fibra connects to the hub using the Fibra wired protocol, providing encrypted, two‑way communication with instant event delivery. Users authenticate using a general or personal code, with the keypad locking automatically if incorrect codes are entered repeatedly. Duress codes simulate normal disarming while silently notifying the security company. The built‑in panic button can trigger alarms or automation scenarios.
The keypad displays system status through LED indicators and supports muting interconnected fire detector alarms. Regular polling ensures real‑time supervision and immediate detection of communication loss or tampering.
Installation & Placement

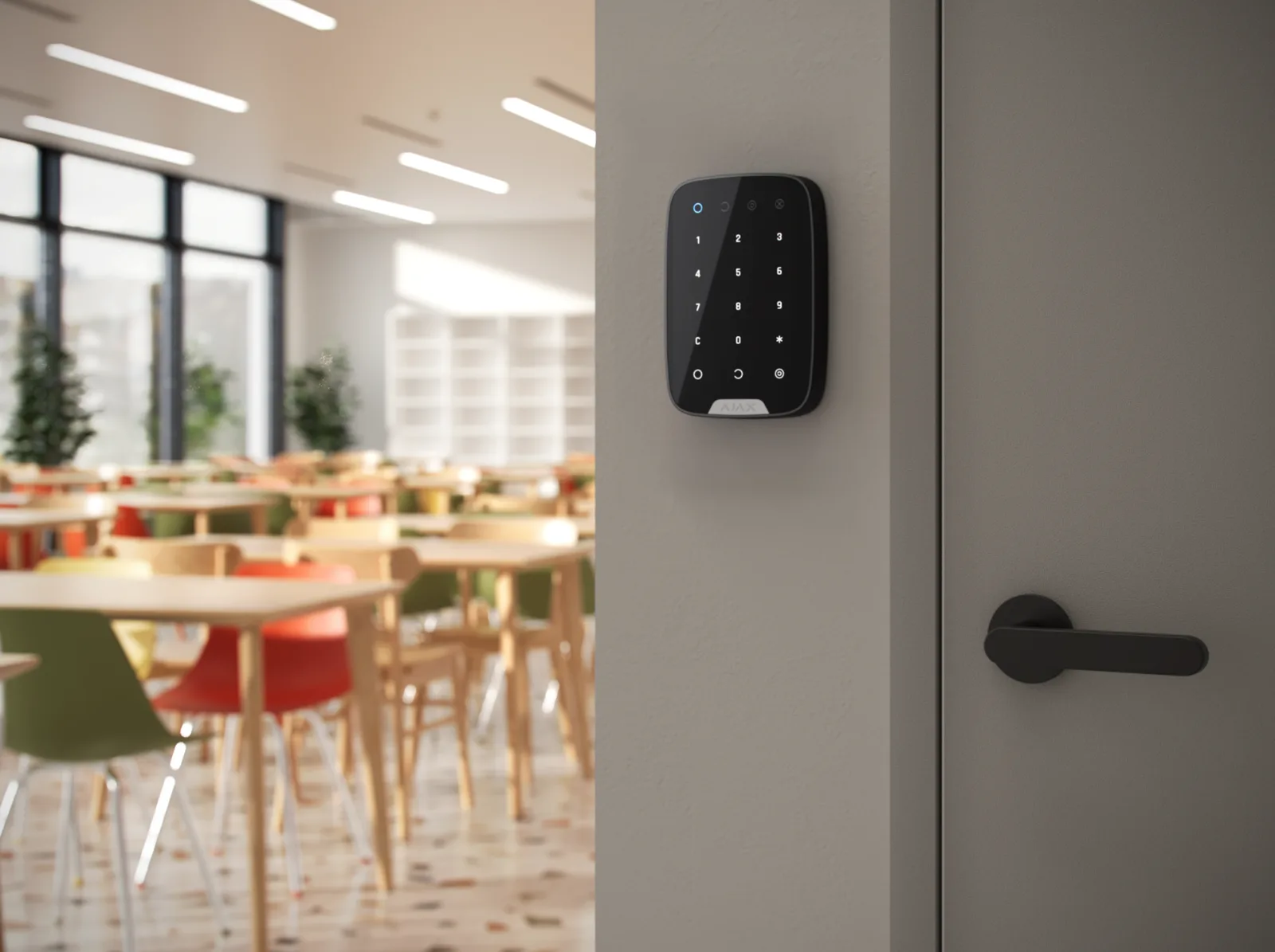

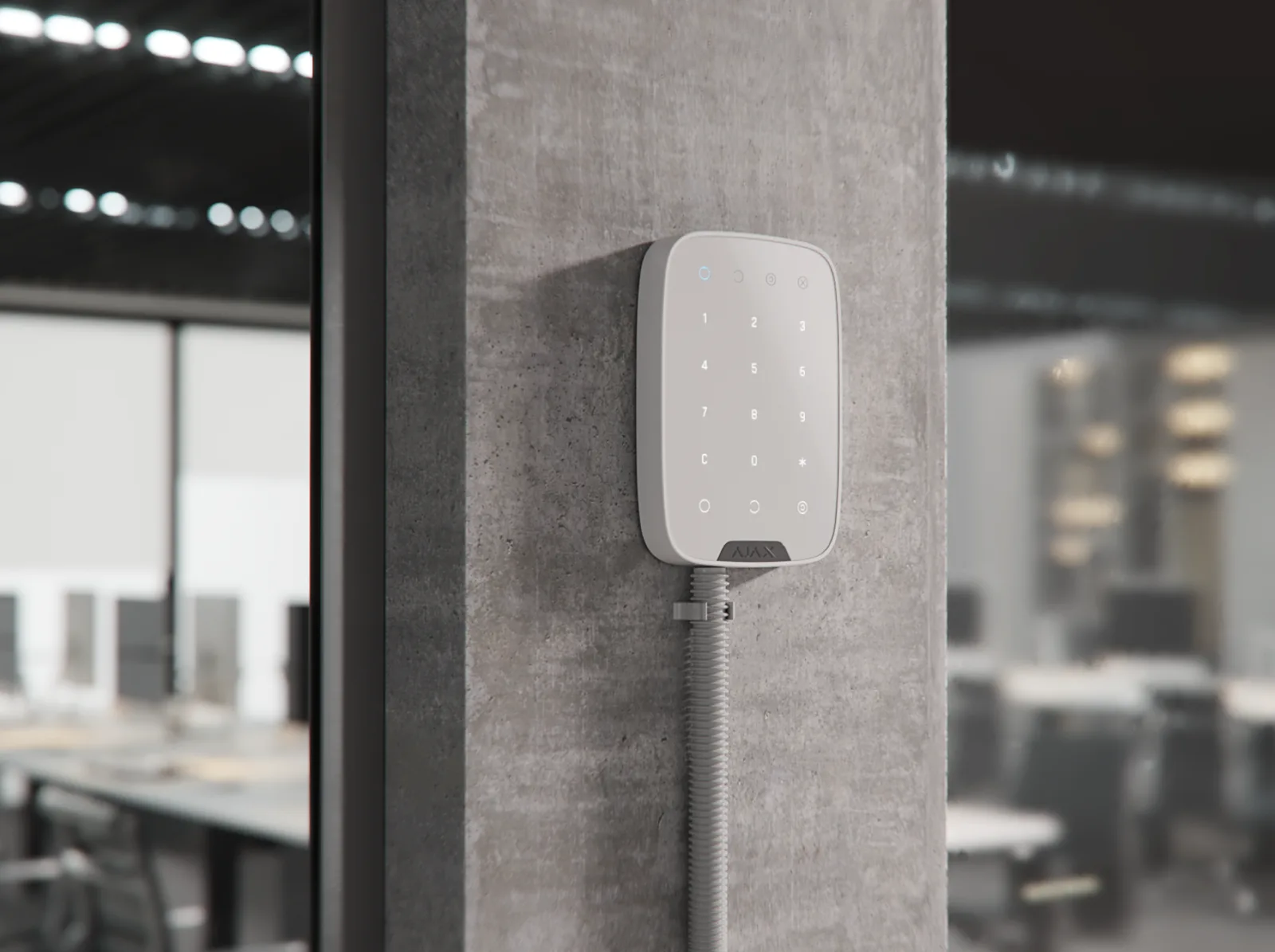

- Designed for indoor installation only
- Connects via 4‑core cable or U/UTP Cat.5 twisted pair
- Maximum line length: 2,000 m
- Suitable for:
- Offices and commercial spaces
- Warehouses and industrial facilities
- Residential properties
- Educational and medical facilities
- Install using the SmartBracket mounting panel
- Pair with the hub via QR code or line scanning
- Configure and test through Ajax mobile or desktop apps
Reliability & Supervision
- Tamper alarm for enclosure removal
- Protection against code guessing (locks after 3 failed attempts)
- Device authentication to prevent spoofing
- Encrypted communication with instant notifications
- Regular polling (12–300 seconds)
- Duress codes for silent alarm activation
- Panic button for emergency alerts
Compliance
- EN 50131 Grade 3
- INCERT
- SSF
- NFA2P
- Operating temperature: −10 °C to +40 °C
- Operating humidity: up to 75%
- Dimensions: 150 × 103 × 19 mm
- Colours: White, Black
Specifications
| Product Type | Wired indoor keypad |
| Communication Technology | Fibra wired communication with encryption and two-way data exchange |
| Communication Range | Up to 2,000 m using U/UTP Cat.5 or 4×0.22 mm cable |
| Access Codes | General code, personal codes, unregistered user codes, RRU codes |
| Duress Codes | General duress code and personal duress codes |
| Panic Button | Yes, built-in |
| Security Mode Indication | Yes |
| Code Guessing Protection | Locks after 3 incorrect attempts within 1 minute |
| Tamper Protection | Tamper alarm for enclosure removal |
| Device Authentication | Yes, protection against forgery |
| Polling Interval | 12–300 seconds |
| Power Supply | 5–30 V⎓ via Fibra line |
| Power Consumption | Up to 400 µA / up to 487 mW |
| Installation | SmartBracket mounting panel, QR code or line scanning |
| Operating Temperature | -10 °C to +40 °C |
| Operating Humidity | Up to 75% |
| Dimensions | 150 × 103 × 19 mm |
| Weight | 148 g |
| Colours | White, Black |
| Complete Set | Superior KeyPad Fibra, SmartBracket panel, installation kit, quick start guide |
| Compliance | EN 50131 Grade 3, INCERT, SSF, NFA2P |
