KeyPad TouchScreen Jeweller
A wireless touch-screen keypad supporting Pass, Tag, smartphone BLE authentication, and multiple access code types with secure Jeweller and Wings communication.
Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.
Available Colours
KeyPad TouchScreen Jeweller

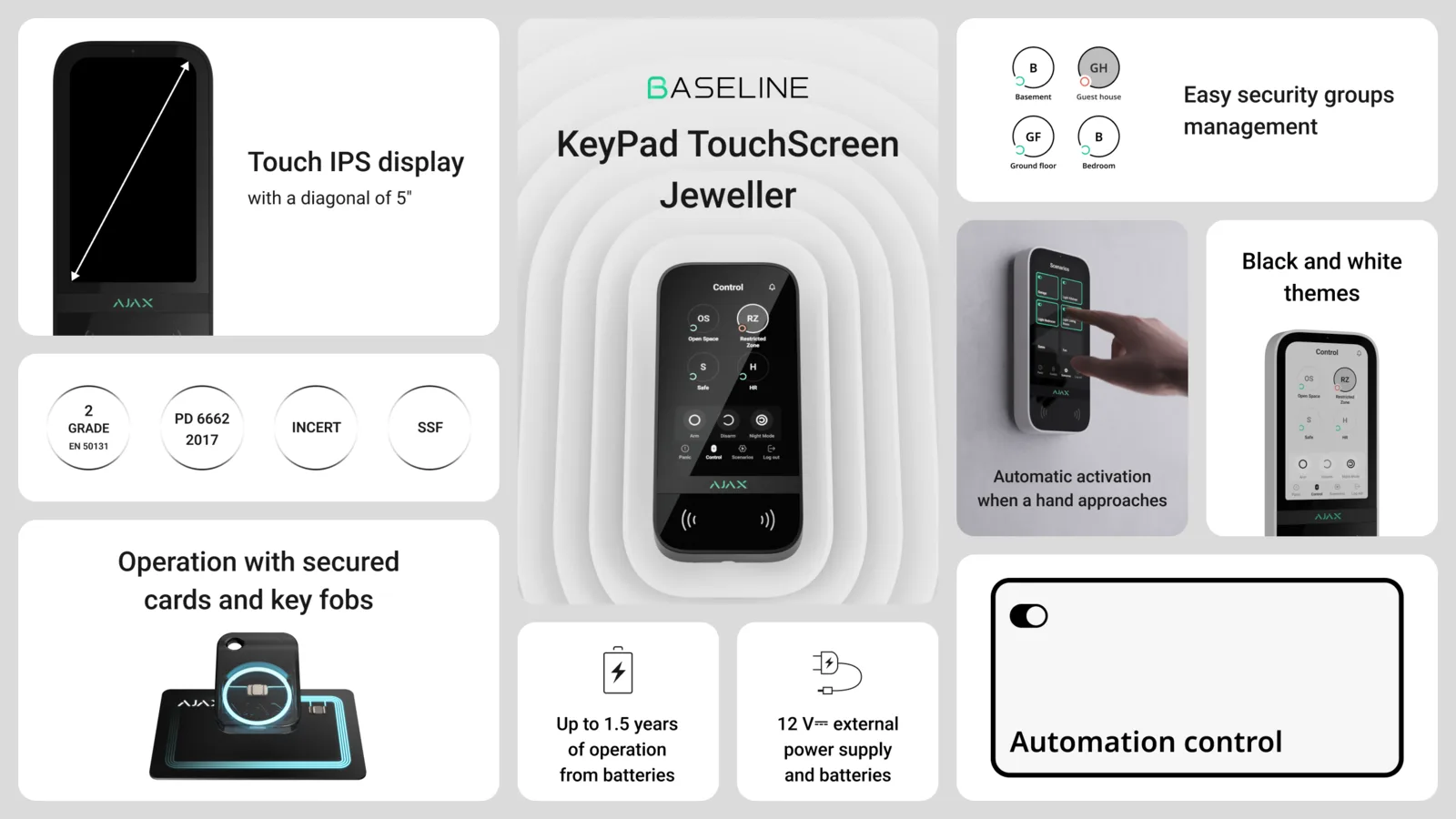

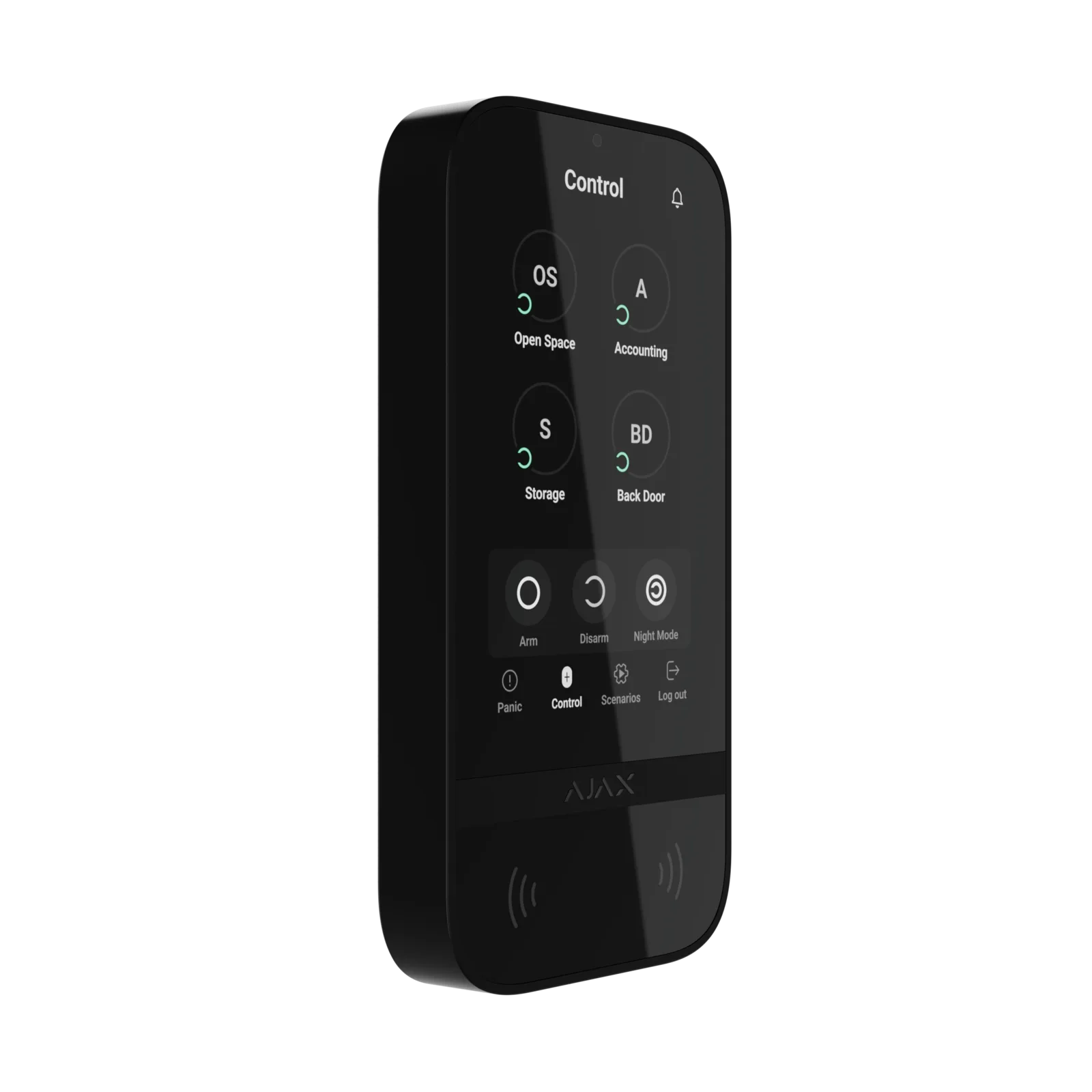

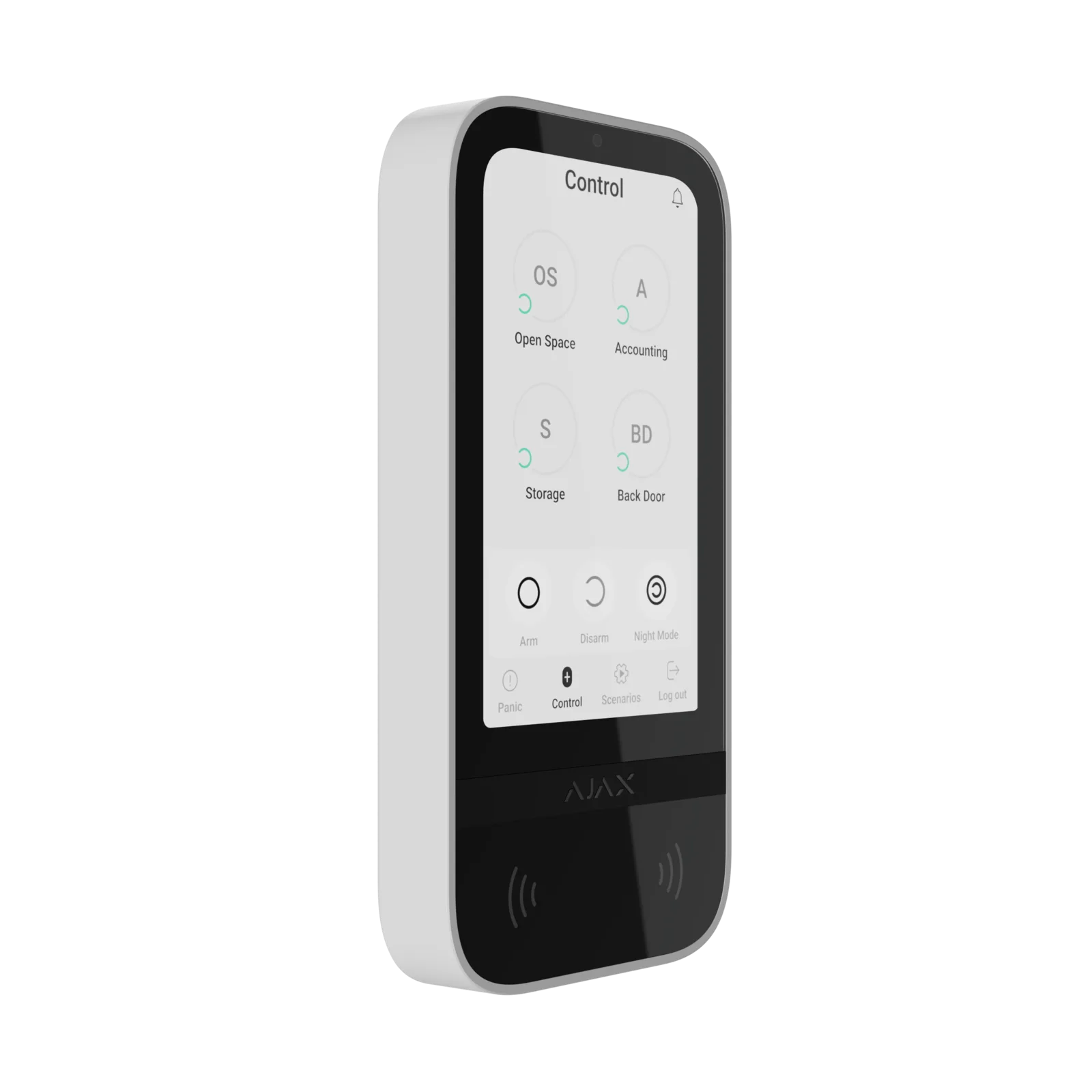

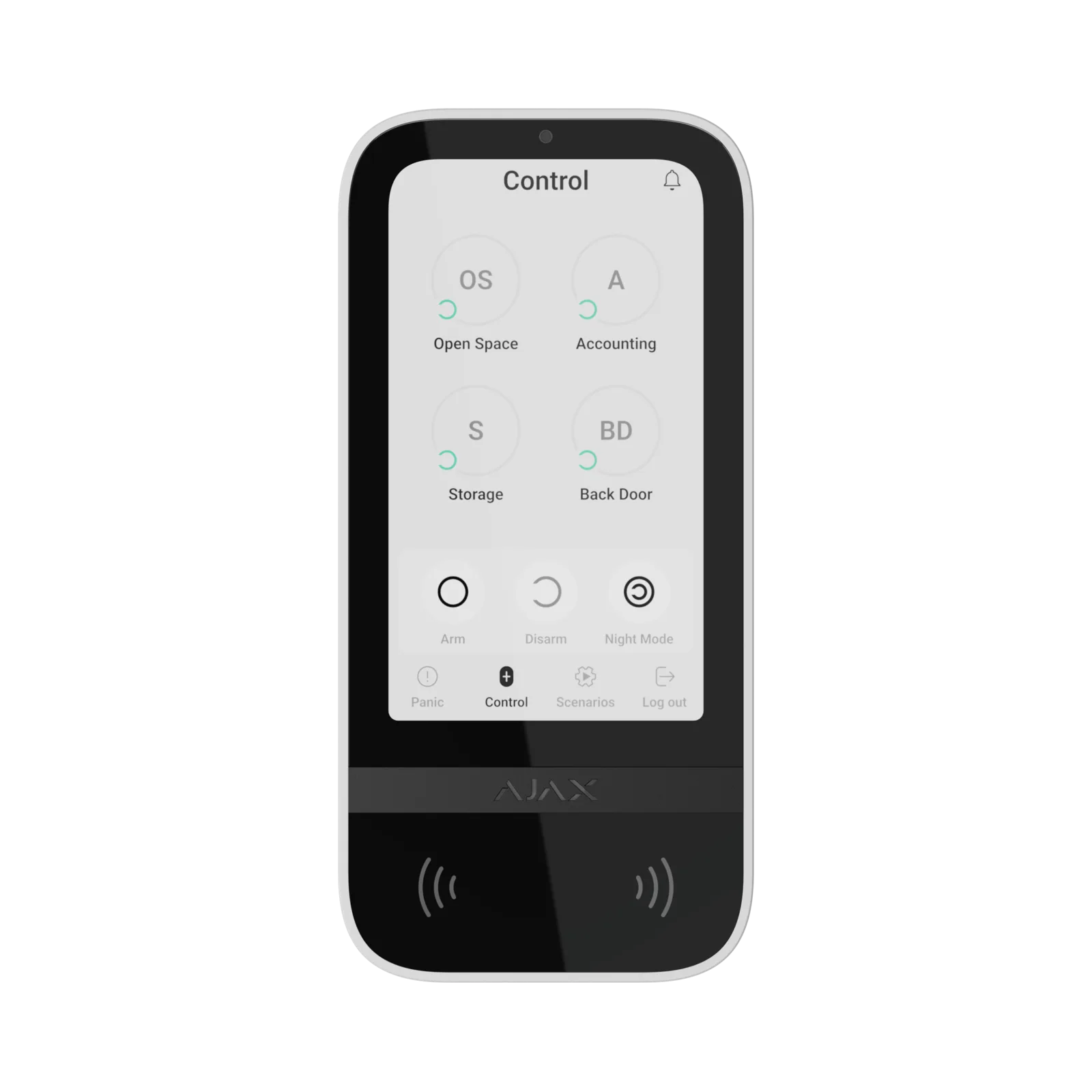

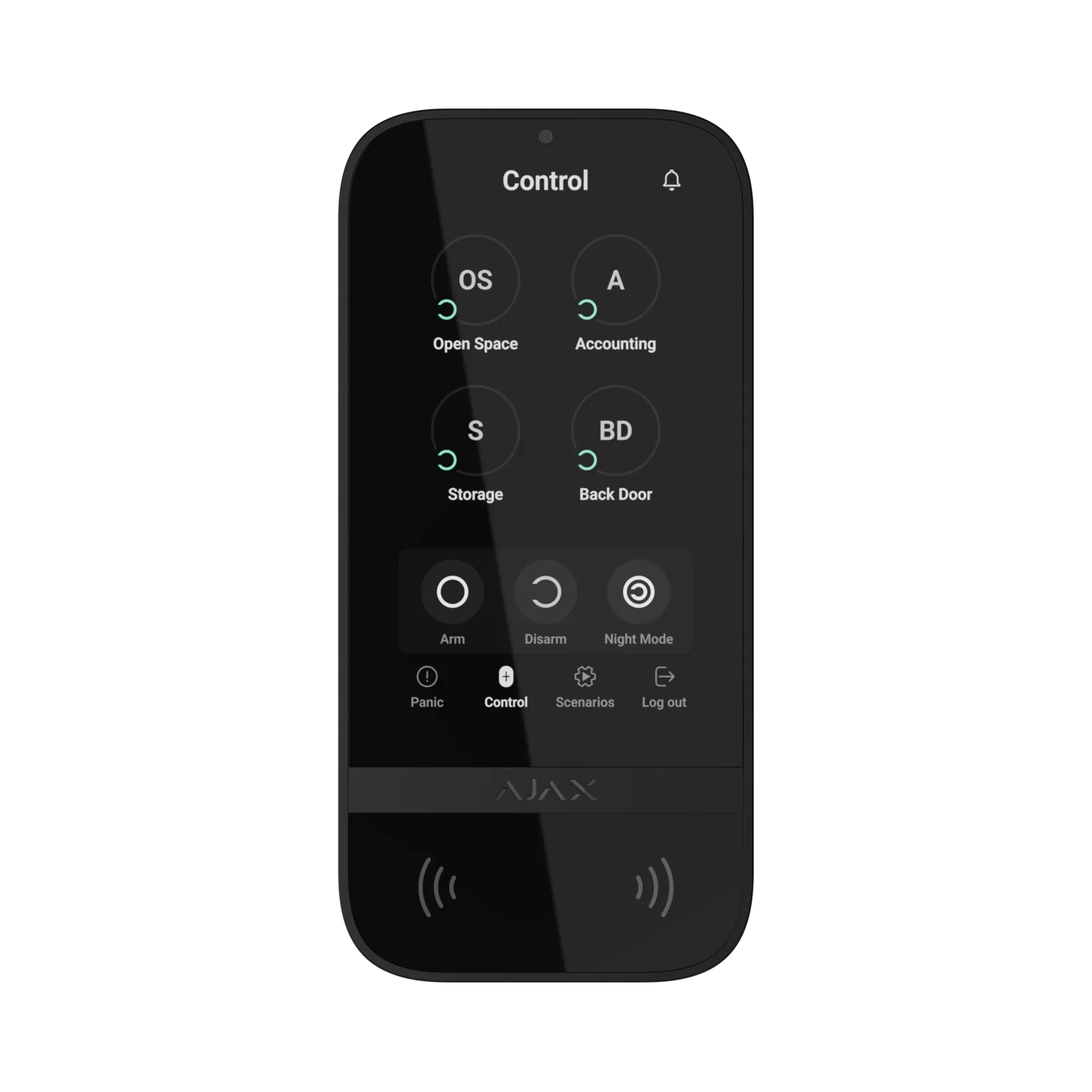

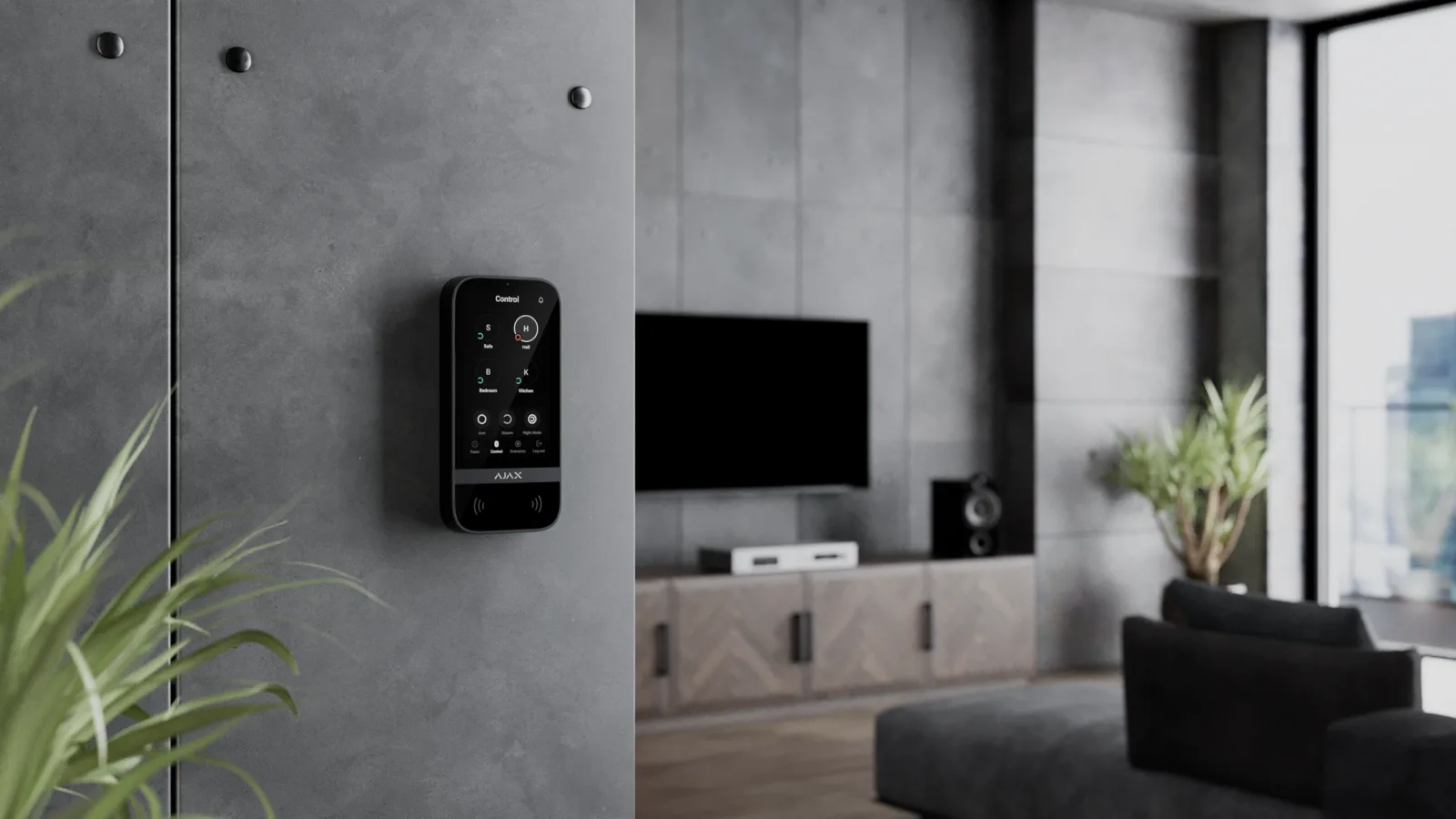

KeyPad TouchScreen Jeweller is a wireless touch-screen keypad designed for intuitive control of Ajax security and automation systems. With a 5-inch IPS display, BLE smartphone authentication, DESFire® contactless access, and multiple code types, it delivers a modern, secure, and user-friendly interface suitable for homes, offices, retail, and industrial environments.
Key Features
- 5-inch IPS touch display with light and dark themes

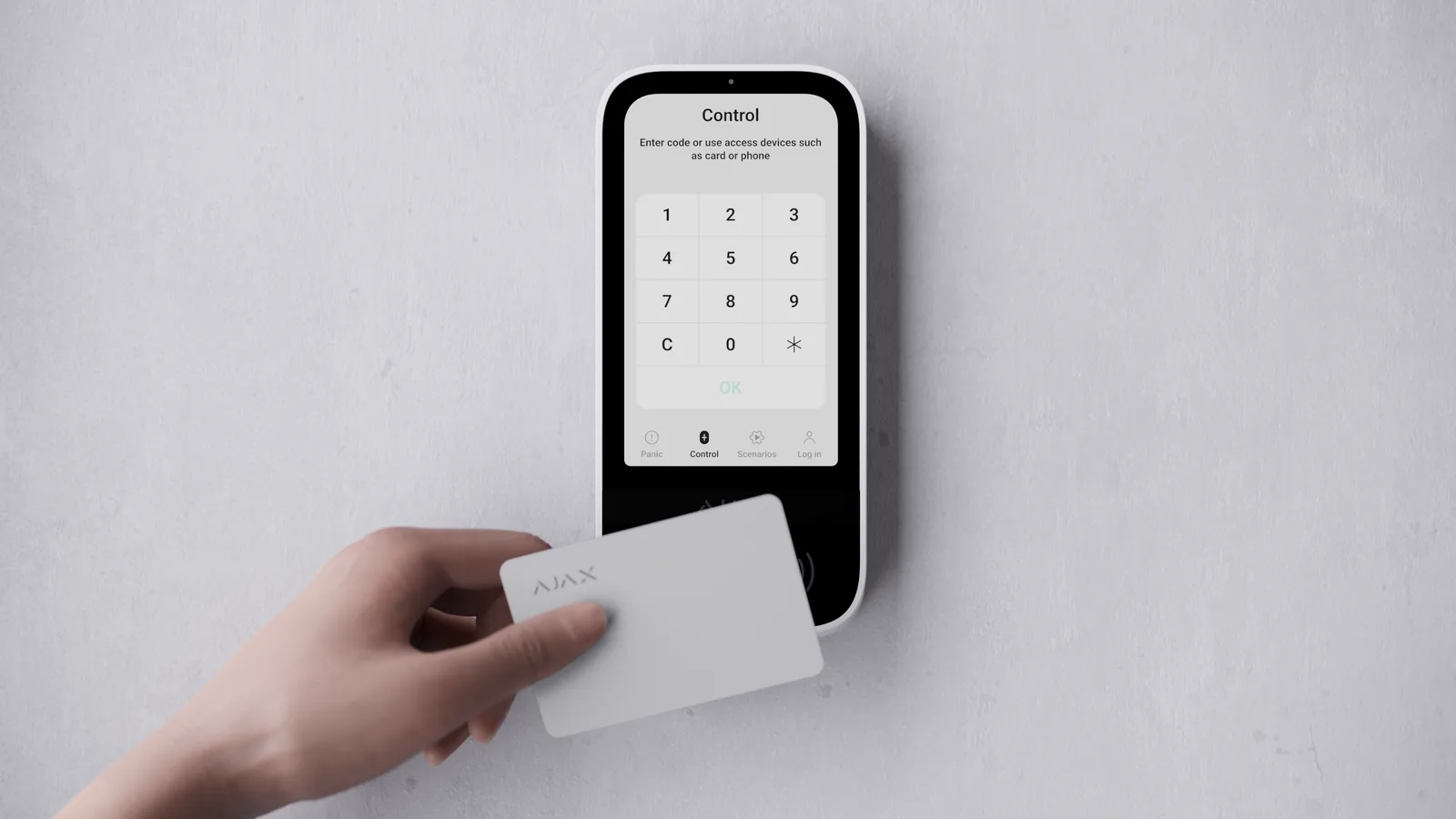

- Authentication via Pass, Tag, smartphone BLE, and multiple code types
- Up to 200 personal codes and 99 unregistered user codes
- Duress codes and three emergency buttons: panic, fire, auxiliary
- Automation control with up to 6 devices or groups
- Sound notifications for alarms, door openings, and entry/exit delays
- LED indication for security modes and delays
- Up to 1,700 m wireless communication using Jeweller and Wings
- Over-the-air firmware updates (requires external power)
- Tamper alarm, device authentication, and code guessing protection
- Up to 1.5 years of battery life
- Two colour options: white and black
How It Works

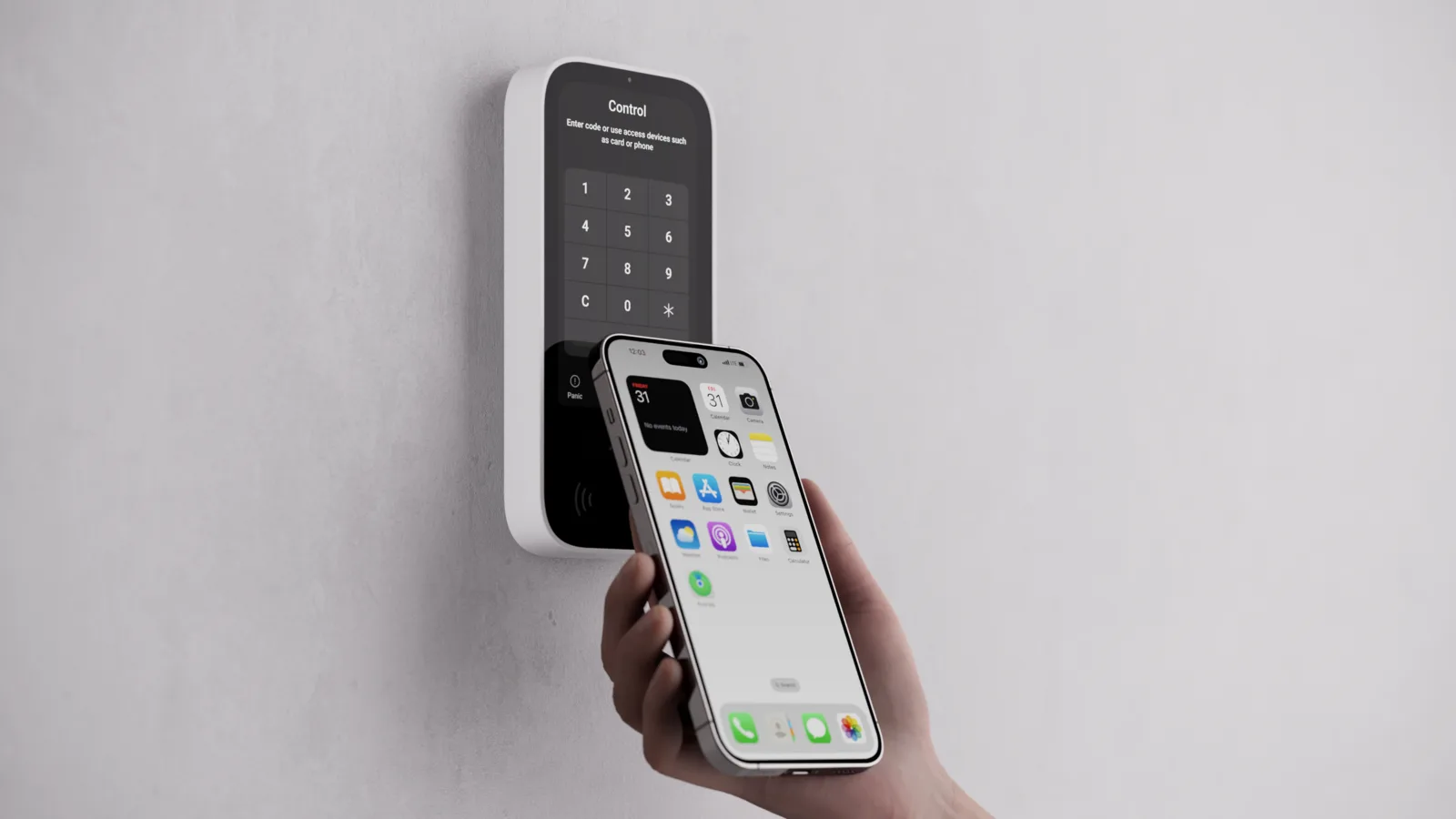

KeyPad TouchScreen Jeweller communicates with the hub using encrypted Jeweller and Wings wireless protocols. Users authenticate via BLE smartphone, Pass/Tag devices, or access codes. The keypad displays system status, group modes, and recent events directly on the screen, providing a clear and responsive interface.
Automation devices can be controlled from a dedicated tab, allowing users to toggle relays, sockets, or LightSwitch groups. The keypad provides sound and LED feedback for alarms, delays, and malfunctions. Duress codes simulate normal disarming while silently notifying the security company, and three emergency buttons allow rapid alarm activation.
Installation & Placement
- Designed for indoor installation only
- Mount using the SmartBracket panel without opening the enclosure
- Pair with the hub via QR code
- Optional 12 V⎓ external power supply for extended operation and firmware updates
- Suitable for:
- Homes and apartments
- Offices and coworking spaces
- Retail stores and showrooms

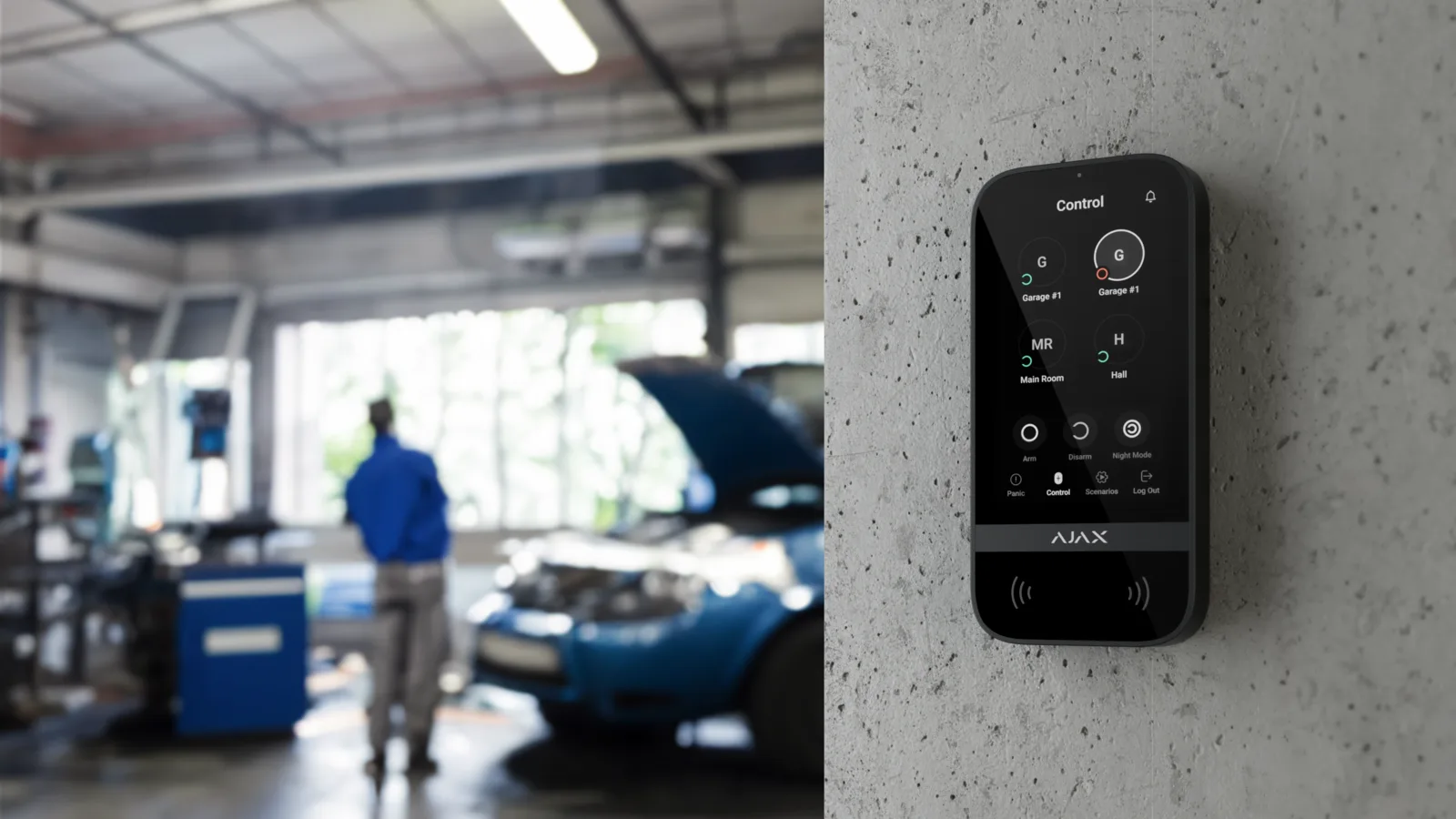

- Warehouses and industrial facilities
- Educational and medical institutions
Reliability & Supervision
- Tamper alarm for enclosure removal
- Code guessing lockout after repeated failed attempts
- Device authentication to prevent spoofing
- Encrypted communication with frequency hopping
- Regular polling for real-time device status
- Informative malfunction notifications
- Backup communication via Wings for large data packets
Compliance
- EN 50131 Grade 2
- PD 6662:2017
- INCERT
- UL
- Operating temperature: −10 °C to +40 °C
- Operating humidity: up to 75%
- Dimensions: 172 × 82 × 26 mm
- Colours: White, Black
Specifications
| Product Type | Wireless touch-screen keypad |
| Display | 5-inch IPS capacitive touch screen, 480 × 854 px |
| User Interface | Light and dark themes, automatic brightness adjustment |
| Authentication Methods | Pass cards, Tag key fobs, smartphone BLE, keypad code, personal codes, unregistered user codes, RRU codes |
| BLE Support | Bluetooth Low Energy 4.2+ for smartphone authentication |
| Access Codes | Up to 200 personal codes, 99 unregistered user codes, 1 keypad code |
| Duress Codes | Up to 200 personal duress codes and 1 keypad duress code |
| Emergency Buttons | Panic, fire, auxiliary alert |
| Automation Control | Up to 6 automation devices or groups |
| Sound Notifications | Alarms, door openings (Chime), entry/exit delays, malfunctions |
| Communication Technology | Jeweller and Wings wireless communication with encryption, TDMA, frequency hopping |
| Communication Range | Up to 1,700 m in open space |
| Firmware Updates | Over-the-air updates (requires external power) |
| Tamper Protection | Tamper alarm, device authentication, code guessing lockout |
| Power Supply | 6 × AA batteries (pre-installed), optional 10.5–14 V⎓ external power |
| Battery Life | Up to 1.5 years on batteries |
| Operating Temperature | -10 °C to +40 °C |
| Operating Humidity | Up to 75% |

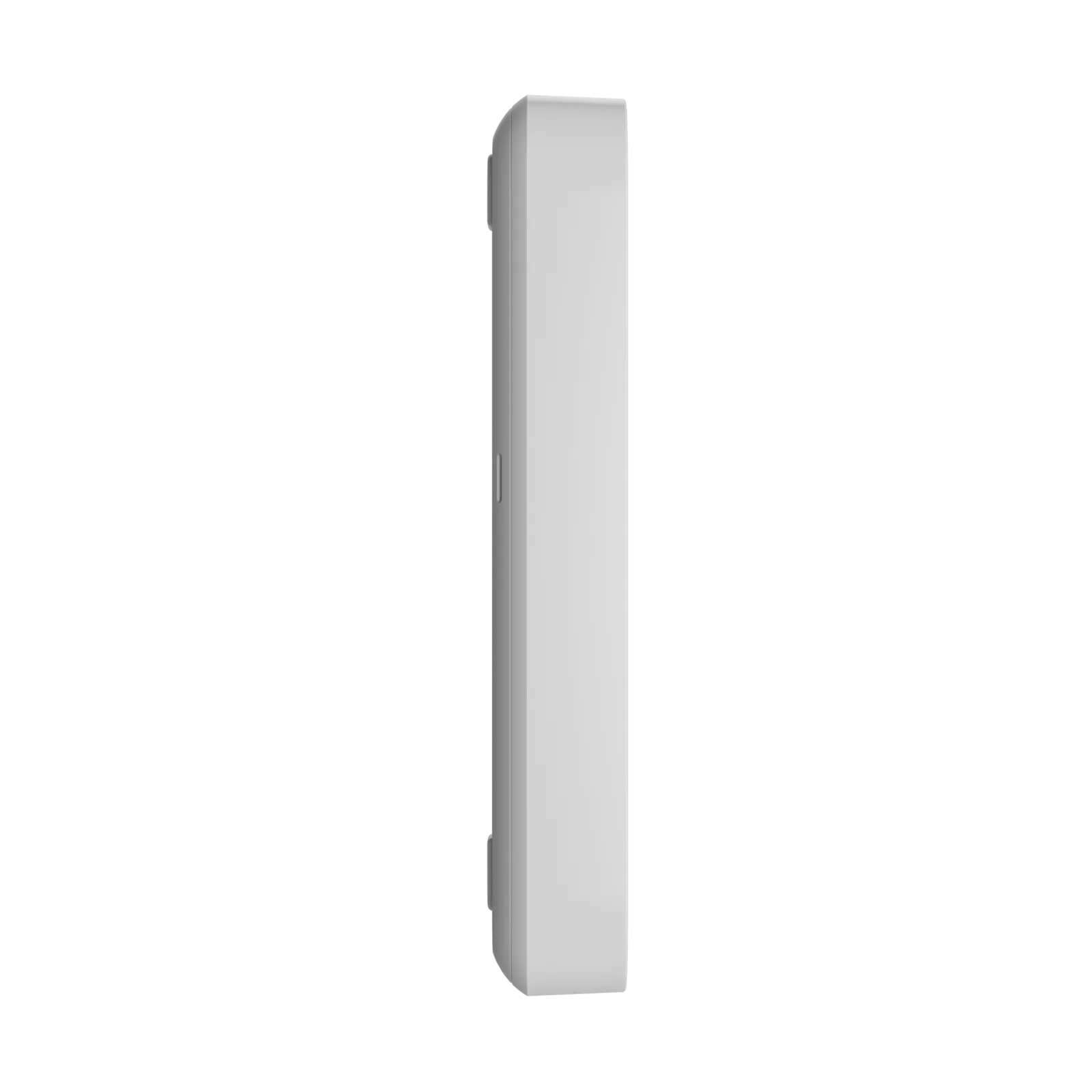

| Dimensions | 172 × 82 × 26 mm |
| Weight | 325–329 g depending on colour |
| Colours | White, Black |
| Complete Set | KeyPad TouchScreen Jeweller, SmartBracket panel, 6 AA batteries, installation kit, quick start guide |
| Compliance | EN 50131 Grade 2, PD 6662:2017, INCERT, UL |
