KeyPad Outdoor Jeweller
A wireless outdoor keypad supporting Pass, Tag, smartphone BLE authentication, and multiple access code types with IP66 protection and IK08 impact resistance.
Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.
Available Colours
KeyPad Outdoor Jeweller
KeyPad Outdoor Jeweller is a wireless keypad designed for both outdoor and indoor environments. With IP66 ingress protection, IK08 impact resistance, and support for Pass, Tag, smartphone BLE, and multiple access code types, it provides secure and reliable access control for residential, commercial, and industrial sites. Its durable enclosure, long battery life, and advanced anti-sabotage features make it ideal for exposed or high-traffic locations.
Key Features
- Authentication via Pass, Tag, smartphone BLE, and multiple code types
- Up to 200 personal codes and 99 unregistered user codes
- Duress codes and built-in panic button
- IP66 weather protection and IK08 impact resistance
- Encrypted Jeweller communication up to 1,700 m
- LED indicators for security mode and malfunctions
- Automation device control and scenario activation
- Code guessing protection with automatic keypad lock
- Up to 3 years of battery life
- Optional 10.5–14 V⎓ external power supply

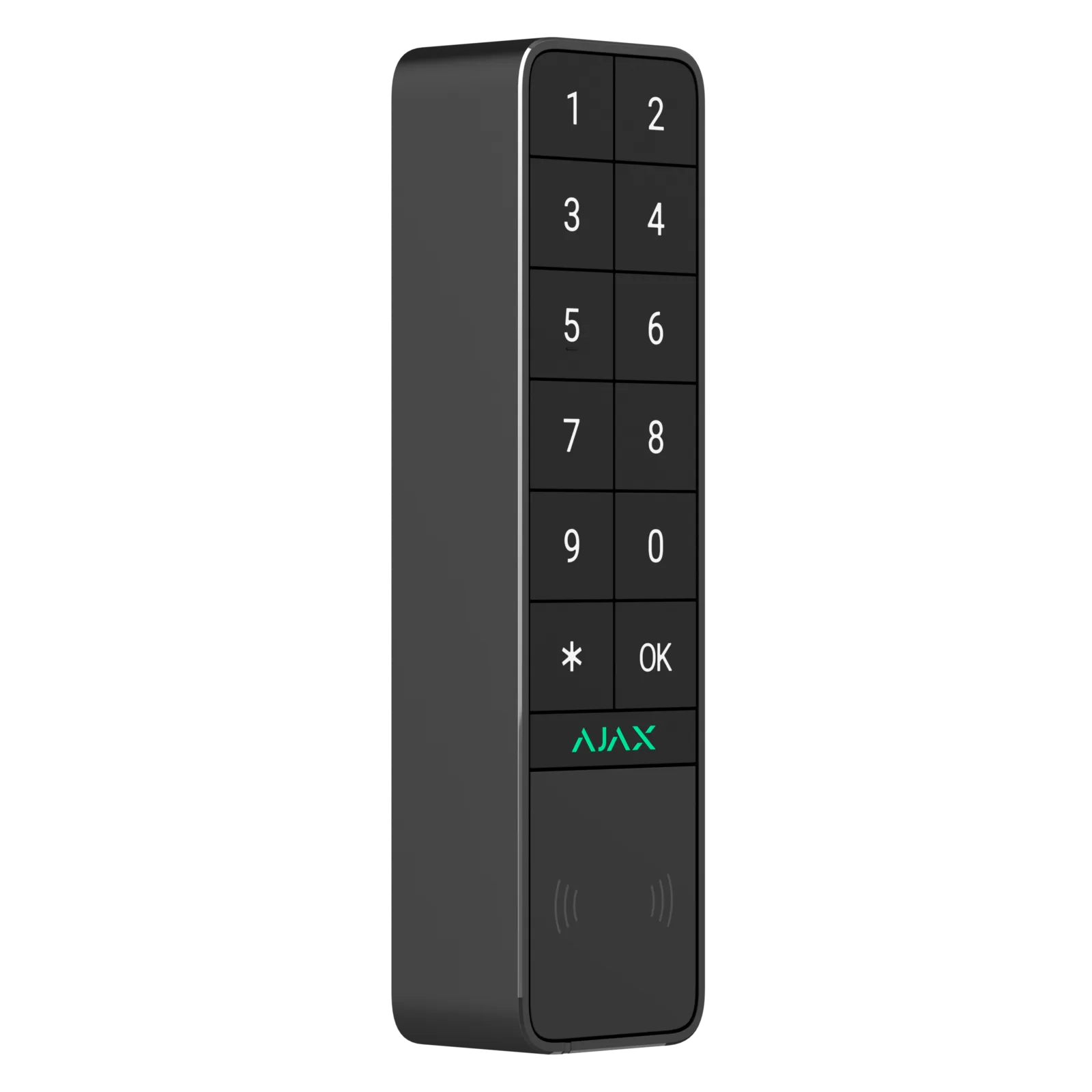

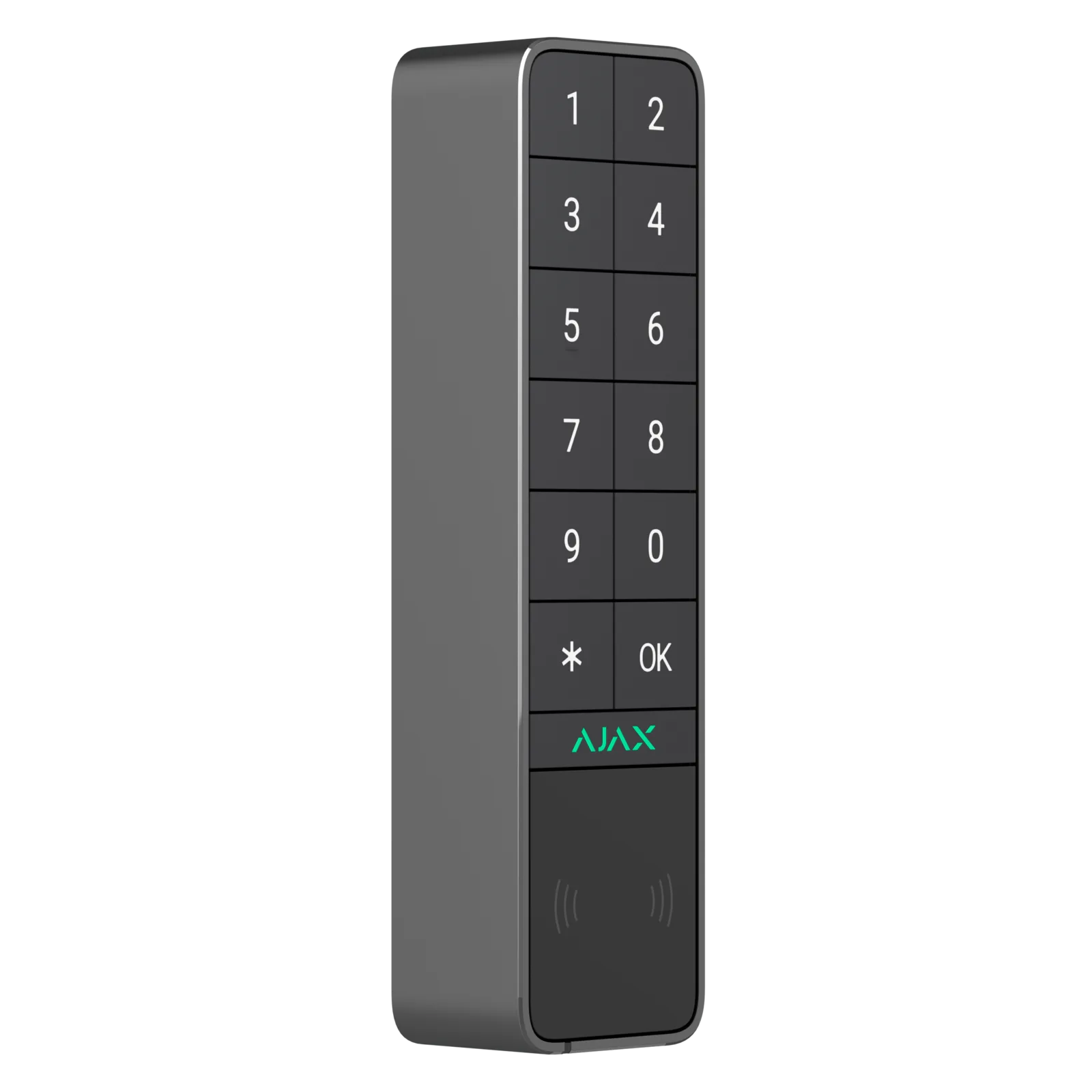

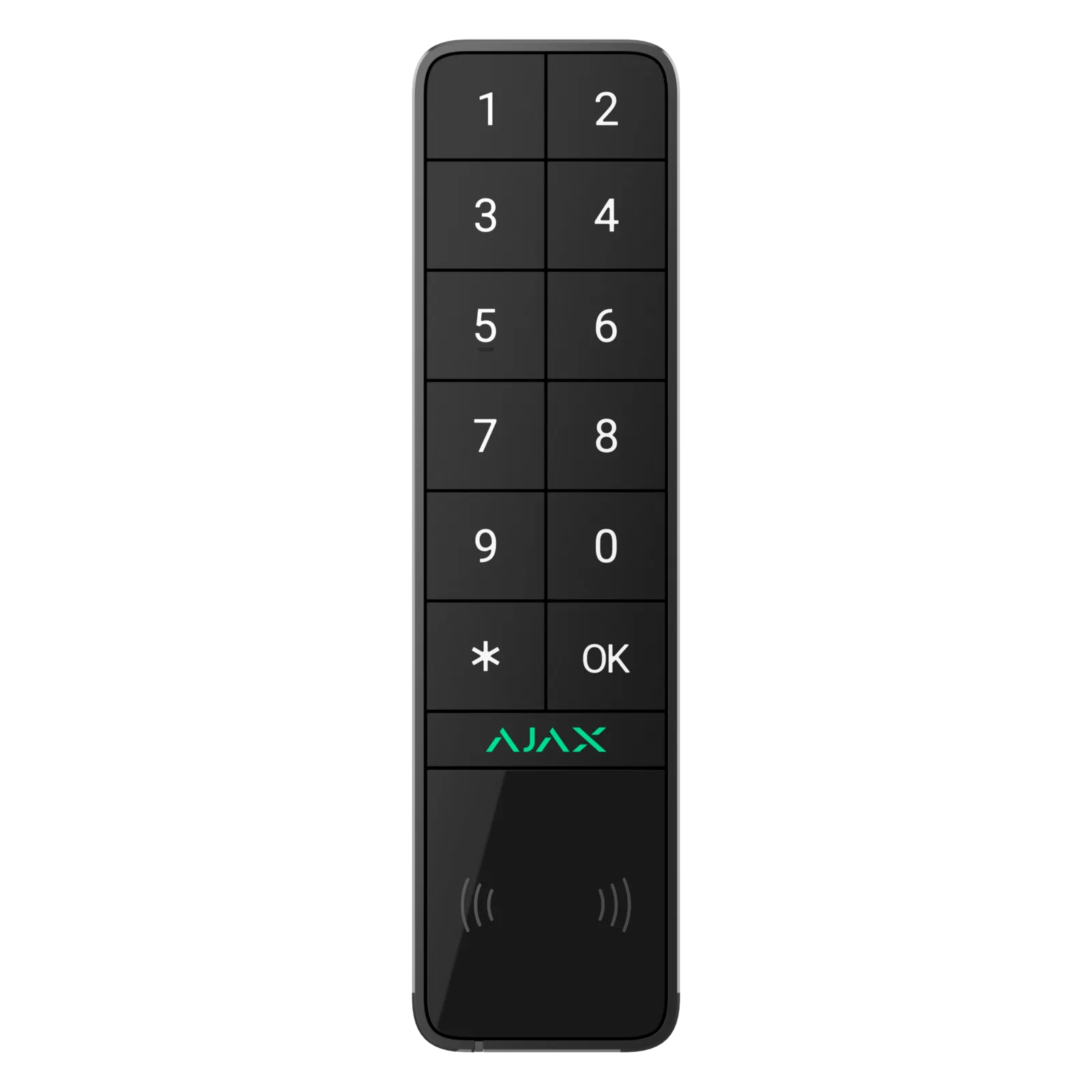

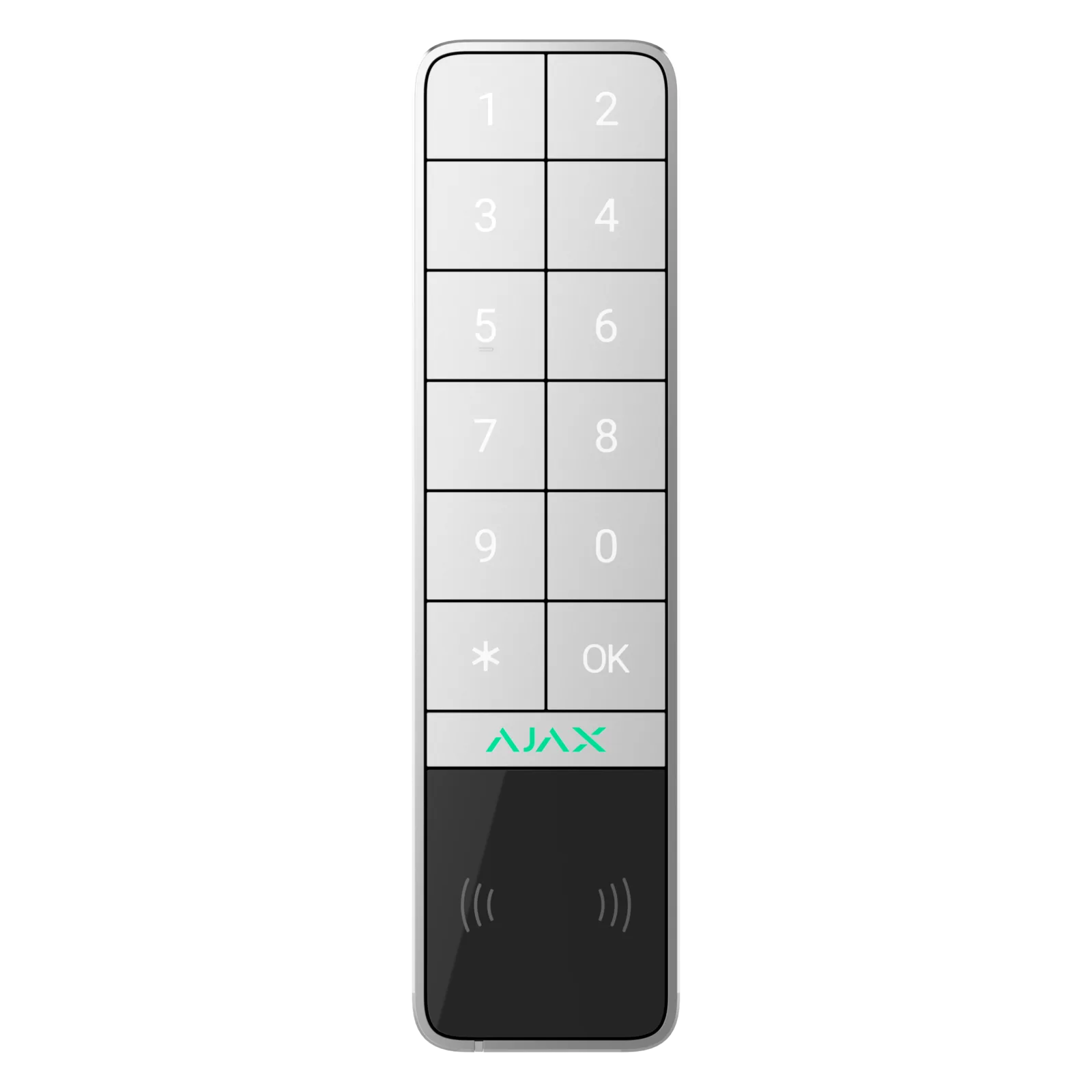

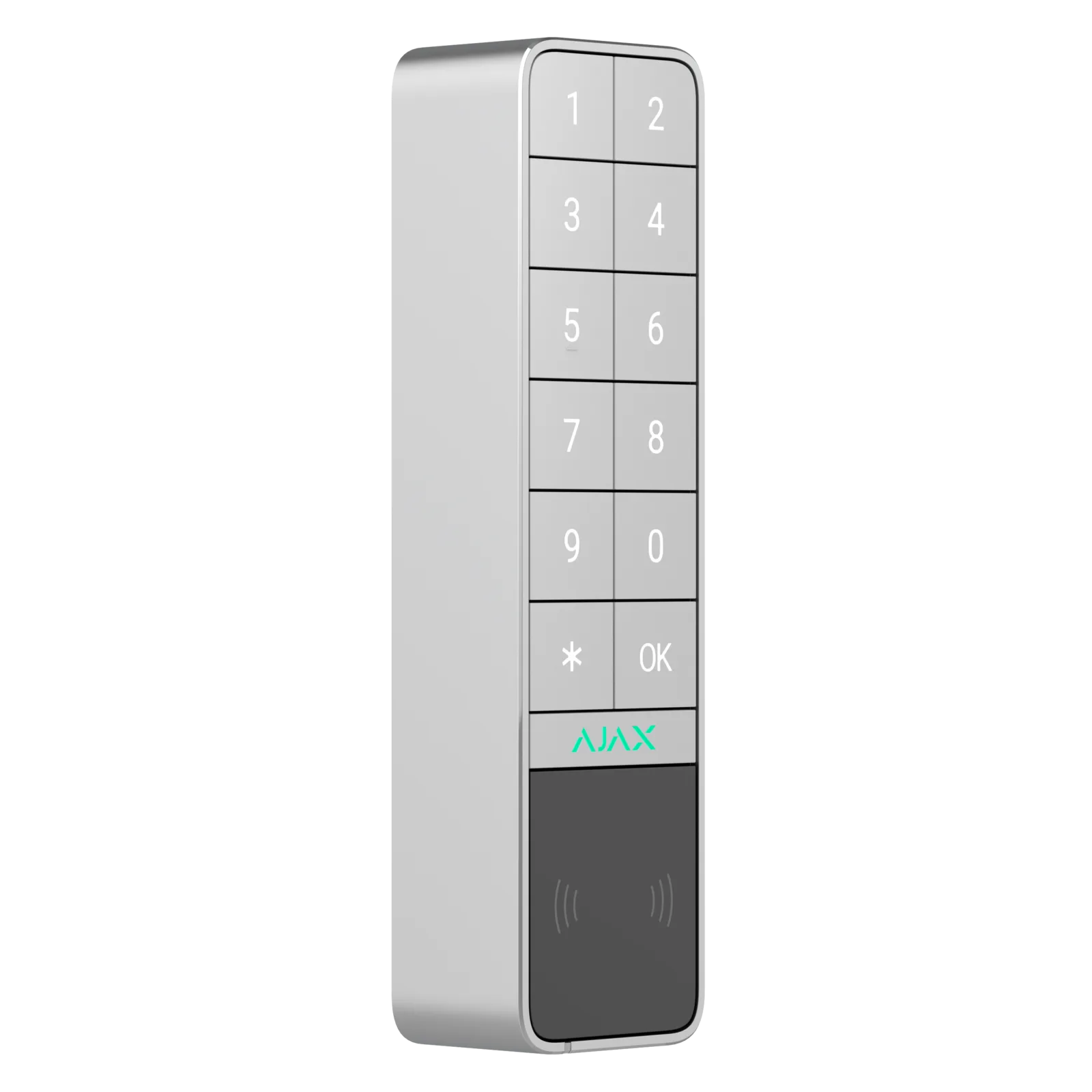

- Three colour options: white, graphite, black
How It Works
KeyPad Outdoor Jeweller communicates with the hub using encrypted Jeweller wireless technology. Users authenticate using BLE smartphones, Pass/Tag devices, or access codes. The keypad provides LED and buzzer feedback for alarms, delays, and security mode changes. Authorization confirmation can be enabled to require both a contactless device and a passcode.
The keypad supports automation control, allowing users to trigger scenarios or operate devices directly. Duress codes simulate normal disarming while silently notifying the security company. Two tamper buttons and device authentication protect against sabotage, while code guessing lockout prevents unauthorized access attempts.
Installation & Placement

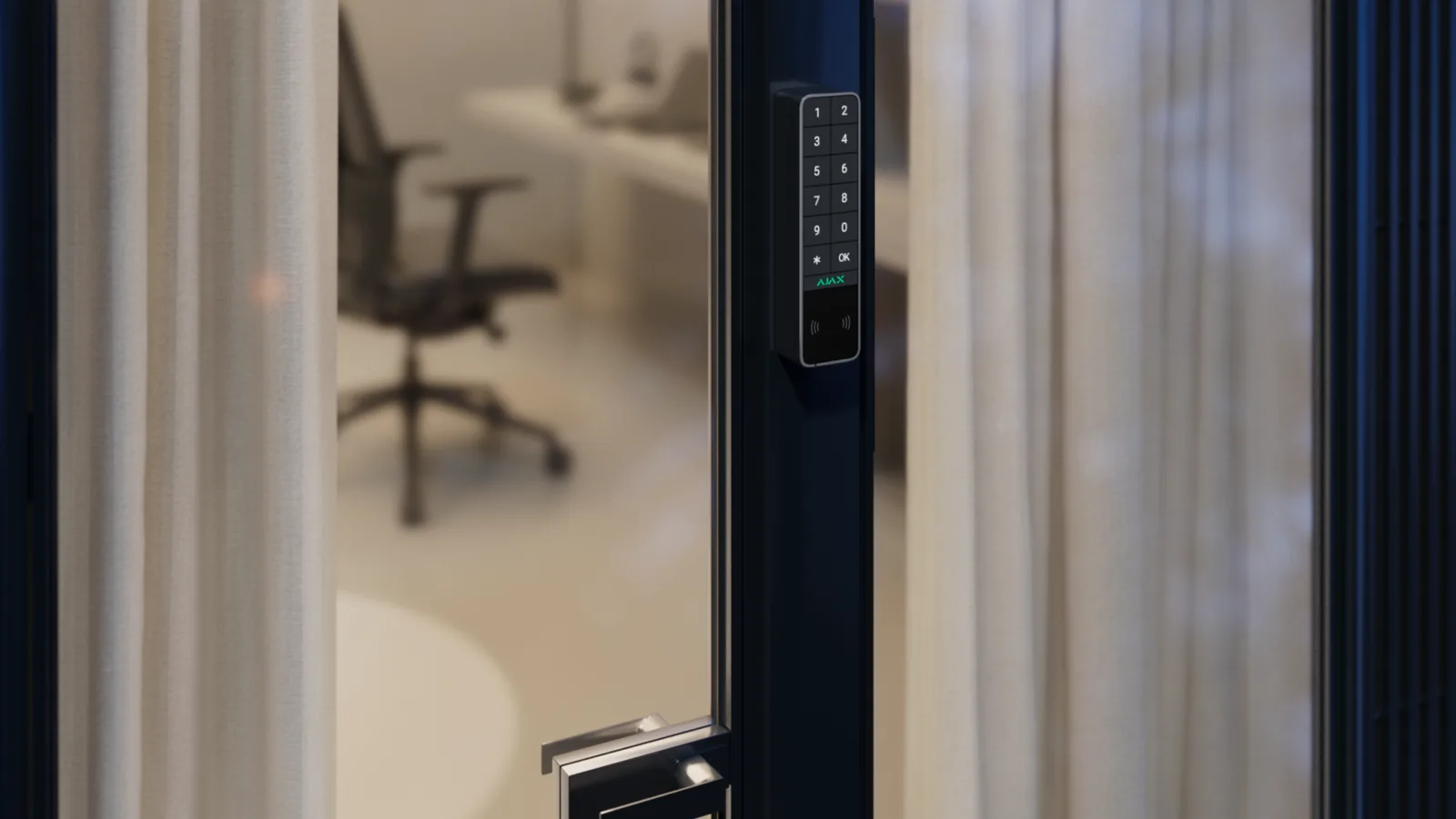

- Suitable for outdoor and indoor installation
- IP66 enclosure withstands rain, dust, and harsh weather
- IK08 impact resistance for high-traffic or exposed areas

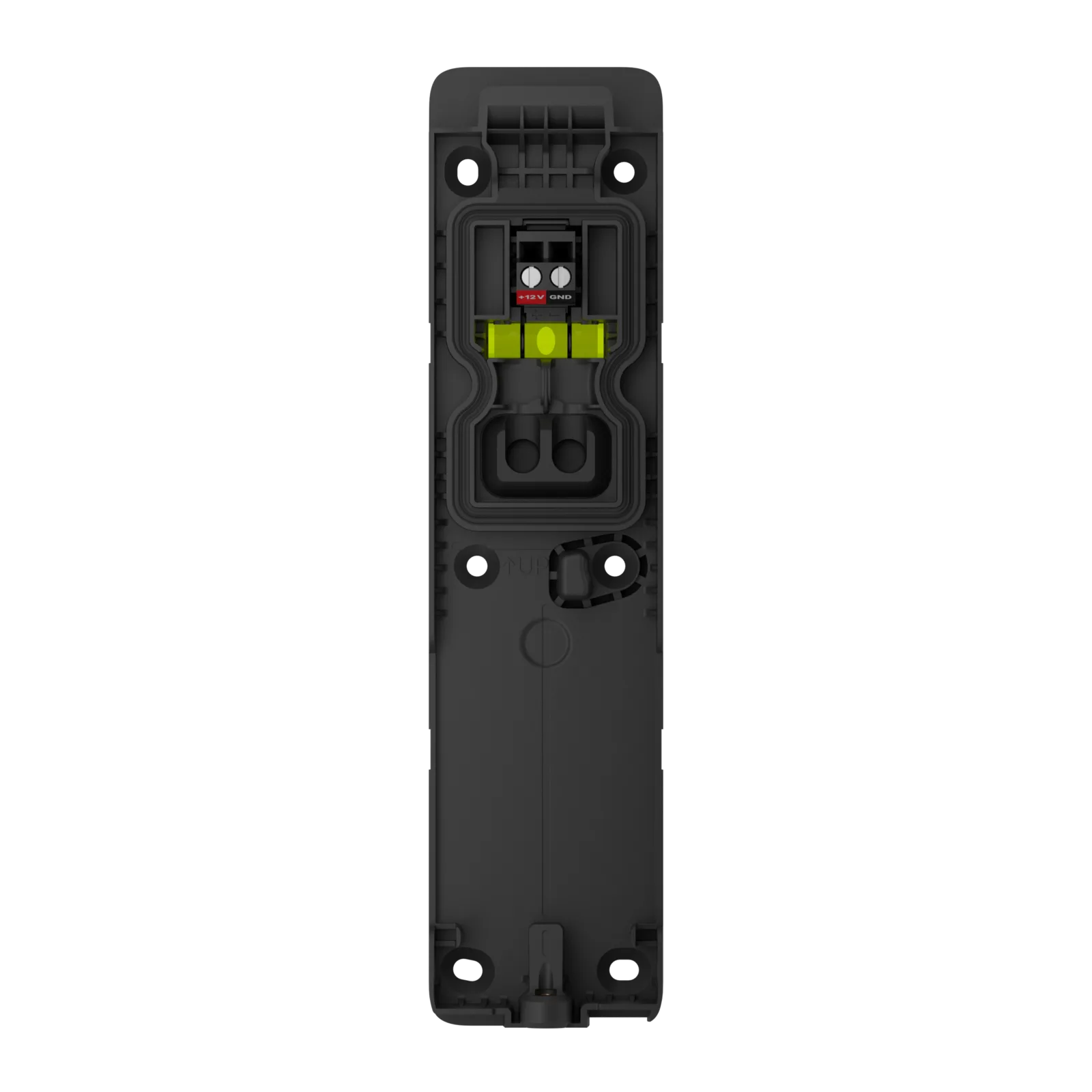

- Install using the SmartBracket panel without opening the enclosure
- Built-in bubble level ensures accurate mounting
- Pair with the hub via QR code
- Ideal for:
- Gates and perimeter entrances

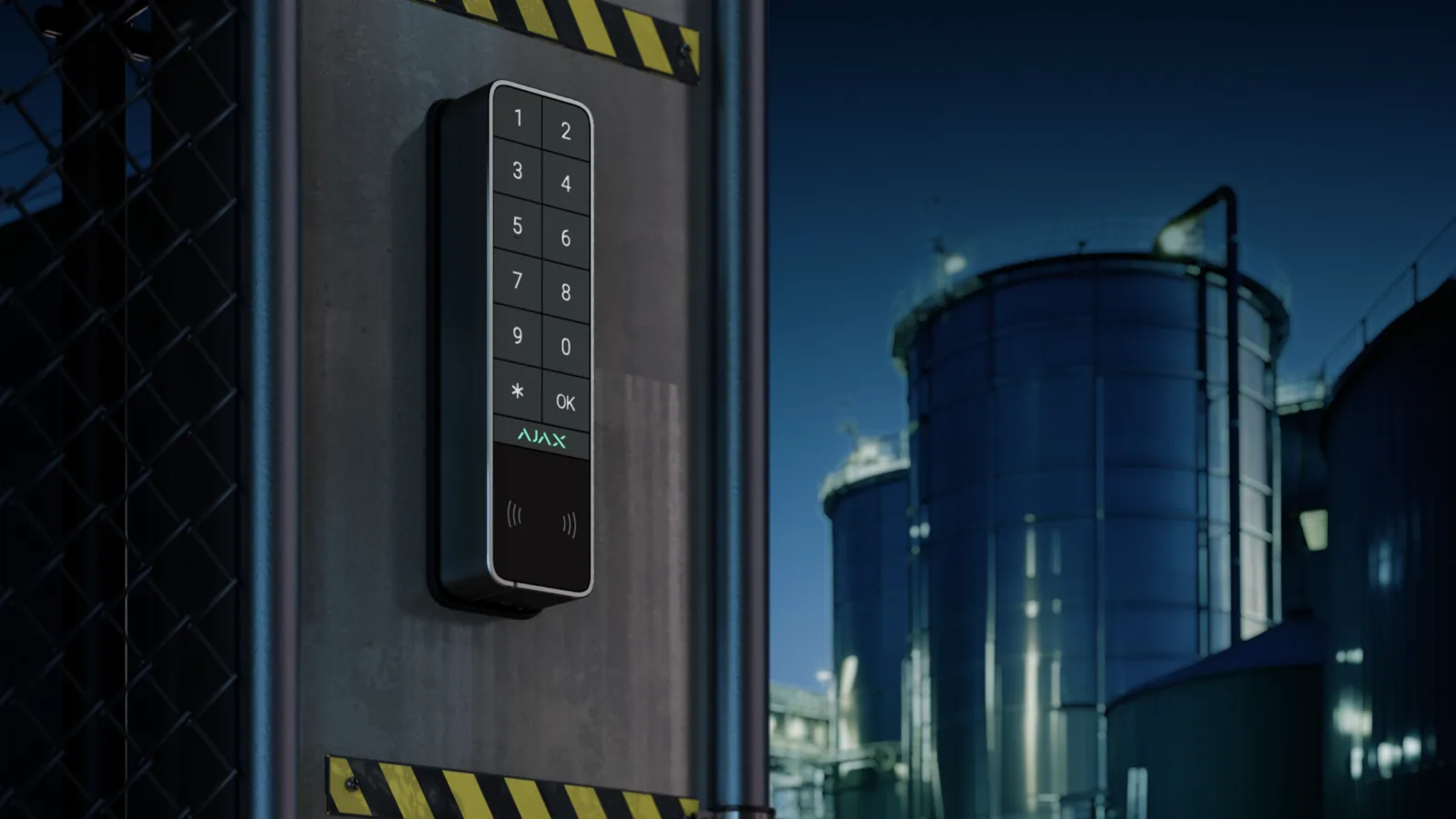

- Warehouses and industrial facilities
- Commercial buildings and offices
- Car parks and service areas
- Residential properties
Reliability & Supervision
- Two tamper buttons for enclosure removal detection
- Device authentication to prevent spoofing
- Code guessing lockout after repeated failed attempts
- Encrypted communication with frequency hopping
- Regular polling for real-time device status
- Buzzer notifications for alarms, Chime, and delays
- Optional external power supply for extended operation
Compliance
- EN 50131 Grade 2
- IP66 ingress protection
- IK08 impact resistance
- Operating temperature: −25 °C to +60 °C
- Operating humidity: up to 80%
- Dimensions: 170 × 45 × 31 mm
- Colours: White, Graphite, Black
Specifications
| Product Type | Wireless outdoor keypad |
| Authentication Methods | Pass cards, Tag key fobs, smartphone BLE, keypad code, user codes, unregistered user codes, RRU codes |
| Contactless Access | DESFire EV1/EV2/EV3, ISO 14443-A (13.56 MHz) |
| BLE Support | Bluetooth Low Energy 4.2+ for smartphone authentication |
| Access Codes | Up to 200 personal codes, 99 unregistered user codes, 1 keypad code |
| Duress Codes | Up to 200 personal duress codes and 1 keypad duress code |
| Panic Button | Yes, built-in |
| Security Mode Indication | LED indicators for security mode and malfunctions |
| Automation Control | Supports automation device control and scenarios |
| Bypass Mode | Supports bypass initiation during entry/exit delay |
| Communication Technology | Jeweller wireless communication with encryption, TDMA, frequency hopping |
| Communication Range | Up to 1,700 m in open space |
| Polling Interval | 12–300 seconds |
| Tamper Protection | Two tamper buttons, device authentication, holding screw |
| Impact Protection | IK08 |
| Ingress Protection | IP66 |
| Power Supply | 2 × CR123A batteries (pre-installed) |
| Battery Life | Up to 3 years |
| Optional Power Supply | 10.5–14 V⎓ external power, up to 1 A |
| Operating Temperature | -25 °C to +60 °C |
| Operating Humidity | Up to 80% |
| Dimensions | 170 × 45 × 31 mm |
| Weight | 258 g |
| Colours | White, Graphite, Black |
| Complete Set | KeyPad Outdoor Jeweller, 2 × CR123A batteries, SmartBracket panel, installation kit, quick start guide |
| Compliance | EN 50131 Grade 2, IP66, IK08 |
