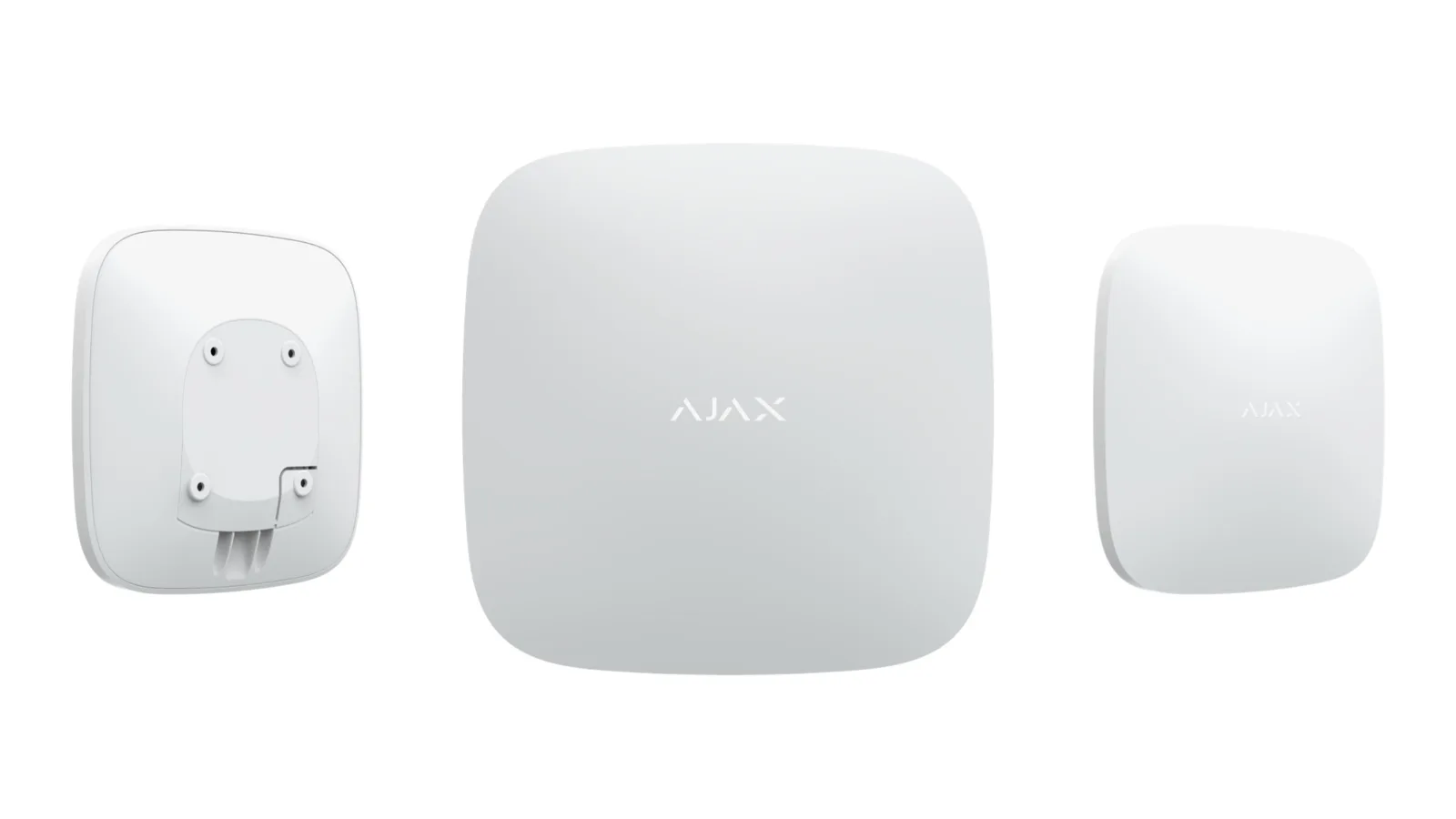

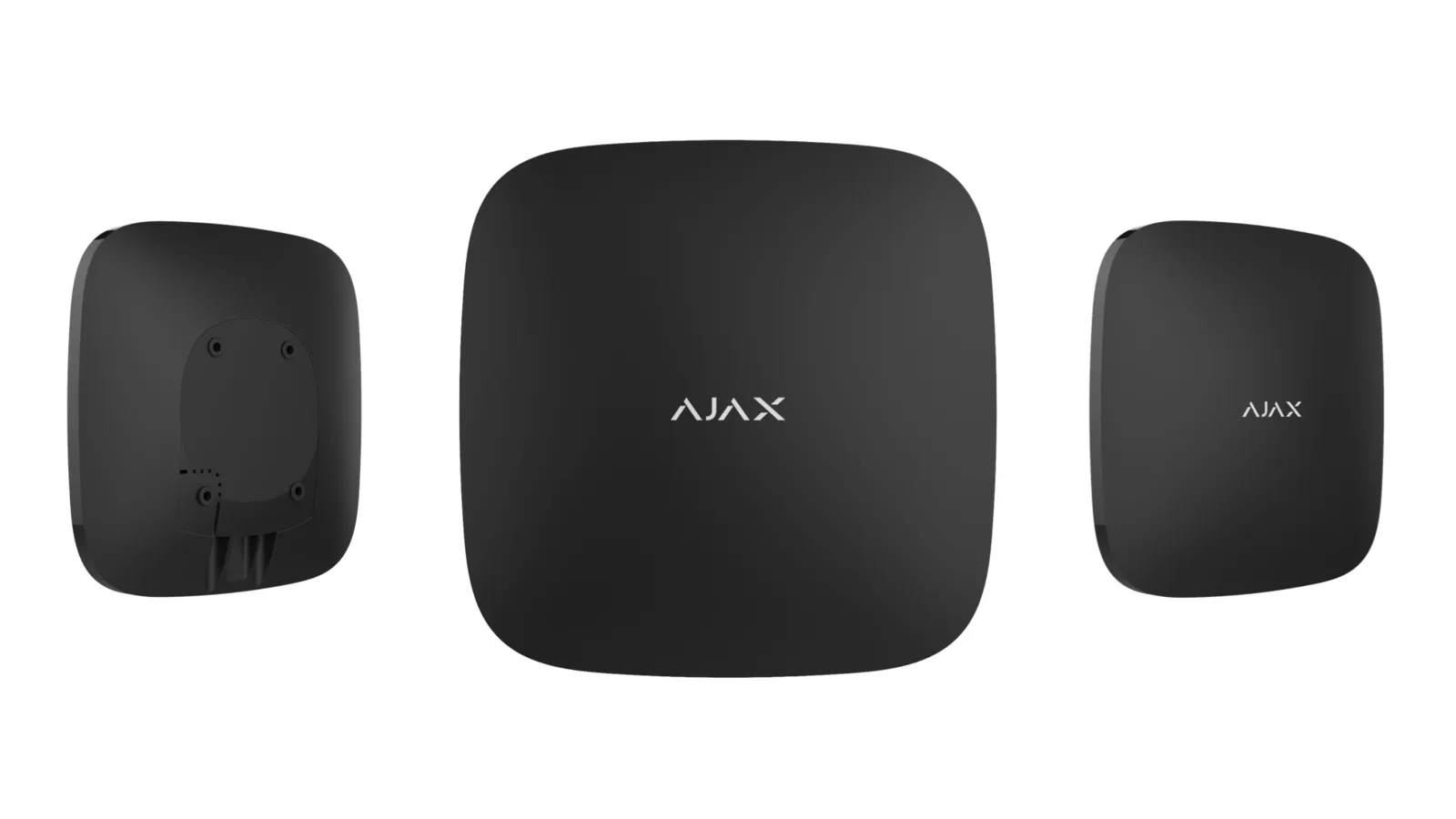

Hub 2 (4G) Jeweller
A professional-grade security control panel with Ethernet and dual 4G SIM communication, photo verification support, encrypted Jeweller and Wings radio protocols, and up to 16 hours of backup power.
Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.
Available Colours
Hub 2 (4G) Jeweller
A professional-grade security system control panel designed to manage up to 100 Ajax devices, deliver instant alarm notifications, and support photo verification from MotionCam detectors. Hub 2 (4G) combines Ethernet and dual 4G SIM communication channels to ensure continuous connectivity, fast alarm delivery, and reliable operation in residential, commercial, and industrial environments.
Using the Jeweller and Wings radio protocols, the hub provides long-range encrypted communication with detectors and instant transmission of photos during alarm events. With a built-in backup battery, advanced anti-sabotage protection, and remote configuration through Ajax apps, Hub 2 (4G) delivers a robust and future-proof foundation for modern security systems.
Key Features
- Ethernet + dual 4G SIM communication for maximum reliability
- Supports photo verification from MotionCam and MotionCam Outdoor detectors
- Up to 100 wireless devices and 50 users
- Up to 9 security groups and 32 automation scenarios
- Up to 25 IP cameras/DVRs with RTSP support
- Jeweller radio protocol for alarms and events (up to 2,000 m range)
- Wings protocol for photo transmission (up to 1,700 m range)
- Encrypted two-way communication with frequency hopping
- Up to 15 hours of backup battery life
- Push, SMS, and call notifications
- SIA, SurGard, and ADEMCO 685 monitoring support
- SmartBracket mounting panel for fast installation
How It Works
Hub 2 (4G) coordinates all Ajax devices, processes alarms, and transmits events to users and monitoring stations. According to the technical documentation, it supports three communication channels operating in parallel — Ethernet and two 4G SIM cards — ensuring continuous connectivity even during outages or network failures.
Jeweller handles commands, events, and alarms, while Wings transmits photo verification data. Both protocols use encrypted two-way communication, frequency hopping, and automatic power adjustment to maintain stable performance across large facilities.
Photo Verification
Hub 2 (4G) works with MotionCam detectors to deliver visual alarm verification in approximately 9 seconds. Photos are encrypted at every stage of transmission and stored securely, ensuring user privacy while providing critical situational awareness during alarm events.
Installation & Setup
- Connect to power and Ethernet
- Insert SIM cards
- Scan the QR code in the Ajax app
- Mount using the SmartBracket panel
All configuration, device pairing, scenario creation, and monitoring setup can be performed remotely through Ajax apps.
Reliability & Supervision
Hub 2 (4G) continuously monitors:
- Device communication
- Tamper events
- Jamming attempts
- Cloud connectivity
- Power supply status
The system can detect loss of connection with Ajax Cloud in 60 seconds and device communication loss in 36 seconds, ensuring rapid reporting of faults or sabotage attempts.
Compliance
- EN 50131 Grade 2
- PD 6662:2017
- NIST AES‑128
- SIA CP‑01
- UL Listed
Specifications
| Device Type | Security system control panel with photo verification |
| Wireless Device Capacity | Up to 100 devices |
| Users | Up to 50 |
| Security Groups | Up to 9 |
| Rooms | Up to 50 |
| Cameras/DVRs | Up to 25 (RTSP, Dahua, Hikvision, Uniview, EZVIZ, Safire) |
| Automation Scenarios | Up to 32 |
| Photo Verification | Photo by alarm, scenarios, or on demand; 1–5 images per series; delivery in ~9 seconds |
| Wireless Protocols | Jeweller (commands/events), Wings (photo verification) |
| Jeweller Range | Up to 2,000 m in open space |
| Wings Range | Up to 1,700 m in open space |
| Communication Channels | Ethernet + 2 × 4G SIM |
| Cellular Bands | 4G/LTE (B1/B3/B5/B7/B8/B20), 3G (B1/B5/B8) |
| Channel Switching | Automatic switching between Ethernet and SIM; instant switching between LTE/3G |
| Notifications | Push, SMS, calls |
| Monitoring Protocols | SIA (DC-09), SurGard (Contact ID), ADEMCO 685 |
| Power Supply | 110–240 V~, 50/60 Hz |
| Power Consumption | Up to 10 W |
| Backup Battery | Li-ion 3 A·h, up to 15 hours offline |
| Alternative Power | 6 V⎓ or 12 V⎓ via optional PSU |
| Anti‑Sabotage | Tamper alarm, spoofing protection, jamming detection, frequency hopping |
| Operating Temperature | -10°C to +40°C |
| Operating Humidity | Up to 75% |
| Protection Class | IP20 |
| Dimensions | 163 × 163 × 36 mm |
| Weight | 362 g |
| Complete Set | Hub 2 (4G), SmartBracket, power cable, Ethernet cable, SIM card (region dependent), installation kit, quick start guide |
| Compliance | EN 50131 Grade 2, PD 6662:2017, NIST AES‑128, SIA CP‑01, UL Listed |
| Warranty | 24 months |
