Superior Hub Hybrid

Superior Hub Hybrid is a Grade 3 hybrid security control panel designed for professional installations requiring both wired and wireless device support. It combines Fibra wired technology with Jeweller and Wings wireless protocols, enabling large, complex systems to operate reliably across long distances. With Ethernet and dual SIM connectivity, the hub ensures stable communication with users and monitoring stations. It supports photo verification, advanced automation scenarios, and long-term operation on a backup battery.

Key Features

• Supports up to 100 Ajax wired and wireless devices
• Eight Fibra lines with up to 2,000 m per line
• Jeweller wireless communication up to 2,000 m
• Wings photo transmission up to 1,700 m
• Dual SIM connectivity with 2G/3G/4G support
• Built‑in 110–240 V~ power supply
• Supports 12 V⎓ backup batteries for up to 60 hours operation
• Grade 3 EN 50131 and PD 6662:2017 certified
• Tamper protection and short‑circuit detection
• Up to 32 automation scenarios
• Supports up to 50 users and 9 security groups

How It Works

Superior Hub Hybrid integrates wired Fibra devices and wireless Jeweller/Wings devices into a unified system. Fibra lines transmit alarms, events, and photo verification over distances up to 2,000 m using standard U/UTP Cat.5 cable. Jeweller handles wireless alarms and events with low latency, while Wings transmits photo verification using dedicated antennas and packet re-uploading algorithms. The hub connects to the outside world via Ethernet and dual SIM cards, automatically switching channels to maintain stable communication.

Installation & Placement

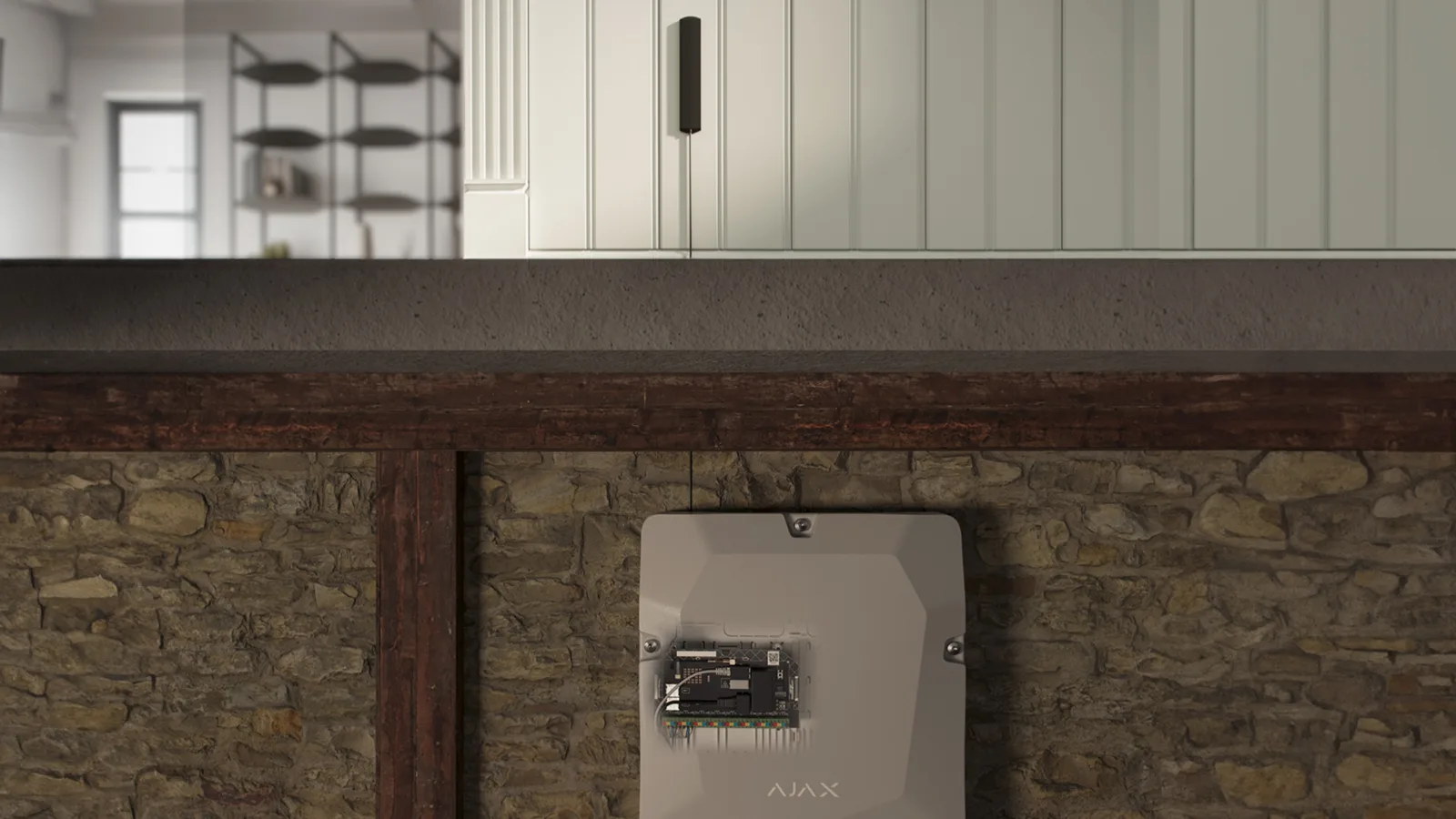

• Designed for indoor installation only

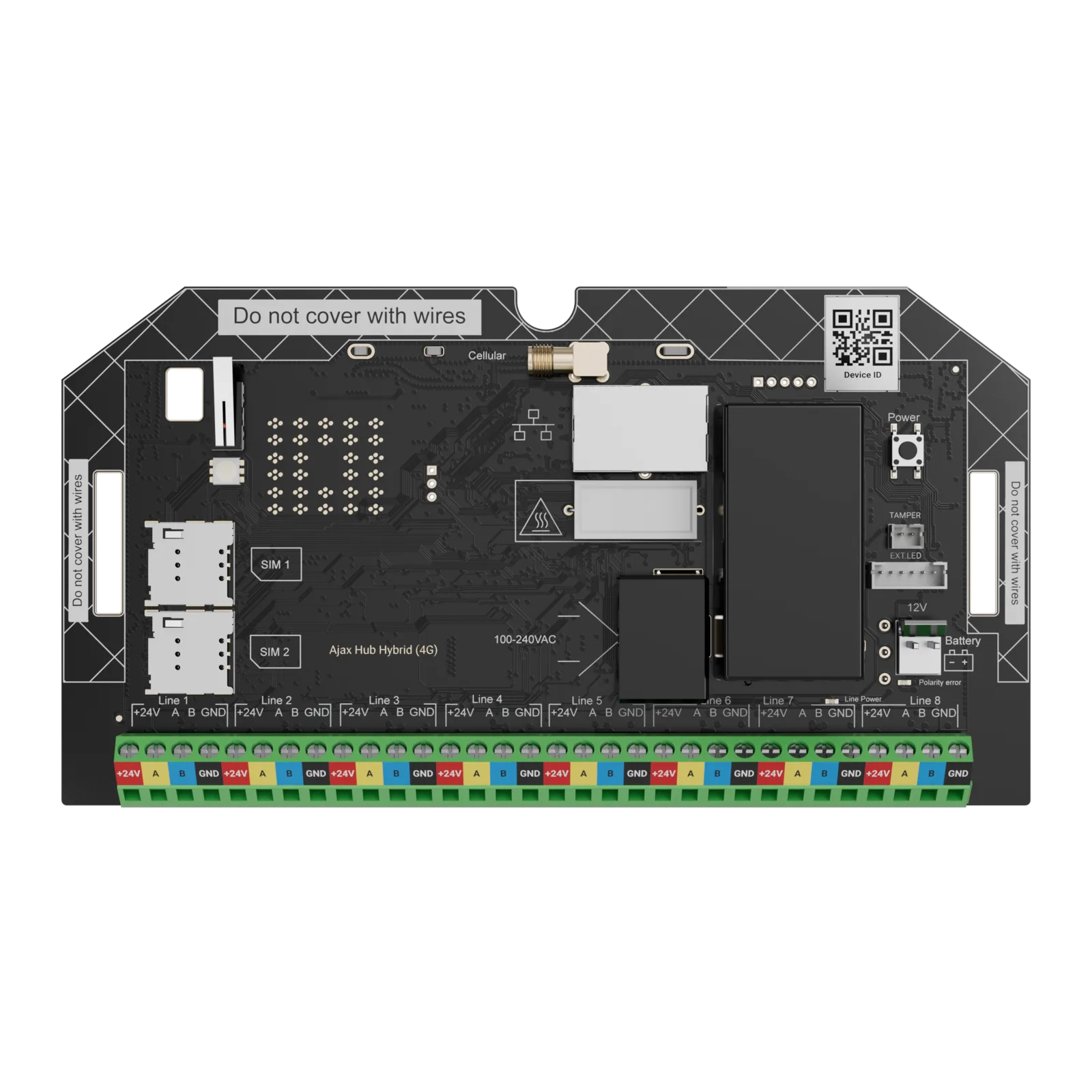

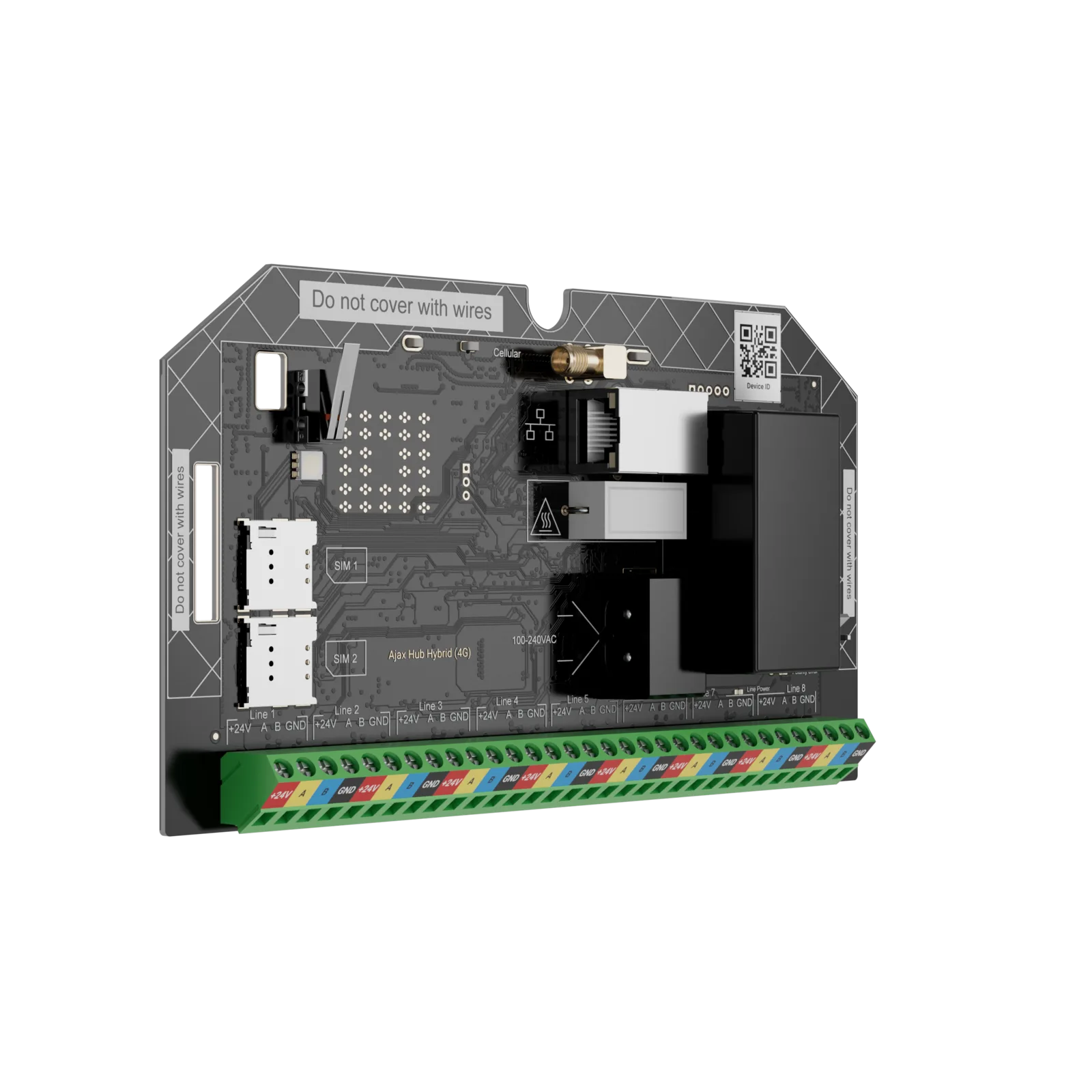

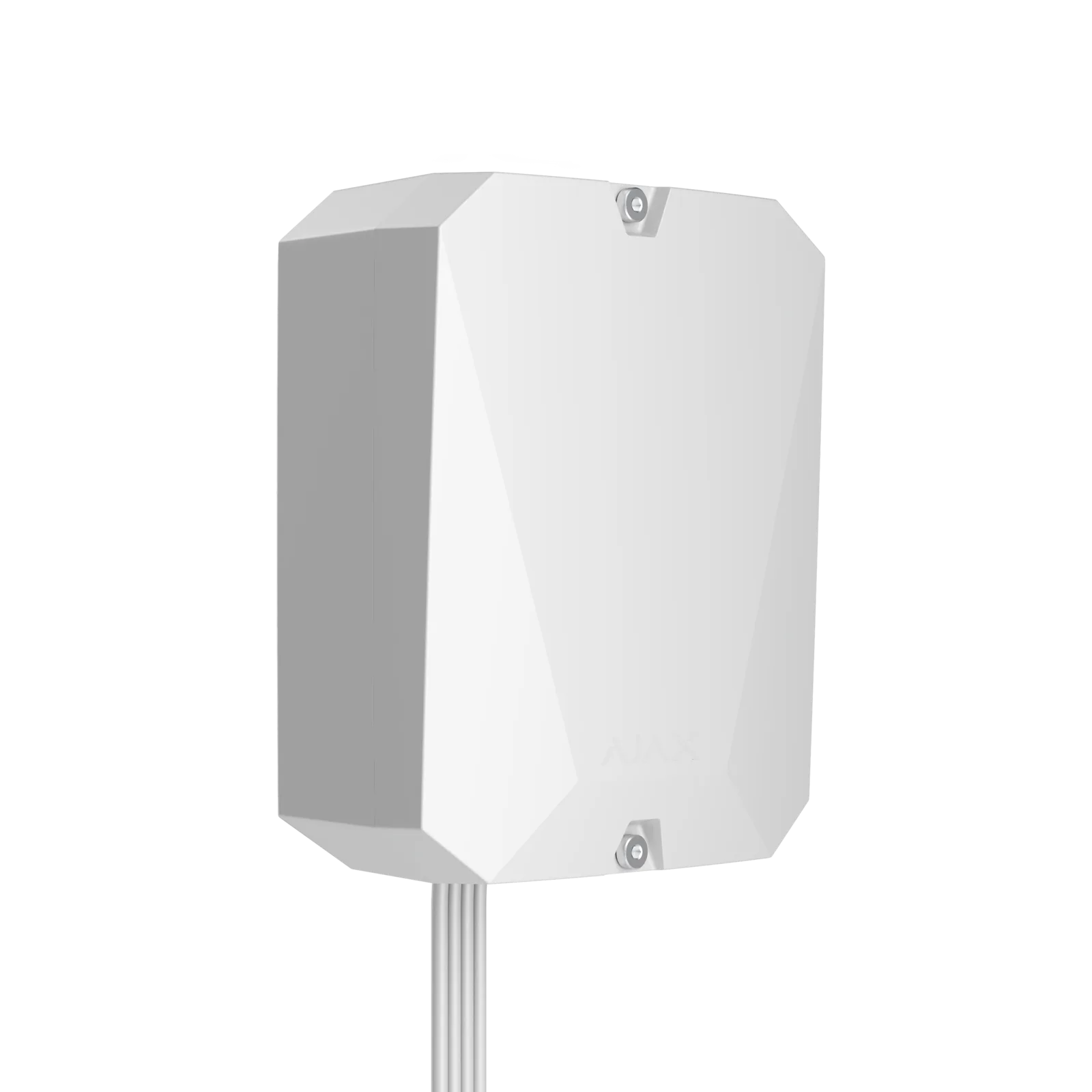

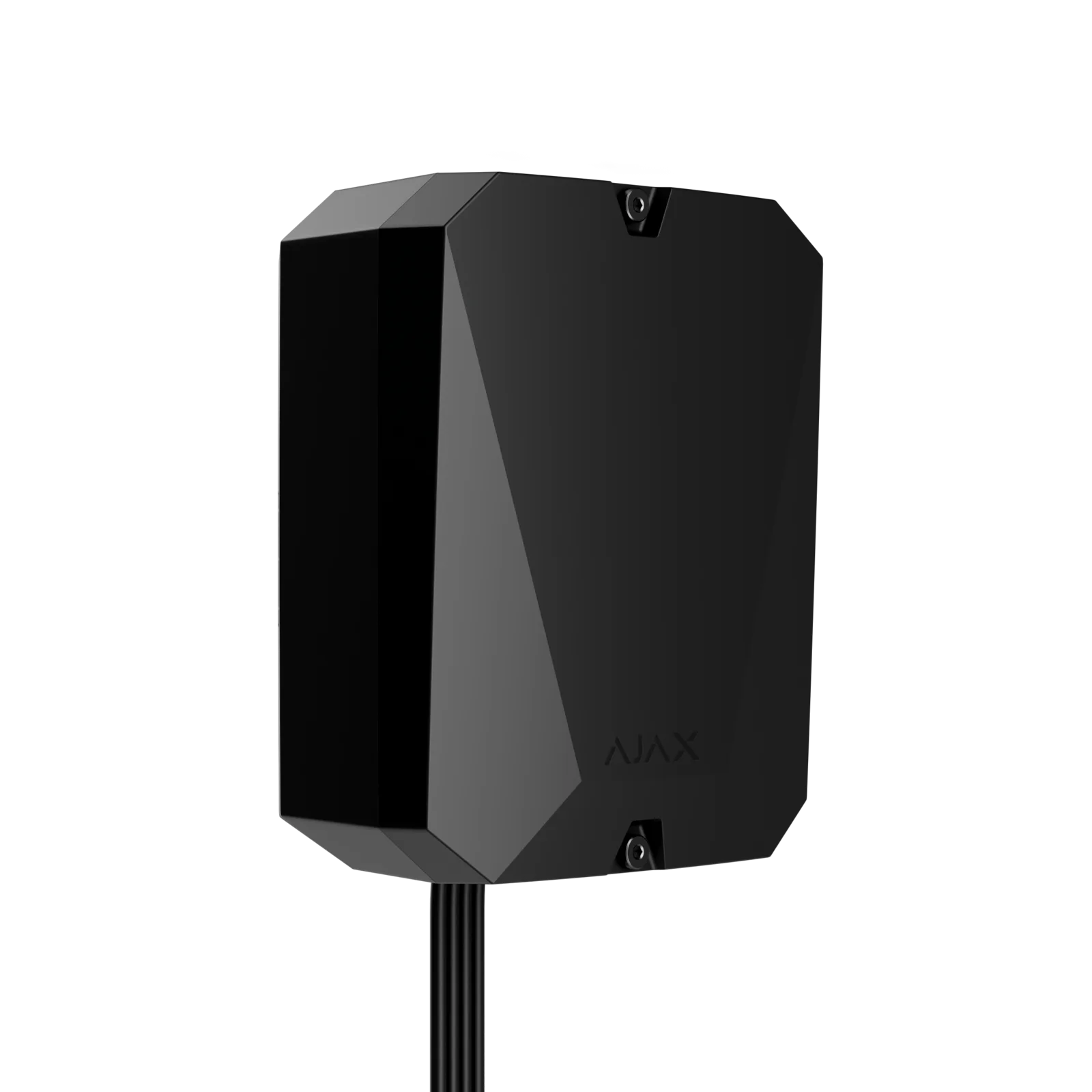

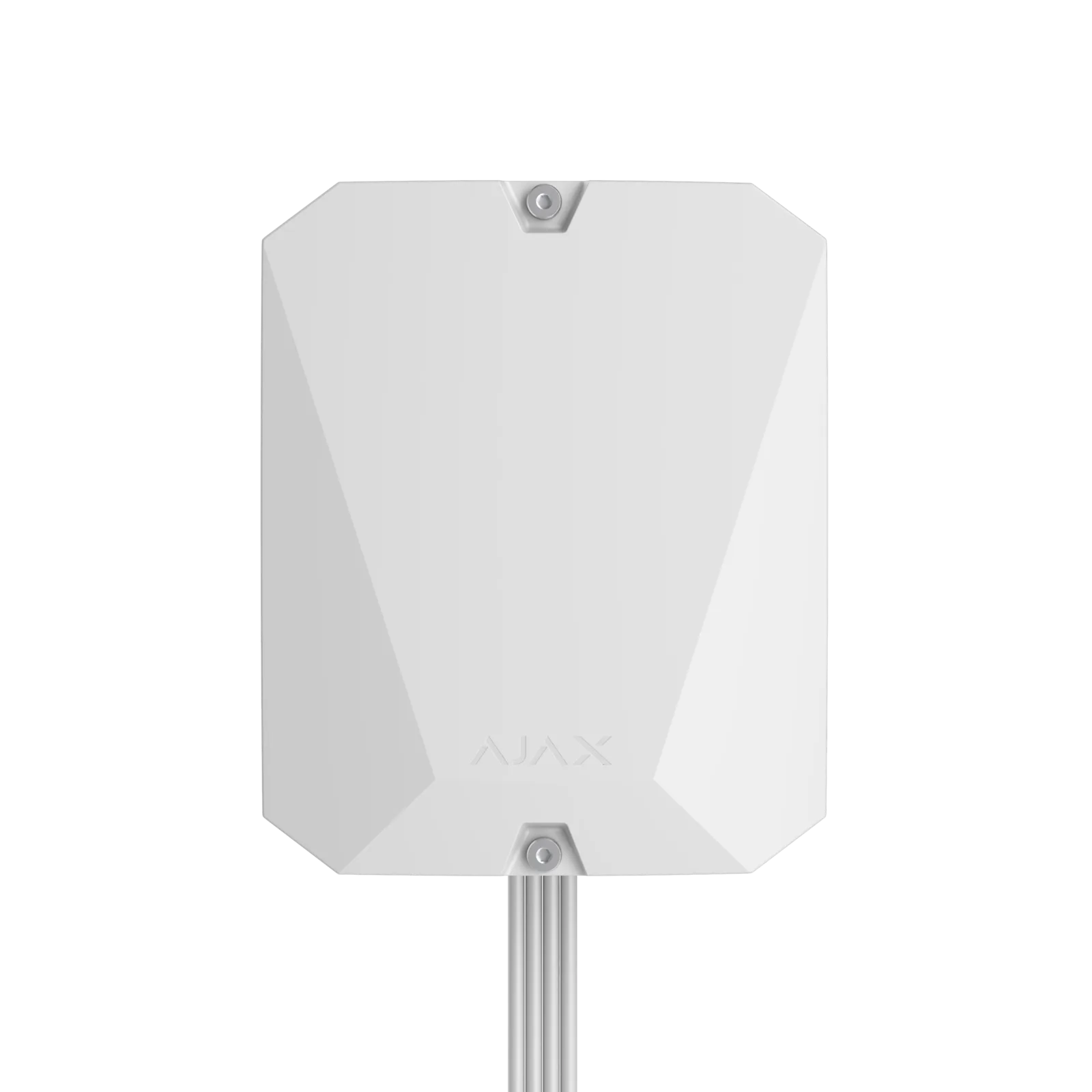

• Available in a standard casing or as a board for Case D (430)
• Supports ring and star topologies for Fibra lines
• Mounts using the included installation kit

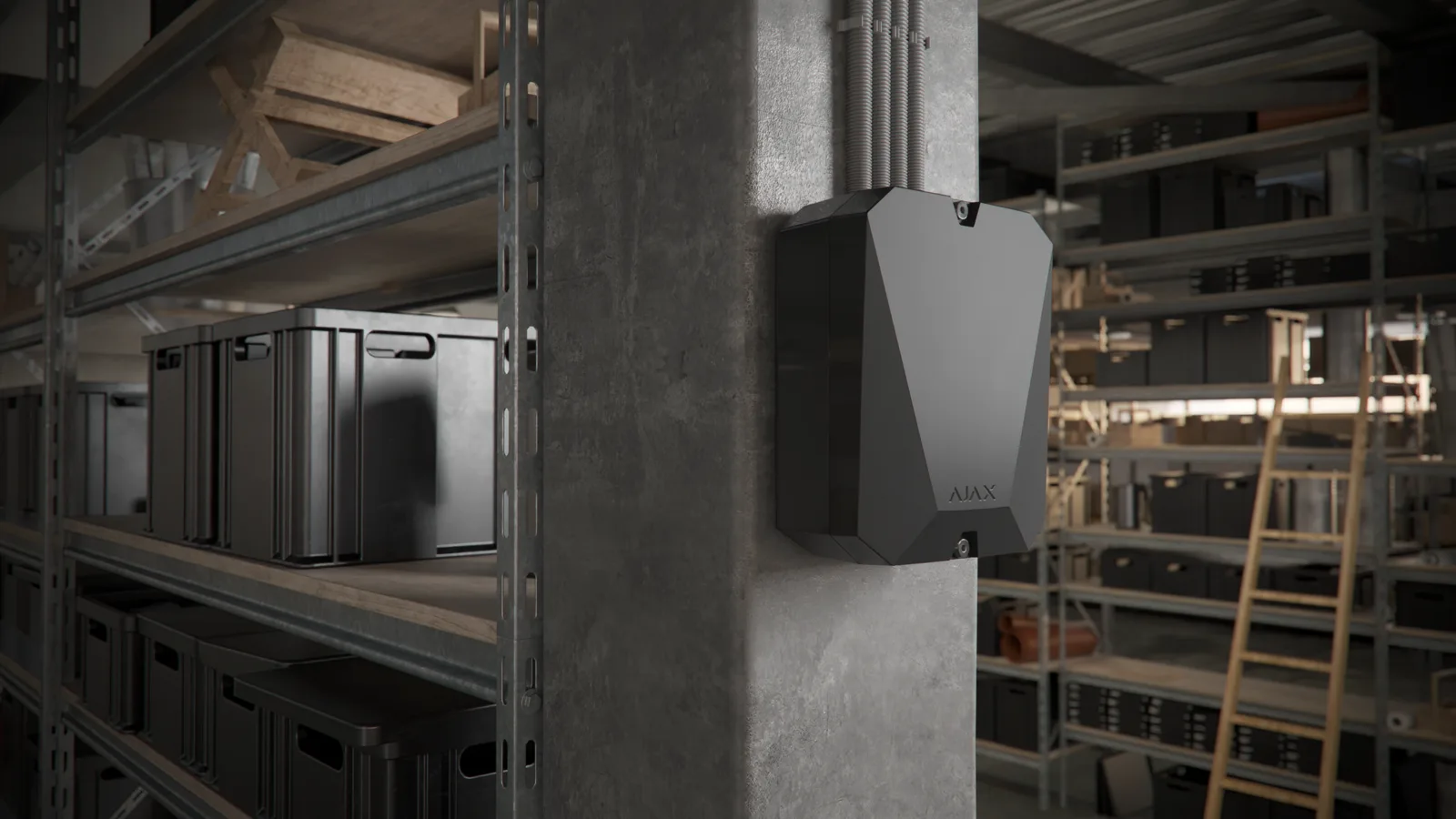

• Ideal for:
  • Warehouses and industrial facilities
  • Manufacturing plants
  • Construction sites
  • Schools and offices
  • Large commercial buildings

Reliability & Supervision

• Dual tamper protection for enclosure and mounting
• Short‑circuit detection and instant line break alerts
• Encrypted communication with AES‑128
• Device authentication to prevent spoofing
• Jamming detection and frequency hopping
• Backup battery support for up to 60 hours of operation
• Regular polling of wired and wireless devices
• OS Malevich ensures stable, real‑time performance

Compliance

• EN 50131 Grade 3
• PD 6662:2017
• INCERT
• SSF
• NFA2P
• NIST AES‑128
• Operating temperature: −10 °C to +40 °C
• Operating humidity: up to 75%
• Protection class: IP30, IK06
