DoorProtect Jeweller
A wireless reed-switch opening detector with long-range Jeweller communication, Chime support, and up to 7 years of autonomous operation.
Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.
Available Colours
DoorProtect Jeweller
DoorProtect Jeweller is a wireless opening detector designed to secure doors, windows, skylights, and other entry points. It uses a high‑quality British‑made reed switch rated for over 2 million openings, ensuring long‑term reliability. With two included magnets, an NC input for third‑party detectors, and up to seven years of battery life, it provides flexible installation and dependable intrusion detection for residential, commercial, and industrial environments.
Key Features
- Reed switch rated for 2,000,000 openings
- Two magnets included for flexible installation
- Up to 7 years of autonomous operation
- Chime feature for door‑open notifications
- NC input for third‑party wired detectors
- Jeweller wireless communication up to 1,200 m
- Protection against reed switch chatter
- Tamper alarm for enclosure removal
- Remote configuration and testing via Ajax apps

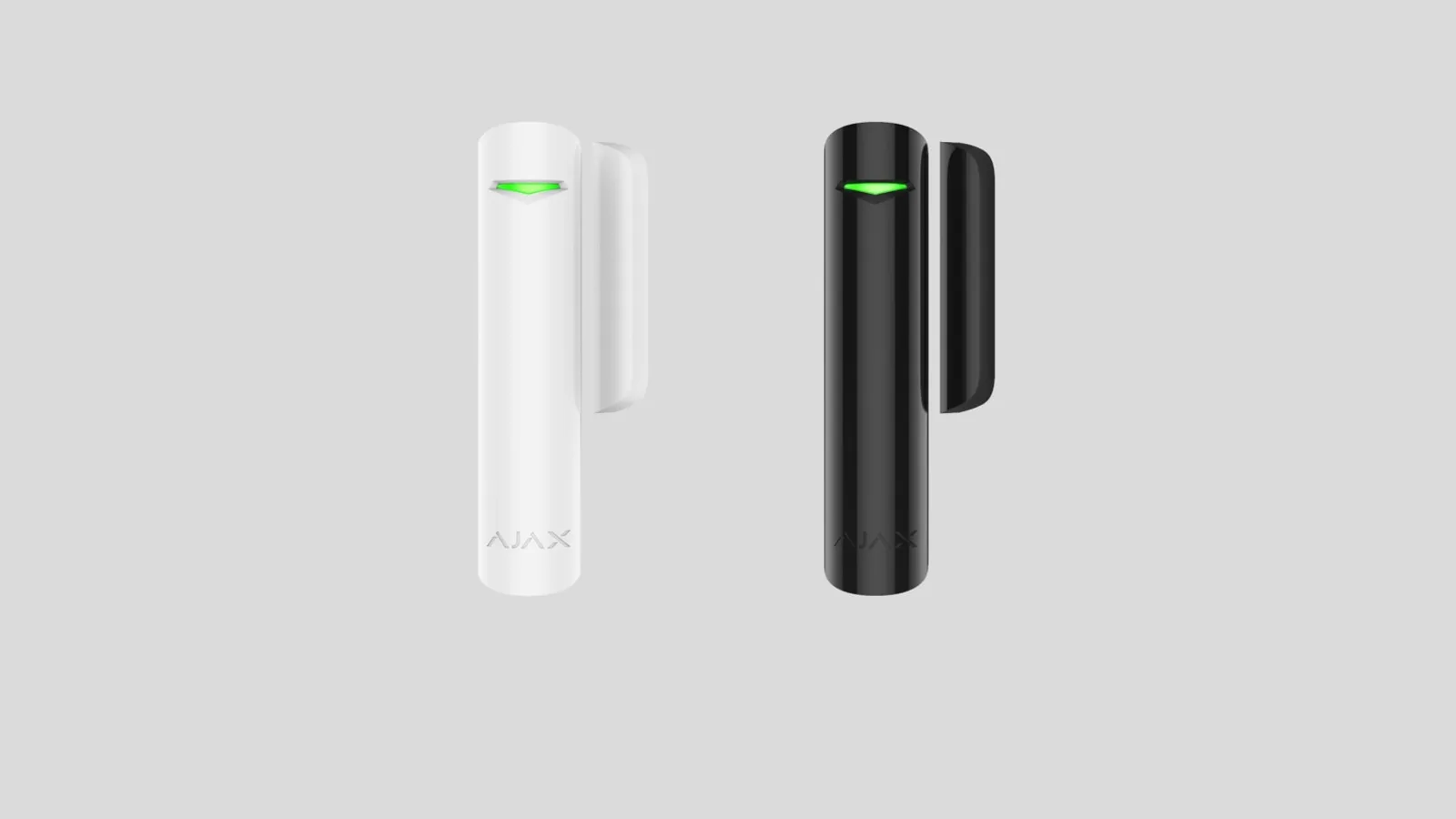

- Two glossy colour options: white and black
How It Works
DoorProtect Jeweller uses a reed switch to detect when a door or window is opened. The detector communicates with the hub using encrypted Jeweller radio technology, ensuring fast and reliable alarm delivery. The system monitors device status through regular polling and instantly reports tamper events, communication loss, or low battery conditions.
The NC input allows integration of an additional wired detector—such as a vibration, motion, or alternative opening sensor—expanding the protection zone. When the Chime feature is enabled and paired with an Ajax siren, DoorProtect Jeweller can act as a doorbell, providing audible notifications when the system is disarmed.
Installation & Placement
- Designed for indoor installation only
- Suitable for:
- Doors and windows
- Sliding doors
- Skylights
- Cabinets and restricted access areas
- Install using the SmartBracket panel without opening the enclosure
- Choose between the small or large magnet depending on frame width
- Pair with the hub by scanning the QR code
- Configure and test via Ajax mobile or desktop apps
Reliability & Supervision
- Tamper alarm for enclosure removal
- Device authentication to prevent spoofing
- Reed switch chatter protection
- Communication loss detection (as fast as 36 seconds depending on settings)
- Regular polling for real‑time device status
- Low battery warnings months in advance
- NC input for additional detector integration
Compliance
- EN 50131 Grade 2
- PD 6662:2017
- UL634, ULC/ORD‑C634
- Operating temperature: −10 °C to +40 °C
- Operating humidity: up to 75%
- Dimensions: Ø 20 × 90 mm
- Colours: White, Black
Specifications
| Product Type | Wireless opening detector |
| Sensitive Element | Reed switch rated for 2,000,000 openings |
| Magnets | Two magnets included (small and big) for flexible installation |
| Activation Threshold | Small magnet: 1 cm; Big magnet: 2 cm |
| Third-Party Detector Input | NC contact type (no power output) |
| Chime Feature | Yes, requires Ajax siren |
| Communication Technology | Jeweller wireless communication with encryption, TDMA, frequency hopping |
| Communication Range | Up to 1,200 m in open space |
| Tamper Protection | Tamper alarm for enclosure removal |
| Power Supply | 1 � CR123A battery (pre-installed) |
| Battery Life | Up to 7 years |
| Operating Temperature | -10 �C to +40 �C |
| Operating Humidity | Up to 75% |
| Dimensions | � 20 � 90 mm |
| Weight | 29 g |
| Colours | White, Black |
| Complete Set | DoorProtect Jeweller, 2 magnets, CR123A battery, SmartBracket panel, installation kit, NC connector, quick start guide |
| Compliance | EN 50131 Grade 2, PD 6662:2017, UL634, ULC/ORD-C634 |
