Superior DoorProtect Plus Fibra
A wired opening detector with dual reed switches, shock and tilt sensors, NC input, and advanced Fibra communication for high‑security installations.
Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.
Available Colours
Superior DoorProtect Plus Fibra

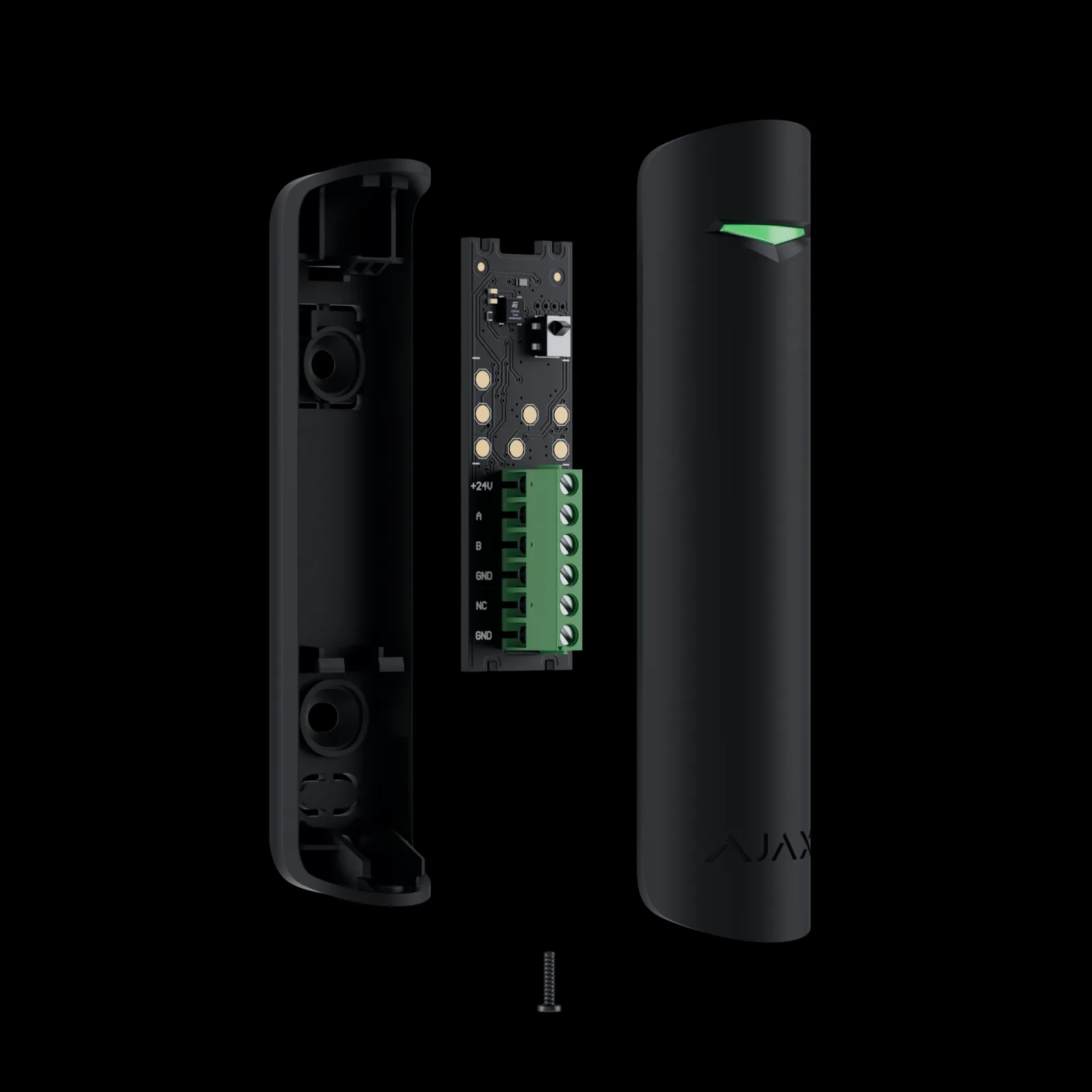

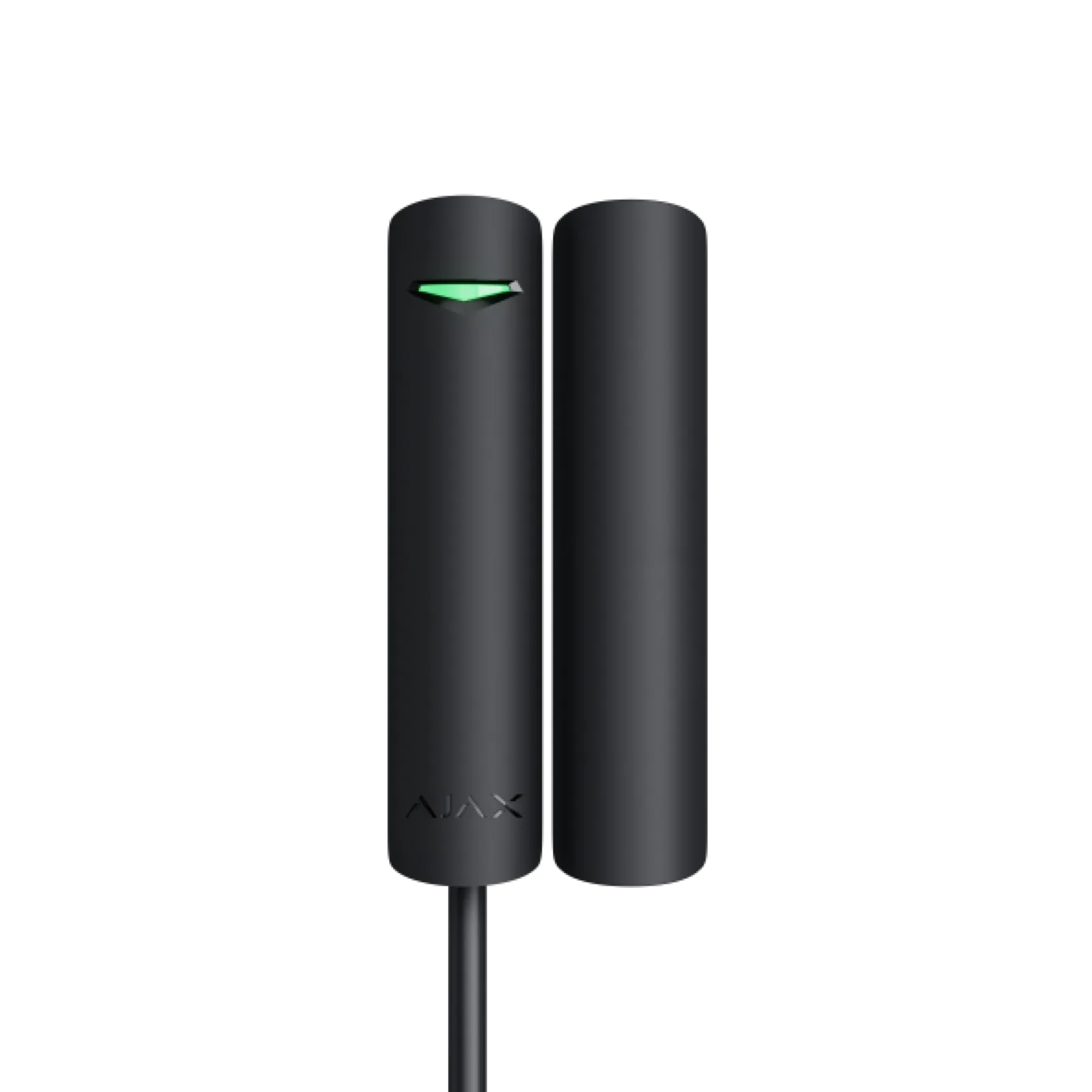

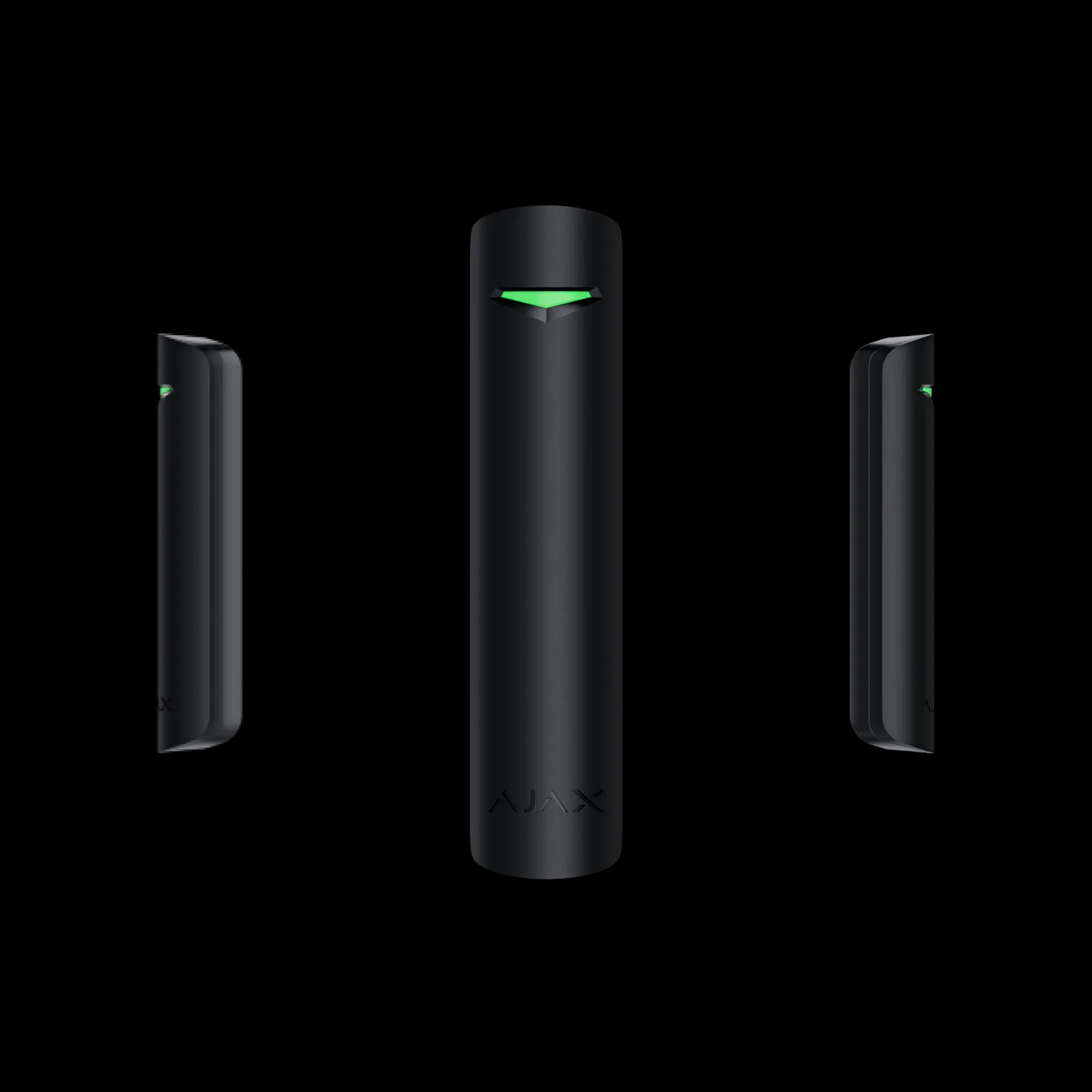

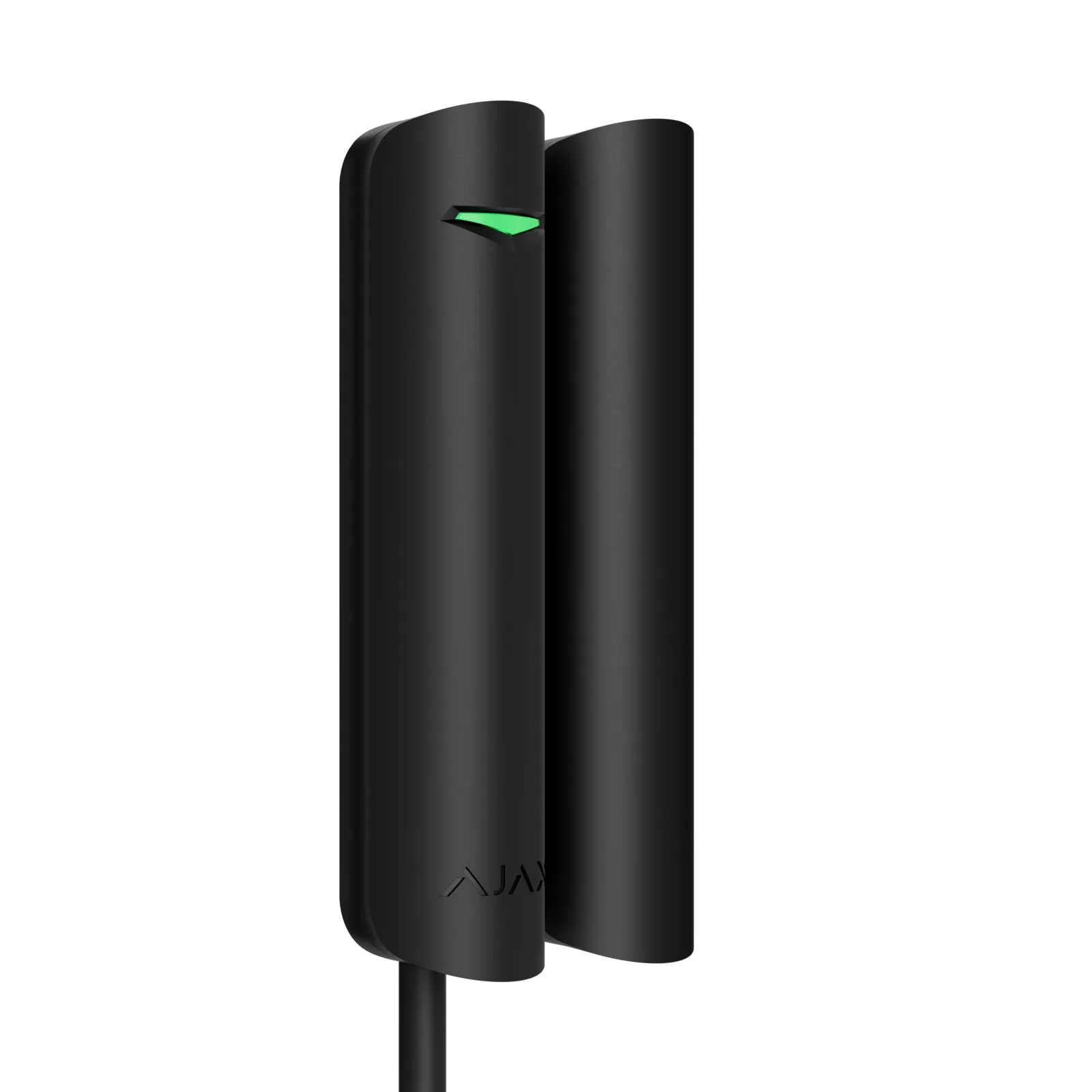

Superior DoorProtect Plus Fibra is a wired opening, shock, and tilt detector designed for high‑security installations. It combines two durable reed switches with a built‑in accelerometer to detect opening, vibration, impact, and tilt. With advanced Fibra communication, strong anti‑sabotage protection, and an NC input for third‑party detectors, it provides comprehensive intrusion detection for commercial, industrial, and residential environments.
Key Features

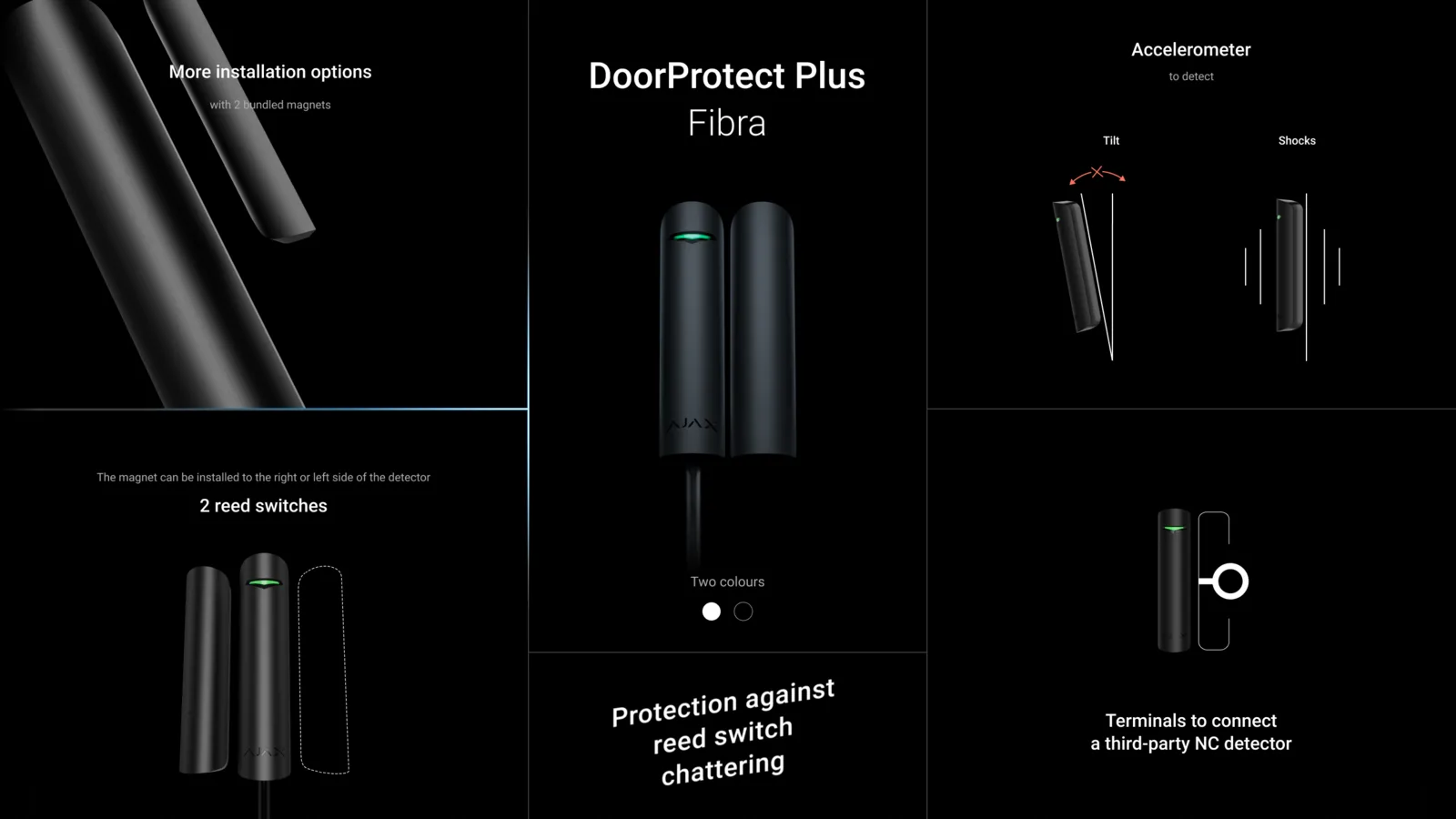

- Two reed switches for flexible magnet placement
- Built‑in accelerometer for shock, vibration, and tilt detection
- Adjustable shock sensitivity (3 levels)
- Adjustable tilt angle (5°–25°) and tilt alarm delay
- Option to ignore single impacts for false alarm reduction
- Two magnets included for various installation scenarios
- NC input for third‑party wired detectors
- Chime feature for door‑open notifications
- Up to 2,000 m wired communication via Fibra
- Two tamper buttons and holding screws for enhanced security
- Short‑circuit protection and device authentication

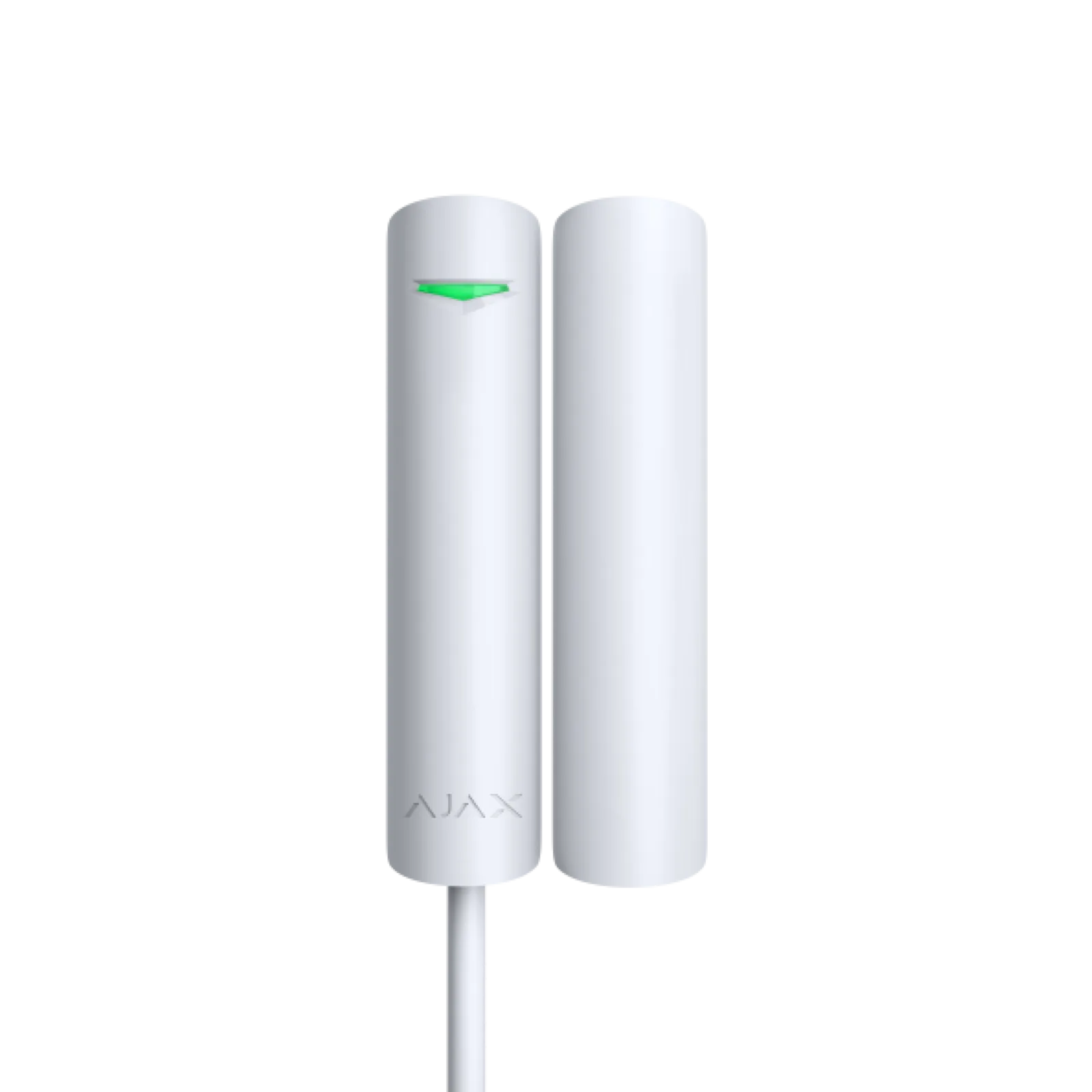

- Two matte colour options: white and black
How It Works
Superior DoorProtect Plus Fibra uses two reed switches to detect openings and an accelerometer to detect shock, vibration, and tilt. The shock sensor identifies impacts associated with forced entry, while the tilt sensor monitors deviations from the initial angle—ideal for protecting windows left in airing mode. Sensitivity levels and tilt thresholds can be configured remotely through Ajax apps.
The detector communicates with the hub using encrypted Fibra wired technology, ensuring fast, stable, and secure data transmission. The NC input allows integration of additional wired detectors, such as vibration, motion, or roller shutter sensors, expanding the protection zone.

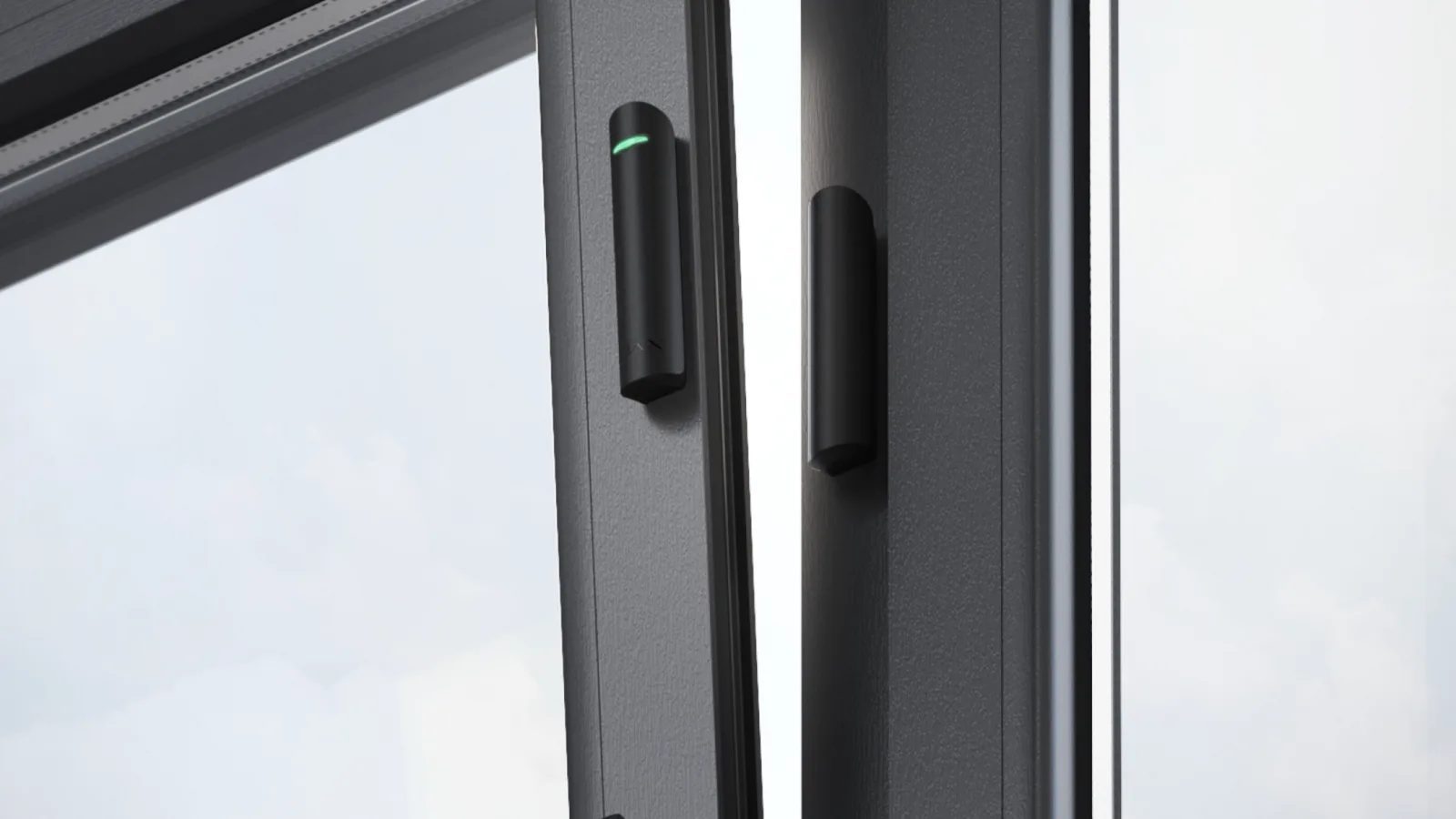

Installation & Placement
- Designed for indoor installation only
- Suitable for:
- Doors and windows
- Skylights
- Vaults and safes
- Tilt‑prone openings
- Install using the SmartBracket panel and holding screws
- Magnet can be mounted on either side of the detector
- Add to the system via automatic Fibra line scanning or QR code
- Configure and test via Ajax mobile or desktop apps
Reliability & Supervision
- Two tamper buttons for enclosure opening and detachment
- Device authentication to prevent spoofing
- Short‑circuit protection on the Fibra line
- Communication loss detection (as fast as 36 seconds depending on settings)
- Regular polling for real‑time device status
- Instant malfunction notifications to PROs and users
- NC input for additional detector integration
Compliance
- EN 50131 Grade 2
- PD 6662:2017
- INCERT
- SSF
- NFA2P
- Operating temperature: −10 °C to +40 °C
- Operating humidity: up to 75%
- Dimensions: 90.5 × 21 × 18.5 mm
- Colours: White, Black
Specifications
| Product Type | Wired opening, shock, and tilt detector |
| Sensitive Elements | 2 × reed switches, 1 × accelerometer |
| Opening Detection | Magnet can be installed on left or right side |
| Shock Detection | 3 sensitivity levels, adjustable |
| Tilt Detection | Activation threshold 5°–25°, adjustable |
| Ignore Single Shock | Yes, configurable |
| Magnets | Two magnets included (big and small) |
| Third-Party Detector Input | NC contact type (no power output) |
| Chime Feature | Yes, requires Ajax siren |
| Communication Technology | Fibra wired communication with encryption, TDMA, two-way communication |
| Communication Range | Up to 2,000 m using U/UTP Cat.5 cable |
| Tamper Protection | Two tamper buttons (detachment + enclosure opening), holding screws, short-circuit protection |
| Power Supply | 5–30 V⎓ via Fibra line |
| Power Consumption | Up to 147 mW |
| Operating Temperature | -10 °C to +40 °C |
| Operating Humidity | Up to 75% |
| Dimensions | 90.5 × 21 × 18.5 mm |
| Weight | White: 17 g, Black: 15 g |
| Colours | White, Black |
| Protection Class | IP50, IK04 |
| Complete Set | Superior DoorProtect Plus Fibra, big magnet, small magnet, installation kit, quick start guide |
| Compliance | EN 50131 Grade 2, PD 6662:2017, INCERT, SSF, NFA2P |
