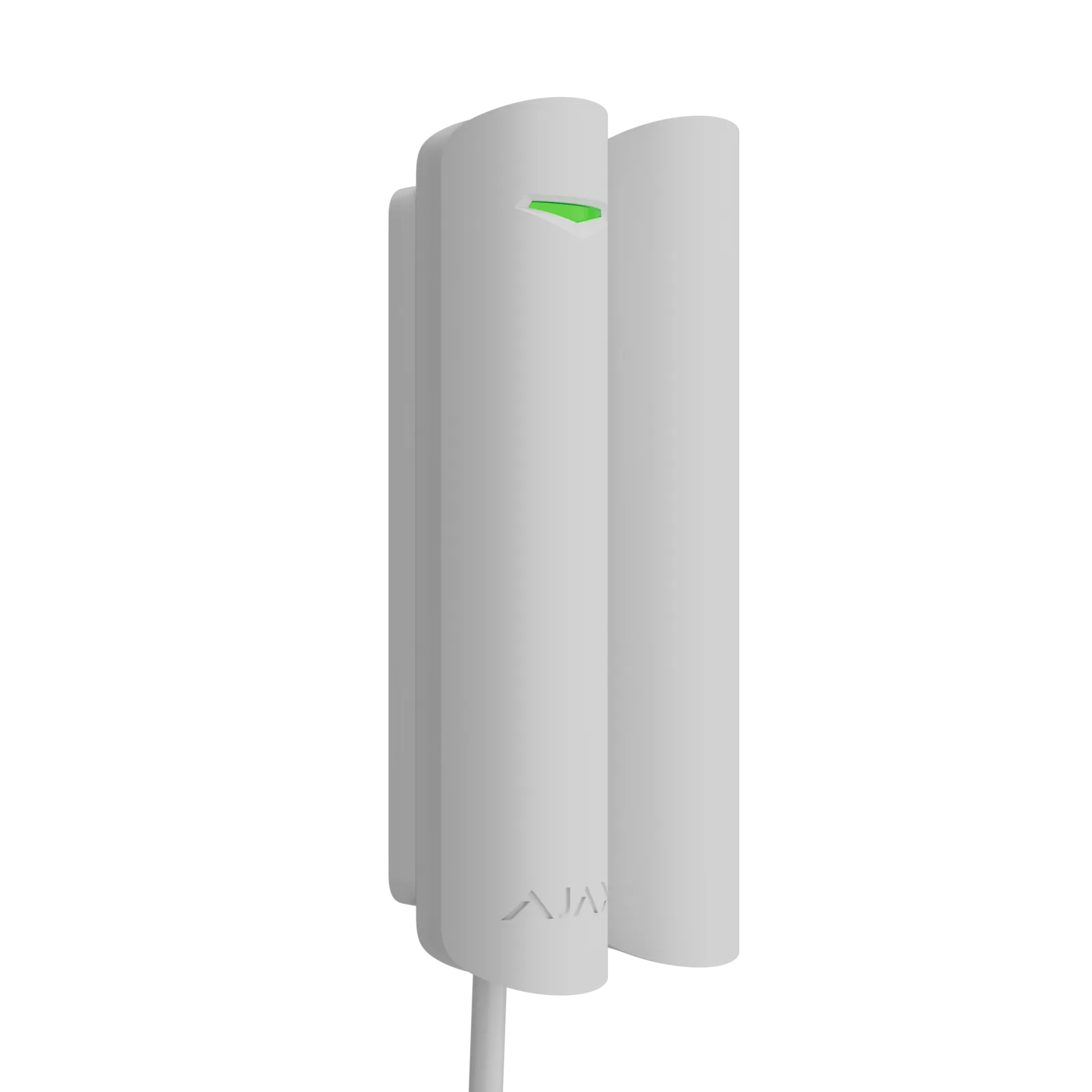

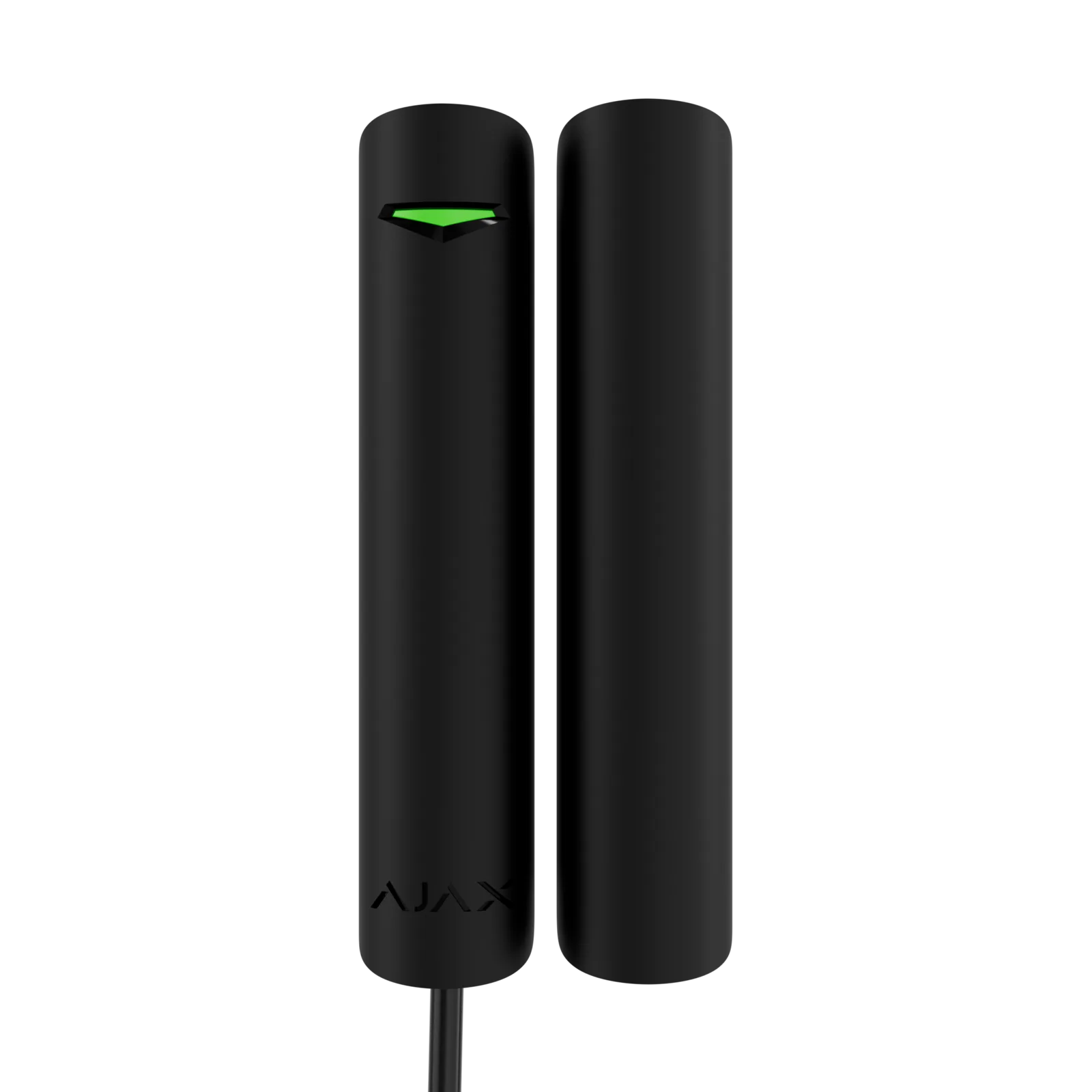

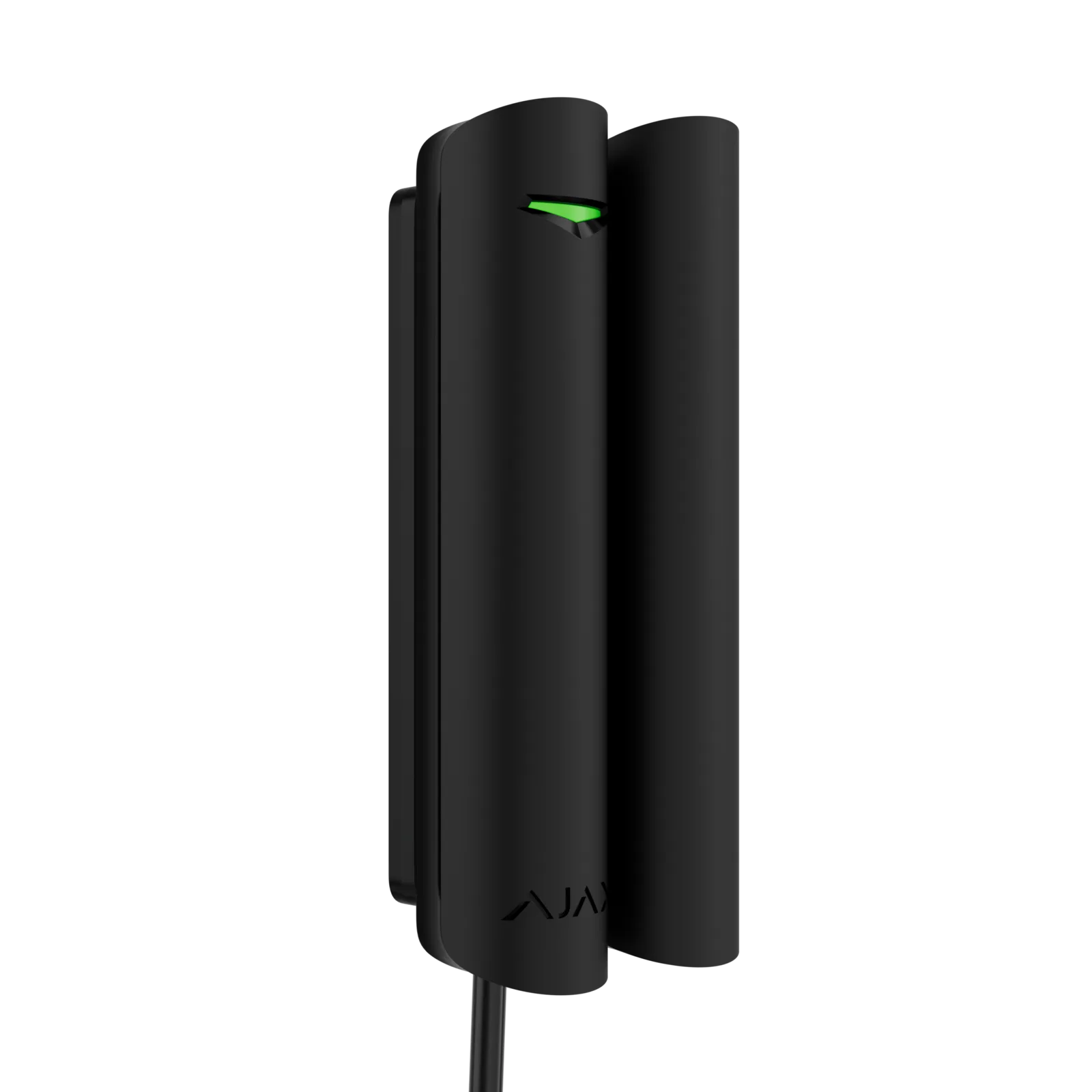

Superior DoorProtect G3 Fibra

Superior DoorProtect G3 Fibra is a Grade 3 wired opening detector engineered for high‑security environments. It combines two reed switches with an accelerometer and a magnetic masking sensor to detect opening, shock, vibration, tilt, and attempts to bypass the detector using fraudulent magnets. With advanced Fibra communication, strong anti‑sabotage protection, and an NC input for third‑party detectors, it provides comprehensive intrusion detection for banks, retail, warehouses, and critical infrastructure.

Key Features

• Two reed switches for flexible magnet placement
• Accelerometer for shock, vibration, and tilt detection
• Magnetic masking sensor to detect fraudulent magnets
• Adjustable shock sensitivity (3 levels)
• Adjustable tilt angle (5°–25°)
• Option to ignore single impacts for false alarm reduction
• Spacers included for mounting on metal surfaces
• NC input for third‑party wired detectors
• Chime feature for door‑open notifications
• Up to 2,000 m wired communication via Fibra
• Two tamper buttons and holding screw for enhanced security
• Short‑circuit protection and device authentication
• Two matte colour options: white and black

How It Works

Superior DoorProtect G3 Fibra uses two reed switches to detect openings, an accelerometer to detect shock, vibration, and tilt, and a magnetometer to detect magnetic masking attempts. This combination ensures reliable detection even in high‑risk environments where intruders may attempt to bypass sensors.

The detector communicates with the hub using encrypted Fibra wired technology, ensuring fast, stable, and secure data transmission. The NC input allows integration of additional wired detectors, such as vibration, motion, or roller shutter sensors, expanding the protection zone.

Installation & Placement

• Designed for indoor installation only
• Suitable for:

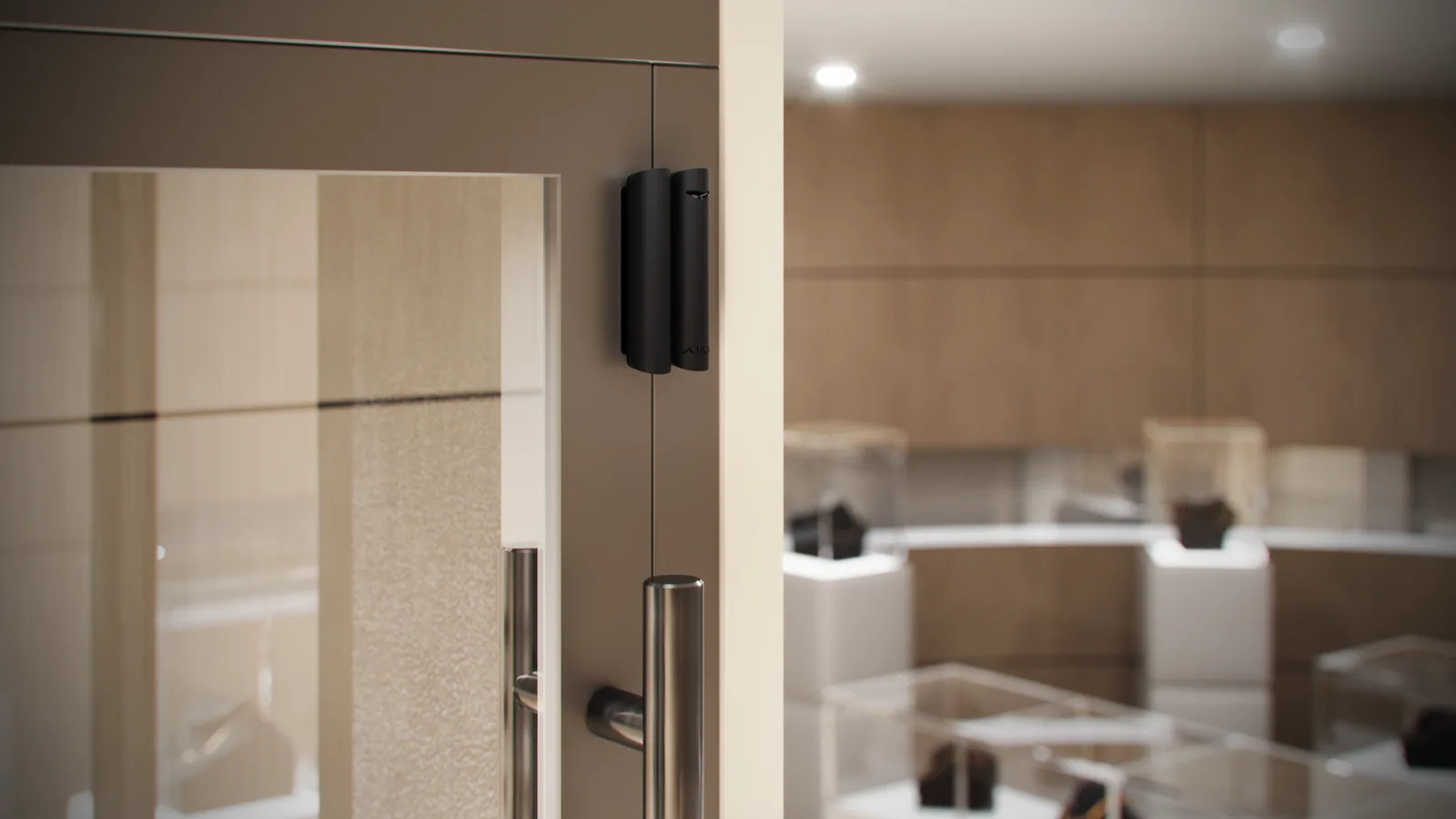

  • High‑security doors and windows
  • Vaults and safes
  • Metal frames (spacers included)
  • Tilt‑prone openings
• Install using the SmartBracket panel and holding screw
• Magnet can be mounted on either side of the detector
• Add to the system via automatic Fibra line scanning or QR code
• Configure and test via Ajax mobile or desktop apps

Reliability & Supervision

• Two tamper buttons for enclosure opening and detachment
• Magnetic masking detection
• Device authentication to prevent spoofing
• Short‑circuit protection on the Fibra line
• Communication loss detection (as fast as 36 seconds depending on settings)
• Regular polling for real‑time device status
• Instant malfunction notifications to PROs and users
• NC input for additional detector integration

Compliance

• EN 50131 Grade 3
• PD 6662:2017
• INCERT
• NFA2P
• VSÖ
• Operating temperature: −10 °C to +40 °C
• Operating humidity: up to 75%
• Dimensions: 102 × 21 × 19.2 mm
• Colours: White, Black
