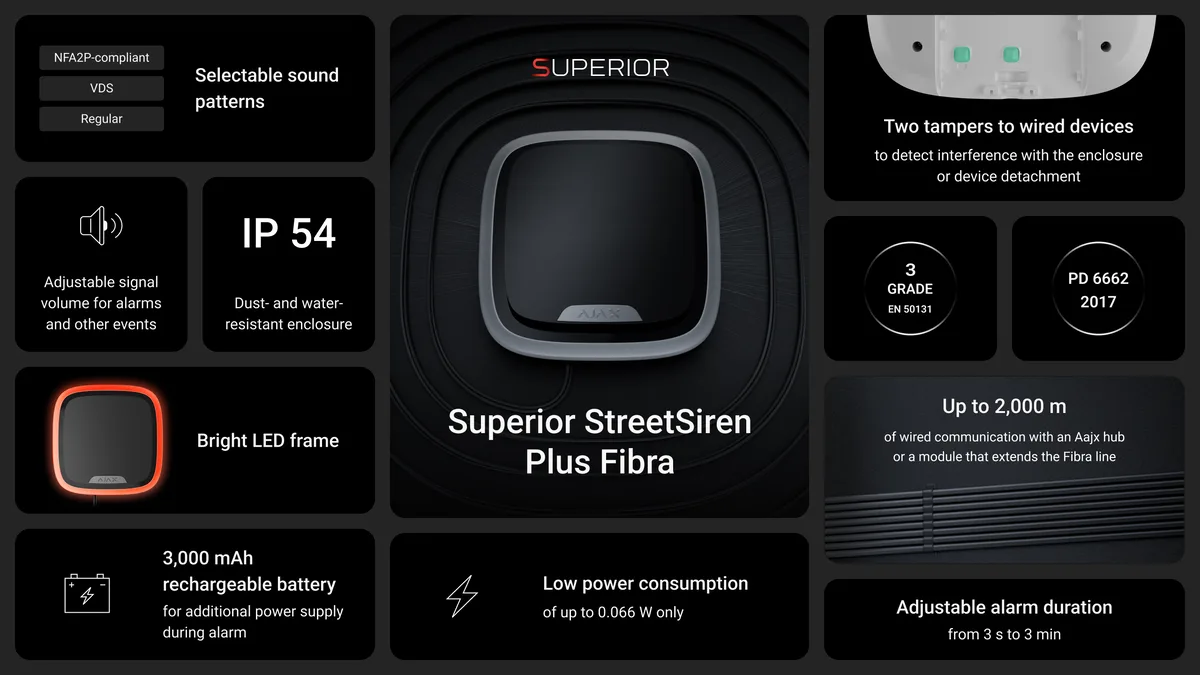

Superior StreetSiren Plus Fibra
A wired indoor/outdoor siren with LED frame, 85–107 dB acoustic output, backup battery, and encrypted Fibra communication.
Coming Soon
Available Colours
Superior StreetSiren Plus Fibra
Superior StreetSiren Plus Fibra is a wired indoor/outdoor siren designed for high‑security installations. It combines a powerful 85–107 dB acoustic signal with a bright LED frame to provide clear alarm and status indication. Using encrypted Fibra communication, the siren delivers instant, reliable signalling across distances up to 2,000 meters. A built‑in rechargeable battery ensures the siren continues to operate even if the Fibra line is damaged, maintaining alarm capability during emergencies.
Key Features
- 85–107 dB acoustic output with configurable duration
- LED frame with full‑frame or corner illumination
- Backup battery for alarm signalling if the line is cut
- Encrypted two‑way Fibra communication up to 2,000 m
- Two tamper sensors for enclosure opening and detachment
- Chime mode for door‑open notifications
- Supports NFA2P, VdS, and Regular alarm tones
- Suitable for indoor and outdoor installation
- Remote configuration and testing via Ajax apps
How It Works
The siren activates its speaker and LED frame when the system detects an alarm or tamper event. It can also indicate arming/disarming, entry and exit delays, and after‑alarm states. When the system is disarmed, the Chime feature allows the siren to notify staff or occupants when doors are opened.
Fibra wired communication ensures stable, encrypted data exchange with the hub. The built‑in rechargeable battery provides backup power for alarm signalling if the Fibra line is cut or power is lost.
Installation & Placement
- Mount indoors or outdoors at a height of 2.5 m or higher
- Use the SmartBracket panel with built‑in bubble level
- Connect via U/UTP Cat.5 cable
- Add to the system via QR code or automatic Fibra line scanning
- Configure sound, LED behaviour, and triggers in Ajax apps
Reliability & Supervision
- Two tamper sensors for enclosure opening and removal
- Device authentication to prevent spoofing
- Short‑circuit protection on the Fibra line
- Communication loss detection in approximately 36 seconds
- Regular polling for real‑time status updates
- Backup battery ensures alarm continuity
Compliance
- EN 50131 Grade 2/3 (region‑dependent)
- PD 6662:2017
- NFA2P
- INCERT
- VSÖ
Specifications
| Product Type | Wired indoor/outdoor siren |
| Acoustic Output | 85–107 dB at 1 m |
| Alarm Duration | 3 seconds to 3 minutes, configurable |
| Sound Patterns | NFA2P-compliant, VdS-compliant, Regular |
| LED Indication | Full-frame or corner backlight; indicates alarms, delays, arming/disarming, and after-alarm state |
| Backup Battery | Built-in sealed rechargeable battery for alarm signalling if Fibra line is cut |
| Communication Technology | Fibra wired communication with encryption, TDMA, two-way communication |
| Communication Range | Up to 2,000 m over U/UTP Cat.5 cable |
| Tamper Protection | Two tampers (enclosure opening and detachment), device authentication, communication loss detection |
| Chime Feature | Yes, requires Ajax siren support |
| Power Supply | 8–28 V⎓ via Fibra line |
| Power Consumption | Up to 1.2 W |
| Operating Temperature | -10 °C to +40 °C |
| Operating Humidity | Up to 75% |
| Dimensions | — |
| Weight | — |
| Colours | White |
| Complete Set | Superior StreetSiren Plus Fibra, SmartBracket panel, installation kit, quick start guide |
| Compliance | EN 50131 Grade 2/3 (region-dependent), PD 6662:2017, NFA2P, INCERT, VSÖ |
