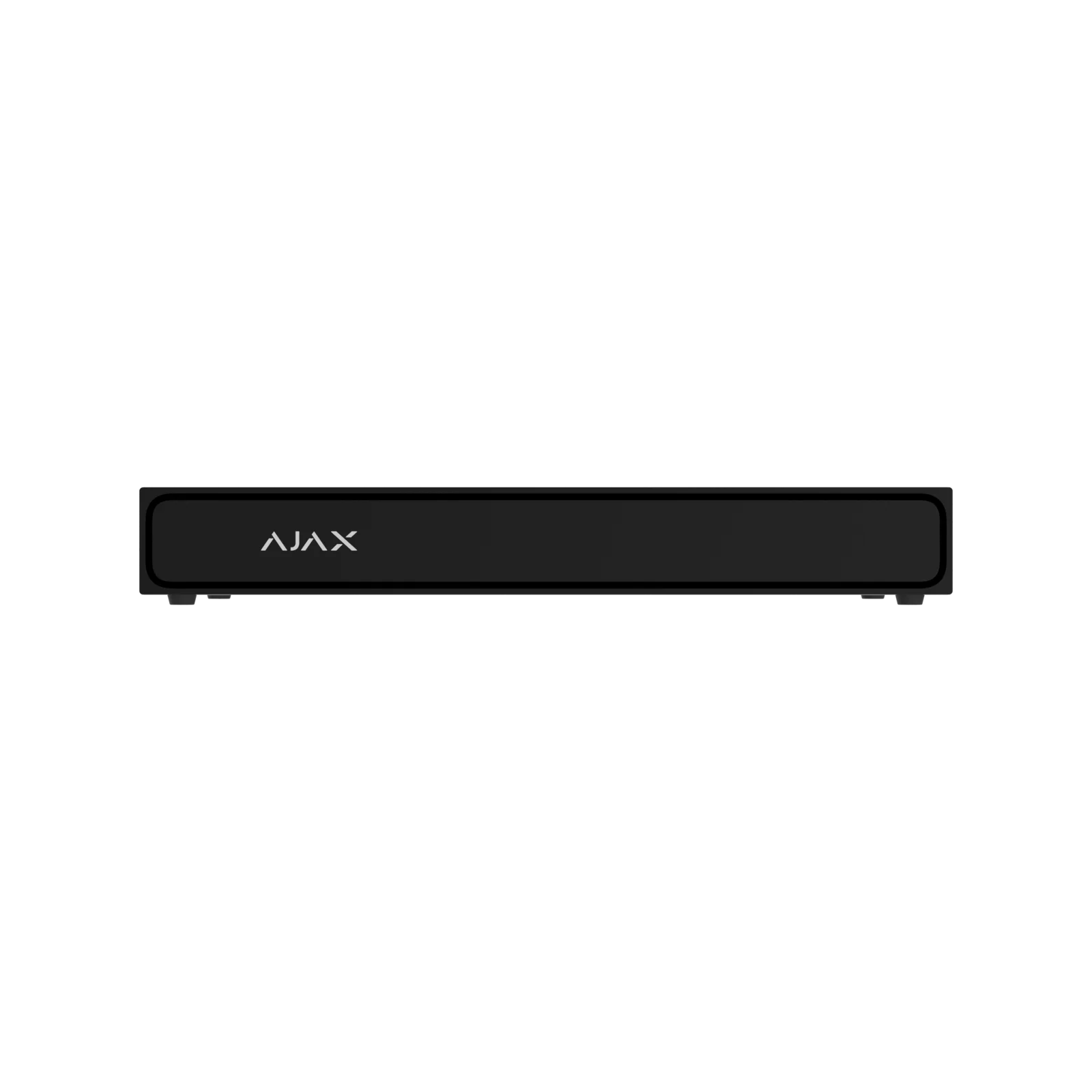

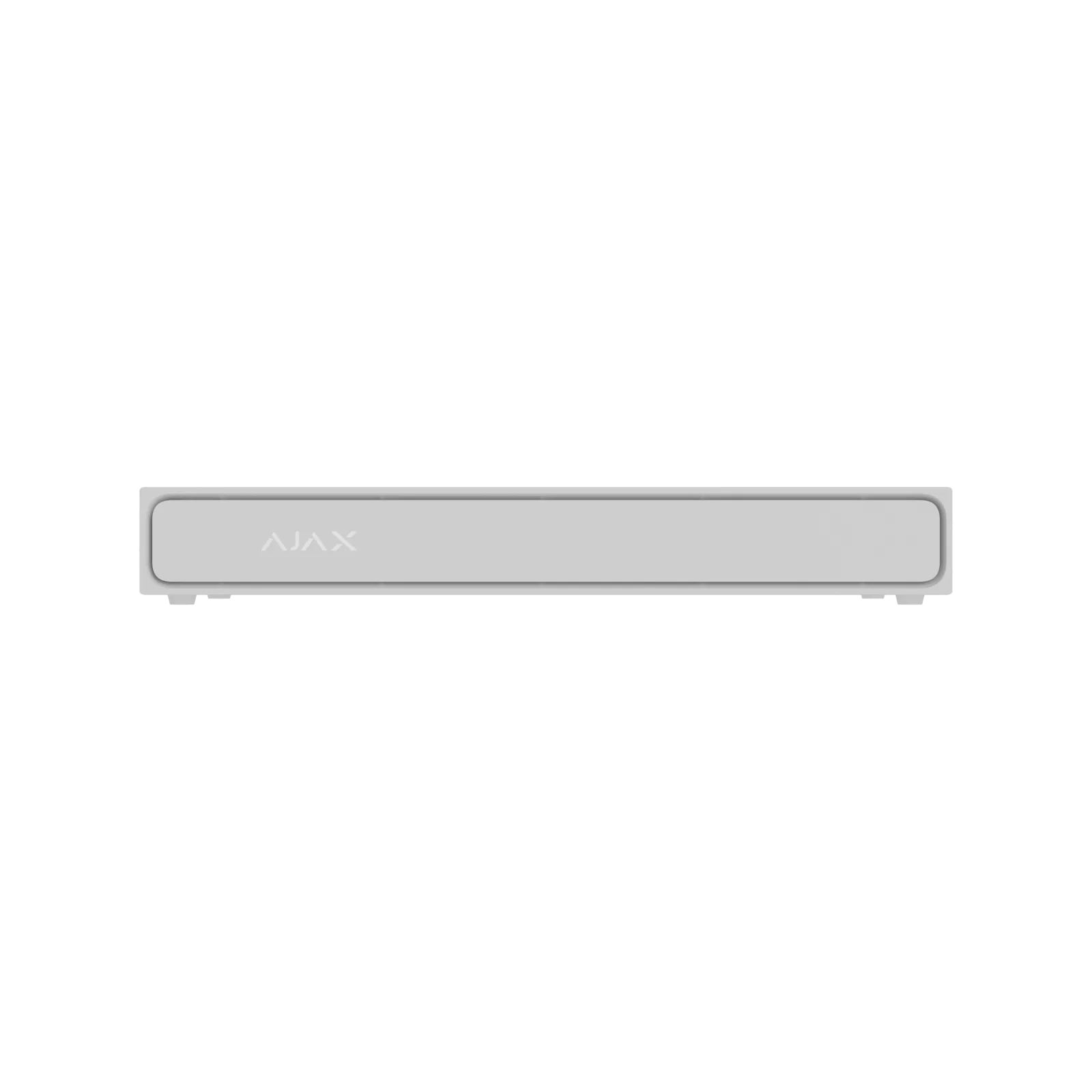

NVR H2D8PAC (16‑ch)

The Ajax NVR H2D8PAC (16‑ch) is a high‑capacity network video recorder designed for installations that require both large‑scale camera support and integrated PoE power distribution. With sixteen IP camera channels and eight IEEE 802.3af/at PoE ports, it simplifies deployment by powering and connecting cameras directly, reducing the need for external switches.

It supports two hot‑swappable HDDs for long‑term storage, 4K HDMI output for on‑site monitoring, and JetSparrow encrypted streaming for smooth, secure video playback. The integrated VMS provides a customizable video wall, smart event filtering, and fast archive navigation, making it ideal for commercial, industrial, and multi‑camera environments.

Key Features

• 16‑channel NVR with 4K HDMI output
• 8 × PoE ports (802.3af/at, up to 25 W per port, 160 W total budget)
• Supports two hot‑swappable HDDs (up to 16 TB each)
• JetSparrow encrypted streaming for smooth playback
• Built‑in video analytics with motion detection
• AI object detection when paired with Ajax cameras
• Redundancy & split‑mode recording for data protection
• Integrated VMS with video wall and smart event filters
• ONVIF support for third‑party IP cameras
• Three USB ports for peripherals and export
• Gigabit uplink port for high‑bandwidth camera networks

How It Works

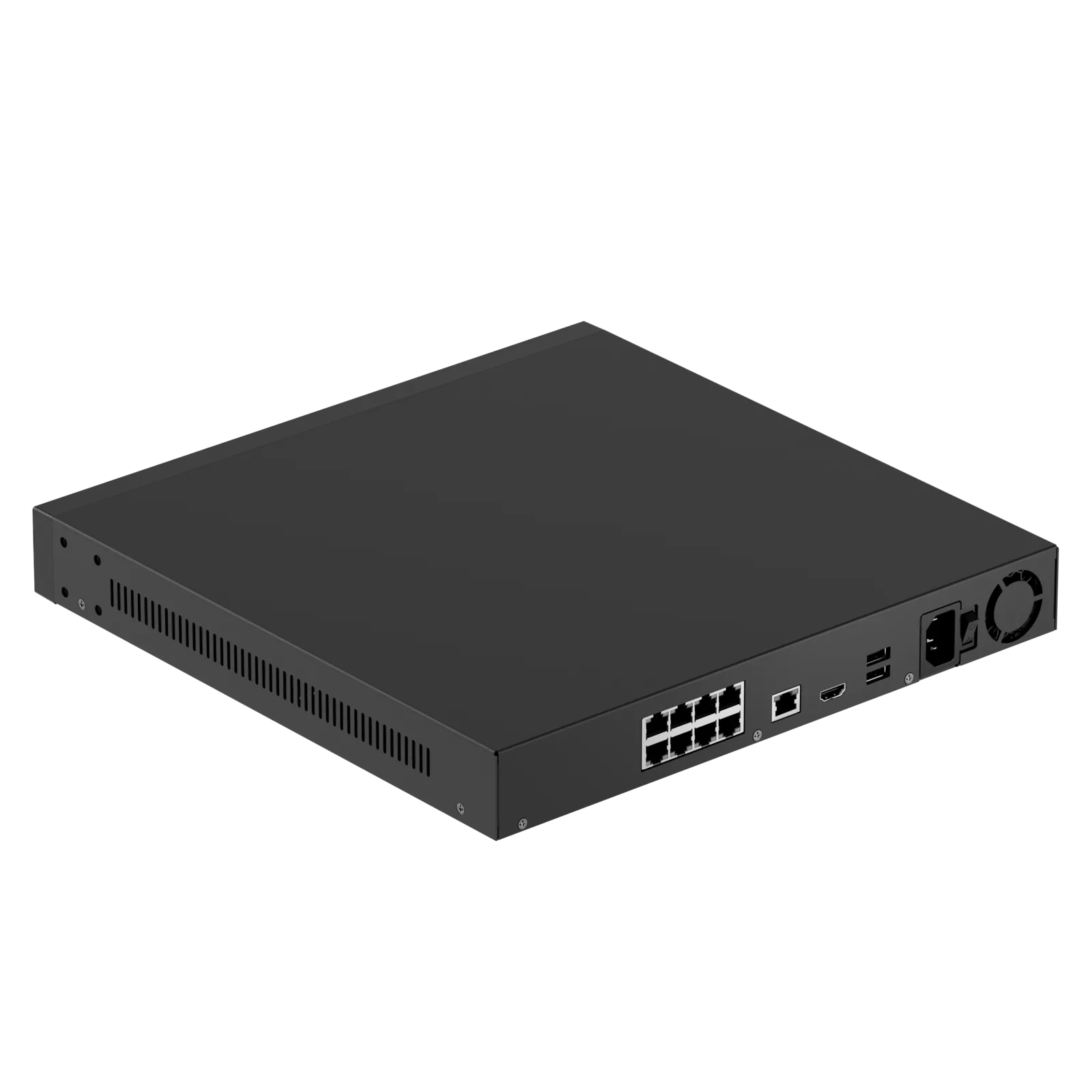

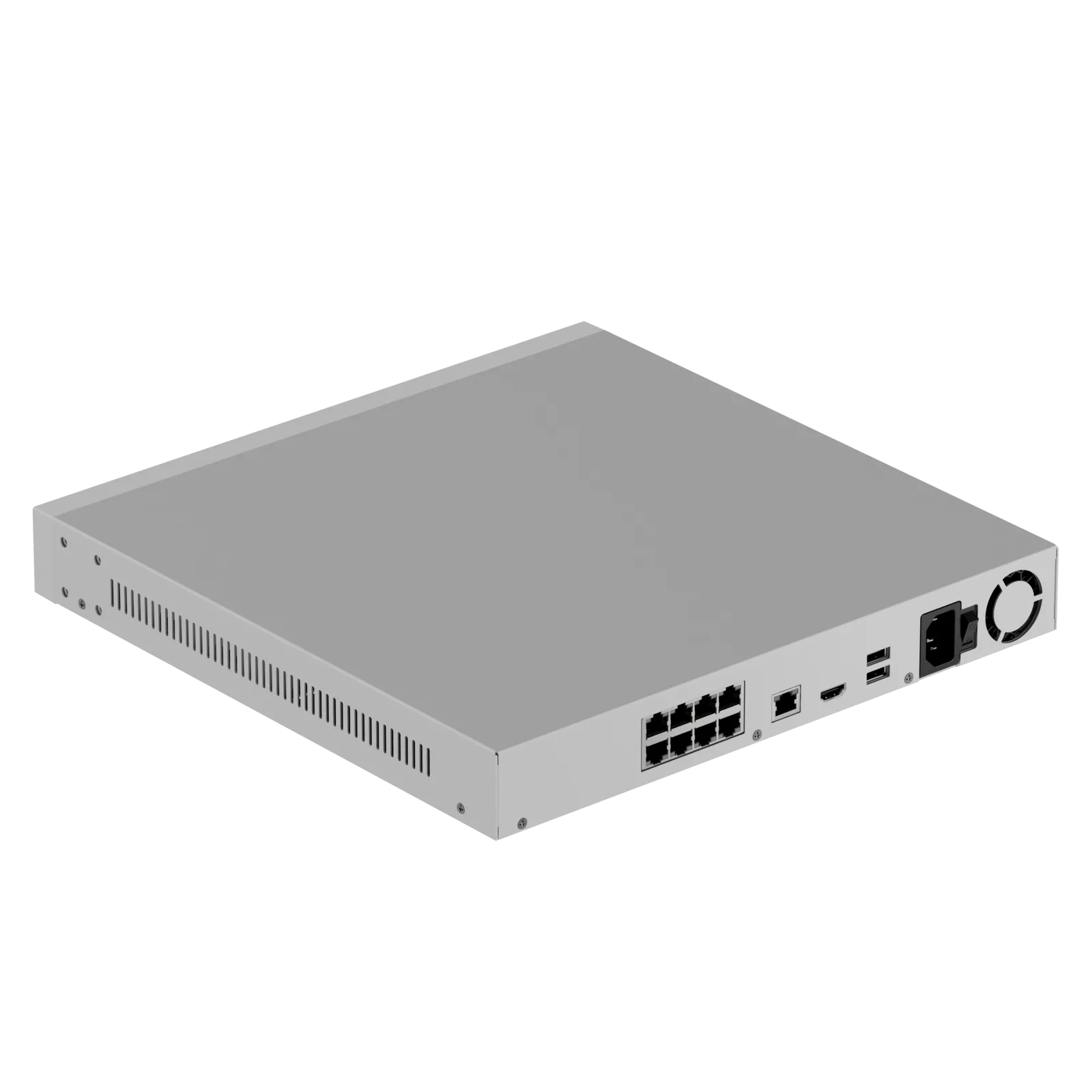

The NVR H2D8PAC (16‑ch) powers and connects up to eight cameras directly via its PoE ports, while supporting an additional eight cameras through the LAN. Video streams are recorded to dual SATA III HDDs with hot‑swap capability, ensuring continuous operation during maintenance.

JetSparrow technology enables smooth, encrypted video streaming and fast archive navigation. The built‑in VMS provides multi‑view layouts, event‑driven playback, and instant access to relevant footage. When integrated with an Ajax security system, the NVR can highlight camera feeds during alarm events for rapid verification.

Installation & Placement

• Designed for indoor installation
• PoE ports simplify wiring and reduce hardware requirements

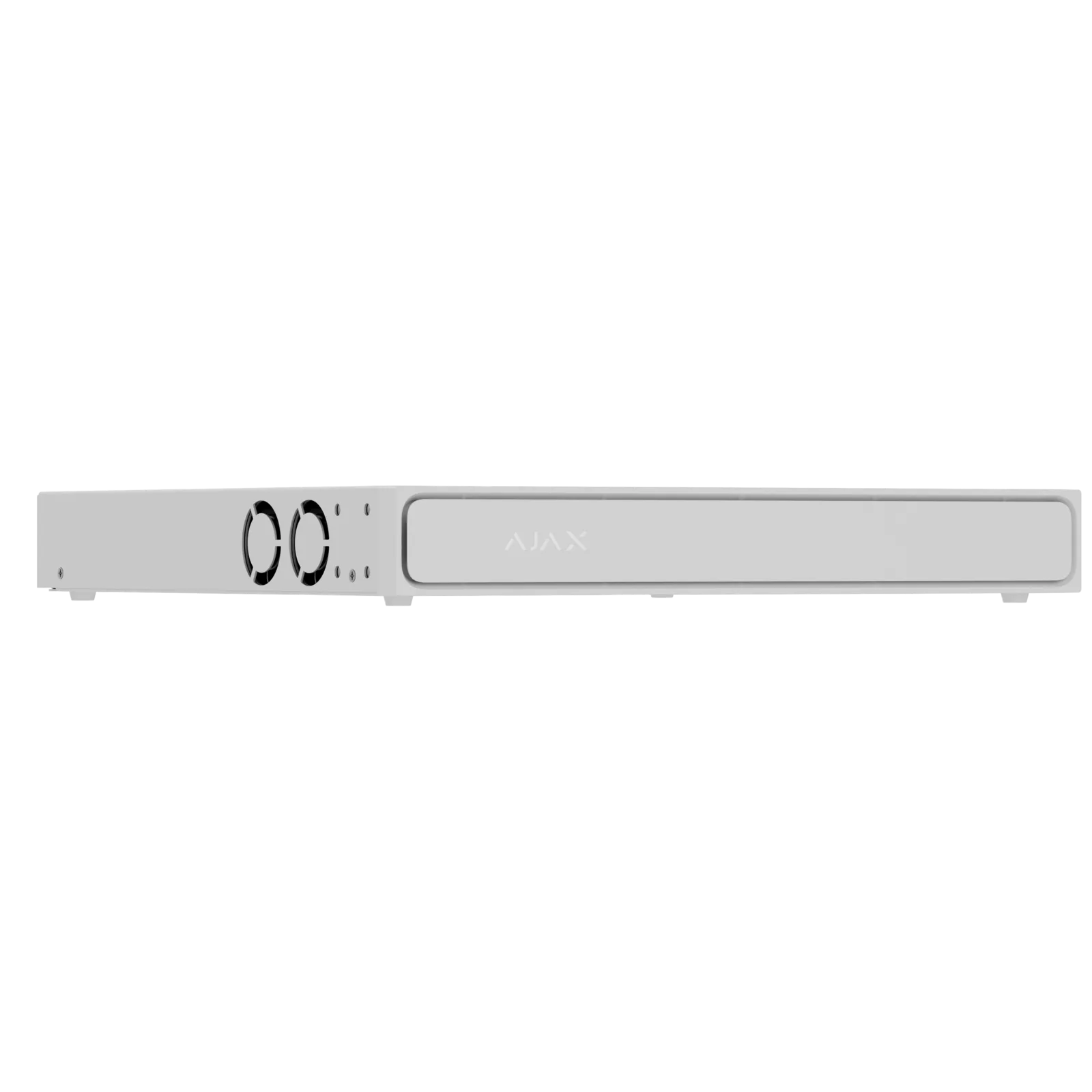

• Supports rack mounting (brackets included)
• Add to Ajax system via QR code
• Configure via Ajax mobile or desktop apps

Ideal for large retail, commercial buildings, warehouses, and multi‑camera environments requiring PoE‑powered cameras.

Reliability & Supervision

• TLS‑encrypted video streams
• Passwordless camera authentication
• Secure Boot and OTA signature verification
• Accelerometer tamper detection
• Real‑time HDD health monitoring
• Redundant recording modes

Compliance

• NDAA‑compliant components
• CE / RoHS
• IP20 indoor enclosure
