Superior NVR H2DAI16PAC (32CH, 2HDD, 1GBE, 16POE)
A 32‑channel AI‑powered NVR with 16 PoE ports, dual hot‑swappable HDDs, 4K HDMI output, and advanced analytics for enterprise surveillance.
Coming Soon
Available Colours

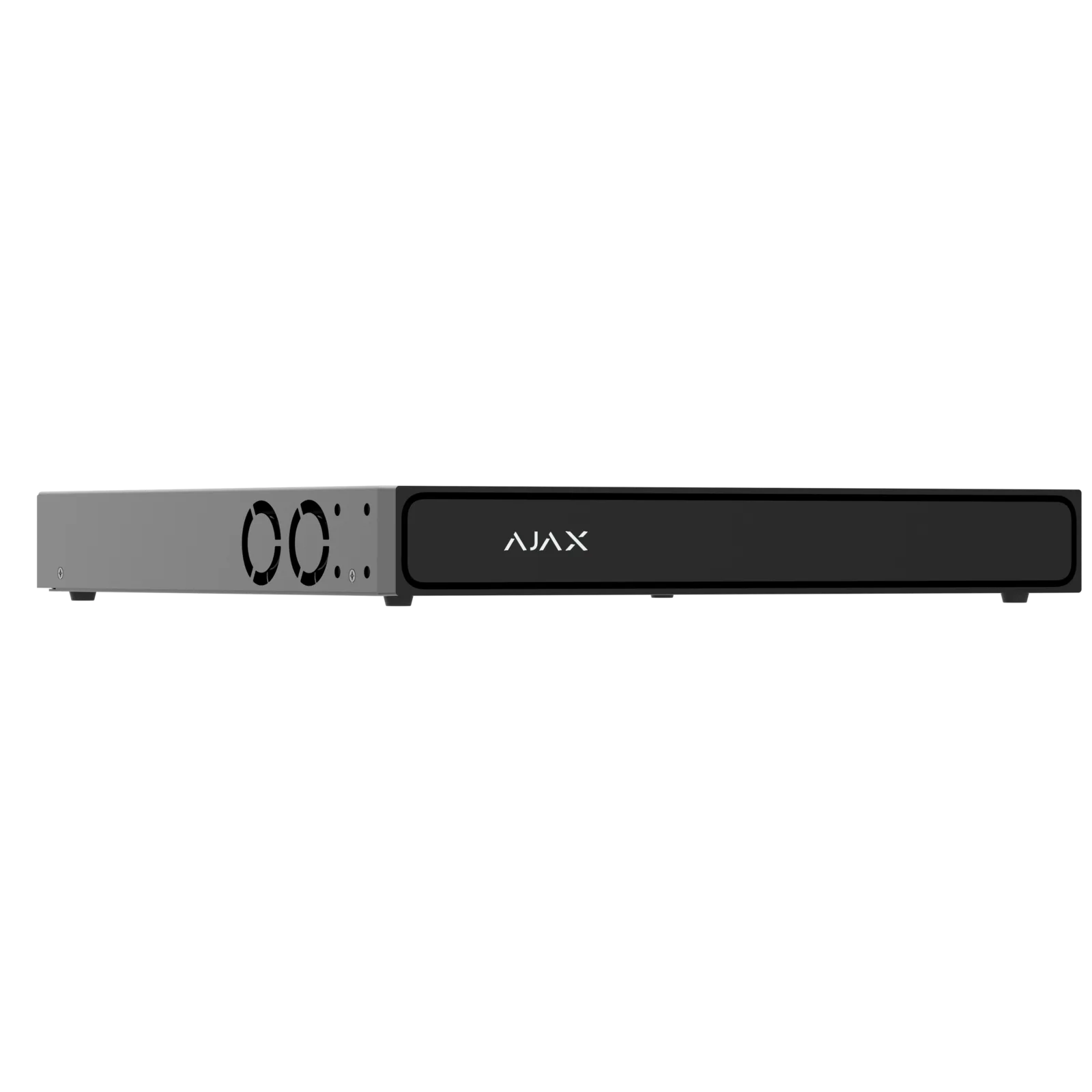

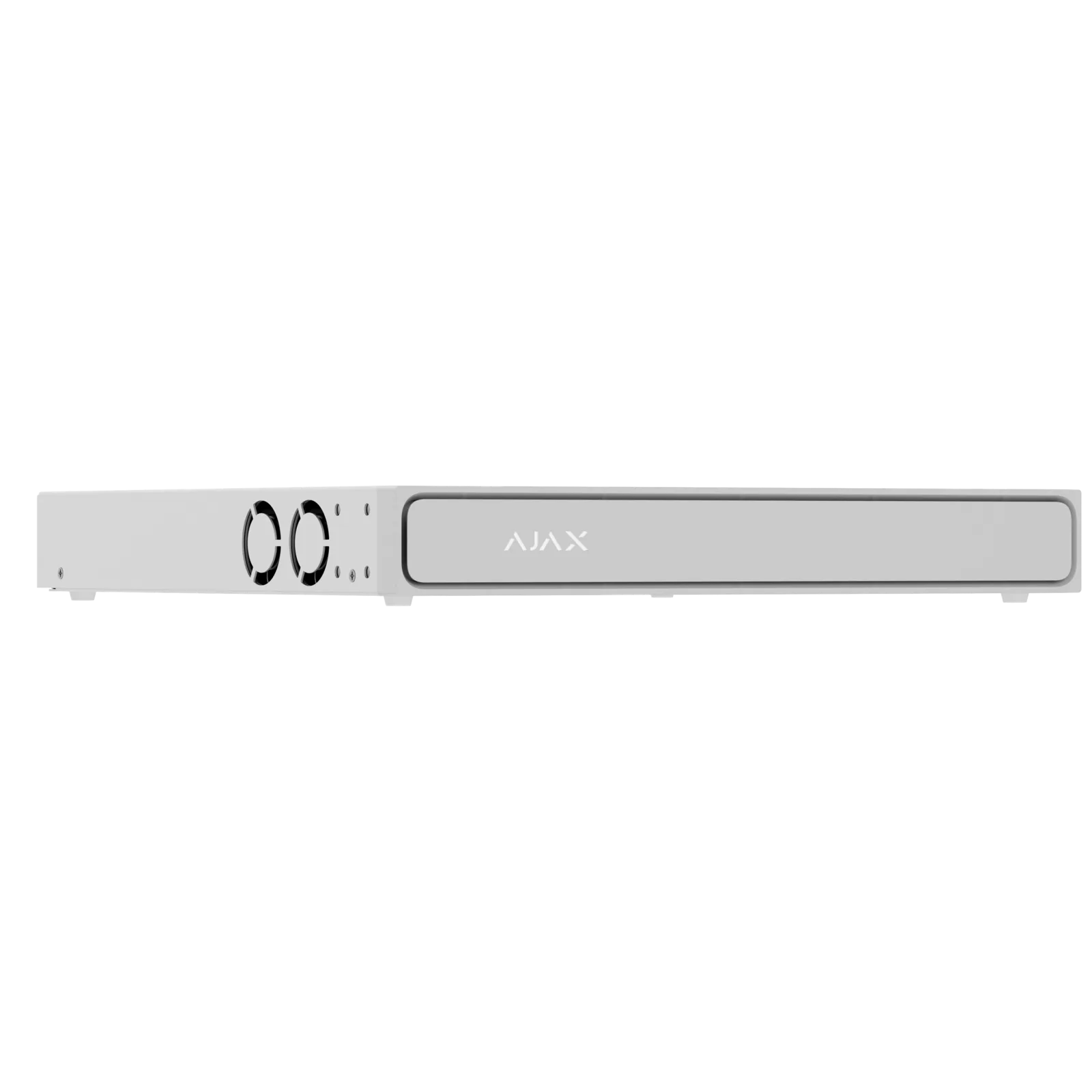

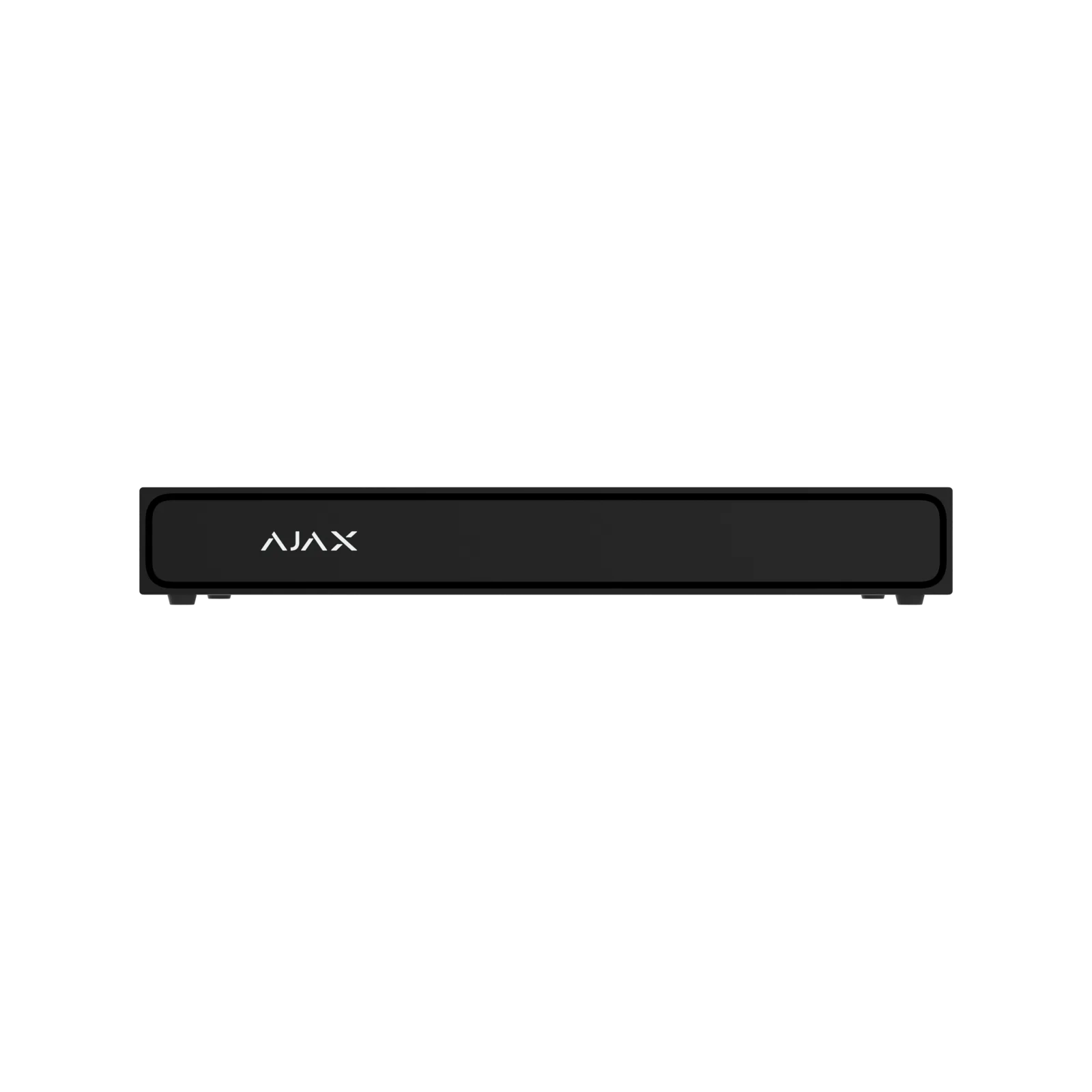

Superior NVR H2DAI16PAC (32‑ch)
The Ajax Superior NVR H2DAI16PAC (32‑ch) is an enterprise‑grade, AI‑powered network video recorder with integrated PoE, designed for large‑scale surveillance environments. With sixteen IEEE 802.3af/at PoE ports, 32‑channel video input, onboard AI object detection, and support for two hot‑swappable HDDs up to 24 TB each, it delivers exceptional scalability, intelligence, and installation efficiency.
This model provides 4K HDMI output for on‑site monitoring, JetSparrow encrypted streaming for smooth playback, and a built‑in VMS with customizable video walls, smart event filtering, and rapid archive navigation. It enhances both Ajax and third‑party ONVIF/RTSP cameras with AI‑powered detection of people, pets, vehicles, and line‑crossing events.
Key Features
- 32‑channel AI‑powered NVR
- 16 × PoE ports (IEEE 802.3af/at, up to 25 W per port, 200 W total)
- Onboard AI analytics: people, pets, vehicles, line crossing
- Single Gigabit Ethernet interface (10/100/1000 Mbps)
- Supports two hot‑swappable HDDs (up to 24 TB each)
- 4K HDMI output for local monitoring
- JetSparrow encrypted streaming for smooth, secure playback
- Built‑in video analytics with motion detection
- Redundancy & split‑mode recording for data protection
- Integrated VMS with video wall and smart event filters
- ONVIF support for third‑party IP cameras
- USB 3.0 + USB 2.0 ports for peripherals and export
How It Works
The Superior NVR H2DAI16PAC (32‑ch) powers and connects up to sixteen cameras directly via its PoE ports, while supporting up to 32 total channels through ONVIF/RTSP. Onboard AI enhances both Ajax and third‑party cameras with accurate detection of people, pets, vehicles, and line‑crossing events.
Video streams are recorded to dual SATA III HDDs with hot‑swap capability, ensuring continuous operation during maintenance. JetSparrow technology provides smooth, encrypted video streaming and fast archive navigation. The built‑in VMS offers multi‑view layouts, event‑driven playback, and instant access to relevant footage.
Installation & Placement
- Designed for indoor installation

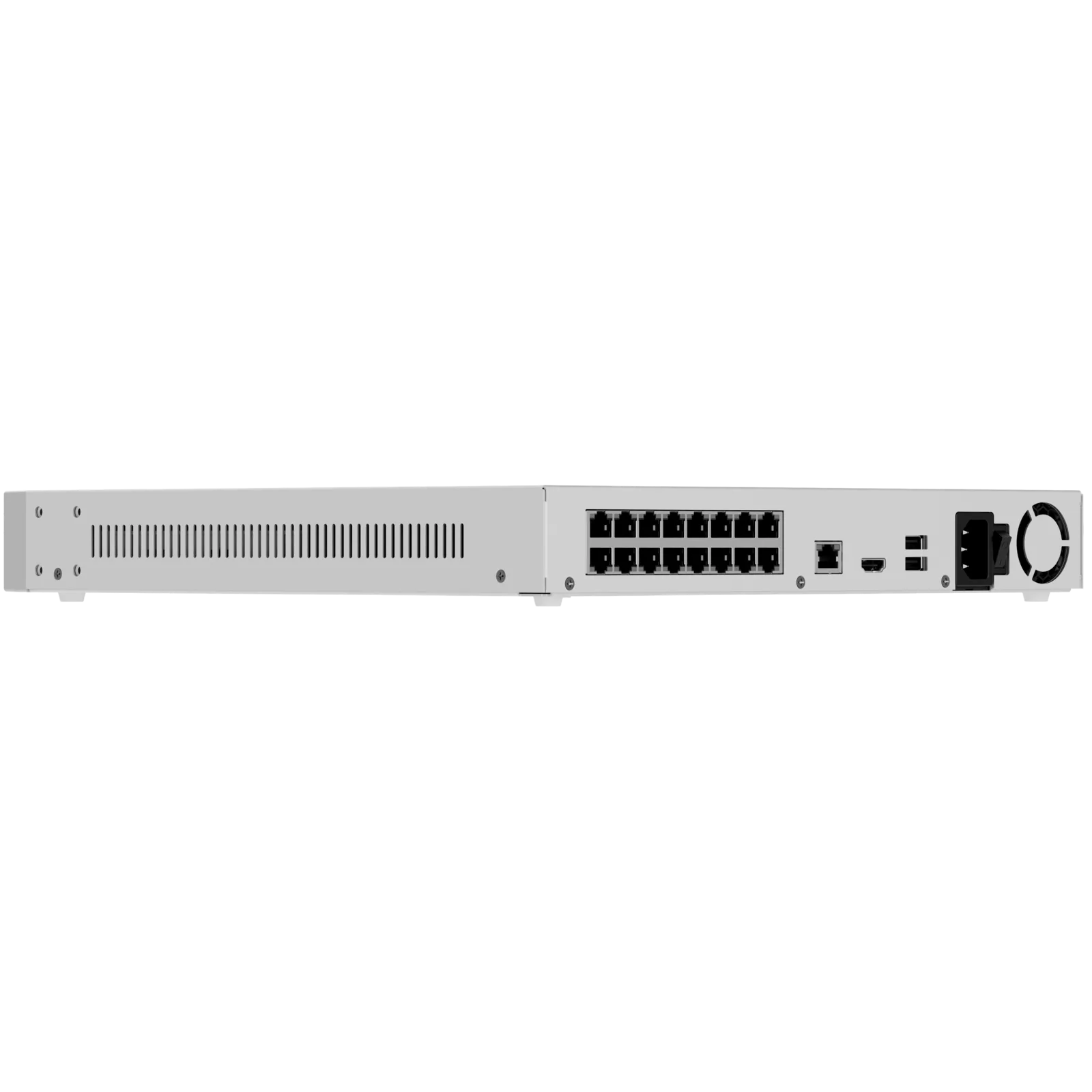

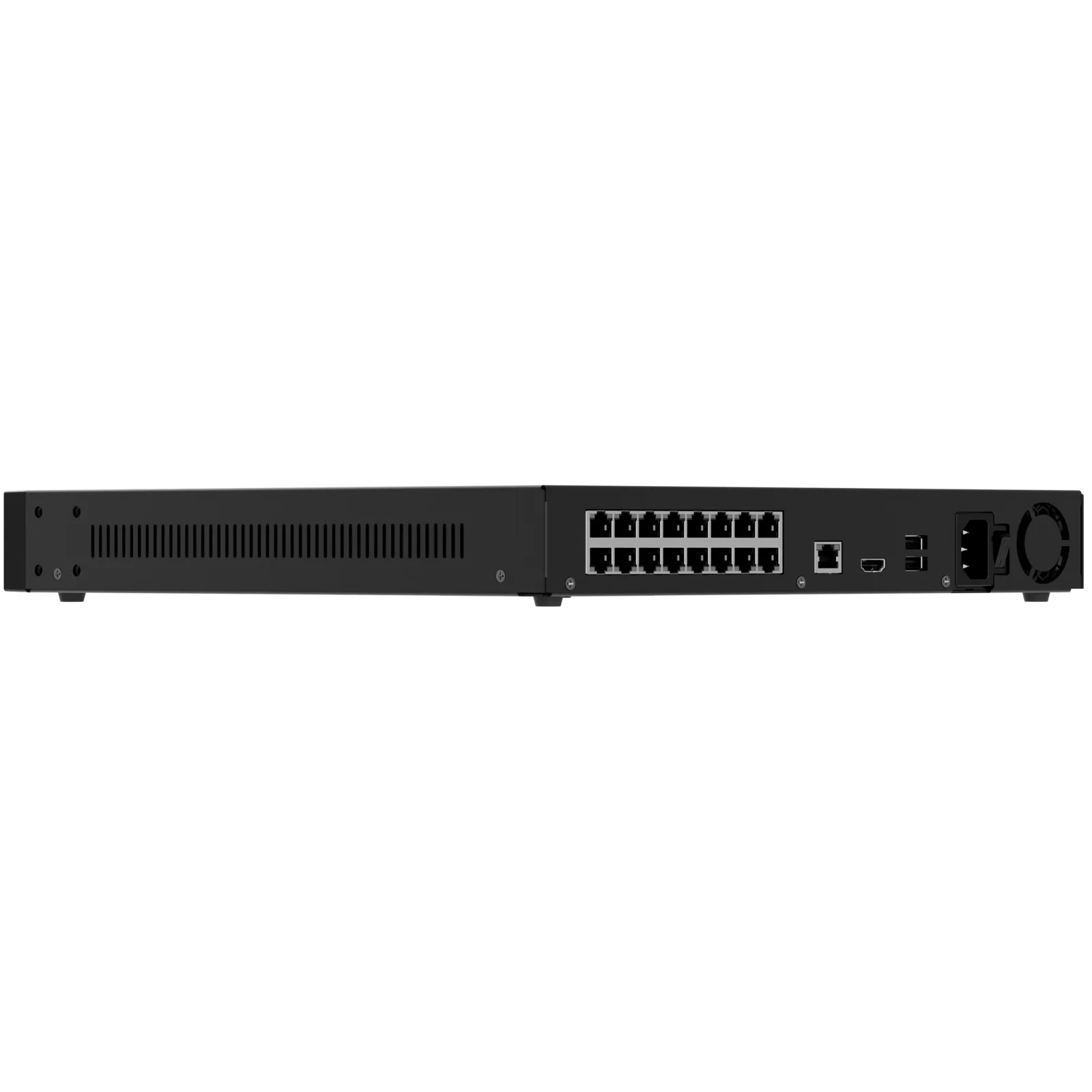

- 16 PoE ports simplify wiring and reduce external switch requirements
- Supports rack mounting (brackets included)
- Add to Ajax system via QR code
- Configure via Ajax mobile or desktop apps
Ideal for large commercial buildings, industrial sites, and enterprise‑scale surveillance systems requiring PoE‑powered cameras with AI‑enhanced analytics.
Reliability & Supervision
- TLS‑encrypted video streams
- Passwordless camera authentication
- Secure Boot and OTA signature verification
- Accelerometer tamper detection
- Real‑time HDD health monitoring
- Redundant recording modes
Compliance
- NDAA‑compliant components
- CE / RoHS
- IP20 indoor enclosure
Specifications
| Channels | 32 |
| PoE Ports | 16 × IEEE 802.3af/at (up to 25 W per port, 200 W total) |
| AI Analytics | People, pets, vehicles, line crossing |
| Recording Resolution | Up to 12 MP |
| HDMI Output | 4K (3840 × 2160) |
| HDD Support | 2 × SATA III, up to 24 TB each, hot‑swappable |
| Video Codec | H.265 / H.264 / JetSparrow |
| Decoding | Up to 36‑view layouts, 4‑channel synchronous playback |
| Network Interfaces | 1 × RJ45 (10/100/1000 Mbps) |
| USB Ports | 1 × USB 3.0, 2 × USB 2.0 |
| Bandwidth | 384 Mbps incoming / 384 Mbps outgoing |
| Operating Temperature | 0 °C to +50 °C |
| Operating Humidity | Up to 75% |
| Protection | IP20 |
| Dimensions | 330 × 330 × 44 mm |
| Weight | 3.3 kg (without HDDs) |
