What makes DomeCam Mini HL different from the standard DomeCam Mini?

DomeCam Mini HL includes hybrid illumination, enabling full‑colour night imaging using both infrared and white light. It is designed for environments where colour detail at night is important.

Is DomeCam Mini HL suitable for outdoor use?

Yes. DomeCam Mini HL is IP65 weather‑resistant and IK08 impact‑rated, making it suitable for both indoor and outdoor installation.

How far can DomeCam Mini HL see at night?

DomeCam Mini HL provides up to 15 metres of infrared and white light illumination for full‑colour night imaging.

Does DomeCam Mini HL support AI motion detection?

Yes. DomeCam Mini HL uses AI to recognise humans, vehicles, and pets, reducing false alarms and improving event filtering.

Can DomeCam Mini HL work without an Ajax NVR?

Yes. DomeCam Mini HL can operate independently using local microSD storage, or it can integrate with Ajax NVRs and third‑party VMS platforms via ONVIF/RTSP.

Is DomeCam Mini HL NDAA compliant?

Yes. DomeCam Mini HL uses NDAA‑compliant components and protocols, making it suitable for government and regulated environments.

How secure is DomeCam Mini HL?

DomeCam Mini HL uses passwordless mTLS authentication, encrypted video streams, secure export with digital signatures, and multi‑tiered account protection to safeguard privacy.

What storage options does DomeCam Mini HL support?

DomeCam Mini HL supports local recording to a microSD card up to 256 GB and can also stream to Ajax NVRs or third‑party VMS platforms.

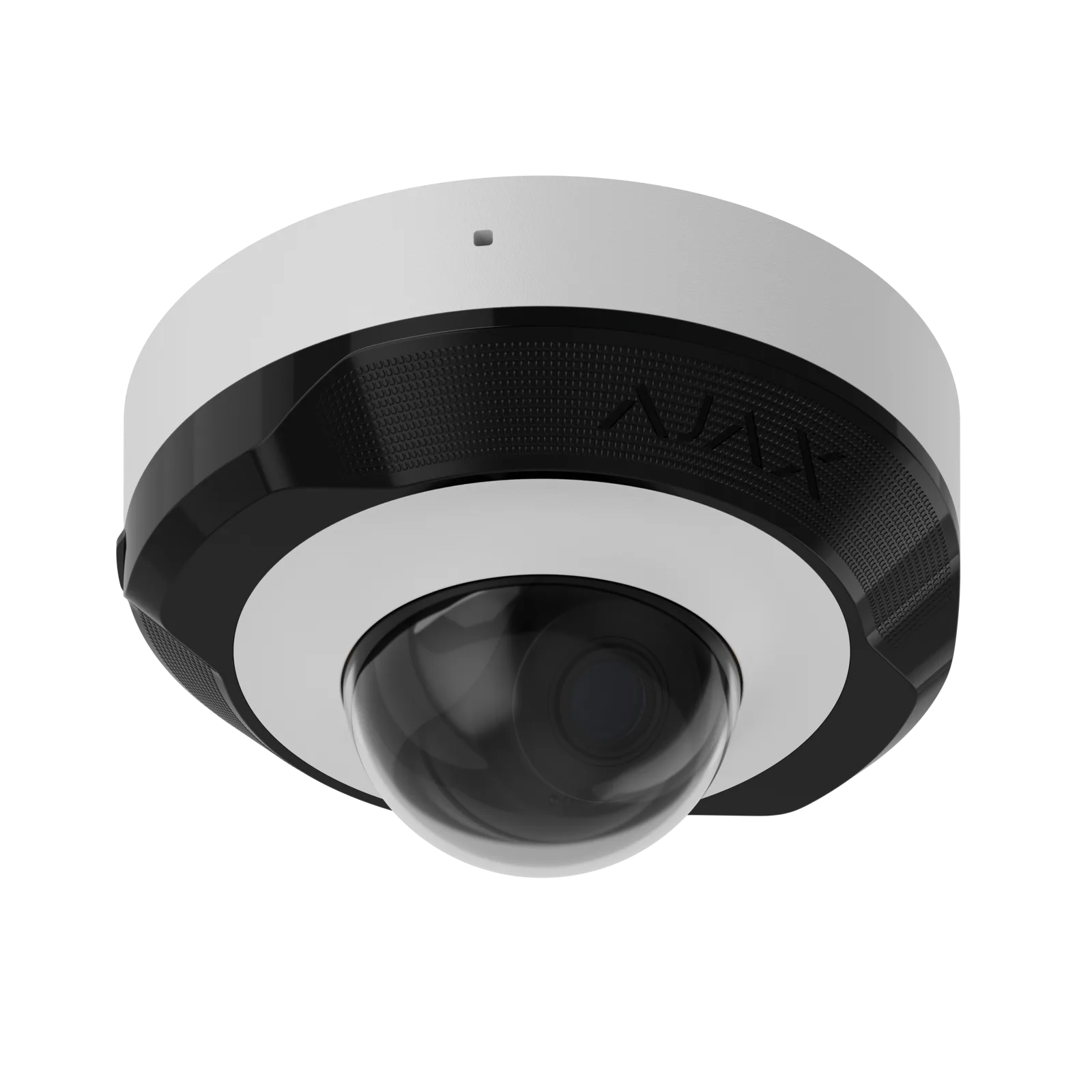

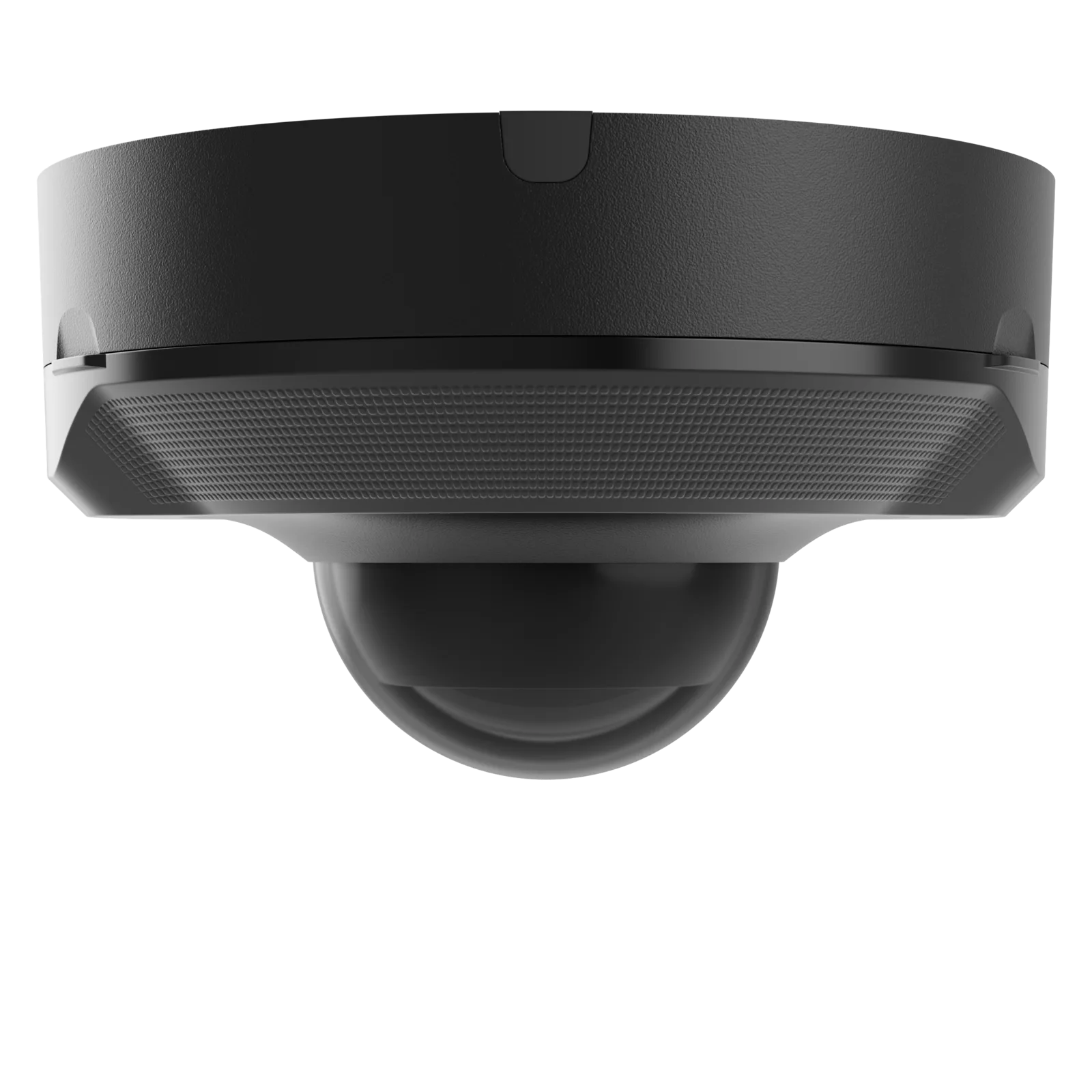

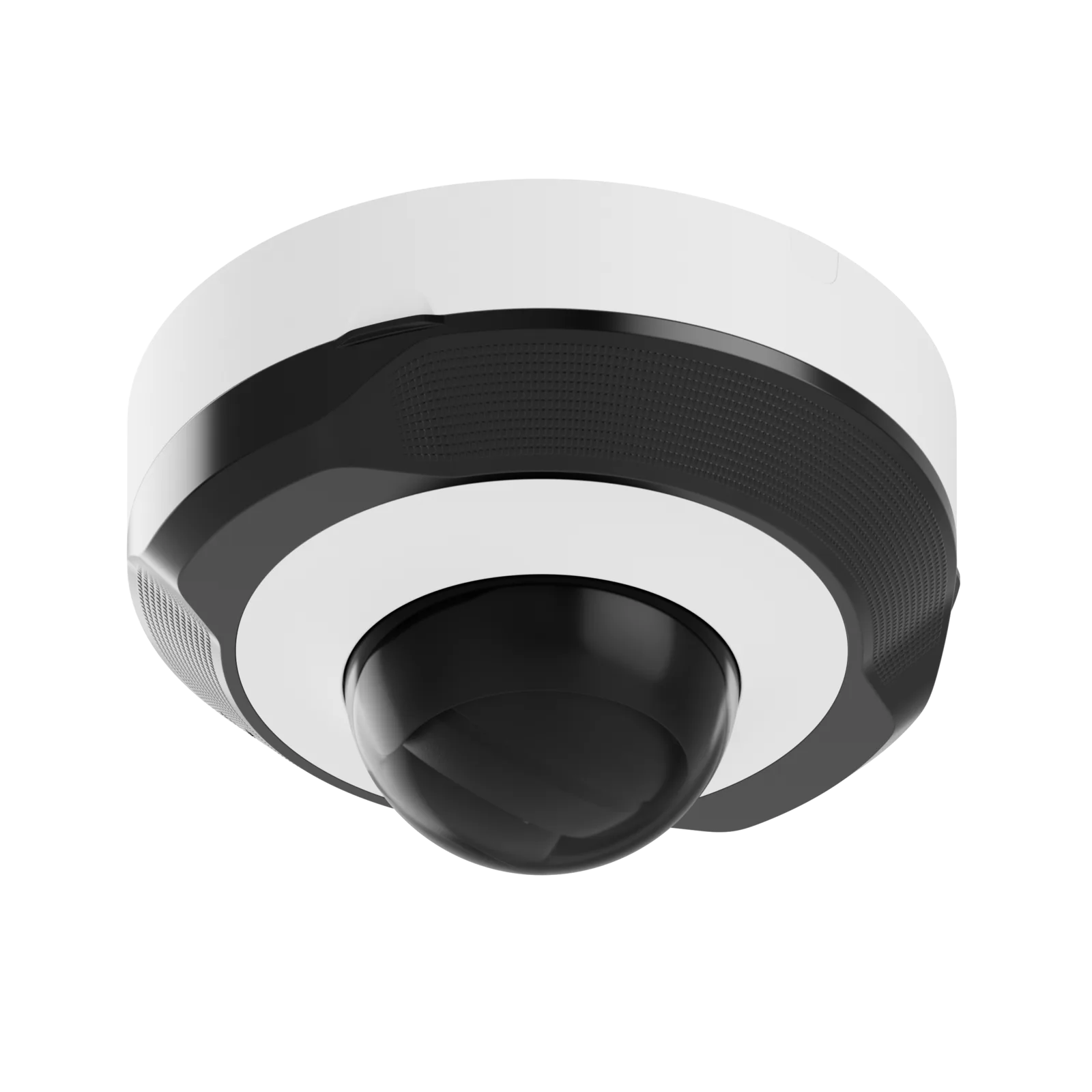

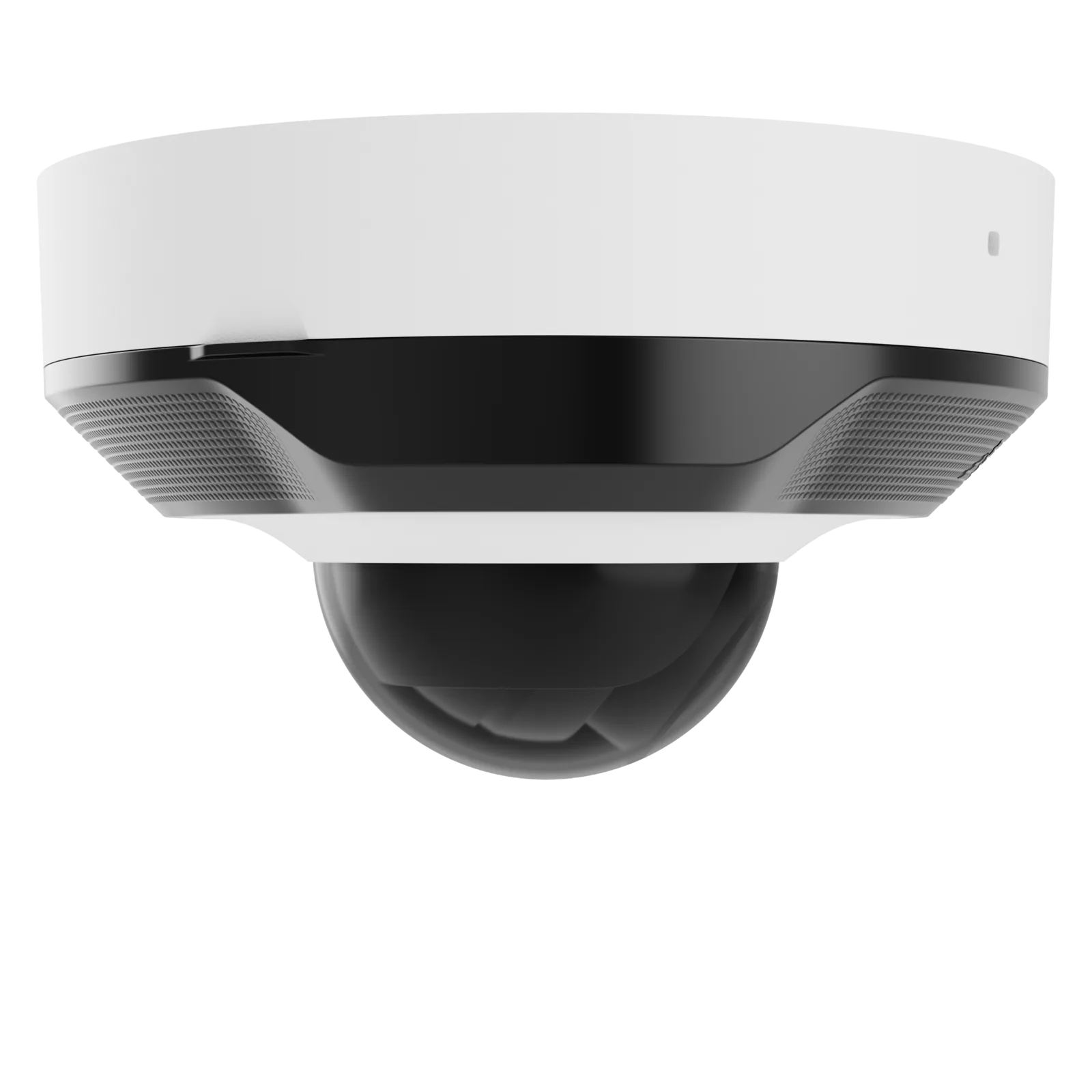

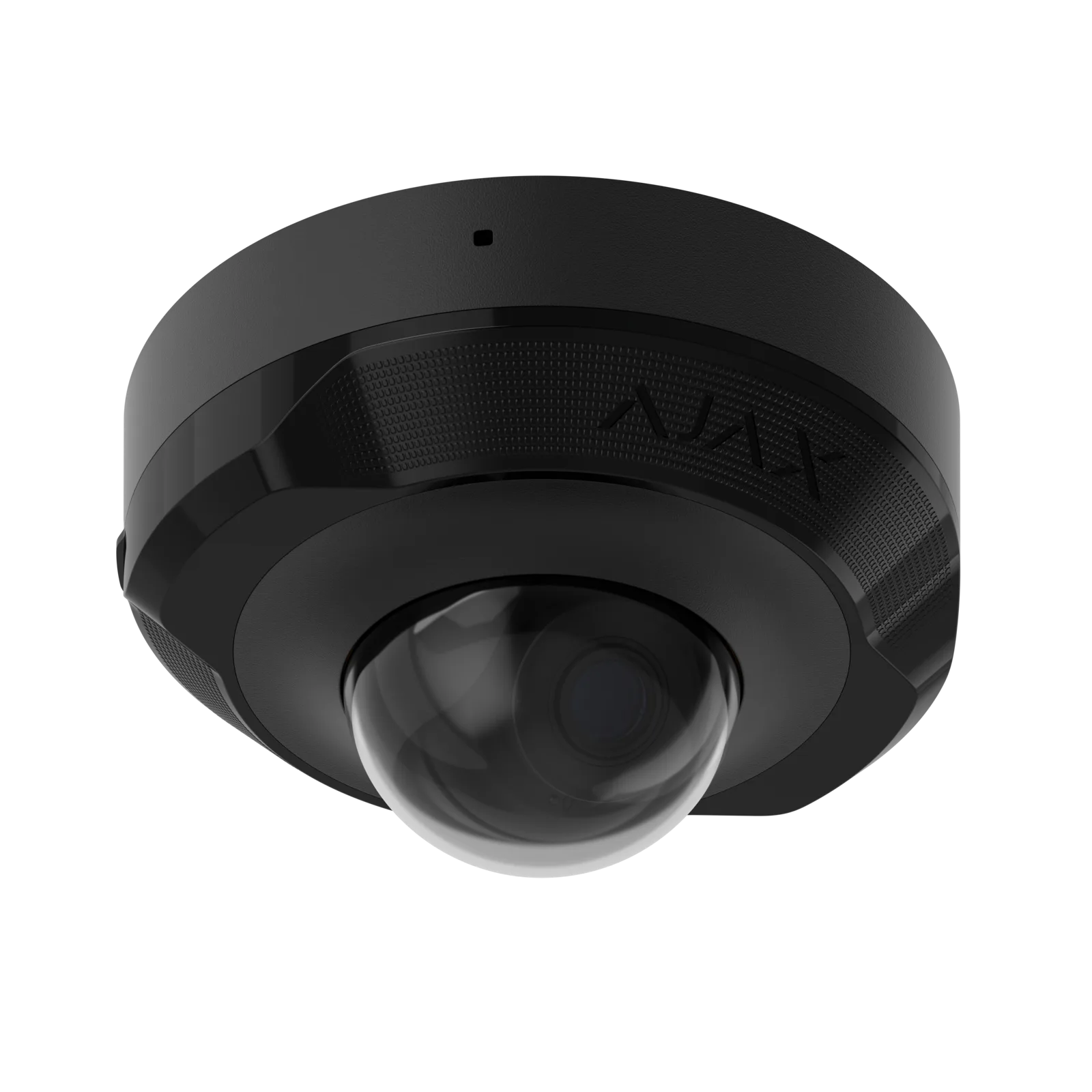

DomeCam Mini HL

Compact hybrid‑illumination AI‑powered dome camera with full‑colour night imaging, True WDR, and NDAA‑compliant components.

Resolution

5 MP 8 MP

Lens

2.8 mm 4 mm

Selected Model

Name: —

SKU: —

Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.

Available Colours

View Datasheet (PDF)

DomeCam Mini HL — HL Series

Ajax DomeCam Mini HL is a compact wired AI‑powered IP camera designed for high‑performance indoor and outdoor surveillance. Available in 5 MP and 8 MP variants with 2.8 mm or 4 mm fixed lenses, DomeCam Mini HL delivers sharp, high‑definition video with True WDR, hybrid illumination, and advanced object recognition. Hybrid illumination automatically switches between infrared and white light, providing full‑colour imaging at night and acting as a visual deterrent when required.

With NDAA‑compliant components, encrypted video streaming, and user‑controlled access, DomeCam Mini HL is built for residential, retail, and commercial environments where compact, discreet, and reliable surveillance is essential.

Key Features

Compact dome design for discreet installation
Hybrid illumination (IR + white light) for full‑colour night imaging
5 MP or 8 MP high‑resolution imaging
2.8 mm (100°–110°) or 4 mm (75°–85°) fixed lens options
True WDR for balanced imaging
IR and white light illumination up to 15 m (49 ft)
Built‑in digital microphone
AI‑powered object recognition (humans, vehicles, pets)
Local microSD storage up to 256 GB
PoE 802.3af/at or 12 V⎓ power
ONVIF/RTSP support for third‑party VMS
IP65 weather resistance and IK08 impact protection
NDAA‑compliant components

How It Works

DomeCam Mini HL uses hybrid illumination to deliver clear, full‑colour video day and night. Infrared provides discreet monitoring, while white light activates automatically based on object recognition or motion detection. This ensures accurate identification and acts as a deterrent when needed.

JetSparrow technology enables instant, secure video streaming and smooth archive navigation. Video can be stored locally on a microSD card or streamed to Ajax NVRs and third‑party VMS platforms via ONVIF/RTSP. All communication is encrypted, and access to video content is fully controlled by the system owner.

Installation & Deployment

Add to an Ajax system via QR code
Configure via Ajax mobile or desktop apps
Supports ONVIF/RTSP for third‑party VMS
Adjustable motion detection zones
Real‑time device health monitoring
Suitable for indoor and outdoor installations

DomeCam Mini HL is ideal for residential, retail, and commercial deployments requiring compact, full‑colour night imaging and AI‑enhanced surveillance.

Reliability & Security

TLS/mTLS encrypted signalling
JetSparrow encrypted video streams
Owner‑controlled access to video content
Secure video export with digital signature verification
Multi‑tiered account protection (passcodes, biometrics, 2FA)
Tamper detection and system health monitoring

Compliance

NDAA‑compliant components
CE / RoHS
IP65 / IK08 enclosure ratings

Specifications

Product Type	Compact wired AI‑powered IP camera with hybrid illumination
Sensor Options	5 MP or 8 MP
Lens Options	2.8 mm or 4 mm fixed
Resolution (5 MP)	Up to 2880 × 1620 px @ 25 fps (3K UHD)
Resolution (8 MP)	Up to 3840 × 2160 px @ 20 fps (4K UHD)
Viewing Angle (2.8 mm)	100°–110°
Viewing Angle (4 mm)	75°–85°
IR Illumination	Up to 15 m (49 ft)
White Light Illumination	Up to 15 m (49 ft)
Video Compression	H.265, H.264
WDR	True WDR (hardware + software)
AI Features	Object recognition (humans, vehicles, pets), motion detection, alarm verification
Audio	Built‑in digital microphone
Local Storage	microSD up to 256 GB
Network	10/100 Mbps RJ‑45, ONVIF/RTSP support
Power Input	PoE 802.3af/at or 12 V DC ±20%
Power Consumption	Up to 8.5 W
Operating Temperature	-30 °C to +60 °C
Operating Humidity	Up to 90% RH
Protection	IP65, IK08
Dimensions	114 × 114 × 67 mm
Weight	430 g
Cybersecurity	mTLS authentication, TLS‑encrypted streams, secure export with digital signature
Compliance	CE, RoHS, NDAA
