DomeCam HLVF
Motorised varifocal AI‑powered dome camera with hybrid illumination, True WDR, alarm/audio I/O, and NDAA‑compliant components.
Coming Soon
Selected Model
Name: —
SKU: —
Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.
Available Colours
DomeCam HLVF — HLVF Series

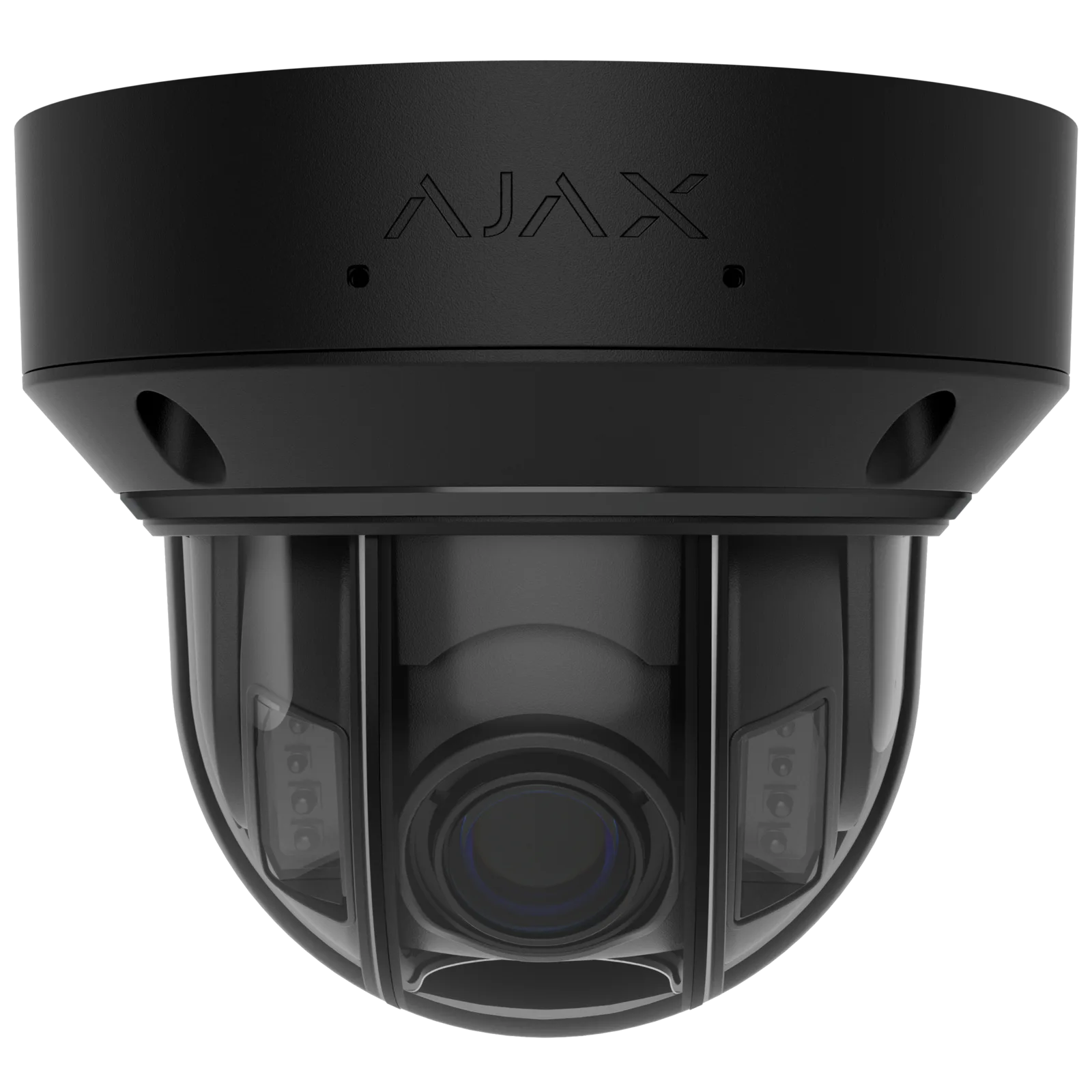

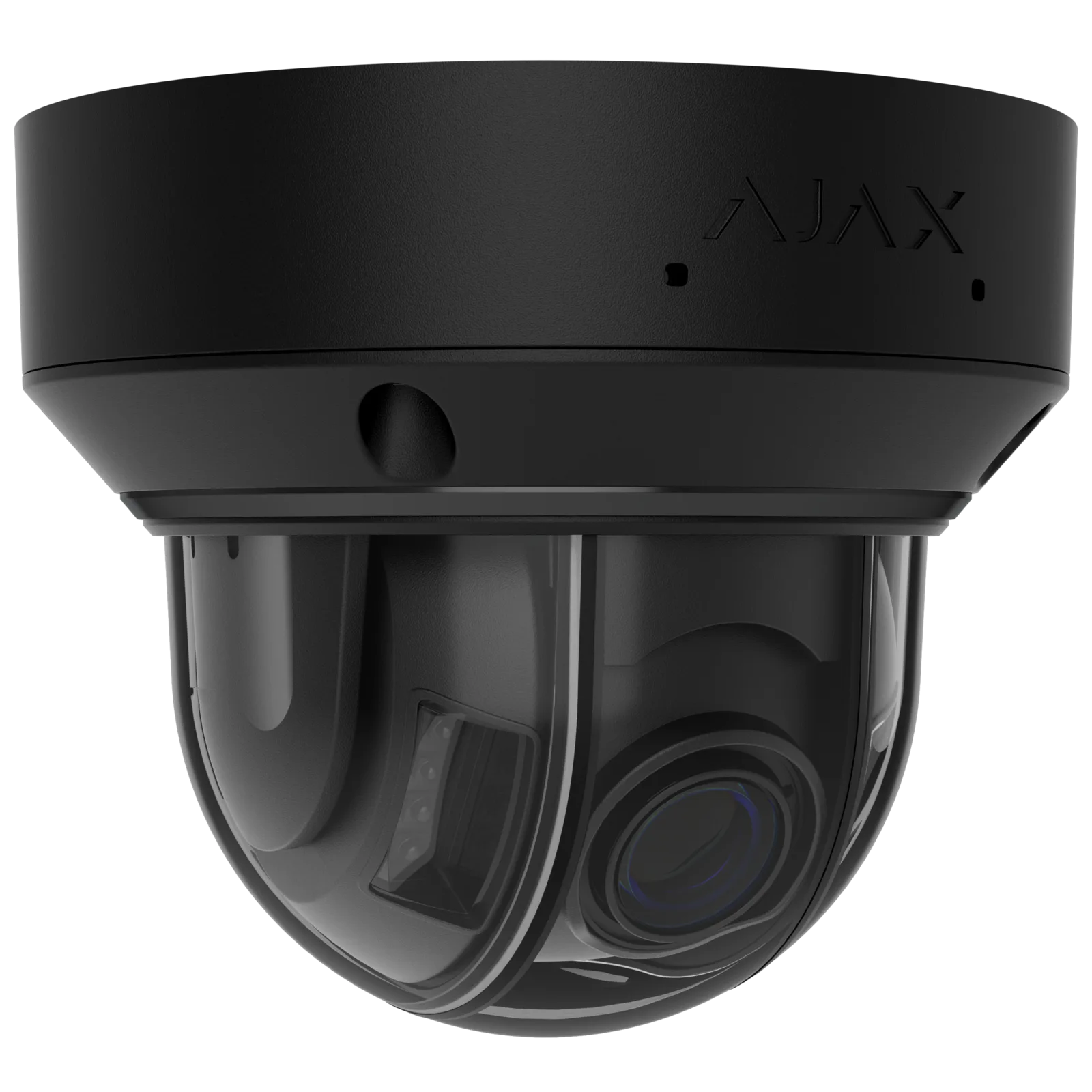

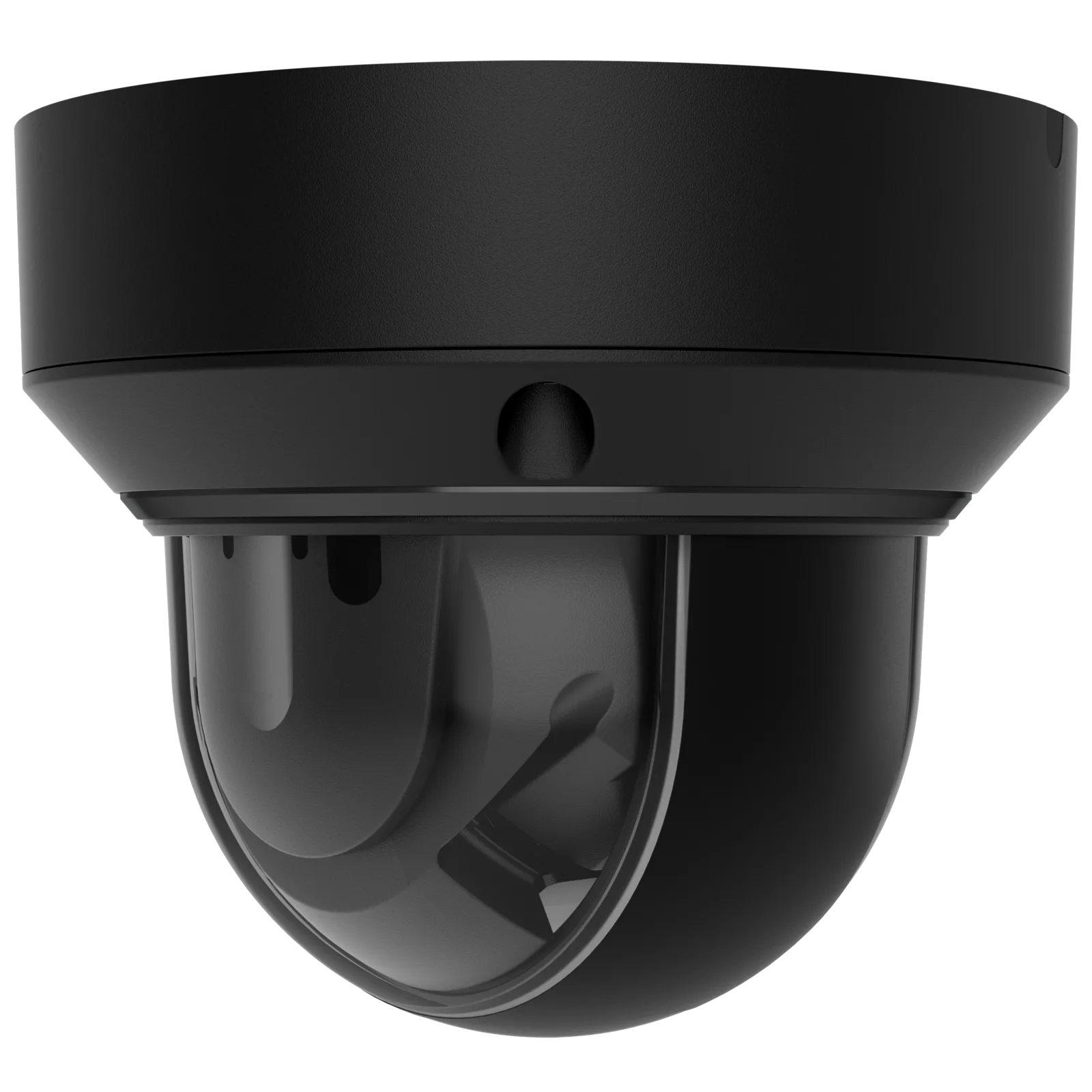

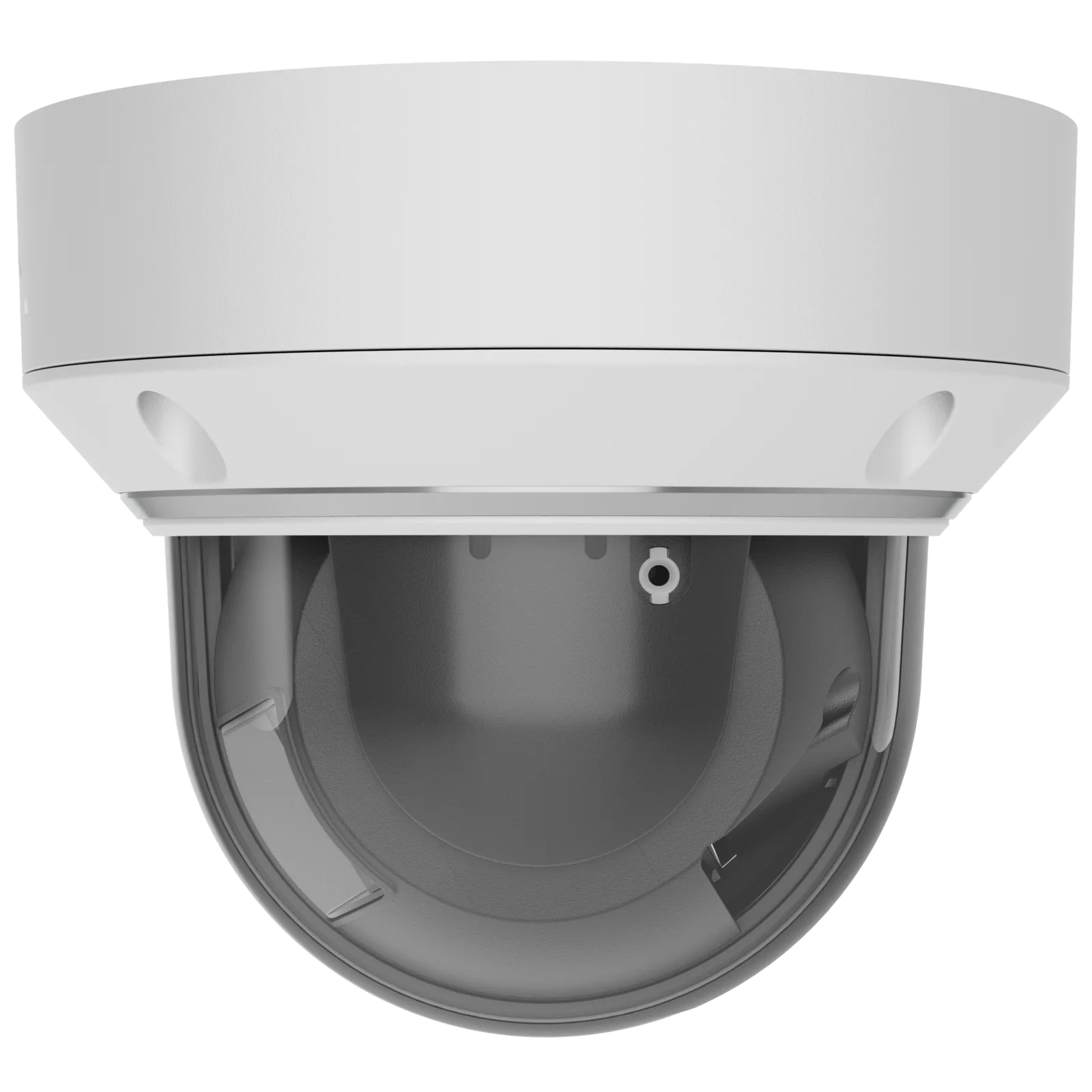

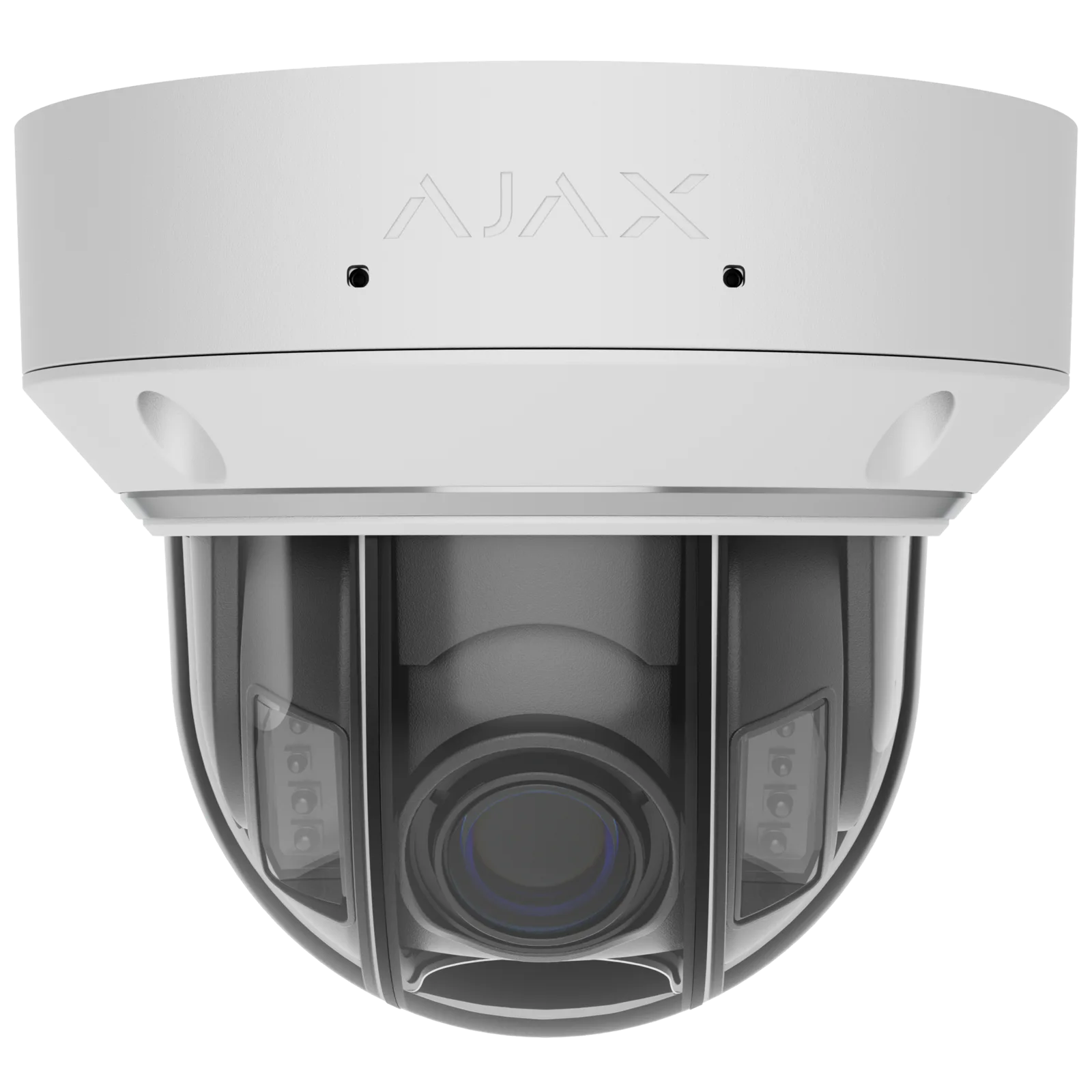

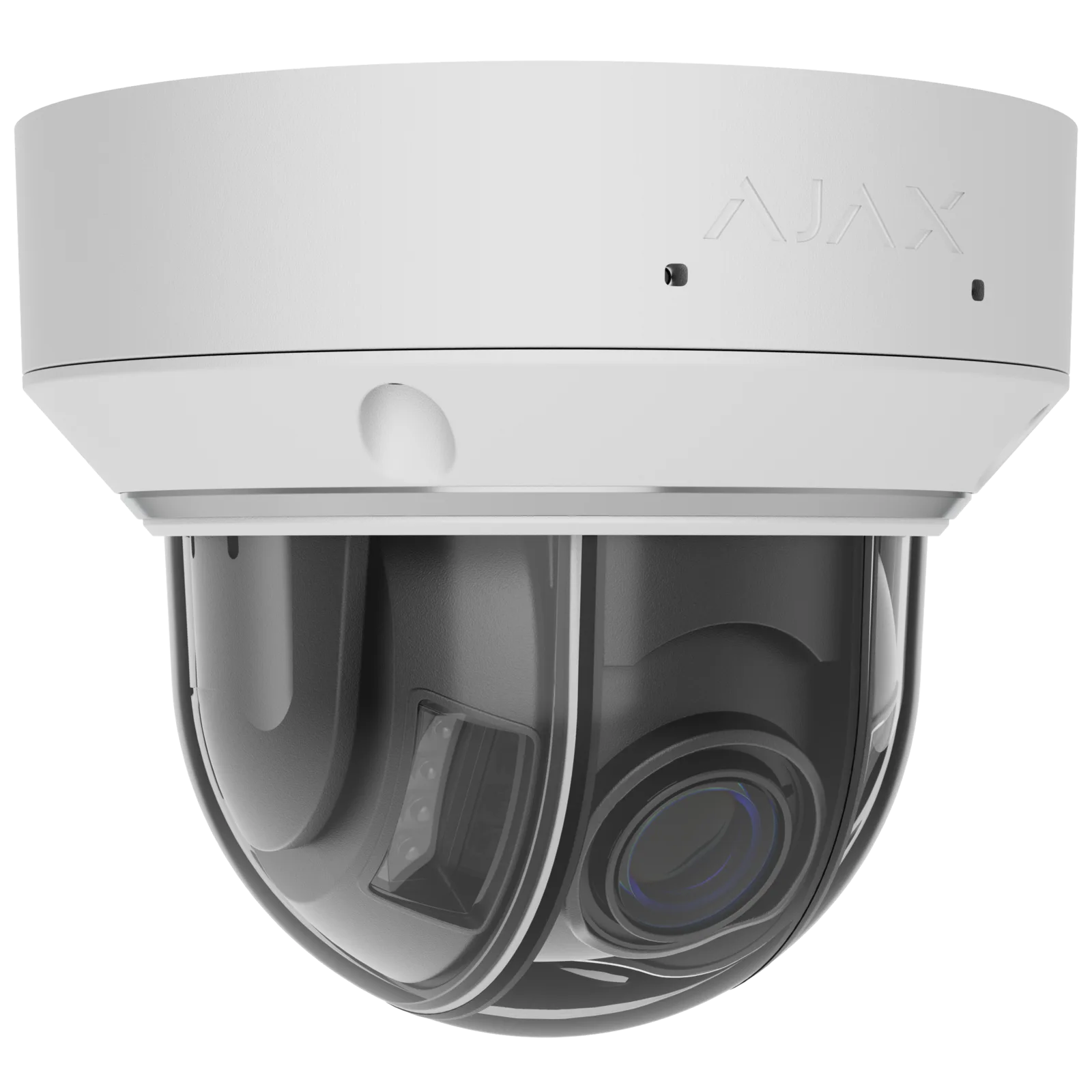

Ajax DomeCam HLVF is a high‑performance wired AI‑powered IP camera designed for demanding indoor and outdoor surveillance. With a 2.8–12 mm motorised varifocal lens and autofocus, DomeCam HLVF adapts instantly to wide‑angle coverage or long‑range detail, making it ideal for commercial, industrial, and perimeter security applications.
Hybrid illumination enables full‑colour night imaging by automatically switching between infrared and white light based on motion or object recognition. Combined with True WDR, advanced AI analytics, and encrypted JetSparrow streaming, DomeCam HLVF delivers exceptional clarity and reliability in all lighting conditions.
With NDAA‑compliant components, alarm and audio I/O, and robust IP67/IK10 protection, DomeCam HLVF is engineered for professional‑grade deployments where adaptability, durability, and security are essential.
Key Features
- Motorised varifocal 2.8–12 mm lens with autofocus
- Hybrid illumination (IR + white light) for full‑colour night imaging
- 5 MP or 8 MP resolution options
- True WDR for balanced imaging
- IR range up to 40 m, white light up to 25 m
- Built‑in microphone with noise suppression and echo cancellation
- Alarm and audio input/output for system integration
- AI‑powered object recognition (people, vehicles, pets)
- JetSparrow encrypted peer‑to‑peer streaming
- ONVIF Profile S (full), T/M (partial)
- microSD support up to 256 GB
- PoE 802.3af/at or 12 V⎓ power
- IP67 and IK10 protection
- NDAA‑compliant components
How It Works
DomeCam HLVF uses a motorised varifocal lens to dynamically adjust the field of view, enabling both wide‑area monitoring and long‑range detail capture. Autofocus ensures sharp imaging after every adjustment.
Hybrid illumination provides optimal visibility in low‑light conditions. Infrared enables discreet monitoring, while white light activates when needed to deliver full‑colour detail and act as a deterrent.
JetSparrow encrypted streaming ensures low‑latency video delivery, while TLS/mTLS encrypted signalling protects communication with Ajax Cloud. Alarm and audio I/O expand integration with third‑party systems and automation devices.
Installation & Deployment
- Add to an Ajax system via QR code
- Configure via Ajax mobile or desktop apps
- Supports ONVIF/RTSP for third‑party VMS
- Alarm and audio I/O for system integration
- Adjustable motion detection zones
- Real‑time device health monitoring

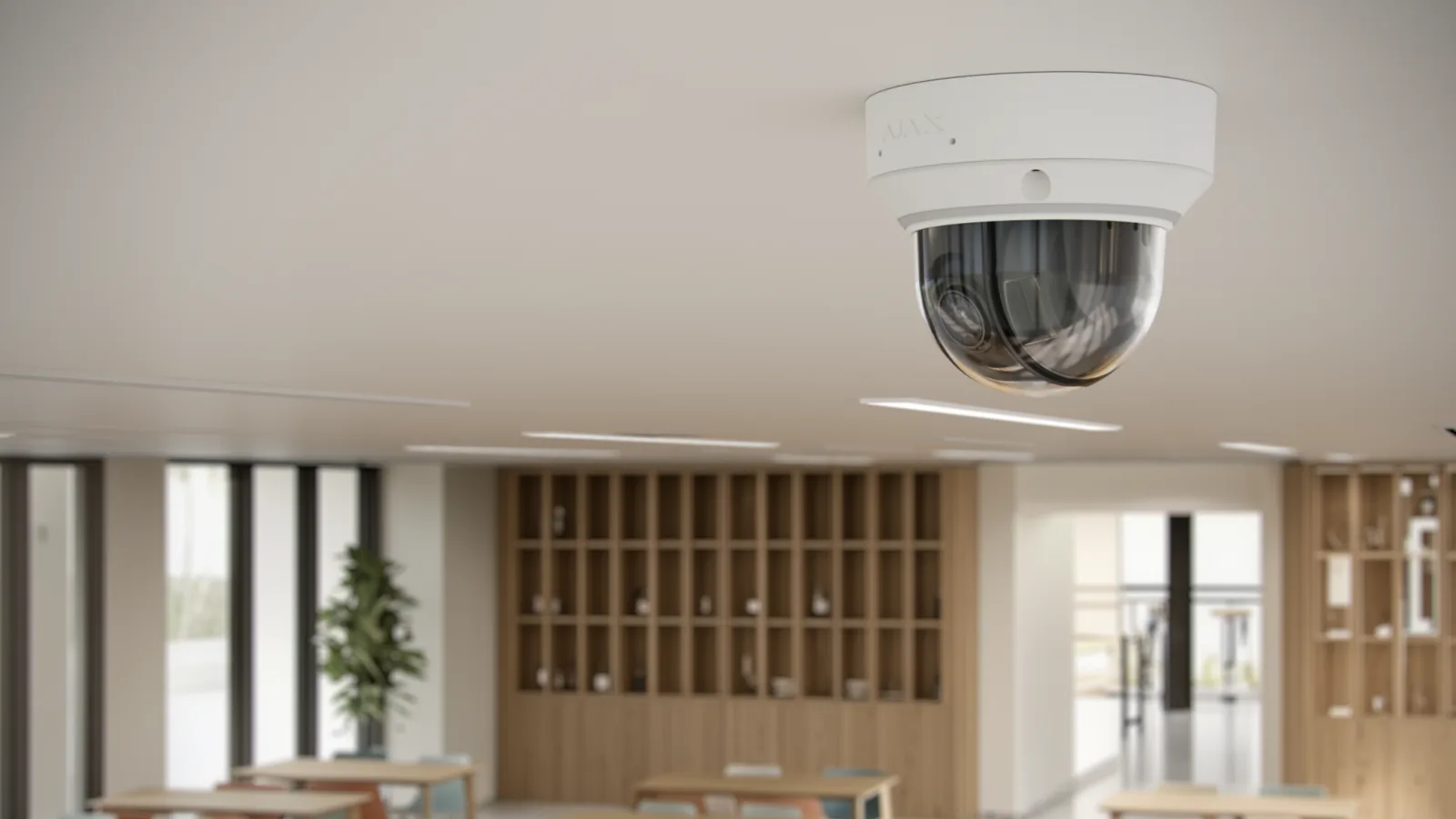

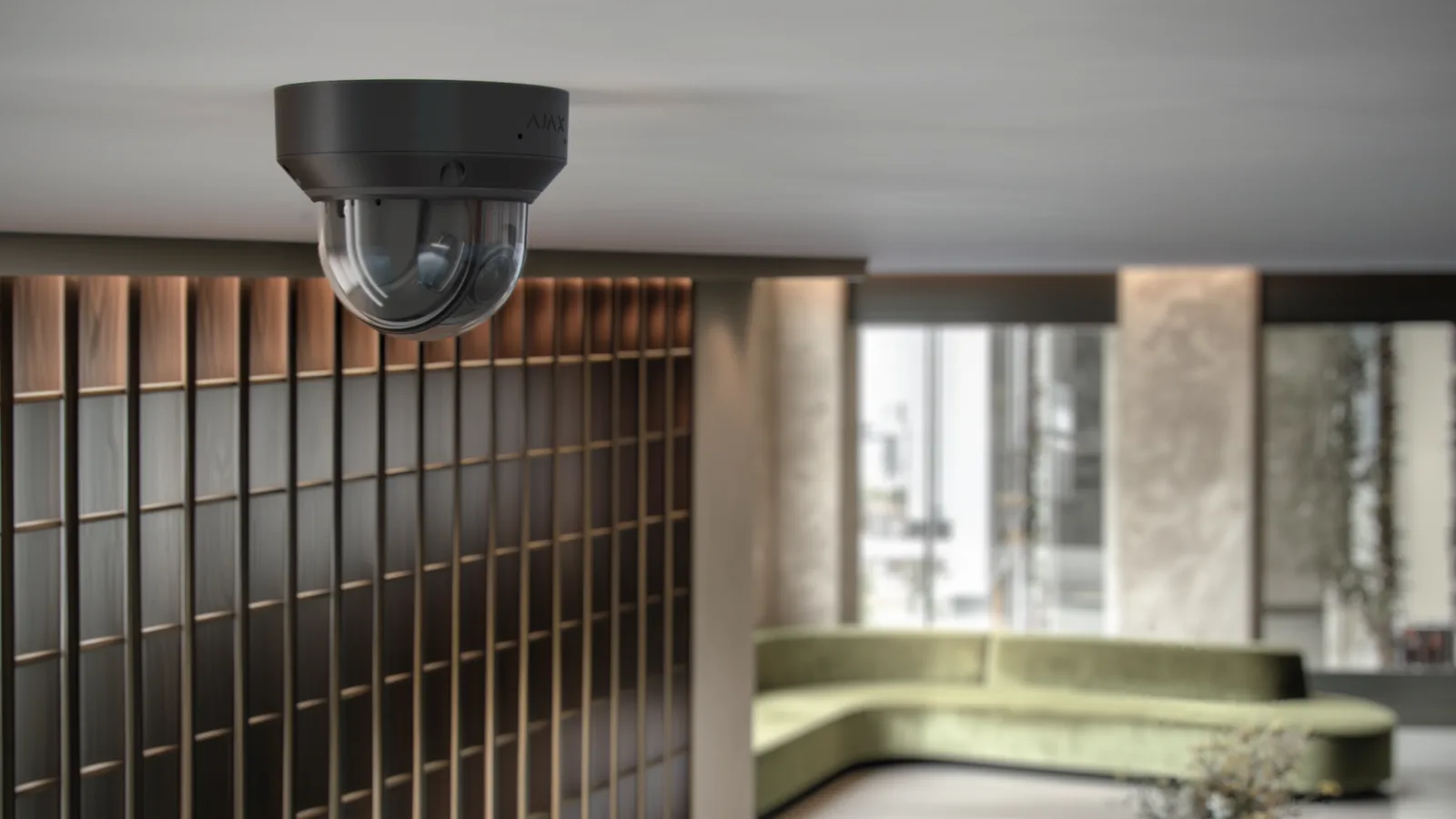

- Suitable for indoor and outdoor installations
DomeCam HLVF is ideal for commercial, industrial, and perimeter deployments requiring adaptable optics and full‑colour night imaging.
Reliability & Security
- TLS/mTLS encrypted signalling
- JetSparrow encrypted video streams
- Owner‑controlled access to video content
- Secure video export with digital signature verification
- Multi‑tiered account protection (passcodes, biometrics, 2FA)
- Tamper detection and system health monitoring
Compliance
- NDAA‑compliant components
- CE / RoHS
- IP67 / IK10 enclosure ratings
Specifications
| Product Type | Wired AI‑powered IP camera with motorised varifocal lens |
| Sensor Options | 5 MP or 8 MP |
| Lens | Motorised varifocal 2.8–12 mm with autofocus |
| Resolution (5 MP) | Up to 2880 × 1620 px @ 25 fps (3K UHD) |
| Resolution (8 MP) | Up to 3840 × 2160 px @ 25 fps (4K UHD) |
| Field of View | Horizontal 31°–111°, Vertical 17°–57°, Diagonal 35°–135° |
| IR Illumination | Up to 40 m (130 ft) |
| White Light Illumination | Up to 25 m (80 ft) |
| Video Compression | H.265, H.264 |
| WDR | True WDR (hardware + software) |
| AI Features | Object recognition (people, vehicles, pets), motion detection, alarm verification |
| Audio | Built‑in microphone with noise suppression and echo cancellation |
| Alarm I/O | Alarm input and output for third‑party devices |
| Local Storage | microSD up to 256 GB |
| Network | 10/100 Mbps RJ‑45, ONVIF/RTSP support |
| Power Input | PoE 802.3af/at or 12 V DC |
| Power Consumption | Up to 12 W |
| Operating Temperature | -40 °C to +60 °C |
| Operating Humidity | Up to 90% RH |
| Protection | IP67, IK10 |
| Dimensions | 136 × 136 × 115.3 mm |
| Weight | 430 g |
| Cybersecurity | mTLS authentication, TLS‑encrypted streams, secure export with digital signature |
| Compliance | CE, RoHS, NDAA |
