DomeCam Mini
Compact wired AI‑powered dome camera with IR illumination, True WDR, microphone, and NDAA‑compliant components.
Selected Model
Name: —
SKU: —
Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.
Available Colours
DomeCam Mini — Original Series

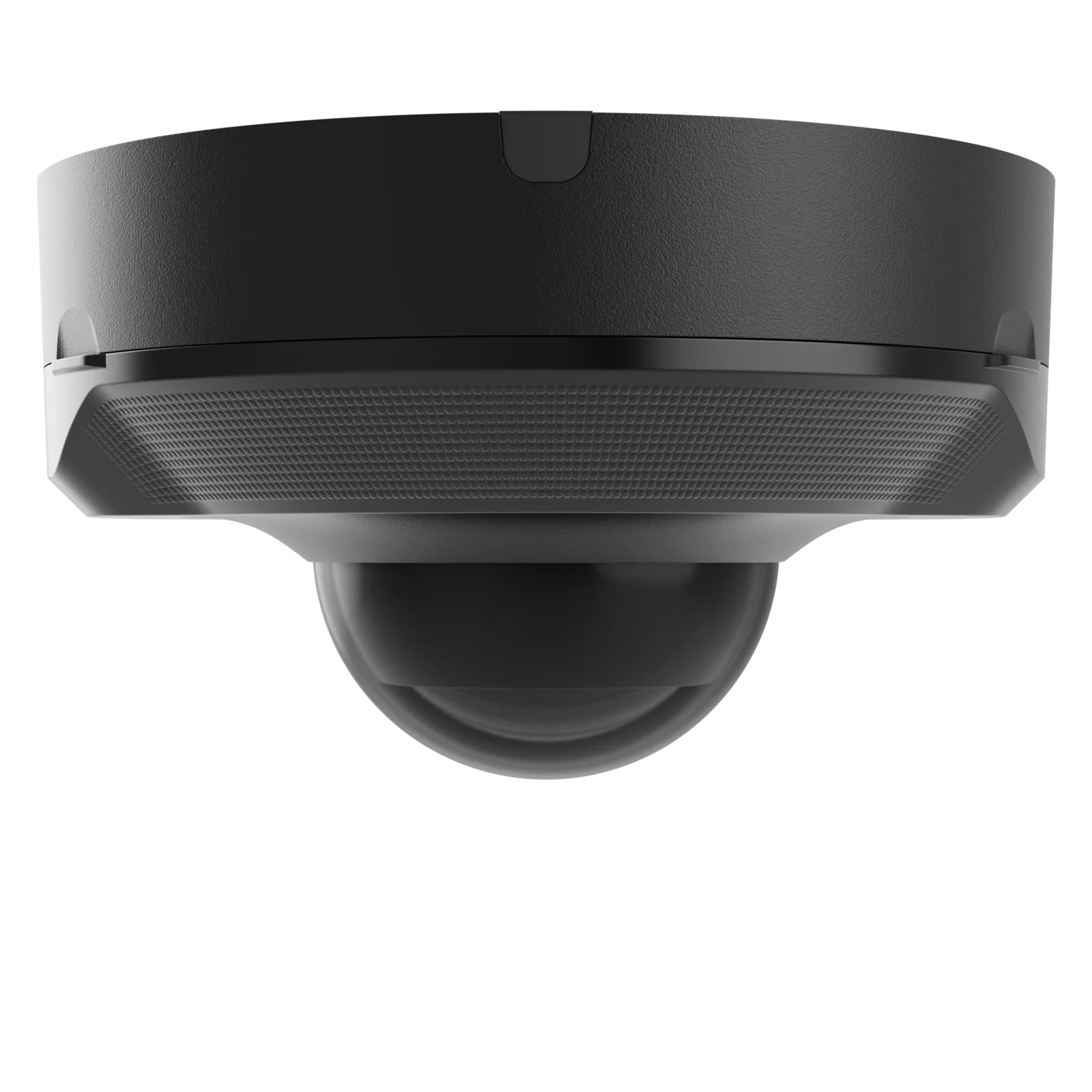

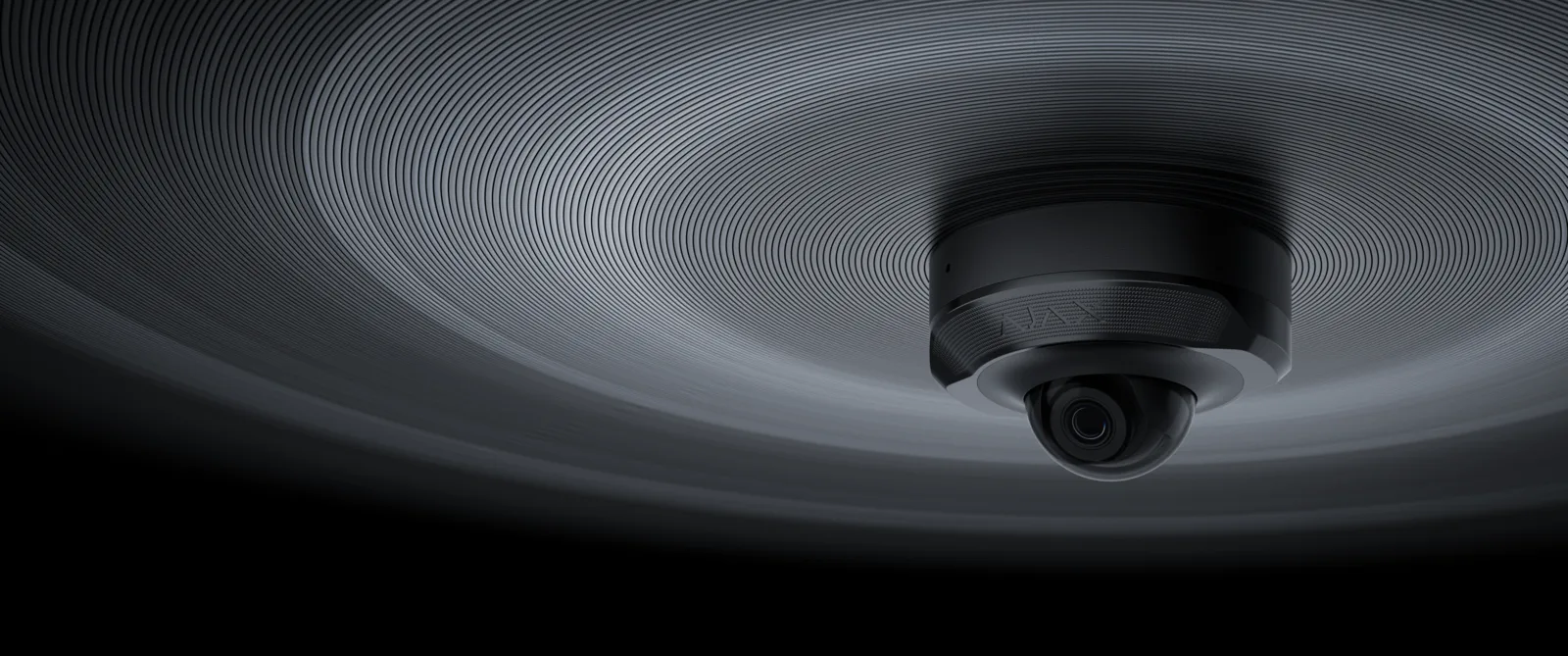

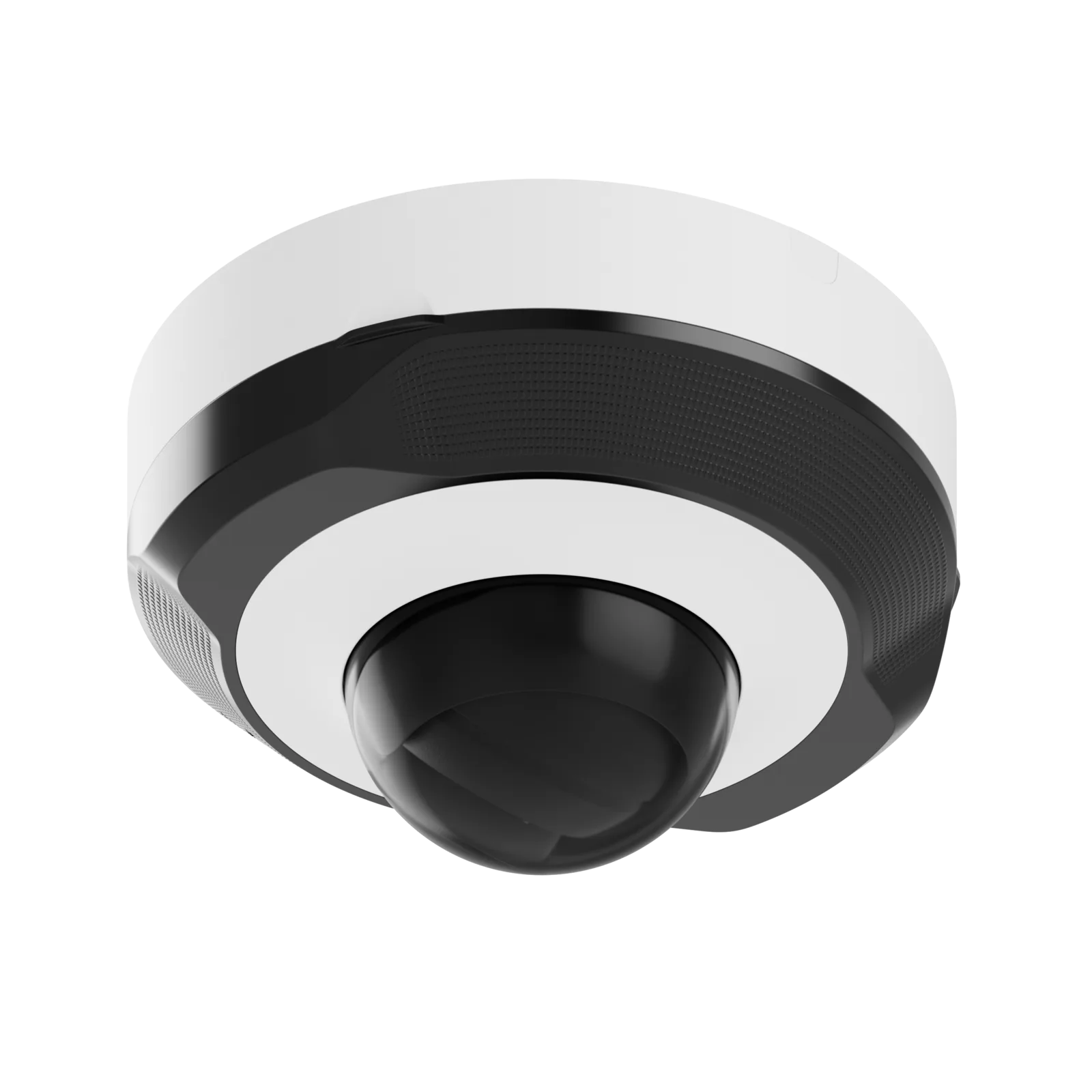

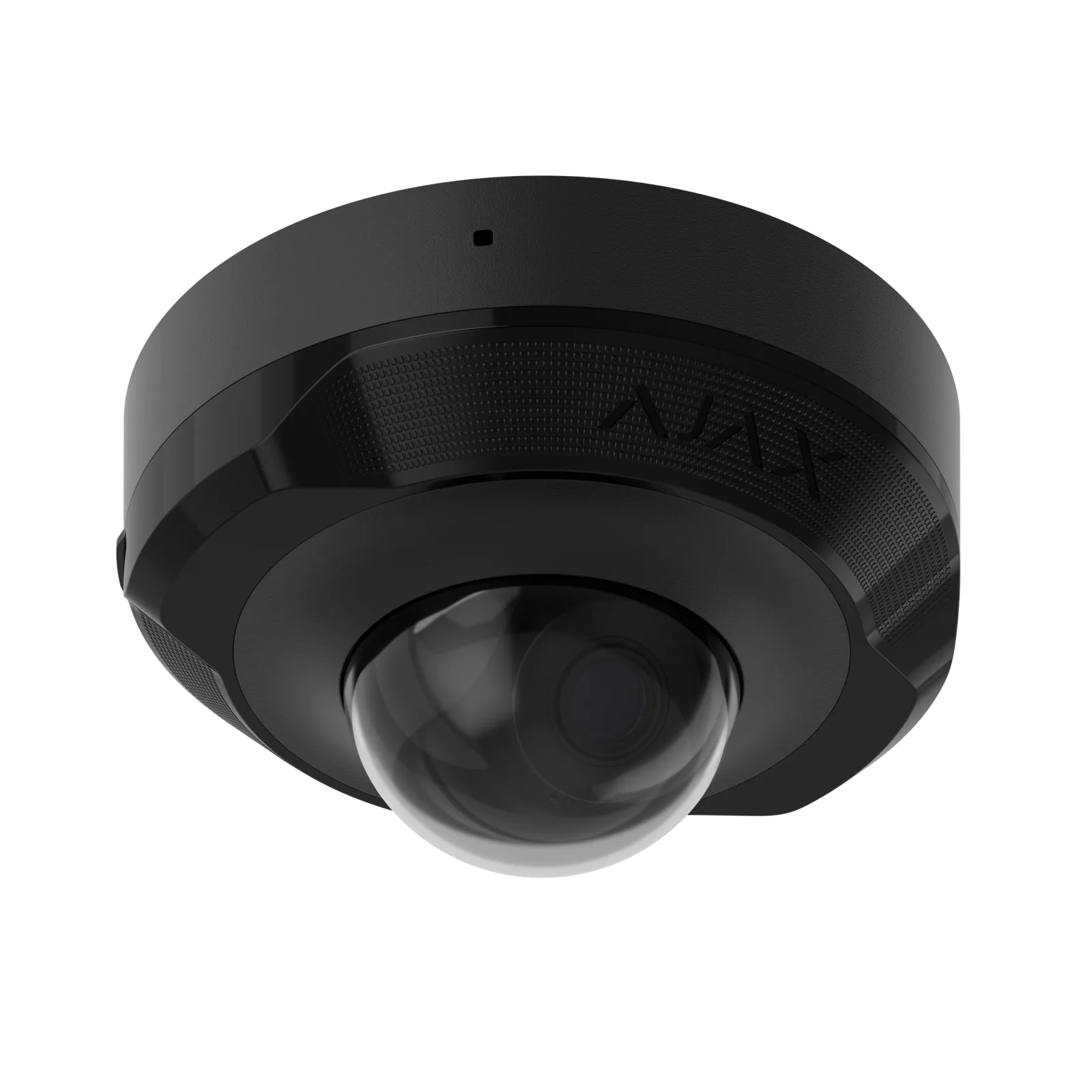

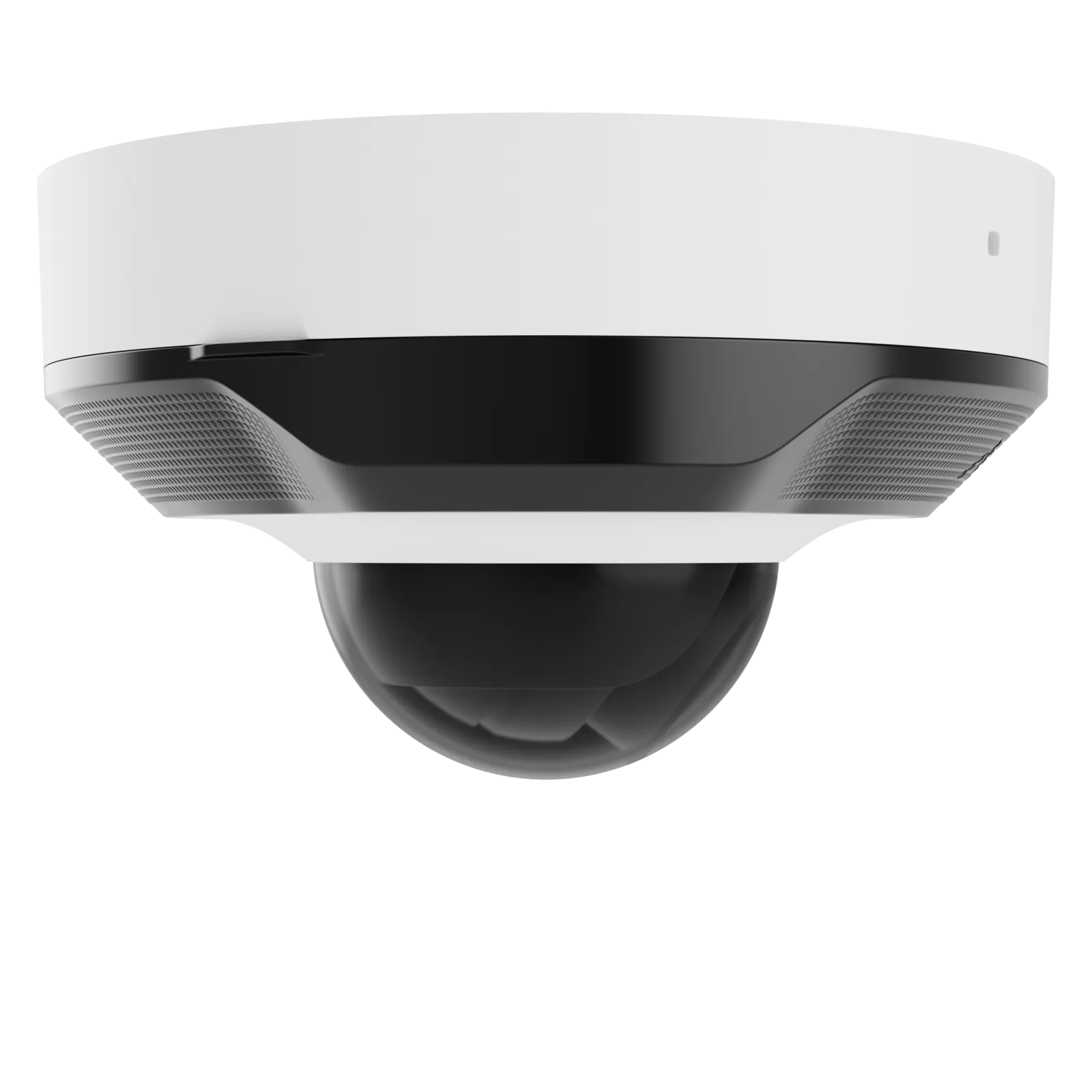

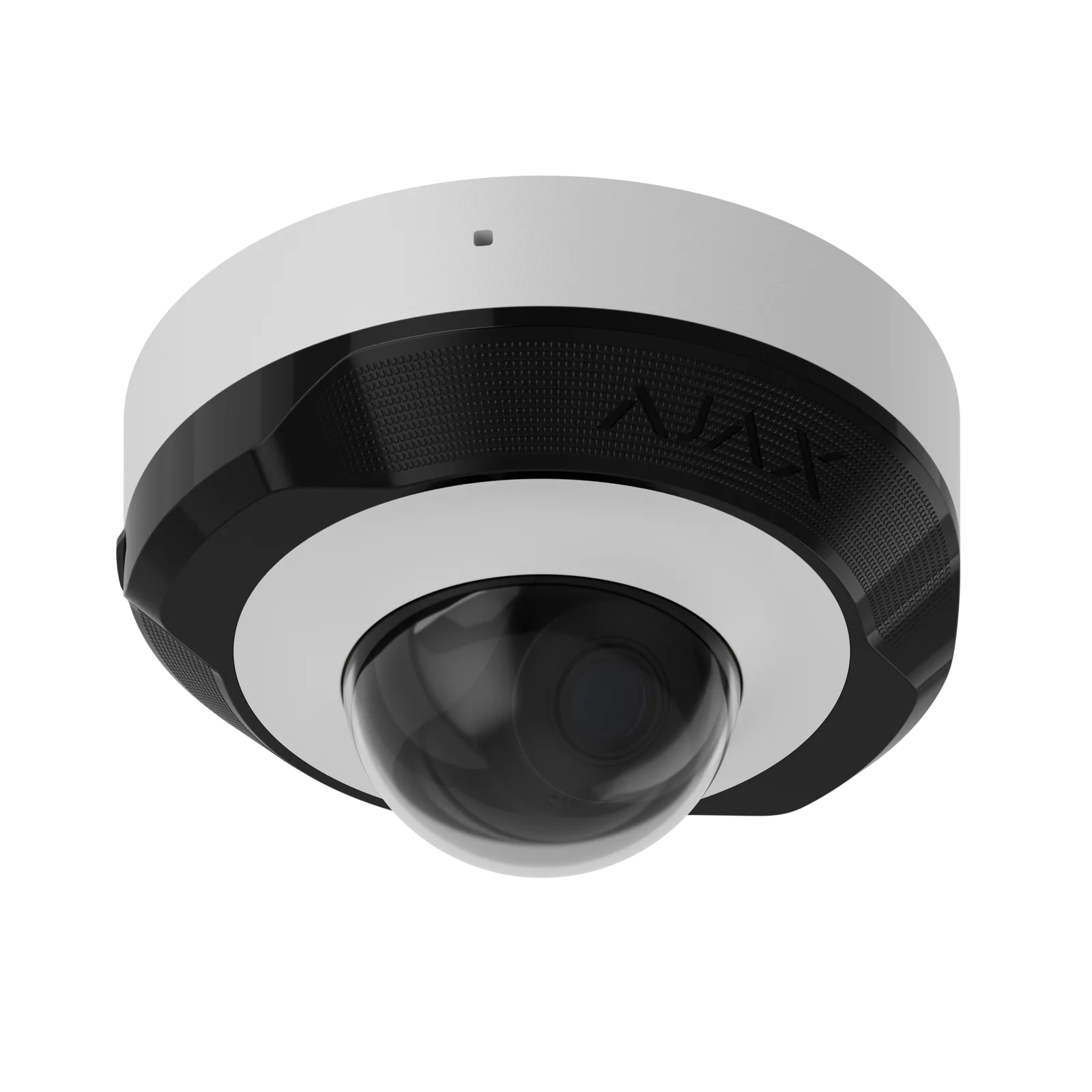

Ajax DomeCam Mini is a compact wired AI‑powered IP camera designed for discreet indoor and outdoor surveillance. Available in 5 MP and 8 MP variants with 2.8 mm or 4 mm fixed lenses, DomeCam Mini delivers sharp, high‑definition video with True WDR, IR illumination, and advanced object recognition. Its low‑profile dome design makes it ideal for entrances, hallways, retail spaces, and residential installations where a smaller footprint is preferred.
With NDAA‑compliant components, encrypted video streaming, and user‑controlled access, DomeCam Mini provides reliable, privacy‑focused monitoring in a compact form factor.
Key Features
- Compact dome design for discreet installation
- 5 MP or 8 MP high‑resolution imaging
- 2.8 mm (100°–110°) or 4 mm (75°–85°) fixed lens options
- True WDR for balanced imaging
- IR illumination up to 15 m (49 ft)
- Built‑in digital microphone
- AI‑powered object recognition (people, pets, vehicles)
- Local microSD storage up to 256 GB
- PoE 802.3af/at or 12 V⎓ power
- ONVIF/RTSP support for third‑party VMS
- IP65 weather resistance and IK08 impact protection
- NDAA‑compliant components
How It Works
DomeCam Mini uses advanced AI analytics to identify people, pets, and vehicles, reducing false alarms and ensuring only relevant events are recorded. JetSparrow technology enables instant, secure video streaming and smooth archive navigation, while True WDR ensures clear imaging in mixed lighting conditions.
Video can be stored locally on a microSD card or streamed to Ajax NVRs and third‑party VMS platforms via ONVIF/RTSP. All communication is encrypted, and access to video content is fully controlled by the system owner.
Installation & Deployment
- Add to an Ajax system via QR code
- Configure via Ajax mobile or desktop apps
- Supports ONVIF/RTSP for third‑party VMS
- Adjustable motion detection zones
- Real‑time device health monitoring
- Suitable for indoor and outdoor installations
DomeCam Mini is ideal for residential, retail, and commercial environments requiring compact, AI‑enhanced video surveillance.
Reliability & Security
- TLS/mTLS encrypted signalling
- JetSparrow encrypted video streams
- Owner‑controlled access to video content
- Secure video export with digital signature verification
- Multi‑tiered account protection (passcodes, biometrics, 2FA)
- Tamper detection and system health monitoring
Compliance
- NDAA‑compliant components
- CE / RoHS
- IP65 / IK08 enclosure ratings
Specifications
| Product Type | Compact wired AI‑powered IP camera |
| Sensor Options | 5 MP or 8 MP |
| Lens Options | 2.8 mm or 4 mm fixed |
| Resolution (5 MP) | Up to 2880 × 1620 px @ 25 fps (3K UHD) |
| Resolution (8 MP) | Up to 3840 × 2160 px @ 20 fps (4K UHD) |
| Viewing Angle (2.8 mm) | 100°–110° |
| Viewing Angle (4 mm) | 75°–85° |
| IR Illumination | Up to 15 m (49 ft) |
| Video Compression | H.265, H.264 |
| WDR | True WDR (hardware + software) |
| AI Features | Object recognition (people, pets, vehicles), motion detection, alarm verification |
| Audio | Built‑in digital microphone |
| Local Storage | microSD up to 256 GB |
| Network | 10/100 Mbps RJ‑45, ONVIF/RTSP support |
| Power Input | PoE 802.3af/at or 12 V DC ±20% |
| Power Consumption | Up to 8.5 W |
| Operating Temperature | -30 °C to +60 °C |
| Operating Humidity | Up to 90% RH |
| Protection | IP65, IK08 |
| Dimensions | 114 × 114 × 67 mm |
| Weight | 430 g |
| Cybersecurity | mTLS authentication, TLS‑encrypted streams, secure export with digital signature |
| Compliance | CE, RoHS, NDAA |
