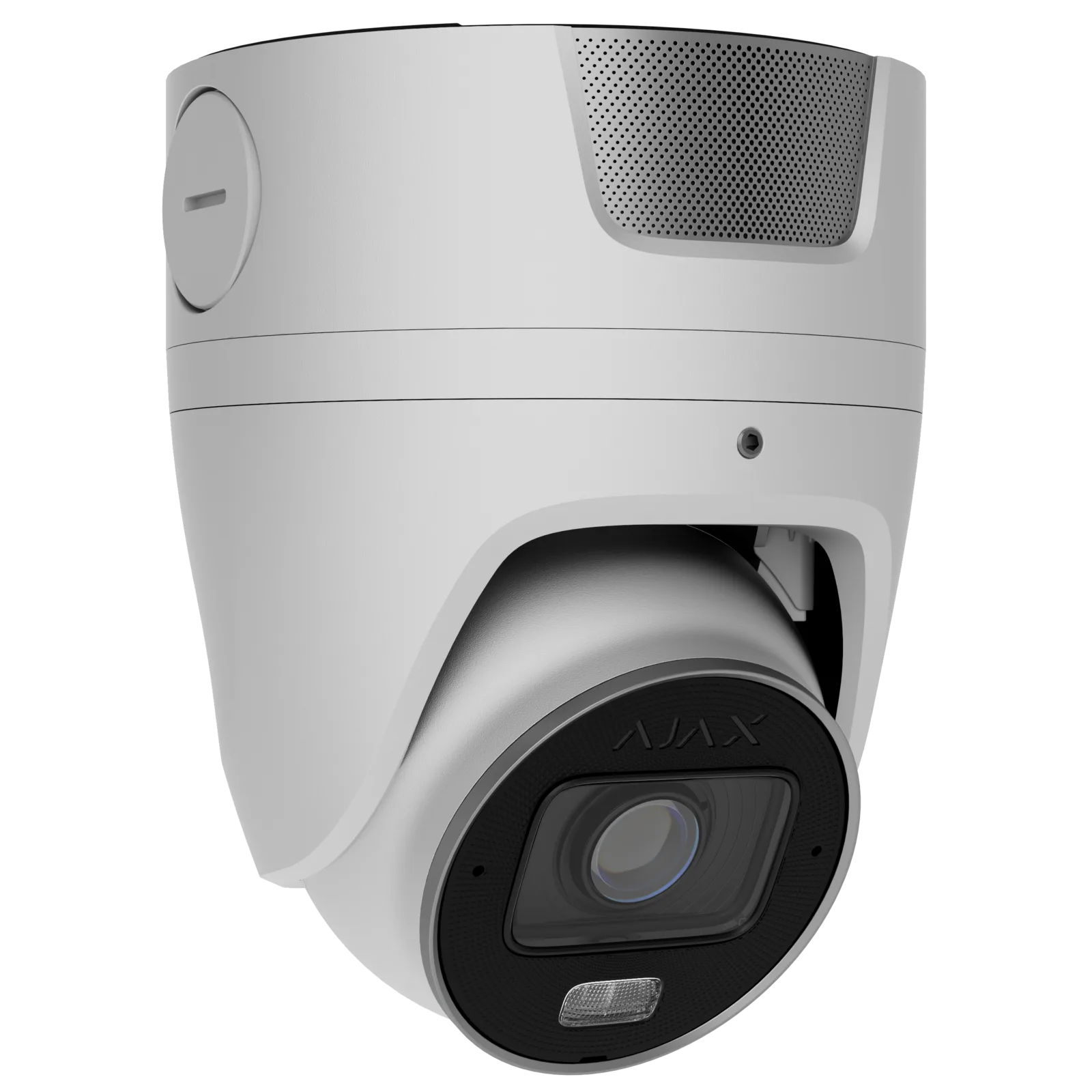

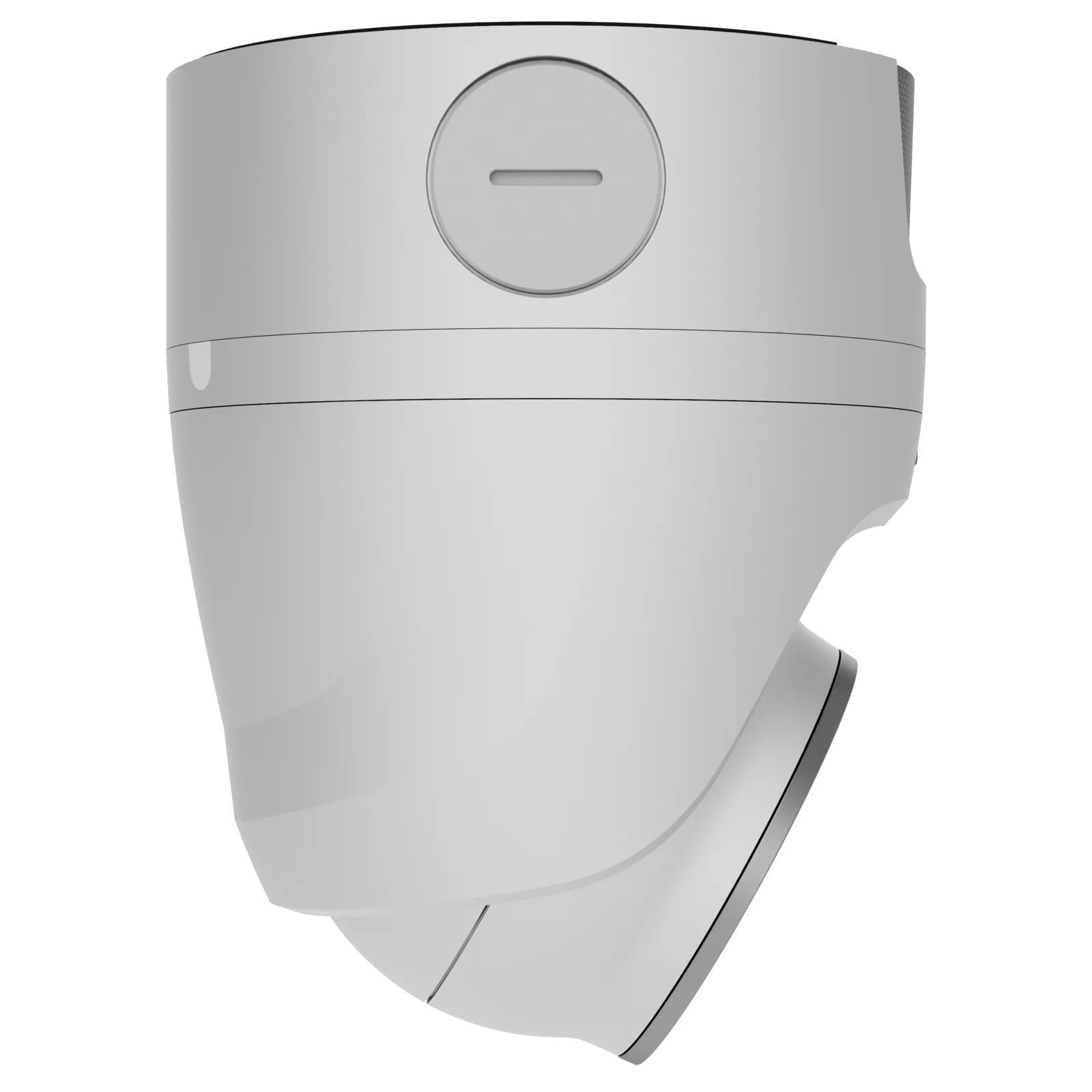

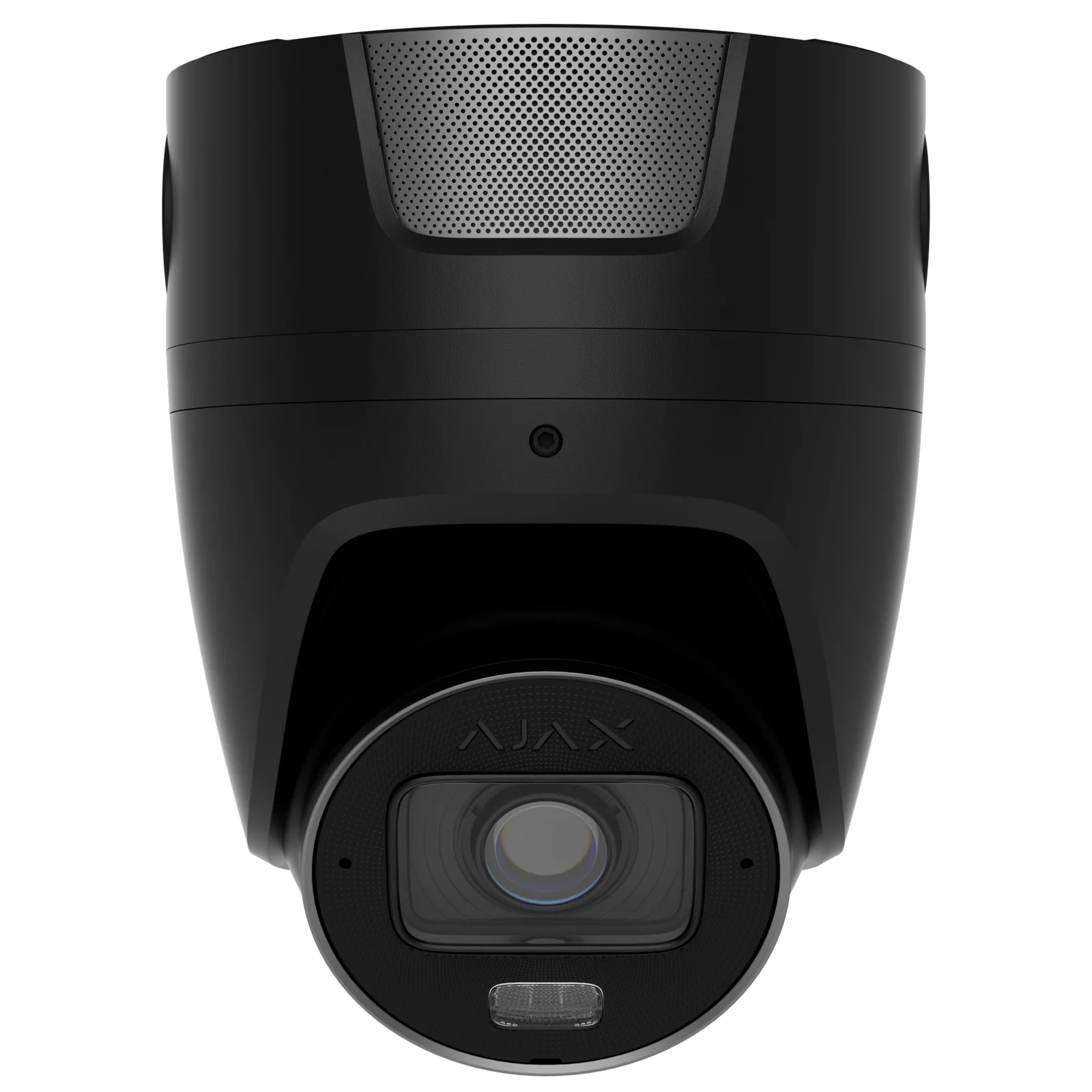

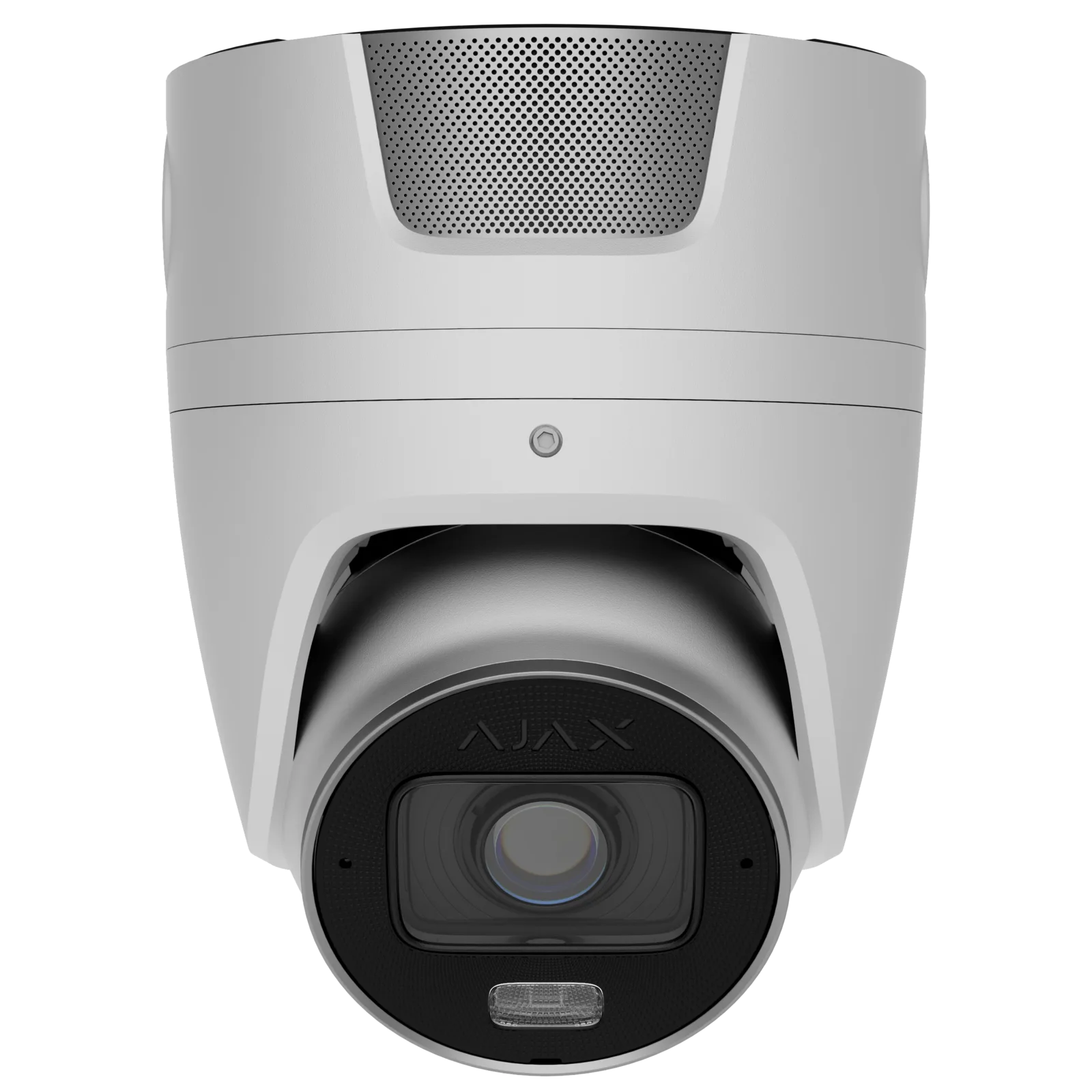

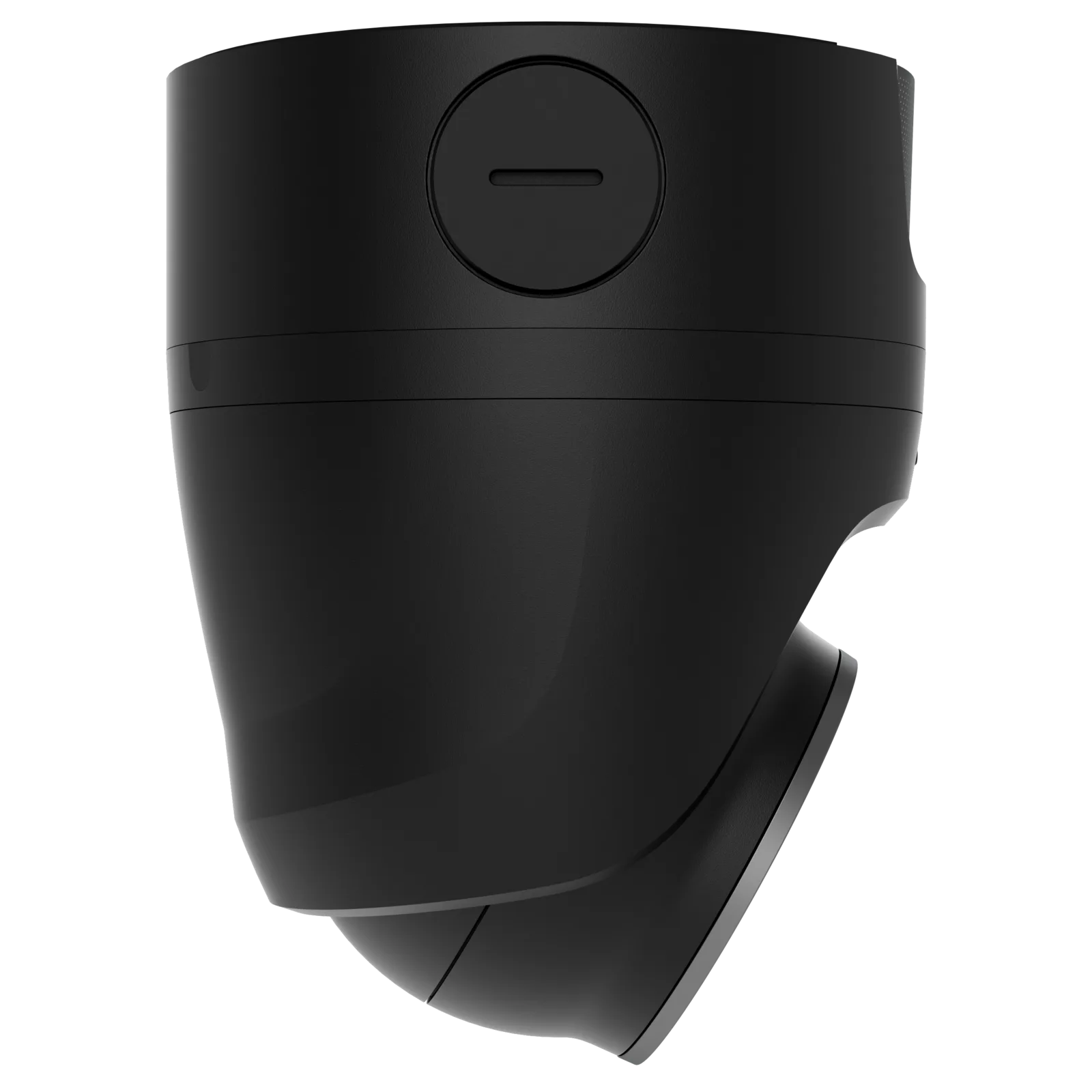

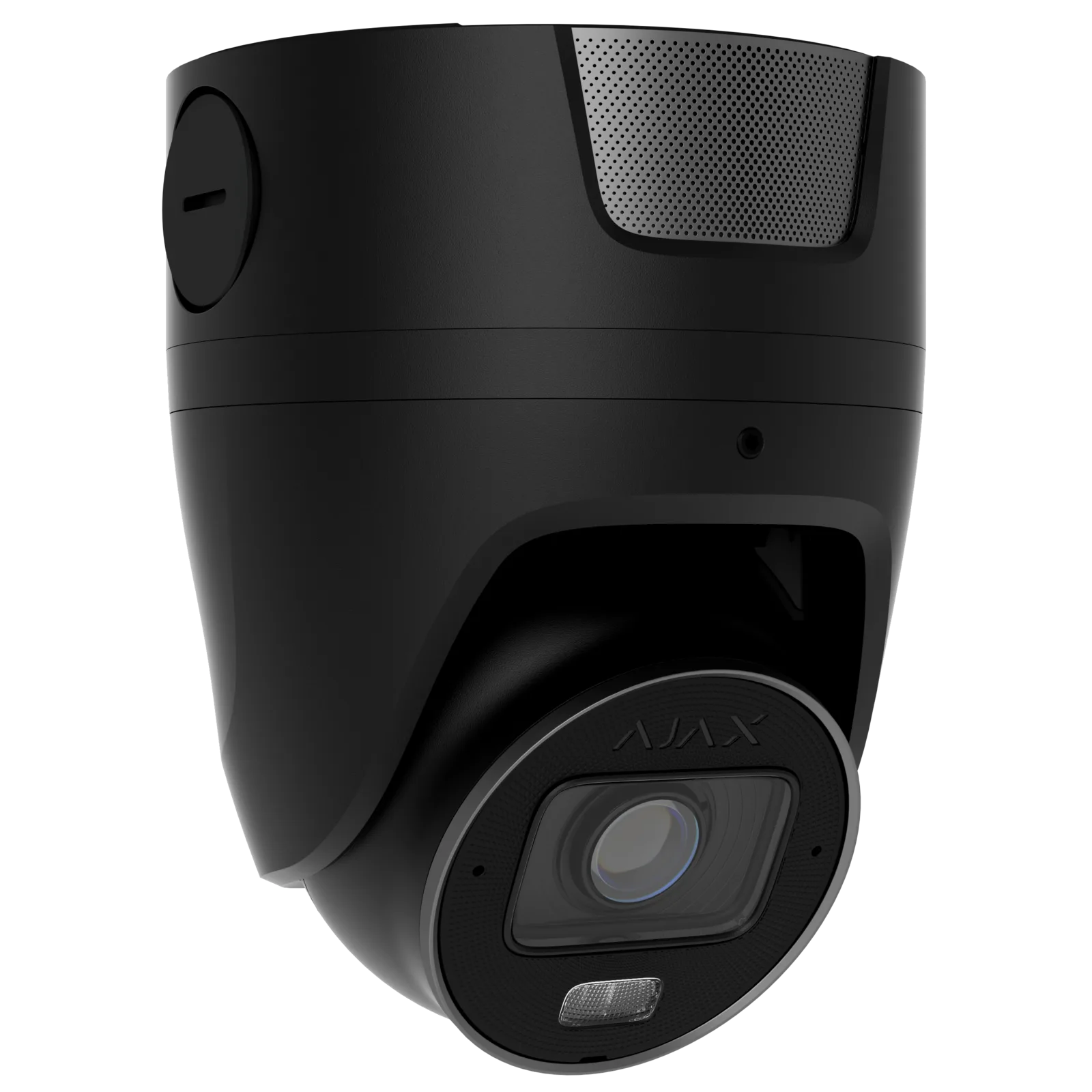

Ajax Superior TurretCam HLVF — Superior HLVF Series

Ajax Superior TurretCam HLVF is a flagship wired AI‑powered IP camera engineered for high‑security indoor and outdoor surveillance. Equipped with a 2.8–12 mm motorised varifocal P‑Iris lens, the camera delivers exceptional clarity, contrast, and depth of field across all lighting conditions. Autofocus ensures every adjustment remains sharp, whether capturing wide‑angle coverage or long‑range detail.

Hybrid illumination enables full‑colour night imaging by automatically switching between infrared and white light based on motion or object recognition. With four times the AI computing power of standard models, Superior TurretCam HLVF provides highly accurate detection of people, vehicles, and pets, reducing false alarms and improving event filtering.

Built‑in dual microphones, a powerful speaker for two‑way audio, alarm and audio I/O, and encrypted JetSparrow streaming make this camera ideal for advanced, integrated security environments. With NDAA‑compliant components and IP67/IK10 protection, it is engineered for mission‑critical deployments.

Key Features

• Motorised varifocal 2.8–12 mm P‑Iris lens with autofocus
• Four times the AI computing power for enhanced recognition
• Hybrid illumination (IR + white light) for full‑colour night imaging
• 4 MP or 8 MP resolution options
• True WDR for balanced imaging
• IR range up to 60 m, white light up to 40 m
• Dual microphones with noise suppression and echo cancellation
• Built‑in speaker for two‑way audio
• Alarm and audio input/output for system integration
• JetSparrow encrypted peer‑to‑peer streaming
• ONVIF Profile S (full), T/M (partial)
• microSD support up to 256 GB
• PoE 802.3af/at or 12 V⎓ power
• IP67 and IK10 protection
• NDAA‑compliant components
• Exclusive to accredited Ajax Systems partners

How It Works

Superior TurretCam HLVF uses a motorised P‑Iris varifocal lens to dynamically adjust the field of view, delivering optimal sharpness and contrast in every frame. The P‑Iris system automatically regulates incoming light, ensuring superior image quality in bright, low‑light, and high‑contrast environments.

Hybrid illumination provides full‑colour visibility at night. Infrared enables discreet monitoring, while white light activates when needed to capture colour detail and deter intruders.

JetSparrow encrypted streaming ensures low‑latency video delivery, while TLS/mTLS encrypted signalling protects communication with Ajax Cloud. Alarm and audio I/O expand integration with third‑party systems, automation devices, and on‑site audio solutions.

Installation & Deployment

• Add to an Ajax system via QR code
• Configure via Ajax mobile or desktop apps
• Supports ONVIF/RTSP for third‑party VMS
• Alarm and audio I/O for advanced integrations
• Adjustable motion detection zones
• Real‑time device health monitoring

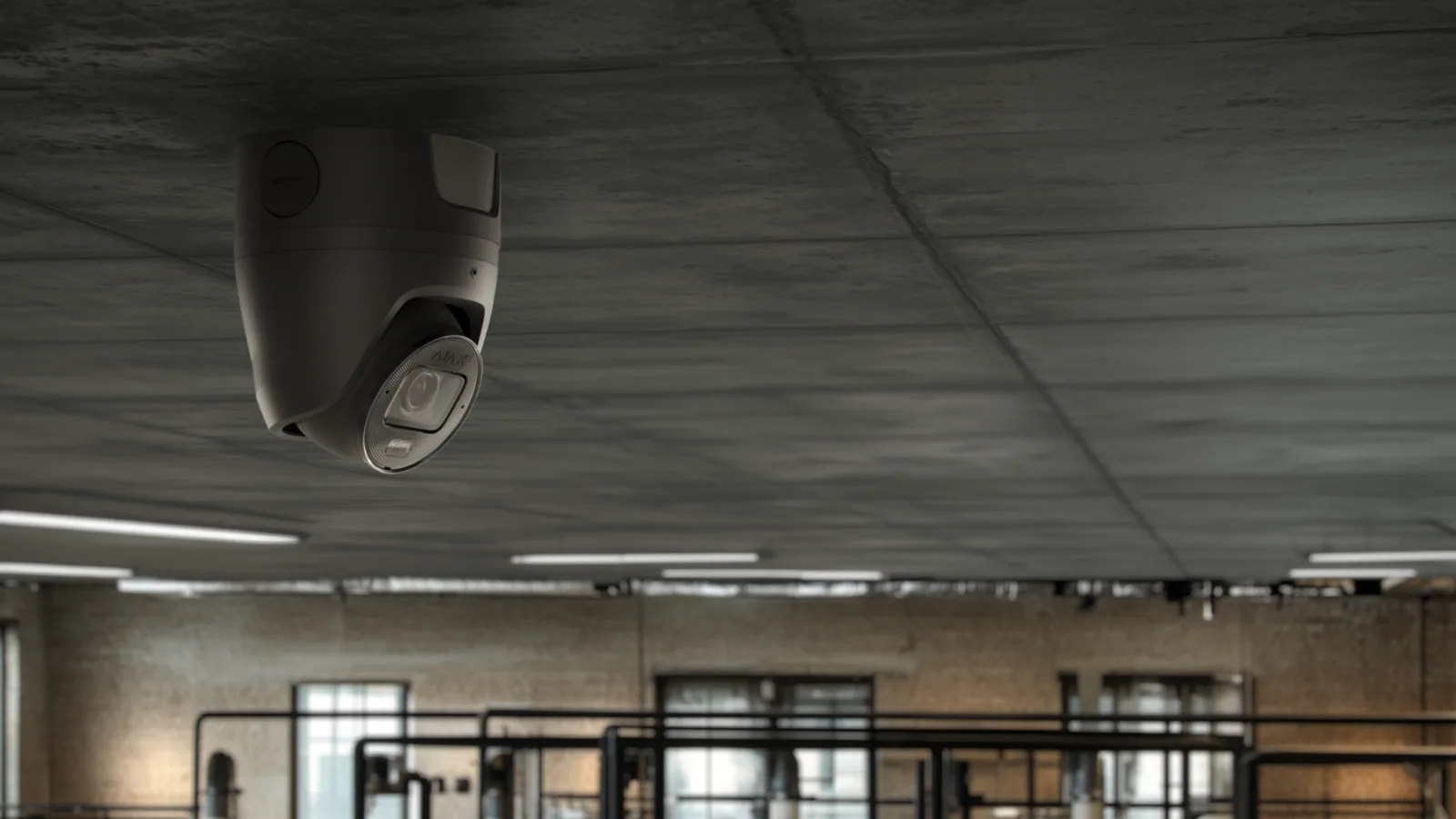

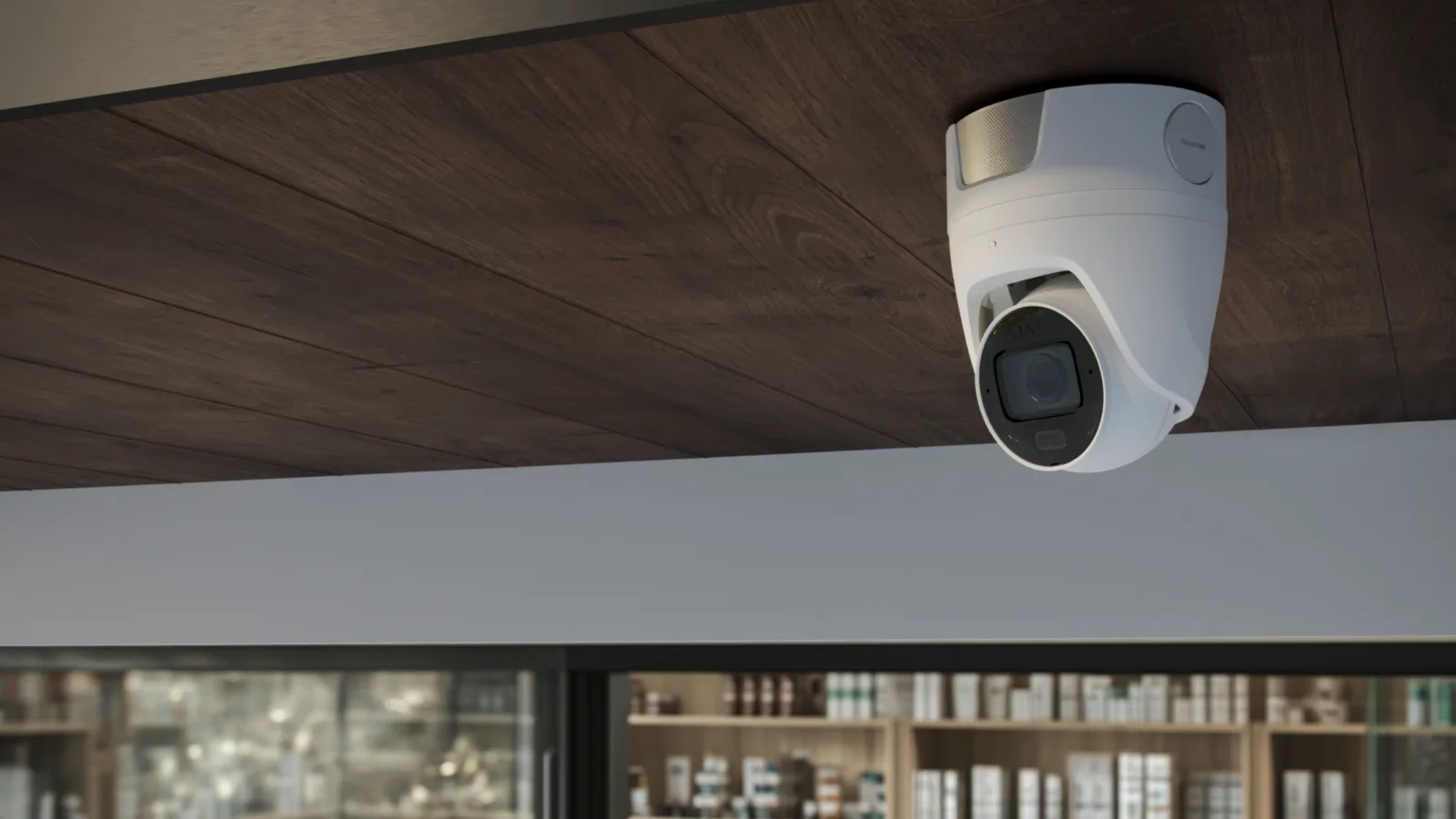

• Suitable for indoor and outdoor installations

Superior TurretCam HLVF is ideal for high‑security, partner‑led deployments requiring premium optics, advanced analytics, and full‑colour night imaging.

Reliability & Security

• TLS/mTLS encrypted signalling
• JetSparrow encrypted video streams
• Owner‑controlled access to video content
• Secure video export with digital signature verification
• Multi‑tiered account protection (passcodes, biometrics, 2FA)
• Tamper detection and system health monitoring

Compliance

• NDAA‑compliant components
• CE / RoHS
• IP67 / IK10 enclosure ratings
• Superior line available exclusively to accredited partners
