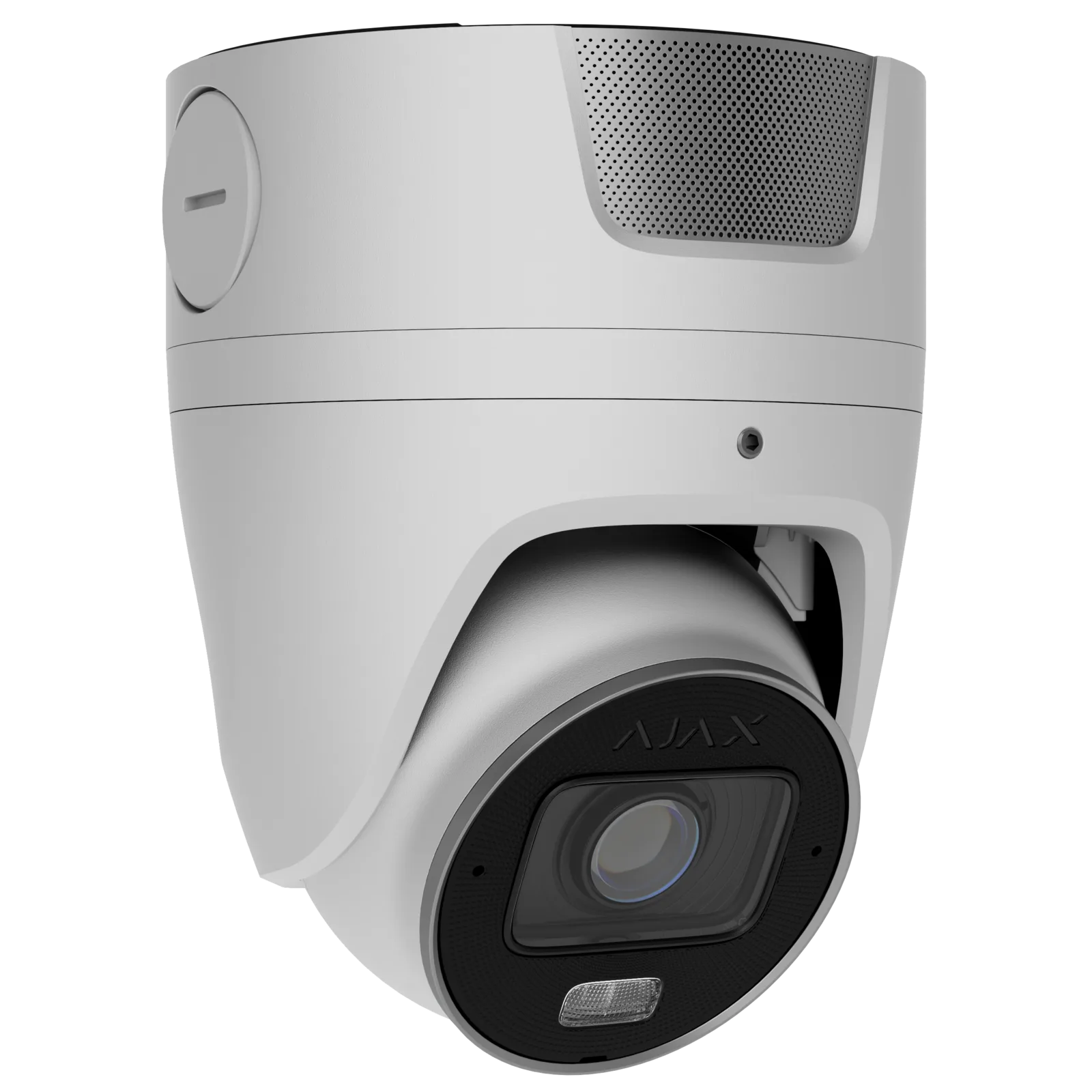

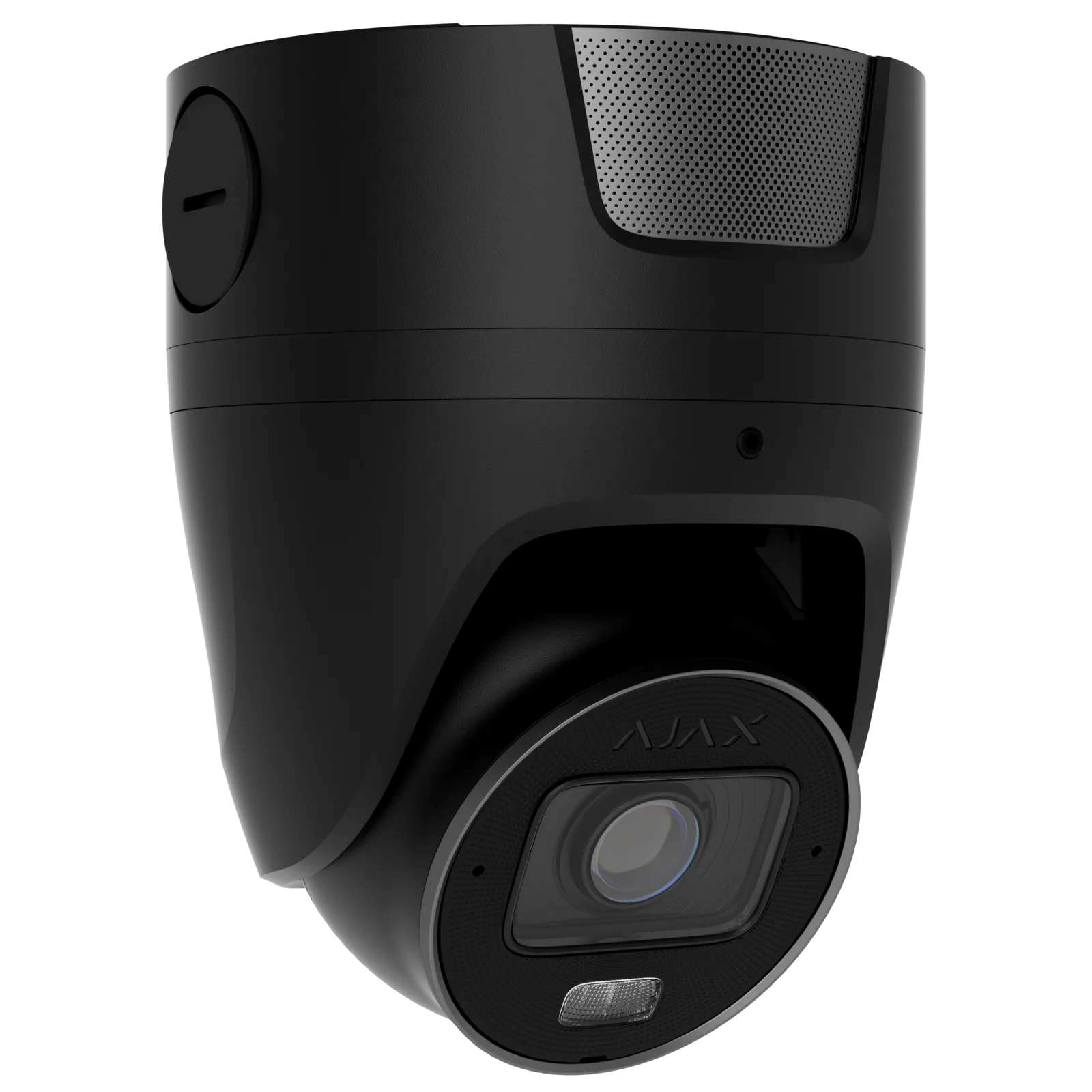

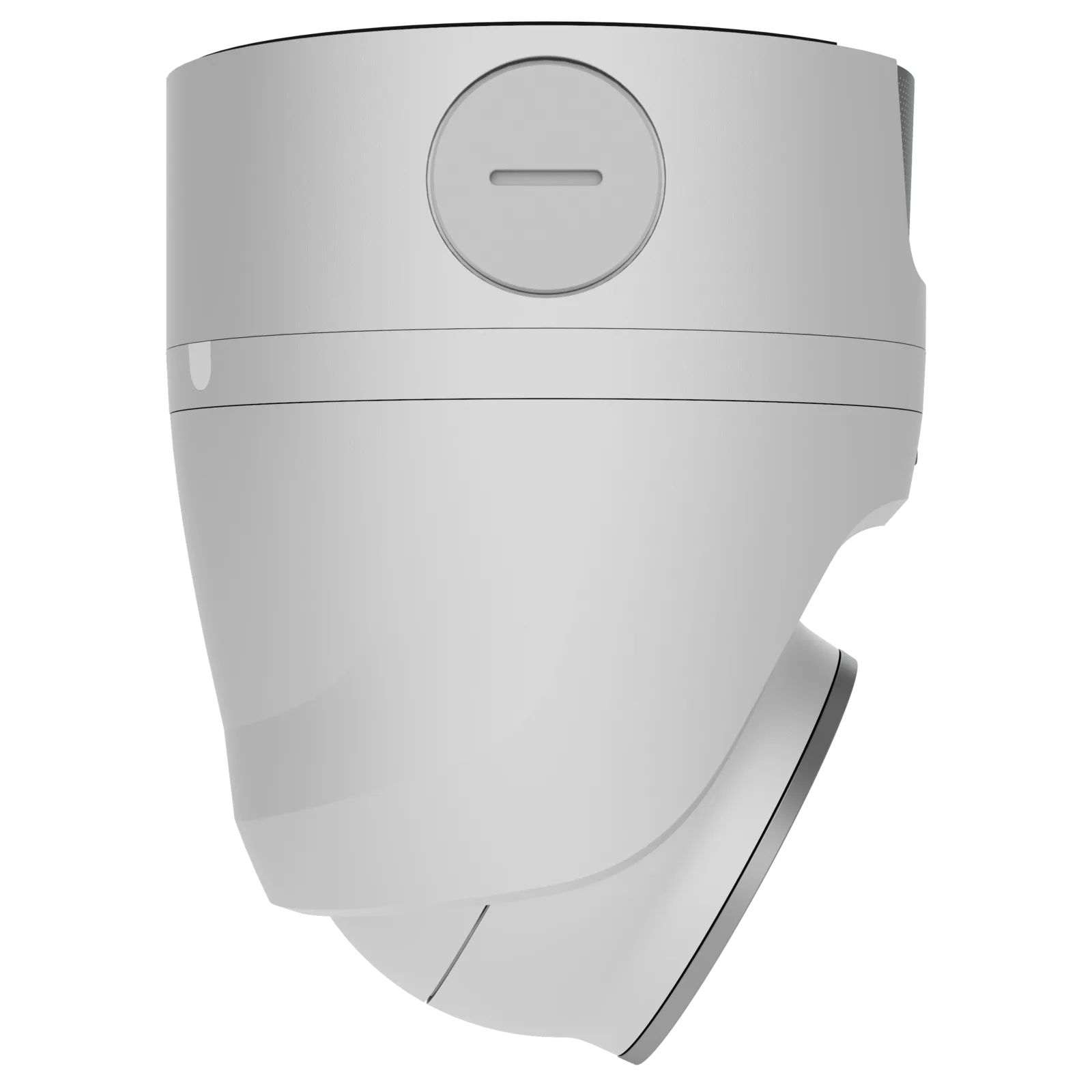

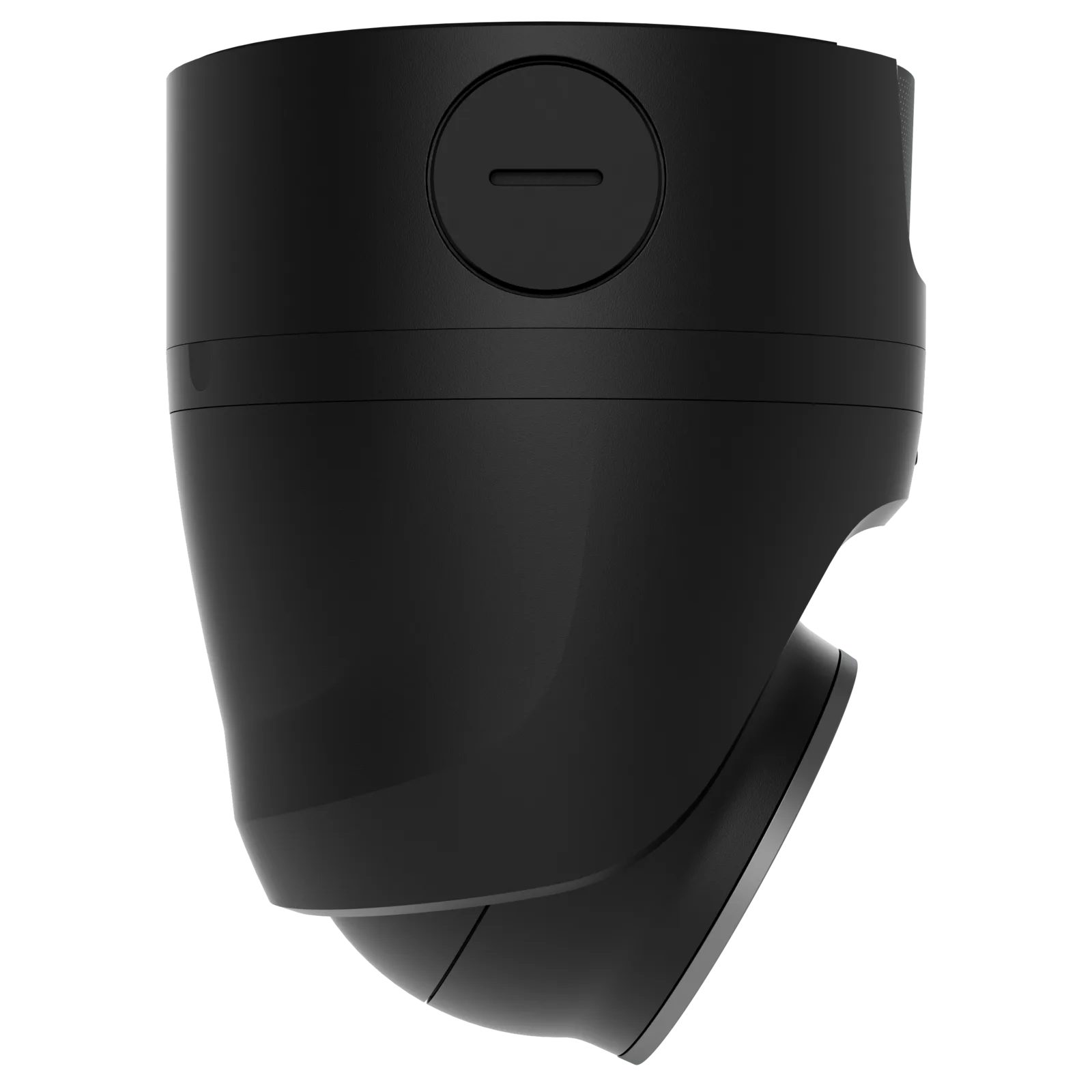

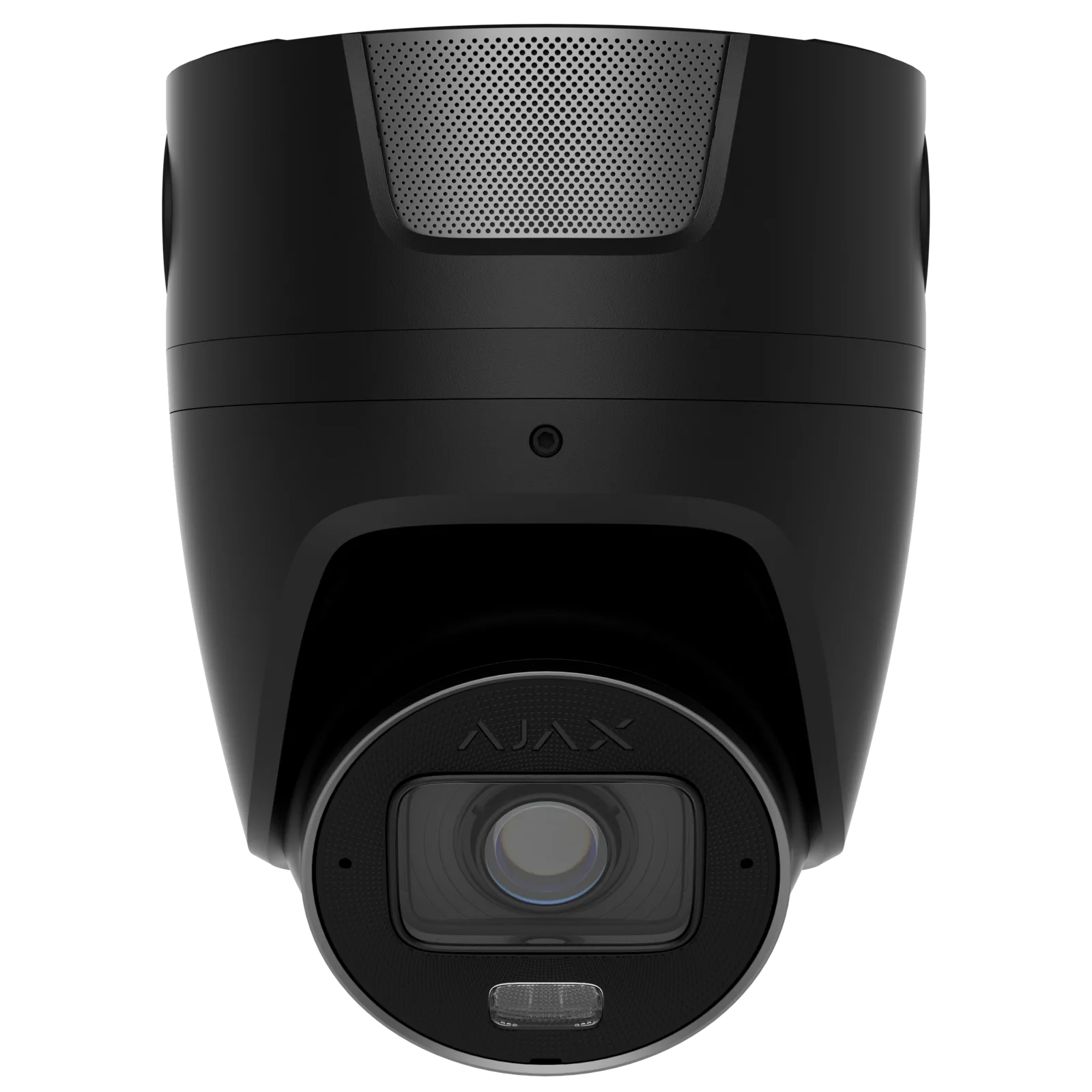

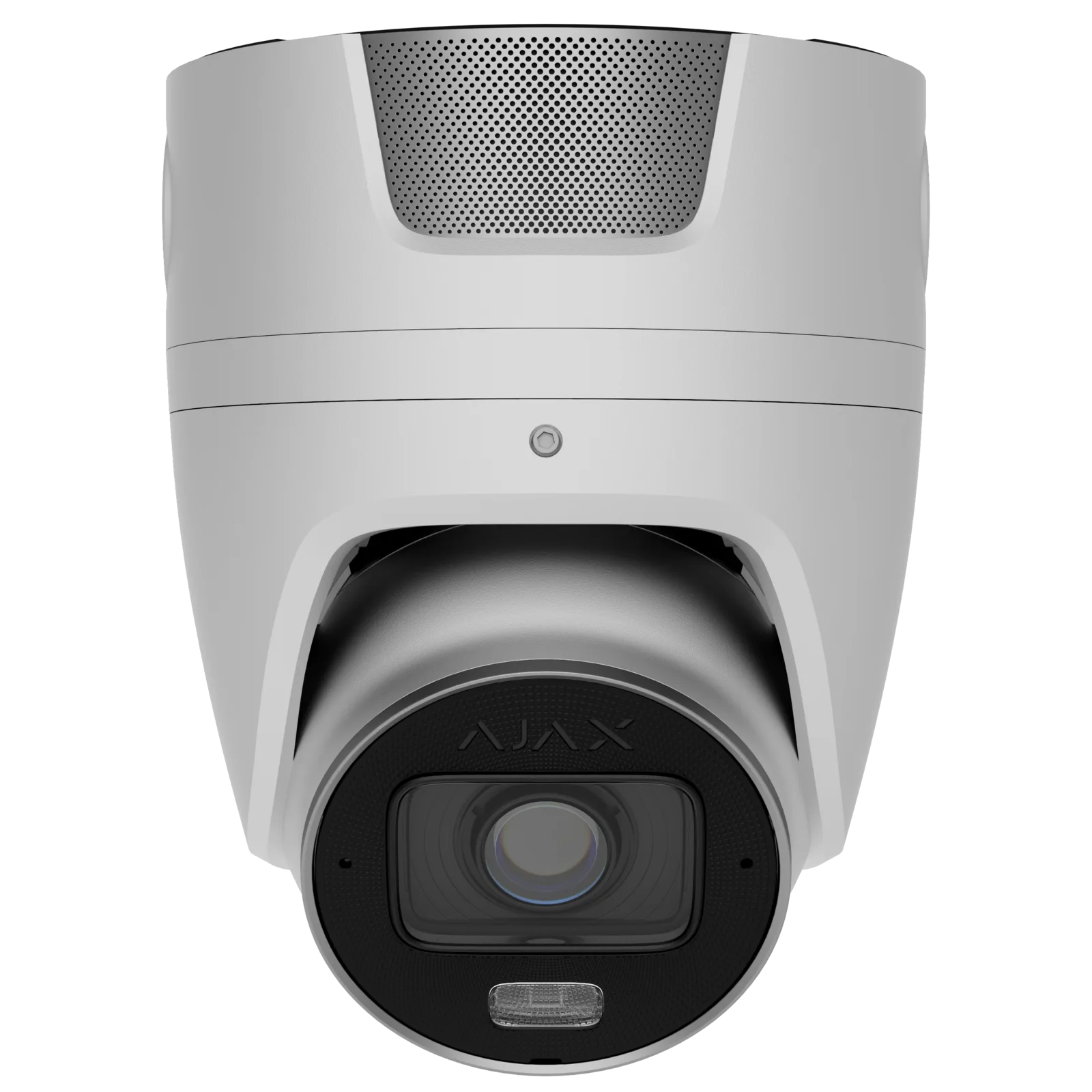

Superior TurretCam HLVF (8MP)

The Ajax Superior TurretCam HLVF (8MP) is a premium‑grade varifocal IP turret camera designed for high‑performance indoor and outdoor surveillance. Its 2.8–12 mm motorized P‑Iris lens delivers exceptional clarity across both wide‑angle coverage and long‑range detail, while True WDR ensures accurate imaging in complex lighting conditions. Hybrid IR and white‑light illumination enables full‑color visibility at night, automatically adjusting intensity to prevent overexposure and maintain scene detail.

Built for demanding professional environments, the Superior line features enhanced AI computing power, dual microphones, a built‑in speaker for two‑way audio, and advanced privacy and security controls. With ONVIF support, microSD recording, and seamless integration with Ajax NVRs and apps, Superior TurretCam HLVF (8MP) fits effortlessly into both new and existing surveillance systems.

Key Features

• 8 MP resolution (3840 × 2160) with True WDR
• Motorized 2.8–12 mm P‑Iris varifocal lens with autofocus
• Hybrid IR/white‑light illumination (IR up to 60 m, WL up to 40 m)
• Enhanced AI computing for people, pets, vehicles, and line‑crossing detection
• Two built‑in microphones + speaker for two‑way audio
• microSD support up to 256 GB (V30 or faster)
• ONVIF S/T interoperability
• PoE 802.3af/at or 12 V⎓ power options
• IP67 and IK10 protection for harsh environments

How It Works

Superior TurretCam HLVF (8MP) uses a high‑quality 8 MP CMOS sensor paired with a motorized P‑Iris varifocal lens to deliver precise control over field of view and depth of field. The P‑Iris system automatically balances contrast and sharpness, ensuring crisp, accurate imaging in both bright and low‑light conditions. Autofocus maintains clarity across the entire zoom range.

Hybrid illumination automatically switches between infrared and white light depending on motion or object detection. Intelligent lighting control adjusts LED intensity in real time to prevent overexposure, ensuring clear visibility at varying distances. The enhanced AI engine provides four times the processing power of standard models, enabling highly accurate object classification and reducing false alarms.

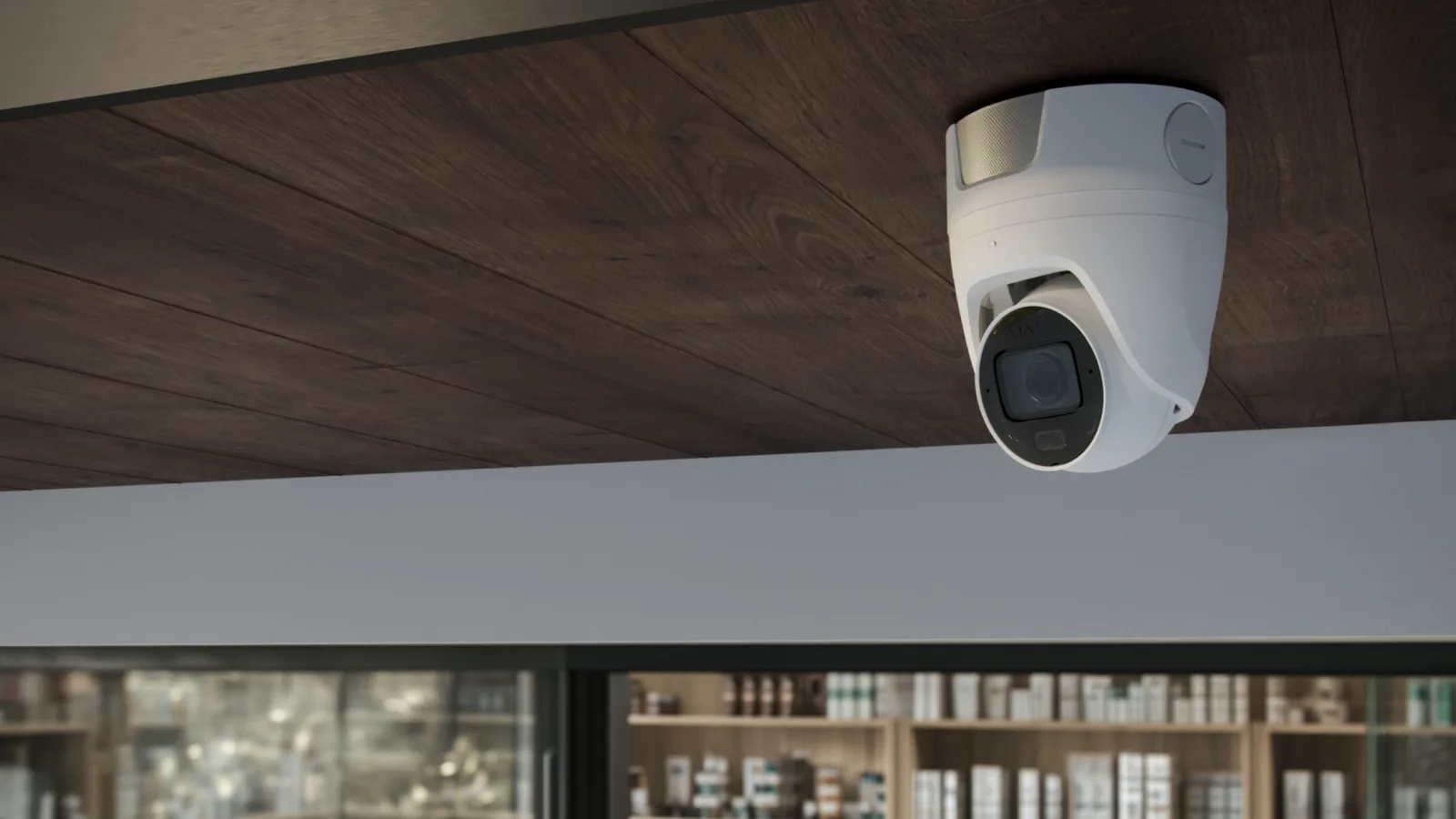

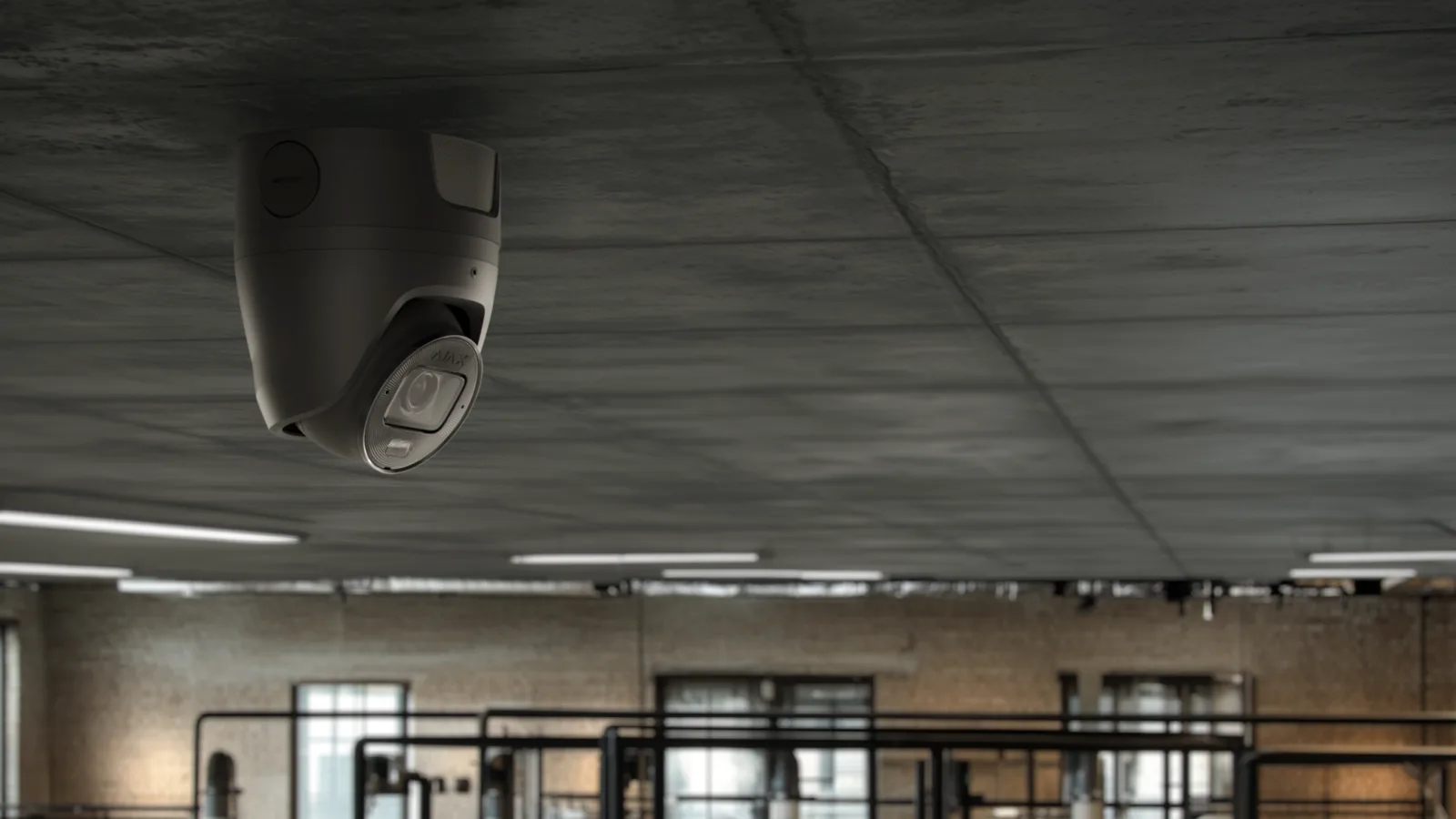

Installation & Placement

• Suitable for indoor and outdoor installations
• Turret housing offers discreet, low‑profile monitoring
• Motorized lens simplifies setup and focusing
• Supports PoE or 12 V⎓ power
• Recommended mounting height: 2.5–3.5 m
• Ideal for entrances, corridors, retail, offices, and general‑purpose monitoring

The camera pairs quickly via QR code and can be configured remotely through Ajax mobile and desktop apps.

Reliability & Supervision

Superior TurretCam HLVF (8MP) is engineered for continuous, dependable operation in demanding environments. The system provides:

• Encrypted TLS/mTLS video streams
• Secure Boot and OTA signature verification
• Accelerometer‑based tamper detection
• Automatic state checks and real‑time health monitoring
• Dual‑stream encoding for efficient bandwidth usage
• Local microSD recording for redundancy
• NDAA‑compliant components

These mechanisms ensure consistent performance, rapid fault reporting, and protection against sabotage or unauthorized access.

Compliance

• IP67 environmental protection
• IK10 impact resistance
• NDAA‑compliant components
• CE / RoHS
