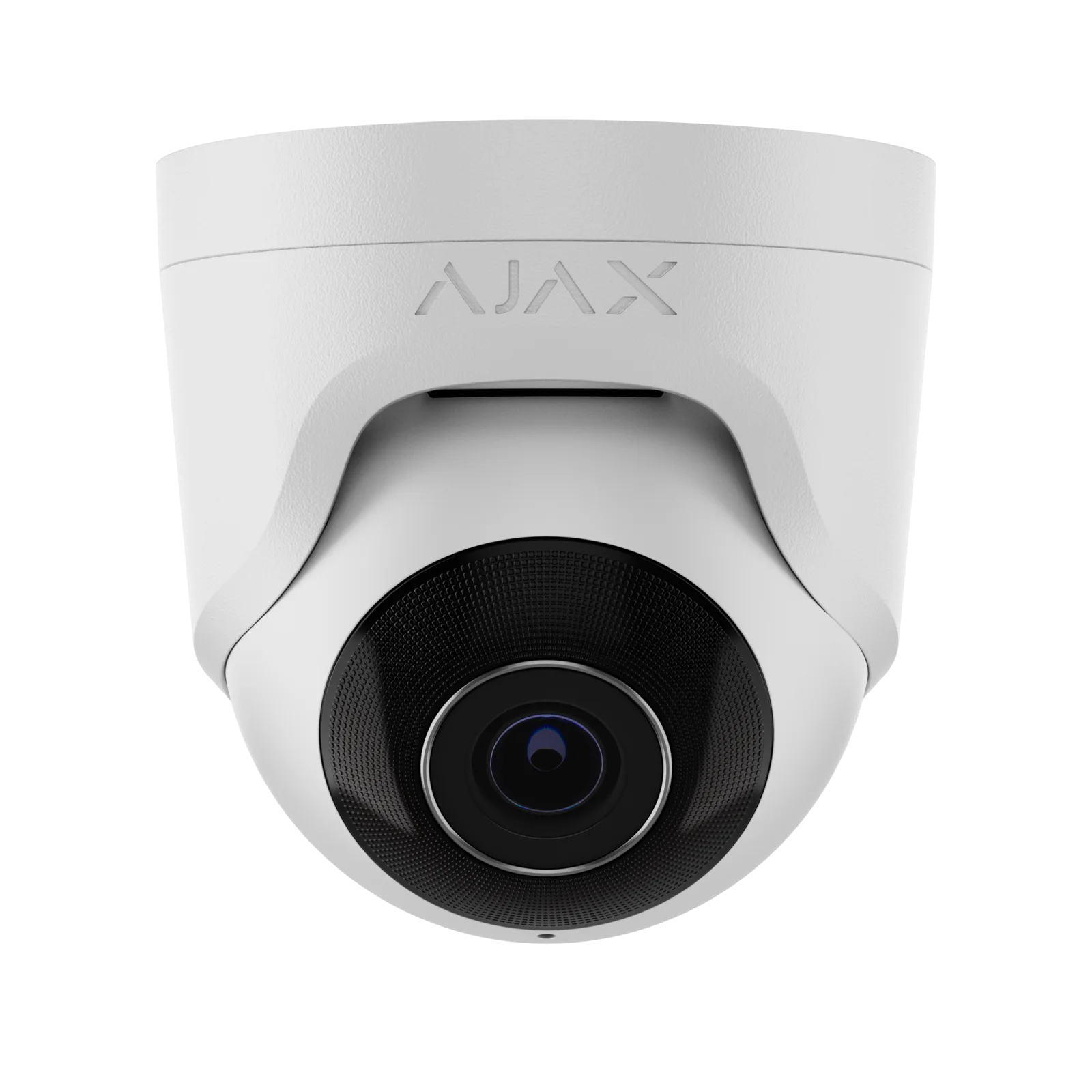

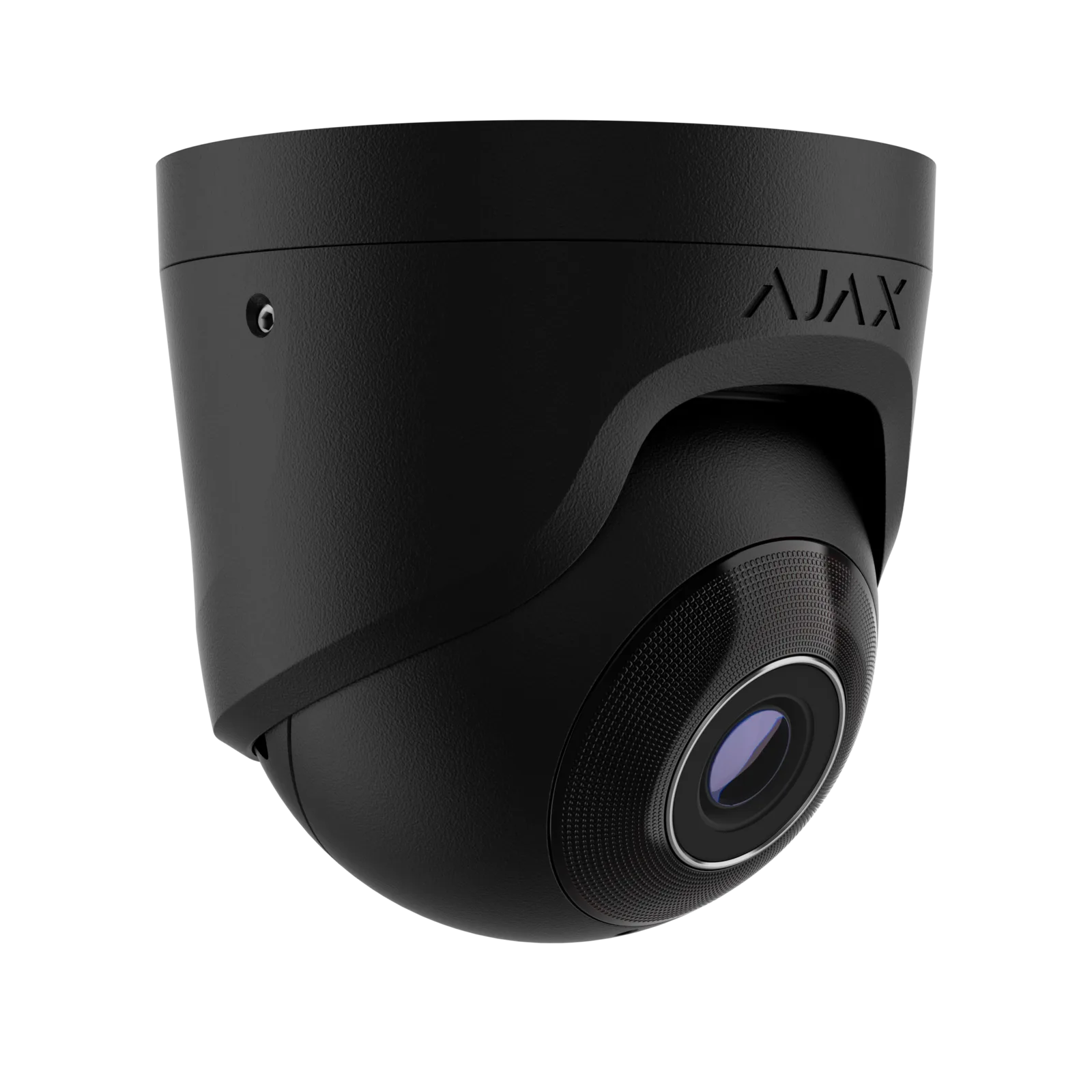

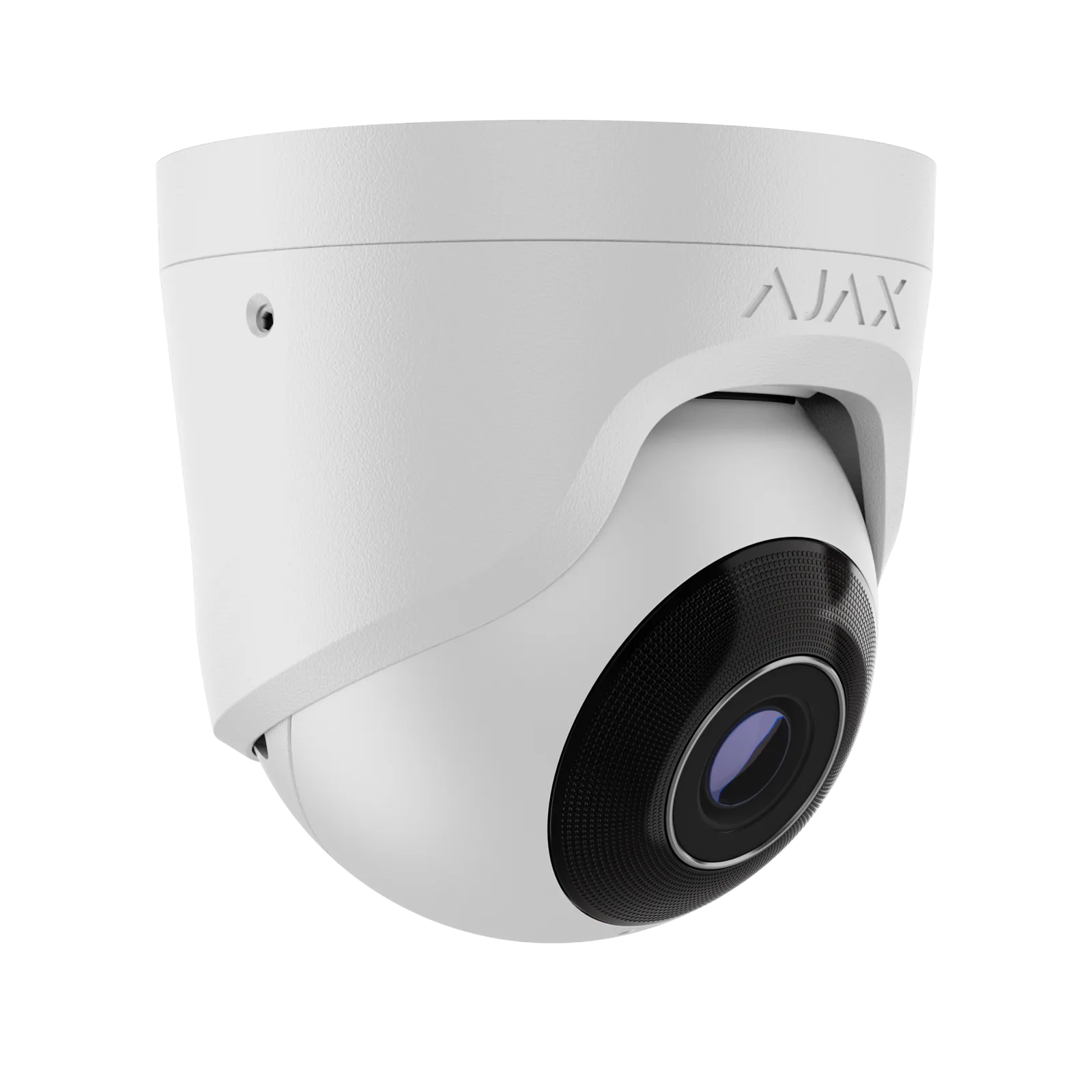

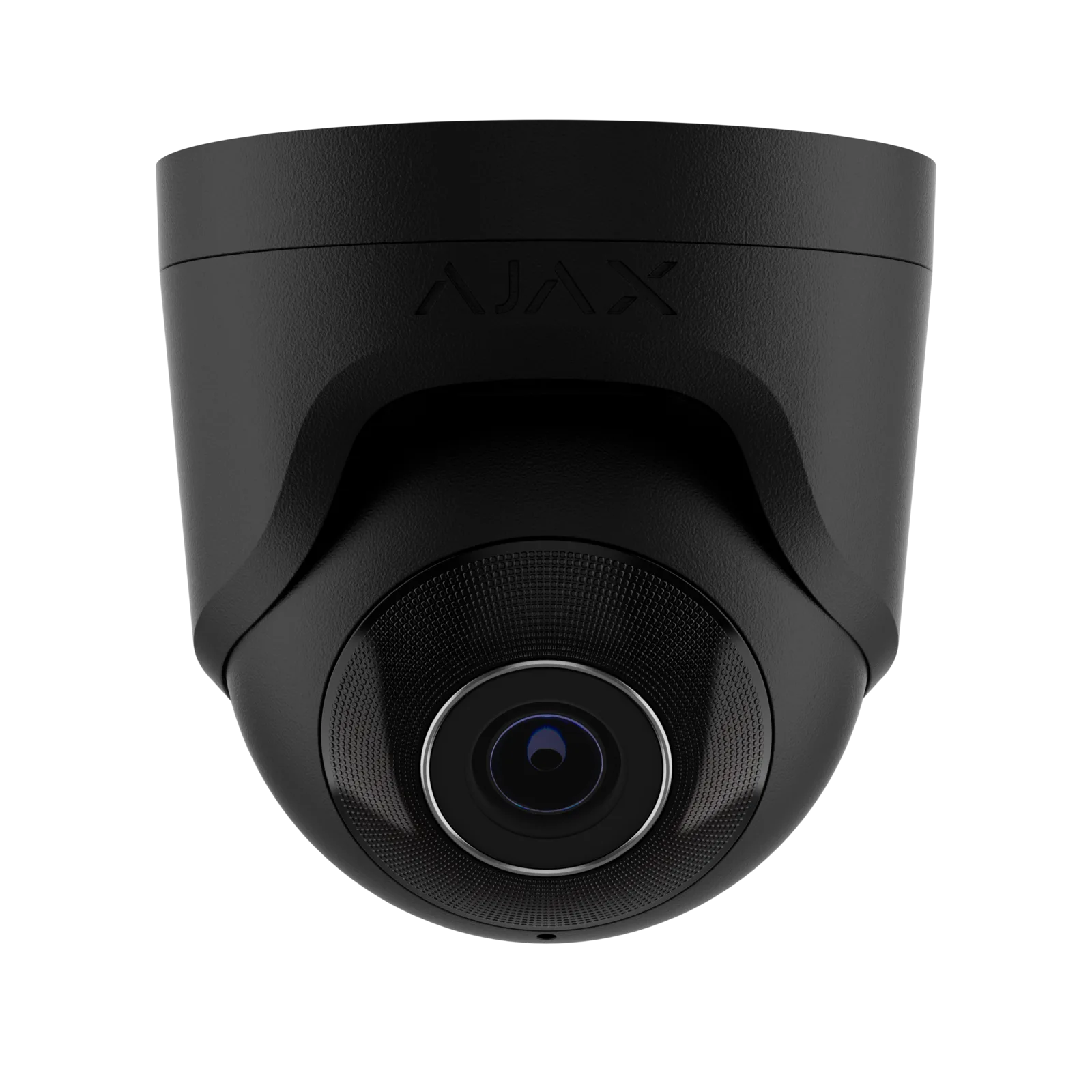

TurretCam (5 MP/2.8 MM)
A 5MP wired TurretCam with a 2.8mm wide-angle lens, True WDR, IR illumination up to 50 m, and AI-powered object recognition.
Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.
Available Colours
TurretCam (5 MP / 2.8 mm)
Overview
TurretCam (5 MP / 2.8 mm) is a wired IP security camera designed for indoor and outdoor use. It delivers up to 2880 × 1620 px resolution with a 2.8 mm fixed lens, providing a wide 100°–110° viewing angle. Integrated with the Ajax ecosystem, it combines AI‑powered object recognition, secure streaming, and flexible privacy controls.
Key Features
- 5 MP CMOS sensor with up to 2880 × 1620 px resolution
- 2.8 mm fixed lens with 100°–110° viewing angle
- IR illumination range up to 50 m
- True WDR for balanced images in complex lighting
- AI‑powered recognition of people, pets, and vehicles
- JetSparrow streaming for instant live view and smooth archive navigation
- microSD support up to 256 GB
- IP65 metal enclosure with IK08 impact protection
- NDAA‑compliant components and secure, passwordless authentication via mTLS
Ideal Applications
- Residential facades and driveways
- Small commercial entrances
- Internal corridors and open‑plan areas
Integration
TurretCam works seamlessly with Ajax NVR, Ajax apps, and third‑party VMS via ONVIF/RTSP, enabling flexible deployment in mixed environments.
Specifications
| Resolution | 5 MP (up to 2880 × 1620 px) |
| Sensor | CMOS |
| Lens | 2.8 mm fixed |
| Viewing Angle | 100°–110° |
| Frame Rate | Up to 25 fps (3K UHD) |
| IR Illumination | Up to 50 m |
| Dynamic Range | True WDR |
| Video Codec | H.264 / H.265 |
| Audio | Built-in digital microphone, G.711 codec |
| Storage | microSD up to 256 GB |
| Network | 10/100 Mbps Ethernet (RJ-45), ONVIF, RTSP |
| Protection | IP65, IK08 |
| Operating Temperature | −30 °C to +60 °C |
| Power | PoE 802.3at/af, 12 V DC |
