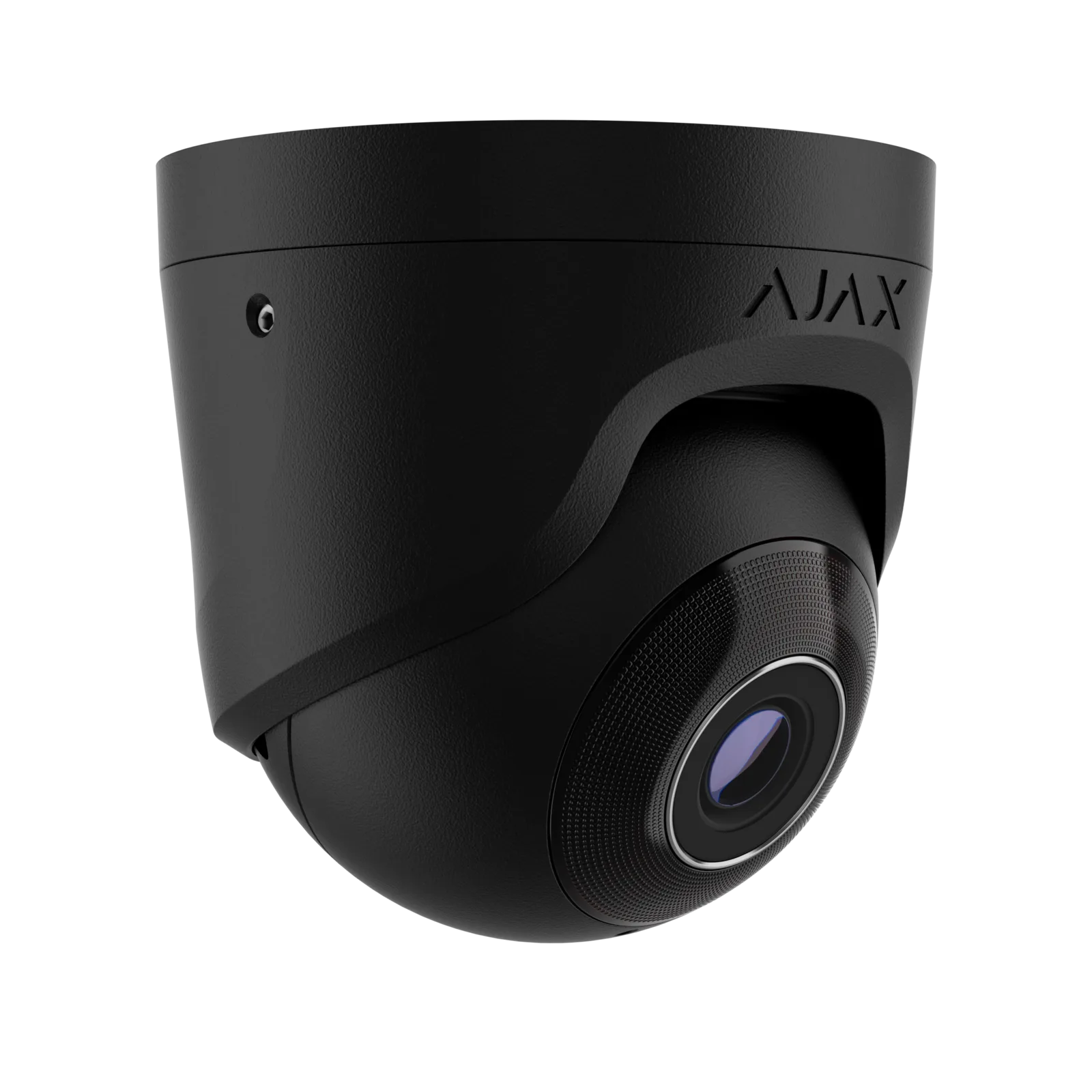

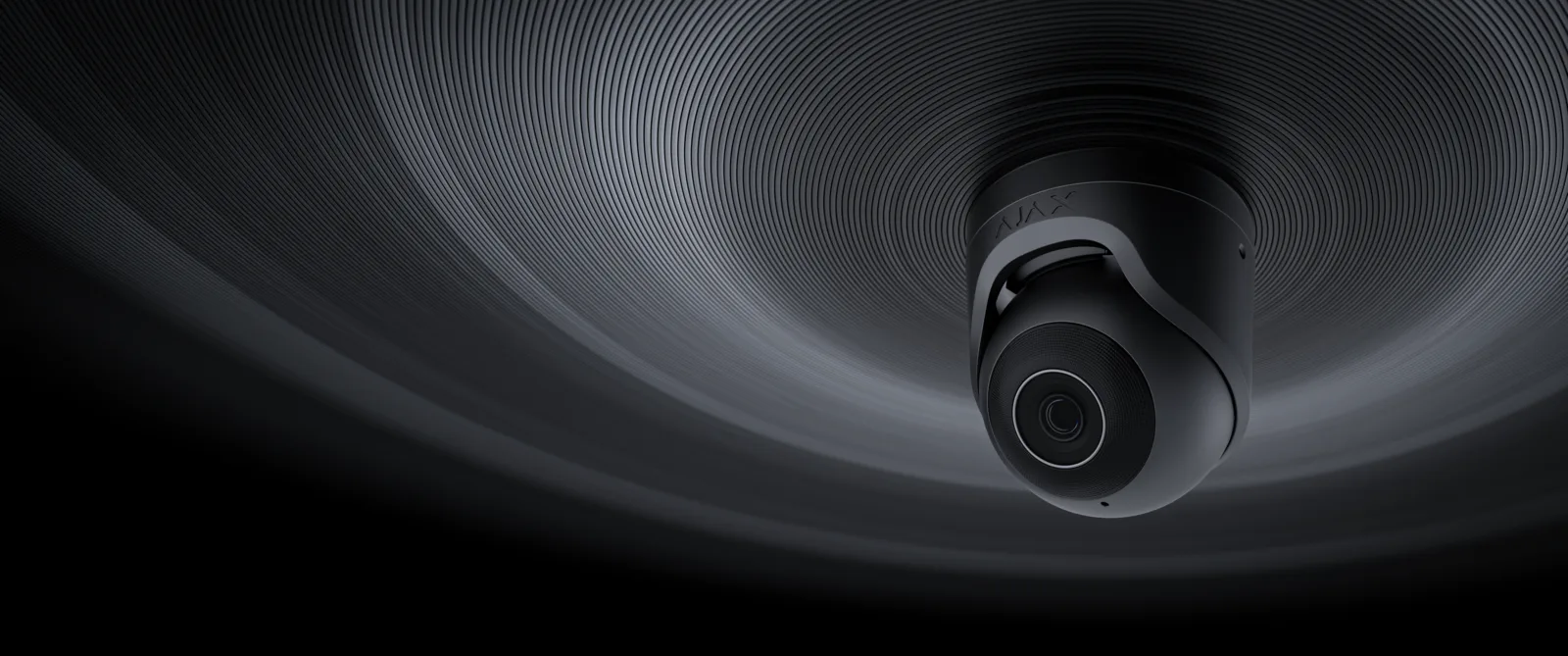

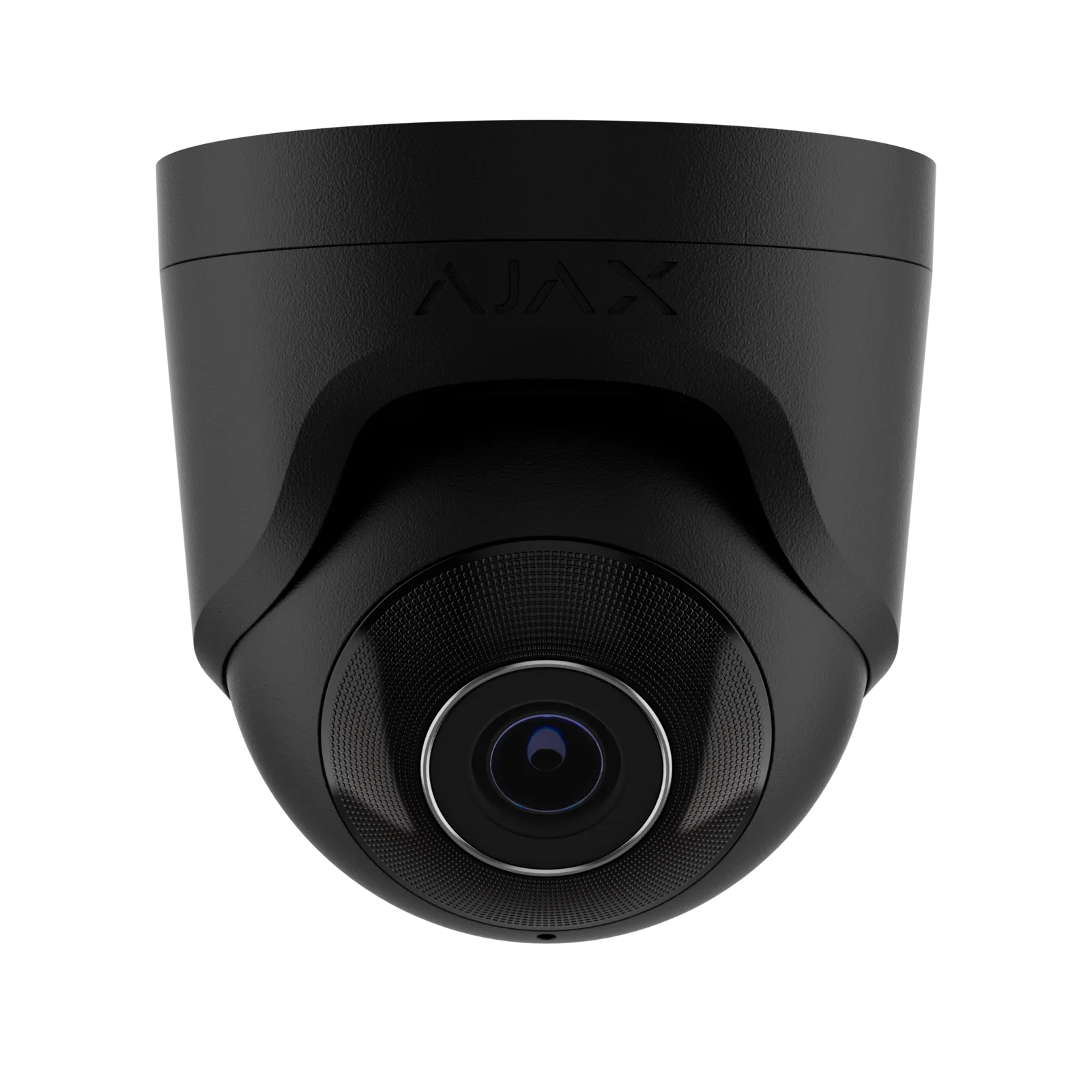

TurretCam (8 MP/4 MM)
An 8MP TurretCam with a 4mm lens for focused 4K-class monitoring, True WDR, and IR illumination up to 50 m.
Online pricing for this product is unavailable due to supplier restrictions. Please contact us for an authorised quote.

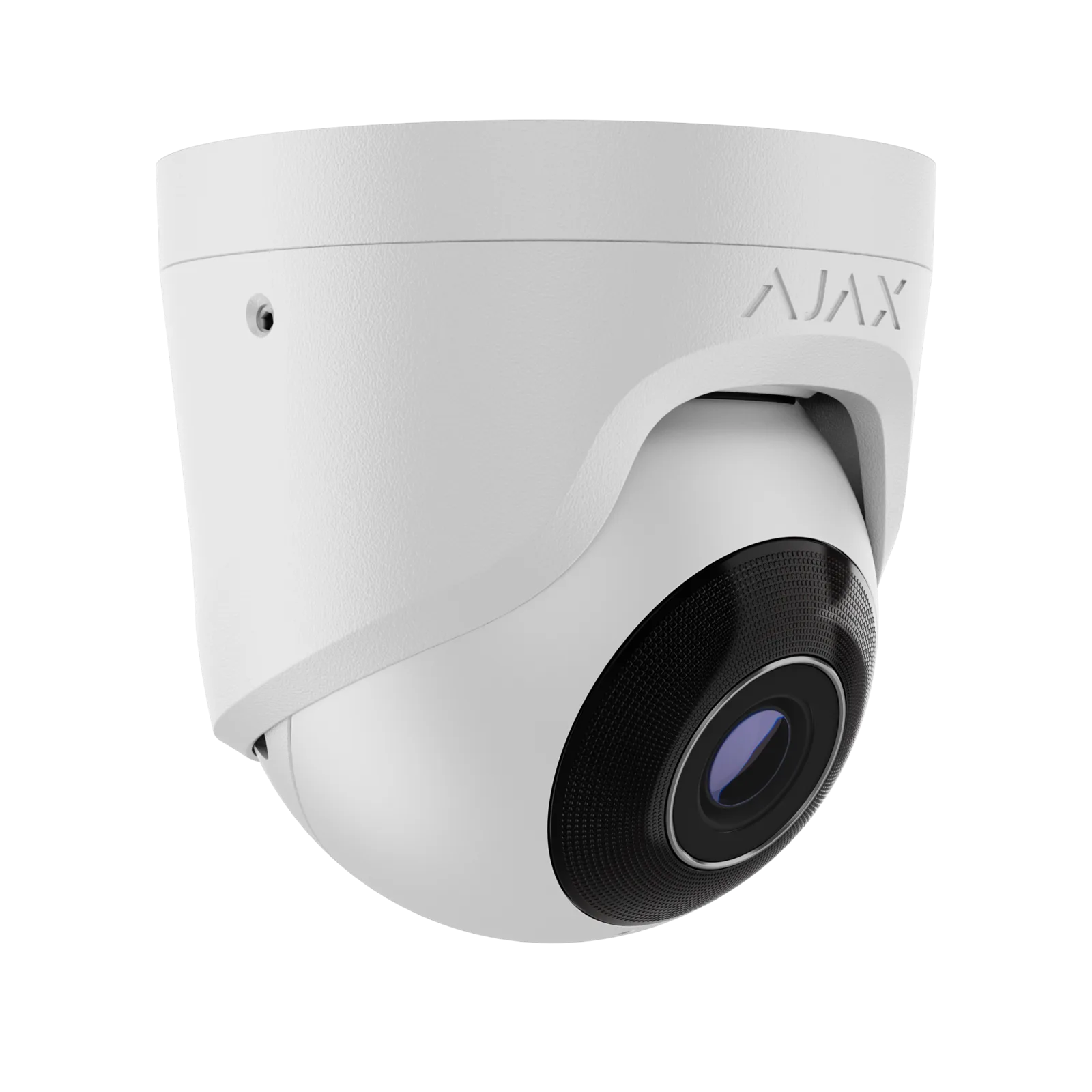

Available Colours
TurretCam (8 MP / 4 mm)
Overview
TurretCam (8 MP / 4 mm) is designed for focused, high‑detail monitoring at medium distances. With up to 3840 × 2160 px resolution and a 4 mm fixed lens providing a 75°–85° viewing angle, it is ideal for entrances, gates, and critical zones where identification is key.
Key Features
- 8 MP CMOS sensor with up to 3840 × 2160 px resolution
- 4 mm fixed lens with 75°–85° viewing angle
- IR illumination up to 50 m
- True WDR for complex lighting
- AI‑powered detection of people, pets, and vehicles
- JetSparrow streaming for fast live view and archive navigation
- microSD support up to 256 GB
- IP65 and IK08‑rated metal enclosure
Ideal Applications
- Vehicle gates and loading docks
- Building entrances and choke points
- Medium‑distance perimeter segments
Integration
Works with Ajax NVR, Ajax apps, and third‑party VMS via ONVIF/RTSP, supporting both small and large‑scale deployments.
Specifications
| Resolution | 8 MP (up to 3840 × 2160 px) |
| Sensor | CMOS |
| Lens | 4 mm fixed |
| Viewing Angle | 75°–85° |
| Frame Rate | Up to 20 fps (4K UHD) |
| IR Illumination | Up to 50 m |
| Dynamic Range | True WDR |
| Video Codec | H.264 / H.265 |
| Audio | Built-in digital microphone, G.711 codec |
| Storage | microSD up to 256 GB |
| Network | 10/100 Mbps Ethernet (RJ-45), ONVIF, RTSP |
| Protection | IP65, IK08 |
| Operating Temperature | −30 °C to +60 °C |
| Power | PoE 802.3at/af, 12 V DC |
