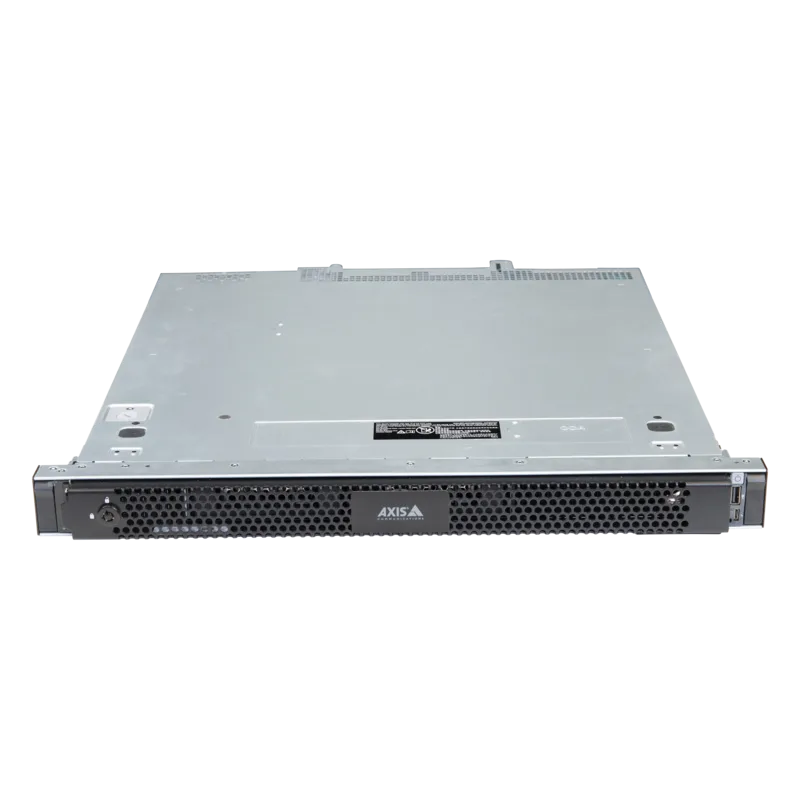

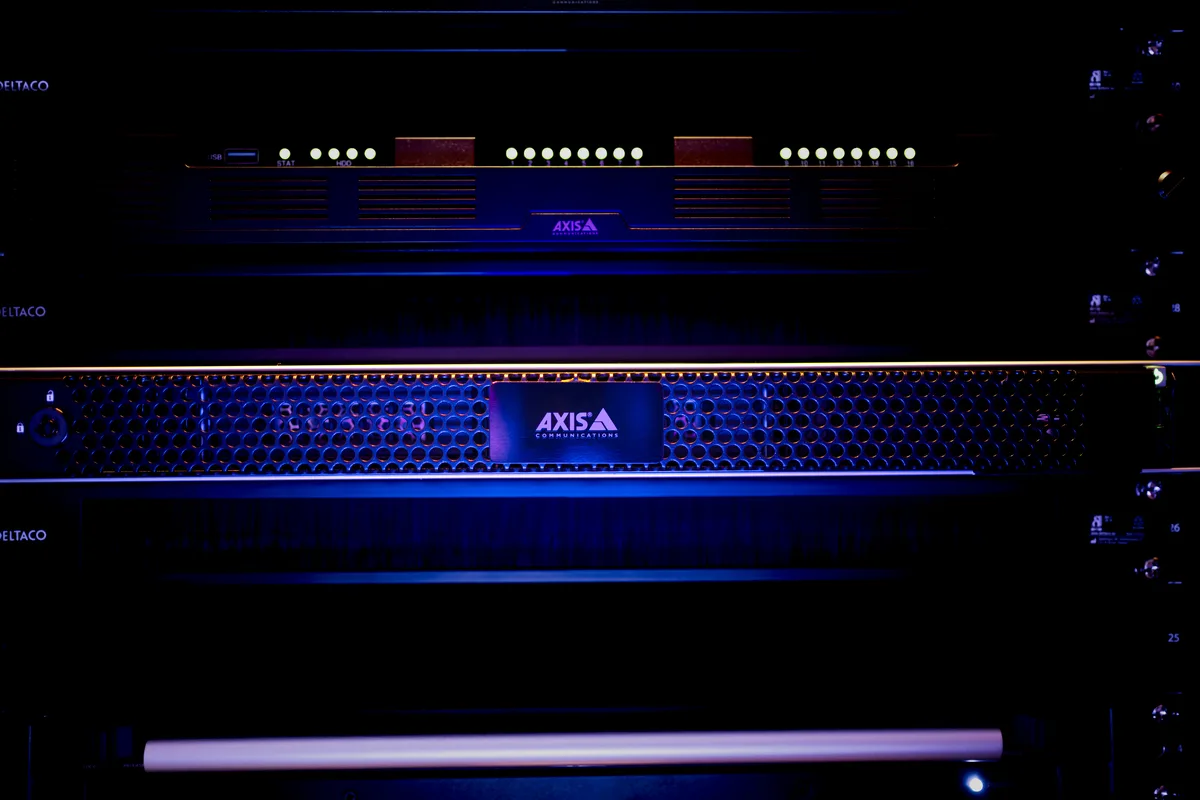

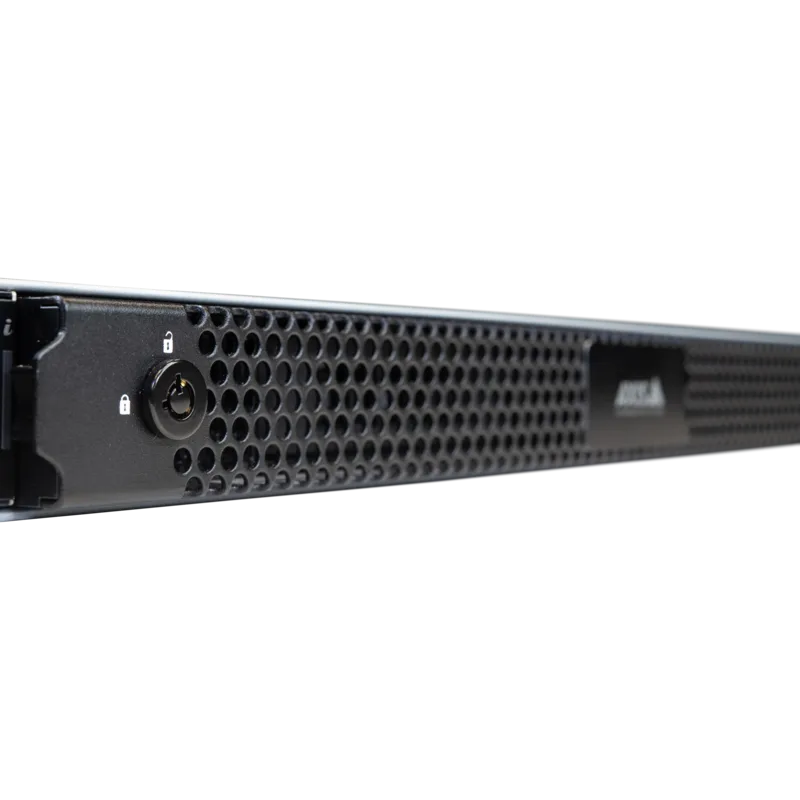

AXIS Camera Station S1224 Rack Recording Server
Compact 1U rack recording server with 12 TB enterprise storage, Intel Xeon platform, Windows IoT, and 24 AXIS Camera Station licenses.
$8715
View Datasheet (PDF)AXIS Camera Station S1224 Rack Recording Server
AXIS S1224 Rack is a flexible, scalable recording server designed for reliable performance in demanding surveillance environments. It includes 24 AXIS Camera Station Pro licenses and 12 TB of enterprise‑class storage. This out‑of‑the‑box recording server is built to provide top‑class performance and reliability in a compact 1U form factor.
Key Features
- 12 TB enterprise‑class HDD with one free expansion slot
- Intel Xeon E platform with 16 GB memory
- Qualified for 32 video channels and 64 doors
- 24 AXIS Camera Station Pro licenses included
- Windows 11 IoT Enterprise LTSC 2024
- TPM 2.0 (FIPS 140‑2 Level 2), secure boot, encrypted drives
- SBOM transparency and Axis security hardening
- Optimized energy consumption and 5‑year warranty
How It Works
The server provides high‑performance recording for medium to large systems, supporting up to 32 video channels with a total recording bitrate of 300 Mbit/s. Video is stored on enterprise‑class HDDs with optional RAID 1 for redundancy. Windows IoT and AXIS Recorder Toolbox streamline setup, monitoring, and maintenance. TPM‑backed encryption and secure boot protect all cryptographic keys, certificates, and system integrity.
Installation & Placement
- 1U rack‑mount design
- Suitable for commercial, enterprise, and multi‑site deployments
- Operating range: 10 °C to 35 °C
- Includes Dell ReadyRails and rack PDU power cable
Reliability & Cybersecurity
- TPM 2.0 with FIPS 140‑2 Level 2 certification
- Secure boot and encrypted OS and recording drives
- SBOM for software transparency
- iDRAC 9 for remote server management
Compliance
- EN 55035, EN 55024, EN 55032 Class A
- FCC Part 15 Class A
- IEC/EN 62368‑1
- TAA compliant
- NDAA Section 889
Specifications
| Product Type | Rack recording server |
| Licenses Included | 24 × AXIS Camera Station Pro Core Device NVR licenses |
| System Scalability | Qualified for 32 video channels and 64 doors; up to 300 Mbit/s total recording bitrate |
| Processor | Intel Xeon E processor |
| Memory | 16 GB (1 × 16 GB) |
| Storage | 12 TB enterprise‑class HDD (1 × 12 TB installed, 1 free slot) |
| Operating System Drive | 480 GB SSD |
| RAID | Supports RAID 0 and RAID 1 |

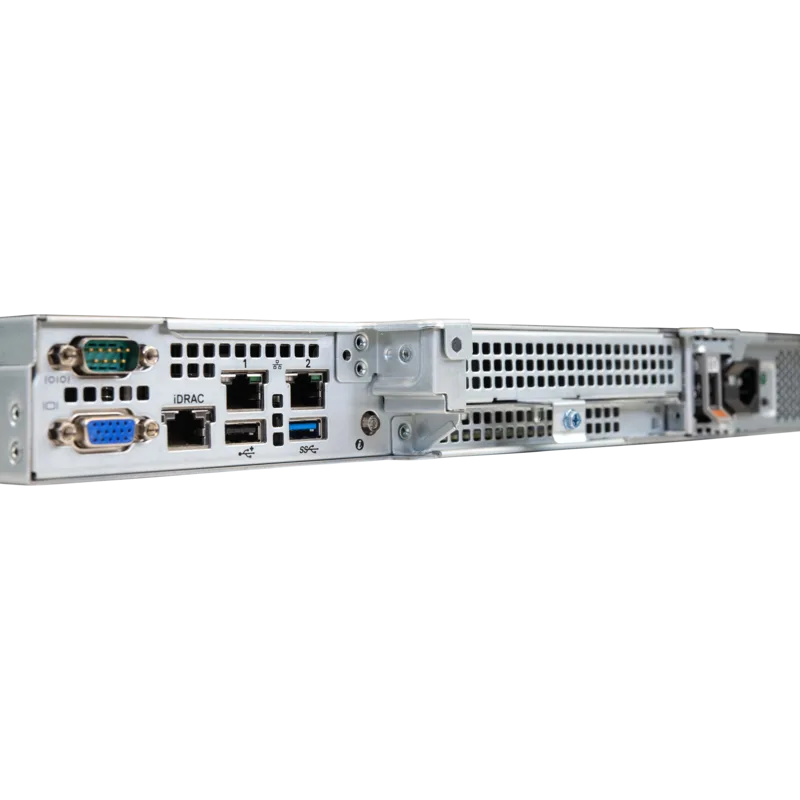

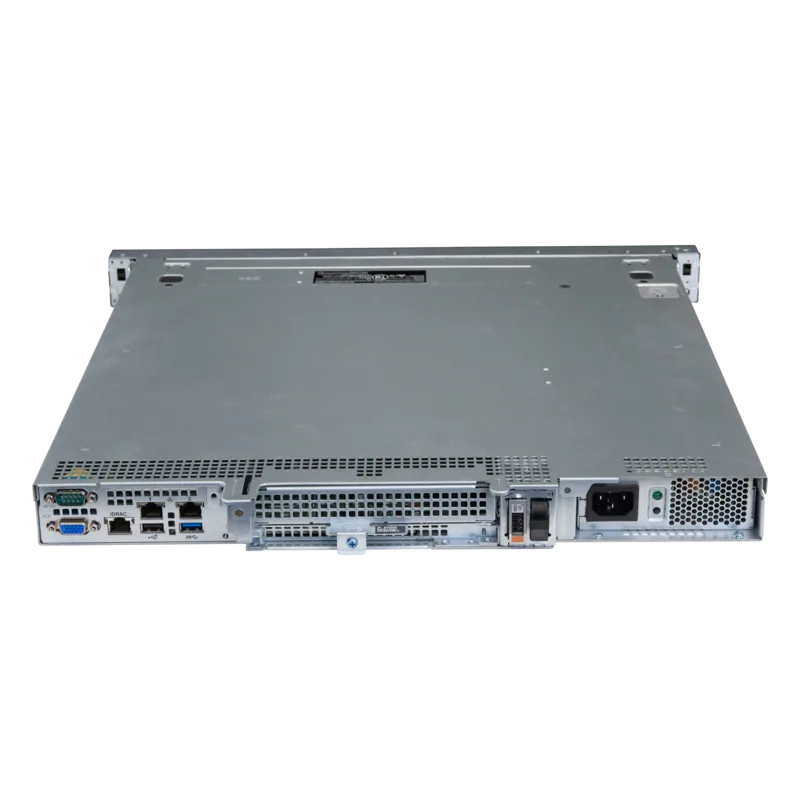

| USB Ports | Front: 1 × USB 2.0, 1 × iDRAC direct; Rear: 1 × USB 2.0, 1 × USB 3.2 |
| Network | 2 × RJ45 1 Gbps, 1 × iDRAC dedicated Ethernet |
| Video Outputs | 1 × VGA |
| Cybersecurity | TPM 2.0 (FIPS 140‑2 Level 2), secure boot, encrypted OS and recording drives, SBOM |
| Remote Management | iDRAC 9 basic license |
| Power Input | 450 W Platinum PSU, 100–240 V AC, 50/60 Hz |
| Operating Temperature | 10 °C to 35 °C |
| Operating Humidity | 8–80% RH (non‑condensing) |
| Dimensions | 1U rack, 482 × 497 × 43 mm |
| Weight | 8.5 kg |
| Compliance | TAA compliant, EN 55035, EN 55024, EN 55032 Class A, FCC Class A, IEC/EN 62368‑1, RCM, VCCI Class A, KC, BSMI, NDAA Section 889 |
