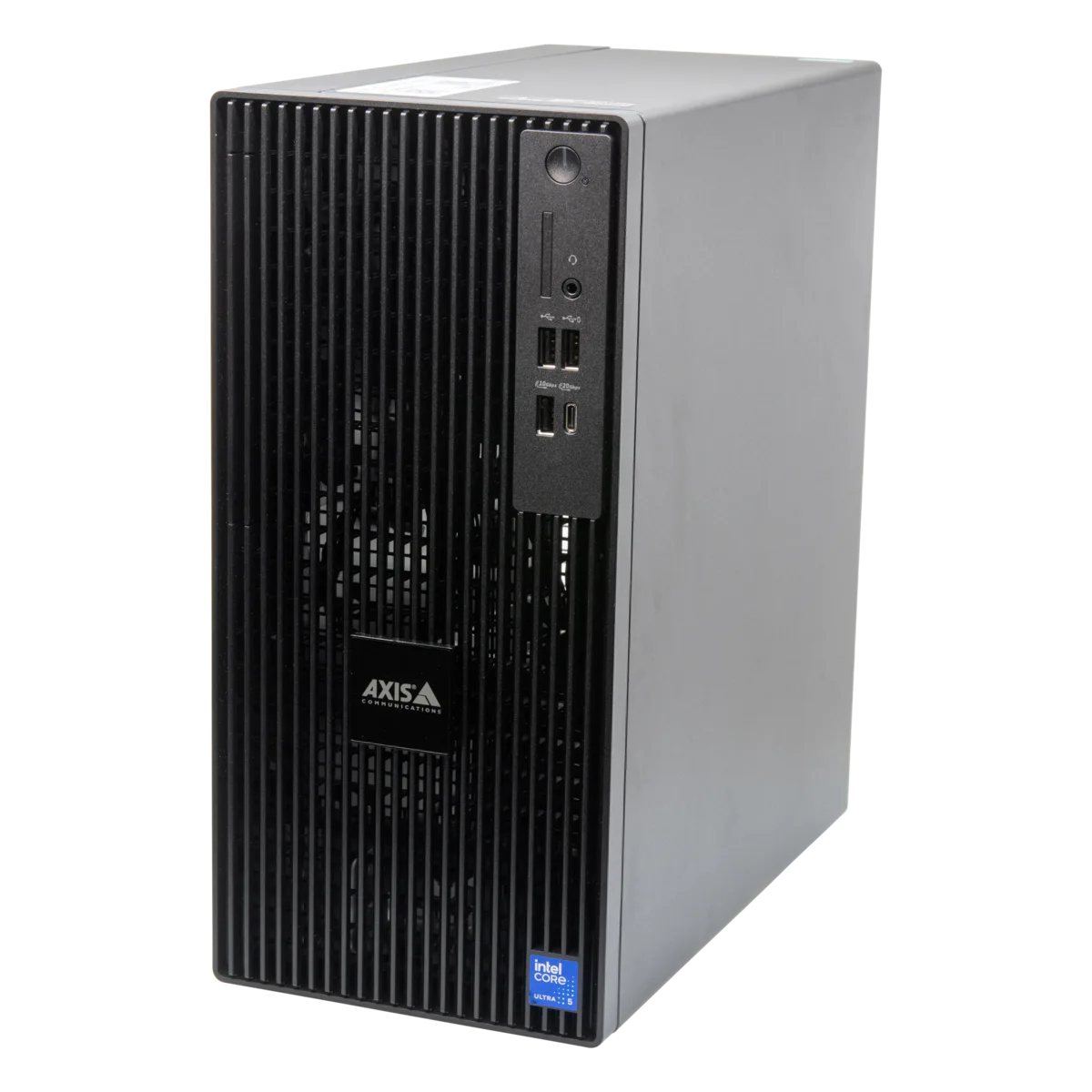

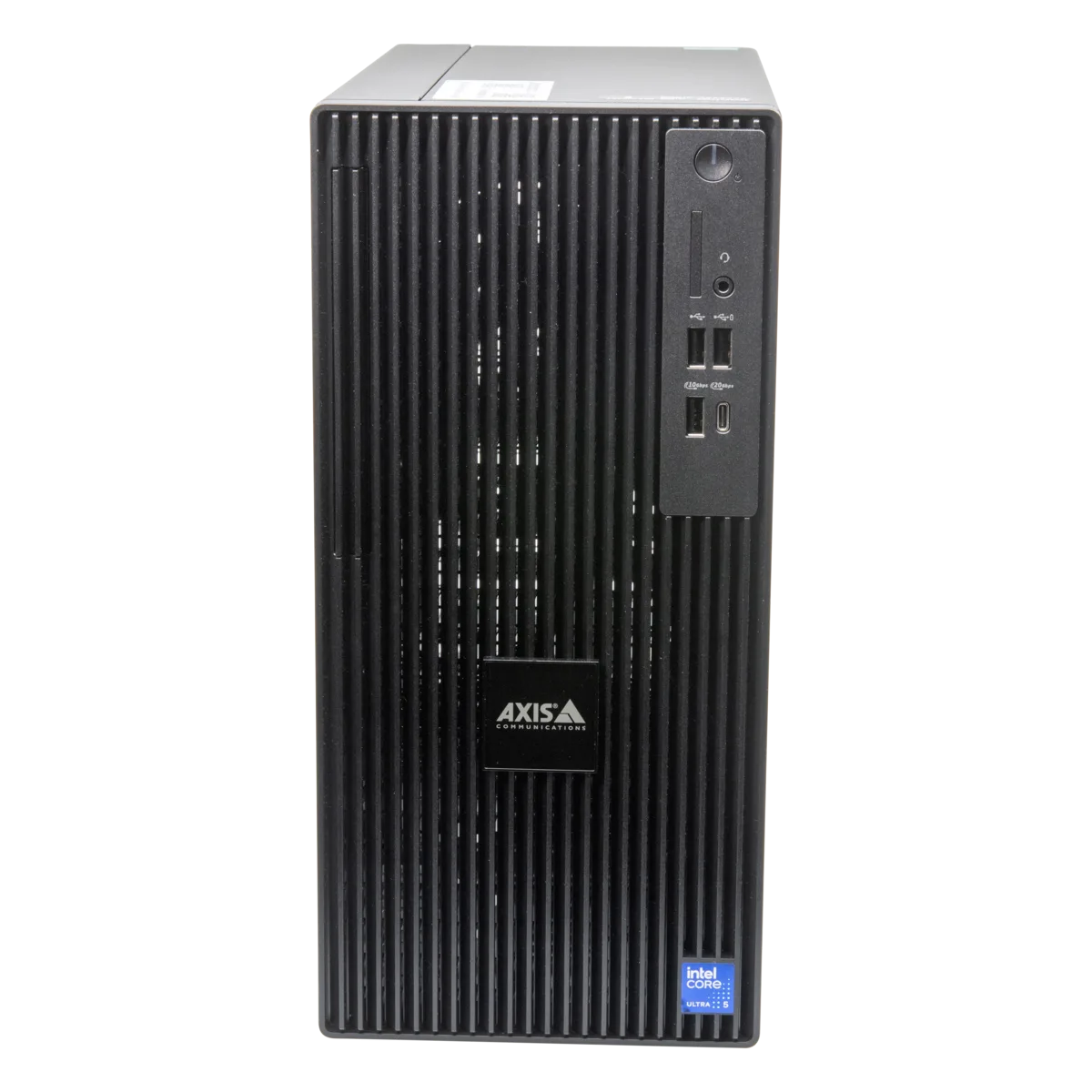

AXIS Camera Station S1216 Tower Mk II Recording Server
Secure, scalable 16‑license tower recording server with 8 TB enterprise storage, Intel Core Ultra 5 platform, Windows IoT, and advanced Axis cybersecurity.
$7131
View Datasheet (PDF)AXIS Camera Station S1216 Tower Mk II Recording Server
AXIS S1216 Tower Mk II is an out‑of‑the‑box ready recording server built for secure, scalable surveillance deployments. It includes 16 AXIS Camera Station Pro licenses and 8 TB of enterprise‑class storage. This secure, scalable recording server offers high performance and support for powerful applications and features.
Key Features
- Intel Core Ultra 5 platform with 16 GB memory
- 8 TB enterprise‑class HDD with one free expansion slot
- Qualified for 32 video channels and 64 doors
- 16 AXIS Camera Station Pro licenses included
- Windows 11 IoT Enterprise LTSC 2024
- TPM 2.0 (FIPS 140‑2 Level 2), secure boot, encrypted drives
- SBOM transparency and Axis security hardening
- Next Business Day Onsite Support and 5‑year warranty
How It Works
The server provides high‑performance recording for medium to large systems, supporting up to 32 video channels with a total recording bitrate of 256 Mbps. Video is stored on enterprise‑class HDDs with optional RAID 1 for redundancy. AXIS Recorder Toolbox and Windows IoT streamline setup, monitoring, and maintenance. TPM‑backed encryption and secure boot protect all cryptographic keys, certificates, and system integrity.
Installation & Placement
- Tower form factor for desktop or equipment room placement
- Suitable for commercial, enterprise, and multi‑site deployments
- Operating range: 5 °C to 45 °C
- Includes power cable and OS recovery
Reliability & Cybersecurity
- TPM 2.0 with FIPS 140‑2 Level 2 certification
- Secure boot and encrypted OS and recording drives
- SBOM for software transparency
- Axis Vulnerability Management and Security Development Model
Compliance
- EN 55035, EN 55032 Class B
- FCC Part 15 Class B
- IEC/EN 62368‑1
- TAA compliant
- NDAA Section 889
Specifications
| Product Type | Tower recording server |
| Licenses Included | 16 × AXIS Camera Station Pro Core Device NVR licenses |
| System Scalability | Qualified for 32 video channels and 64 doors; up to 256 Mbps total recording bitrate |
| Processor | Intel Core Ultra 5 Processor 235 |
| Memory | 16 GB (2 × 8 GB) |
| Storage | 8 TB enterprise‑class HDD (1 × 8 TB installed, 1 free slot) |
| RAID | Supports RAID 0 and RAID 1 |
| Operating System | Windows 11 IoT Enterprise LTSC 2024 |
| Operating System Drive | 256 GB SSD |
| Graphics | Intel Graphics |
| USB Ports | Front: 2 × USB 2.0, 1 × USB‑C 3.2 Gen 2x2, 1 × USB 3.2 Gen 2x1; Rear: 1 × USB‑C 3.2 Gen 2x1, 3 × USB 3.2 Gen 1x1, 2 × USB 2.0 |
| Network | 1 × 1 GbE RJ45 |
| Video Outputs | 3 × DisplayPort |
| Cybersecurity | TPM 2.0 (FIPS 140‑2 Level 2), secure boot, encrypted OS and recording drives, SBOM |
| Power Input | 360 W Platinum PSU, 100–240 V AC, 50/60 Hz |
| Operating Temperature | 5 °C to 45 °C |
| Operating Humidity | 20–80% RH (non‑condensing) |
| Dimensions | 324 × 154 × 293 mm |
| Weight | 6.6 kg |
| Compliance | TAA compliant, EN 55035, EN 55032 Class B, FCC Class B, IEC/EN 62368‑1, RCM, VCCI Class B, NOM, KC, BSMI, NDAA Section 889 |
