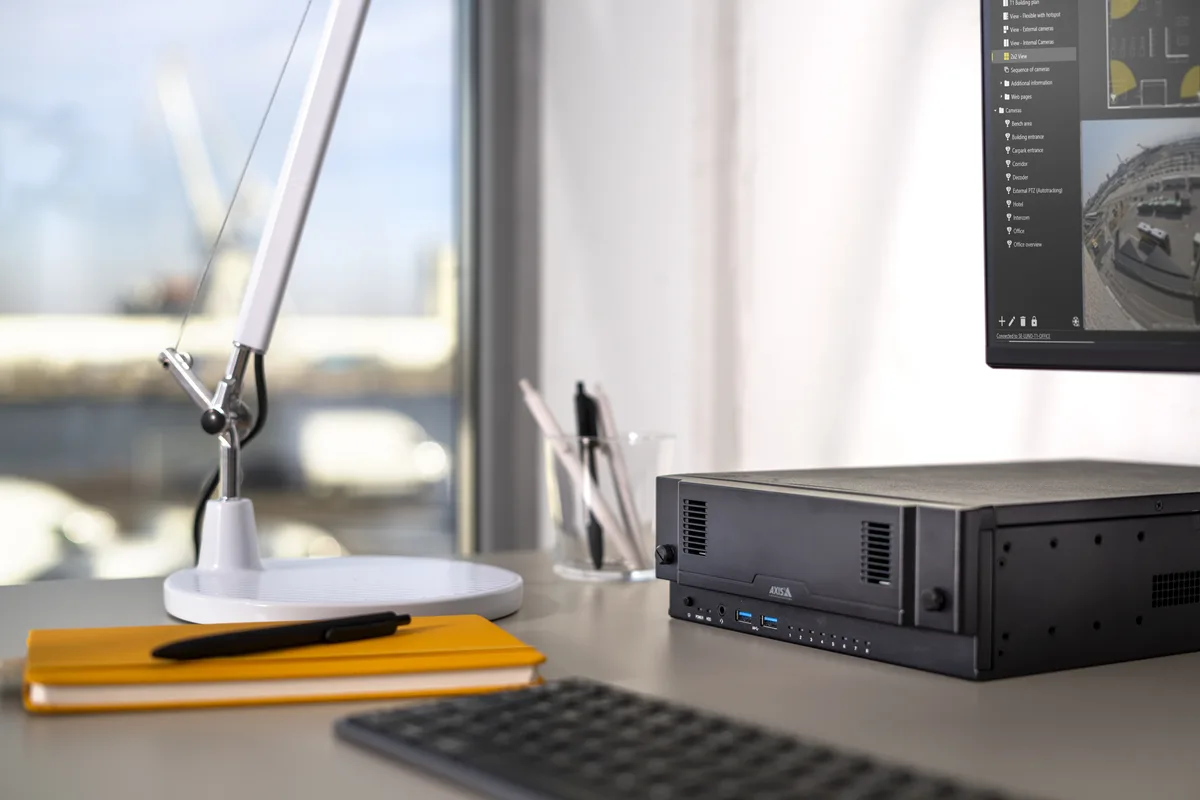

AXIS Camera Station S2208 Mk II Standalone Appliance
Silent all‑in‑one 8‑channel standalone appliance with integrated PoE switch, 4 TB surveillance‑grade storage, Windows IoT, and advanced Axis cybersecurity.
$4595
View Datasheet (PDF)AXIS Camera Station S2208 Mk II Standalone Appliance
AXIS S2208 Mk II is a silent, all‑in‑one standalone appliance for up to eight video channels. It includes an integrated 8‑port PoE switch, 4 TB of surveillance‑grade storage, and AXIS Camera Station Pro licenses tied to the hardware. The unit is qualified for up to 8 video channels and 16 doors with a total recording rate of 128 Mbps.
Key Features
- 8‑port PoE switch (IEEE 802.3at Class 4, 135 W total)
- 4 TB surveillance‑grade HDD with one free expansion slot
- Intel Core i3 processor and 16 GB DDR5 memory
- Windows 11 IoT Enterprise LTSC 2024
- Supports up to 8 video channels and 16 doors
- Includes 8 AXIS Camera Station Pro licenses
- Silent operation for office and customer‑facing areas
- TPM 2.0 (FIPS 140‑2 Level 2), secure boot, signed firmware
- 5‑year hardware warranty
How It Works
The appliance powers and connects up to eight AXIS cameras directly through its integrated PoE switch. Video is stored on a surveillance‑grade HDD, with a second slot available for expansion. Windows IoT and AXIS Recorder Toolbox streamline setup, monitoring, and maintenance. TPM‑backed encryption and secure boot protect the operating system and recording drives.
Installation & Placement
- Desktop or shelf‑mounted
- Suitable for offices, retail, reception areas, and small commercial sites
- Operating range: 0 °C to 40 °C
- Includes rack ears and external power adapter
Reliability & Cybersecurity
- TPM 2.0 with FIPS 140‑2 Level 2 certification
- Secure boot and signed switch firmware
- Encrypted OS and recording drives
- AXIS Recorder Toolbox for diagnostics and updates
Compliance
- UL/CUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM
- EN 55035, EN 55032 Class A
- IEC/EN 62368‑1
- TAA compliant
- NDAA Section 889
Specifications
| Product Type | Standalone 8‑channel NVR appliance |
| Integrated PoE Switch | 8 × PoE ports (IEEE 802.3at Class 4), 135 W total budget |
| Storage | 4 TB surveillance‑grade HDD (1 × 4 TB installed, 1 free slot) |
| Recording Capacity | Up to 128 Mbps total recording rate |
| Processor | Intel Core i3 |
| Memory | 16 GB DDR5 |
| Operating System | Windows 11 IoT Enterprise LTSC 2024 |
| Graphics | Intel UHD Graphics |
| USB Ports | 2 × USB 3.2 (front), 2 × USB 2.0 (rear) |
| Network Uplink | 1 × 1 Gbps LAN (switch), 1 × 1 Gbps LAN (server) |
| Video Outputs | 2 × HDMI 2.1 |
| Audio | Universal audio jack (front) |
| Cybersecurity | TPM 2.0 (FIPS 140‑2 Level 2), secure boot, signed firmware, encrypted OS and recording drives |
| Power Input | 100–240 V AC, 50/60 Hz, max 270 W |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10–90% RH (non‑condensing) |
| Dimensions | 330 × 230 × 78 mm |
| Weight | 5.8 kg |
| Compliance | UL/CUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM, EN 55035, EN 55032 Class A, IEC/EN 62368‑1, TAA compliant, NDAA Section 889 |
