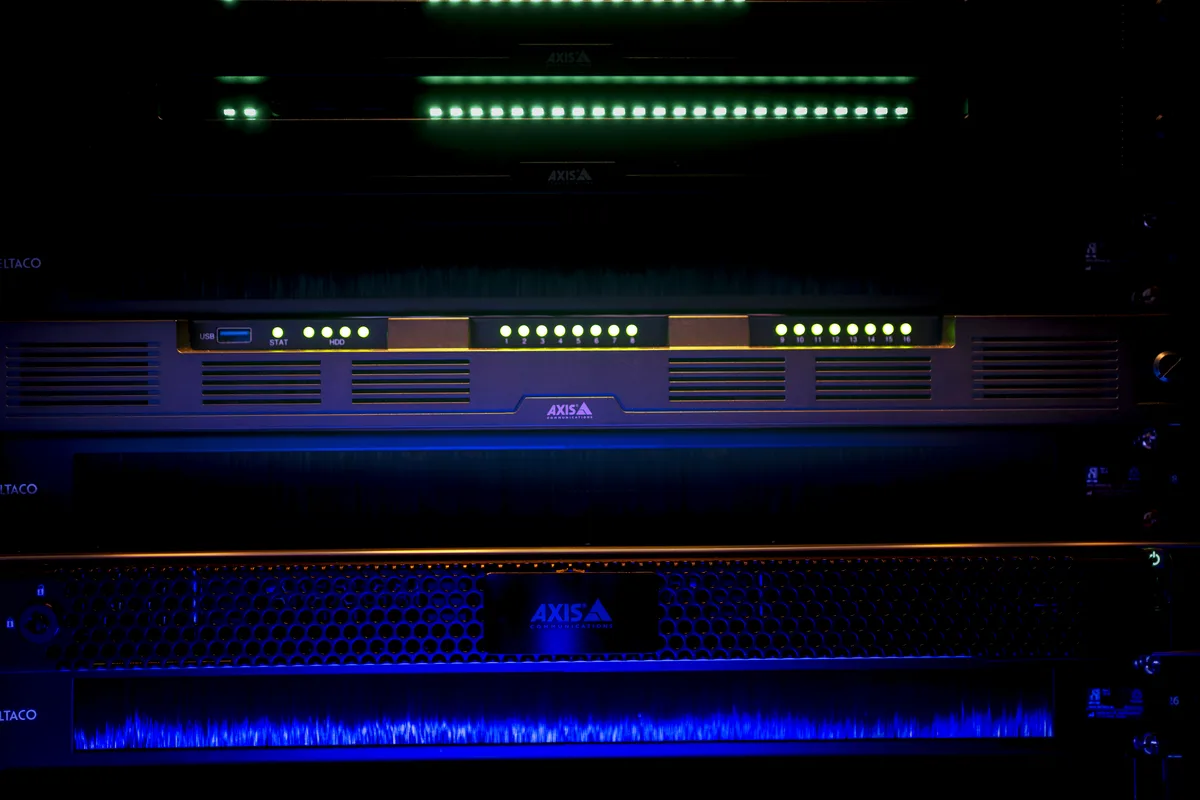

AXIS S3016 Recorder

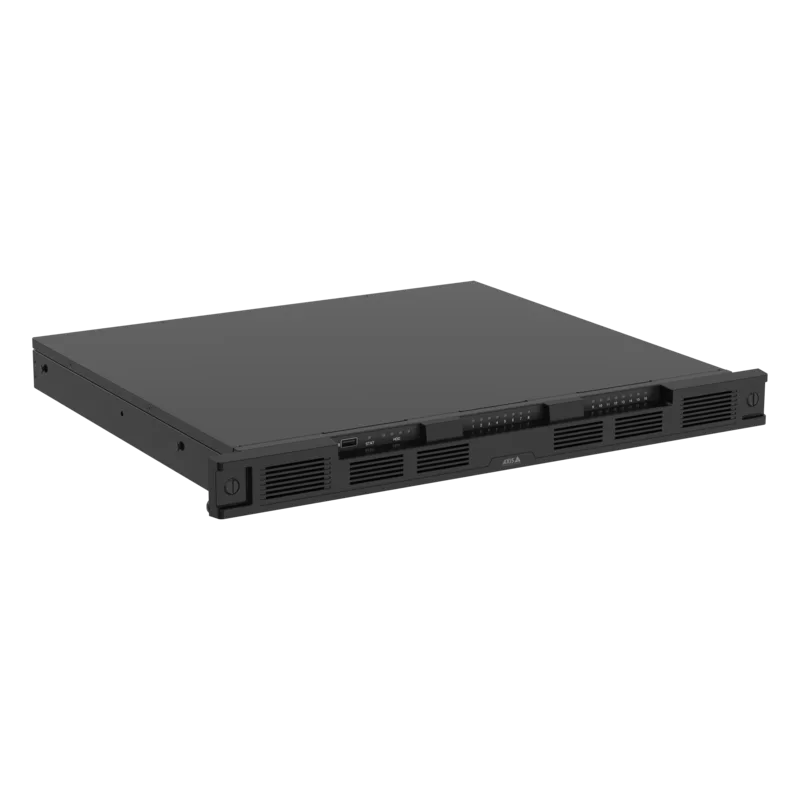

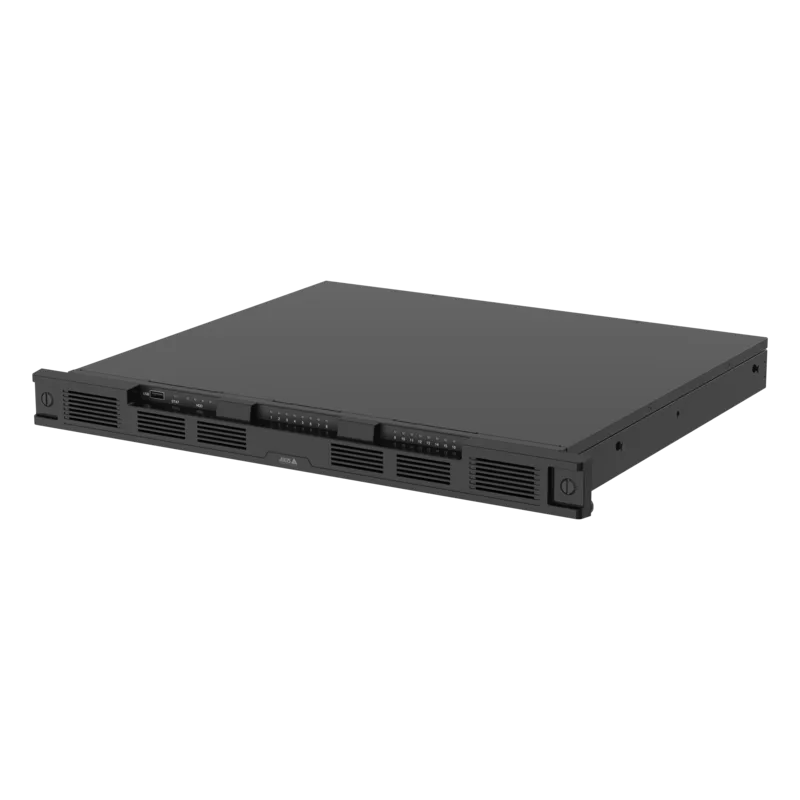

AXIS S3016 Recorder is a 1U rack‑mount NVR with a 16‑port PoE switch and RAID‑protected storage for medium to large surveillance systems. It supports up to 16 PoE Class 4 devices and provides a 2.5 Gbps uplink for ultra‑high‑definition recording. The unit includes four hot‑swappable surveillance‑grade hard drives and offers flexible RAID levels for redundancy and uptime.
Key Features
- 16‑port PoE switch (IEEE 802.3at Class 4, 305 W total)
- Surveillance‑grade HDD options: 8 TB, 16 TB, 32 TB
- Four hot‑swappable drives with RAID 0/1/5/6/10
- 256 Mbit/s total recording throughput
- 2.5 Gbps uplink + 1 Gbps SFP
- Axis Edge Vault, TPM 2.0, secure boot, encrypted filesystem
- Compatible with AXIS Camera Station Edge, Pro, and ACS 5
- 5‑year hardware warranty
How It Works
The recorder powers and connects up to sixteen AXIS cameras directly through its integrated PoE switch. Video is stored across four surveillance‑grade HDDs with RAID protection. The 2.5 Gbps uplink ensures stable UHD recording, and Axis cybersecurity features protect the system from tampering and unauthorized access.
Installation & Placement
- 1U rack‑mount design
- Suitable for commercial buildings, warehouses, education, and multi‑site deployments
- Operating range: 0 °C to 45 °C
- Includes rack rails and front cover
Reliability & Cybersecurity
- Axis Edge Vault hardware security
- TPM 2.0 and secure boot
- Encrypted filesystem (AES‑XTS‑Plain64 256‑bit)
- RAID‑protected storage
- PoE budget and fan diagnostics
Compliance
- UL/CUL, BIS, CE, VCCI, NOM, RCM, BSMI
- EN 55035, EN 55032 Class A
- FCC Part 15 Class A
- IEC/EN 62368‑1
- IP20
- TAA compliant
- NDAA Section 889
Specifications
| Product Type | 16‑channel rack‑mount network video recorder |
| Integrated PoE Switch | 16 × PoE ports (IEEE 802.3at Class 4), 305 W total budget |
| Storage Options | Surveillance‑grade HDD: 8 TB, 16 TB, 32 TB (4 × hot‑swappable drives) |
| RAID | Factory RAID 5; supports RAID 0, 1, 5, 6, 10 |
| Recording Capacity | Up to 256 Mbit/s total recording rate |
| Video Compression | H.264 (AVC), H.265 (HEVC) depending on camera support |
| Audio | One‑way audio recording depending on camera support |
| USB Export | Front USB 3.0 and rear USB 2.0 ports |
| Network Uplink | 2.5 Gbps LAN, 2.5 Gbps AUX, 1 Gbps SFP |
| Network Protocols | IPv4, IPv6, HTTPS, TLS, SFTP, SNMP v1/v2c/v3, DHCP, LLDP, QoS, IGMP, ARP, IEEE 802.1X, IEEE 802.1AR |
| Cybersecurity | Axis Edge Vault, TPM 2.0, secure boot, encrypted filesystem (AES‑XTS‑Plain64 256‑bit), FIPS 140 support |
| Event Triggers | Hard drive error, temperature warnings, fan error, PoE budget exceeded, RAID warnings |
| Operating Temperature | 0 °C to 45 °C |
| Operating Humidity | 10–85% RH (non‑condensing) |
| Casing | Steel, black (NCS S 9000‑N), 1U rack‑mount |
| Dimensions | 484 × 402 × 44.1 mm |
| Weight | 10.08–10.68 kg depending on HDD configuration |
| Power Input | 100–240 V AC, 50/60 Hz, max 650 W |
| PoE Output | 305 W dedicated PoE budget |

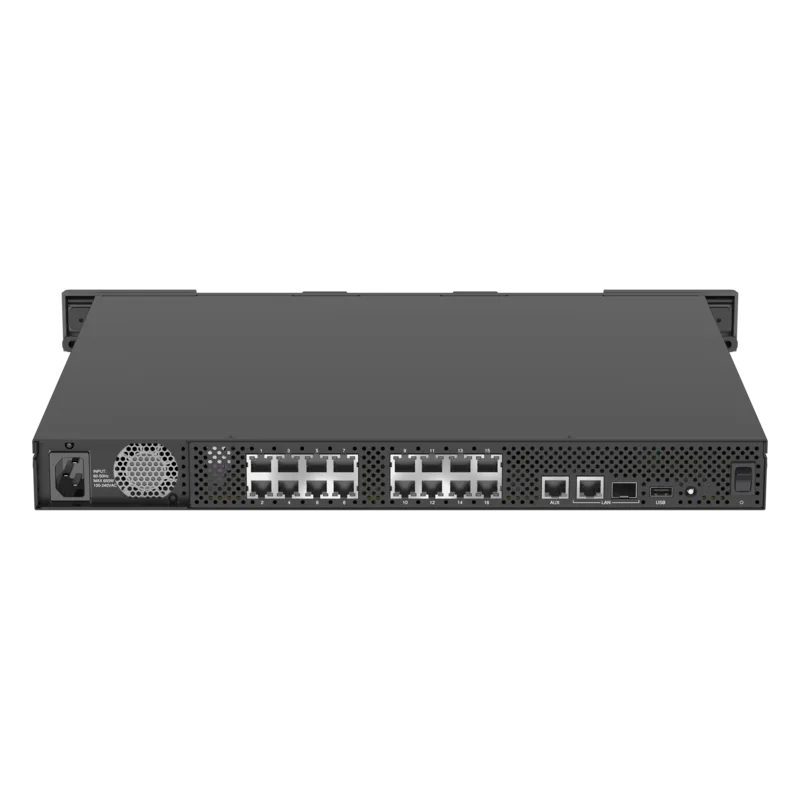

| Connectors | 16 × PoE RJ45, 2.5 Gbps LAN, 2.5 Gbps AUX, 1 Gbps SFP, USB 3.0, USB 2.0, power connector |
| Compliance | UL/CUL, BIS, CE, VCCI, NOM, RCM, BSMI, EN 55035, EN 55032 Class A, FCC Class A, IEC/EN 62368‑1, IP20, TAA compliant, NDAA Section 889 |
