AXIS S3008 Mk II Recorder
Compact 8‑channel network video recorder with integrated PoE switch, surveillance‑grade HDD options, gigabit uplink, and 5‑year warranty.
Selected Model
Name: —
SKU: —
Price: $—
AXIS S3008 Mk II Recorder

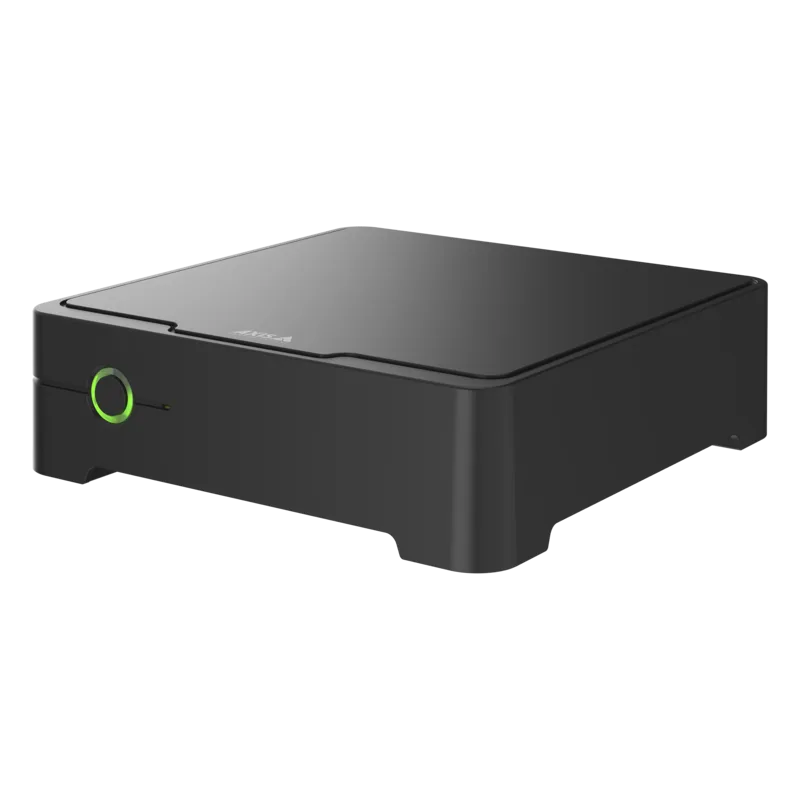

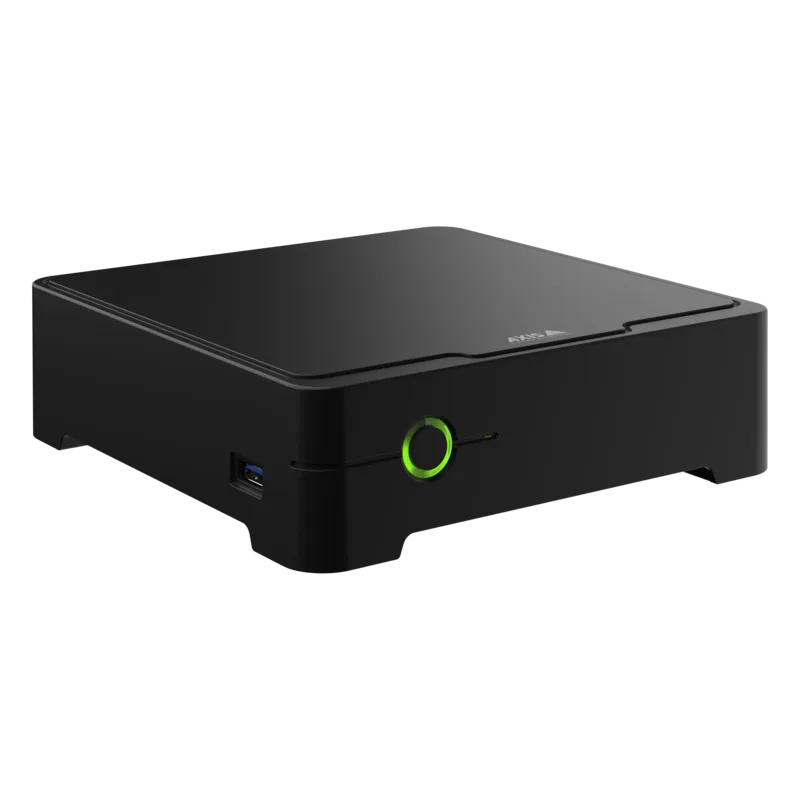

AXIS S3008 Mk II Recorder is a compact, reliable NVR designed for small to medium surveillance systems that need simple deployment and dependable UHD recording. With an integrated 8‑port PoE switch and surveillance‑grade storage, it provides a clean, all‑in‑one solution for powering and recording AXIS cameras without additional network hardware.
It is a compact recorder with an integrated PoE switch for up to 8 PoE Class 3 devices, giving installers a straightforward way to build efficient edge systems. The unit also offers gigabit uplink for video recordings in ultra‑high definition, ensuring smooth performance even in multi‑camera environments.
Fully NDAA Section 889 compliant with no restricted components, suitable for government and high‑security deployments.
Key Features
- Integrated 8‑port PoE switch (IEEE 802.3af/at, Class 0–3)
- Surveillance‑grade HDD options: 2 TB, 4 TB, 8 TB
- 160 Mbit/s total recording throughput
- Supports H.264 and H.265 depending on camera capabilities
- USB 3.0 port for exporting video
- Gigabit uplink for high‑bandwidth recording
- Axis Edge Vault, TPM 2.0, secure boot, encrypted filesystem
- Compatible with AXIS Camera Station Edge, Pro, and ACS 5
- 5‑year warranty on recorder and HDD
How It Works
The recorder powers and connects up to eight AXIS cameras directly through its integrated PoE switch. Video is stored on a surveillance‑grade HDD and can be exported via USB 3.0. The gigabit uplink ensures stable UHD recording, while Axis cybersecurity features protect the system from tampering and unauthorized access.
Installation & Placement
- Ideal for retail, offices, small warehouses, and edge deployments
- Compact 180 × 180 × 53 mm footprint
- Operates from 0 °C to 45 °C
- Wall, shelf, or rack‑mountable with optional accessories
Reliability & Cybersecurity
- Axis Edge Vault hardware security
- TPM 2.0 and secure boot
- Encrypted filesystem (AES‑XTS‑Plain64 256‑bit)
- Hard drive and temperature monitoring
- PoE budget supervision and fan diagnostics
Compliance
- EN 55024, EN 55032 Class A
- FCC Part 15 Class A
- RCM (Australia/New Zealand)
- IEC/EN 62368‑1
- IP3X environmental rating
- NDAA Compliant 889
Specifications
| Product Type | 8‑channel network video recorder |
| Integrated PoE Switch | 8 × PoE ports (IEEE 802.3af/at, Class 0–3), 124 W total budget |
| Storage Options | Surveillance‑grade HDD: 2 TB, 4 TB, 8 TB |
| Recording Capacity | Up to 160 Mbit/s total recording rate |
| Video Compression | H.264 (AVC), H.265 (HEVC) depending on camera support |
| Audio | One‑way audio recording depending on camera support |
| USB Export | USB 3.0 port for exporting video |
| Network Uplink | 1 × RJ45 10/100/1000 Mbps |
| Network Protocols | IPv4, IPv6, HTTPS, TLS, SFTP, CIFS/SMB, SNMP v1/v2c/v3, DHCP, LLDP, QoS, IGMP, ARP |
| Cybersecurity | Axis Edge Vault, TPM 2.0, secure boot, encrypted filesystem (AES‑XTS‑Plain64 256‑bit) |
| Event Triggers | Hard drive error, temperature warnings, fan error, PoE budget exceeded, MQTT subscribe |
| Operating Temperature | 0 °C to 45 °C |
| Operating Humidity | 10–85% RH (non‑condensing) |
| Casing | Aluminium and plastic, black |
| Dimensions | 180 × 180 × 53 mm |
| Weight | 1310–1450 g depending on HDD |
| Power Input | 100–240 V AC, 50/60 Hz, max 180 W |
| PoE Output | 48 V DC, max 180 W |

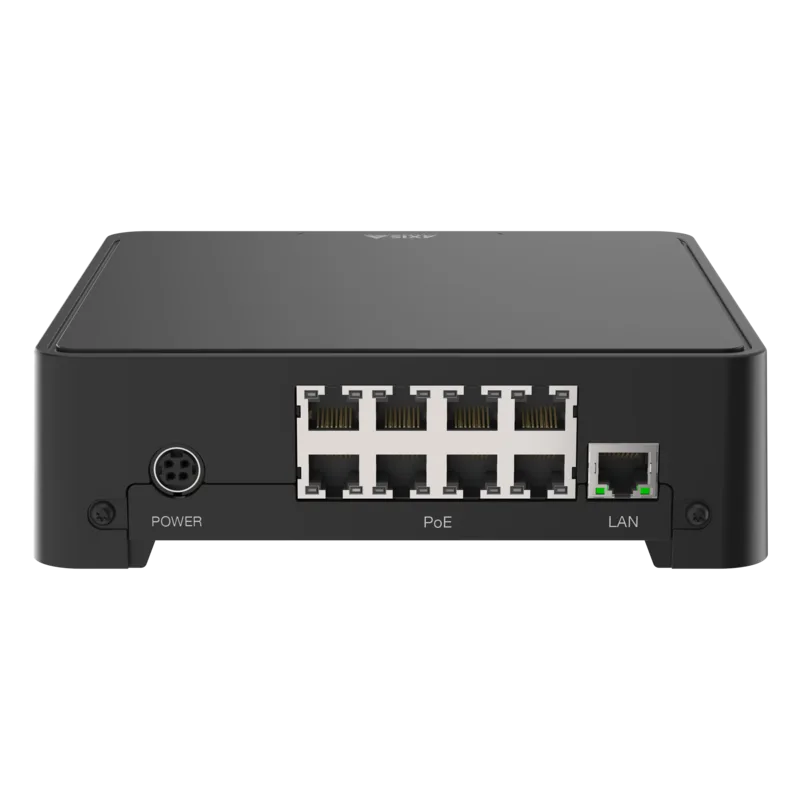

| Connectors | 8 × RJ45 PoE, 1 × RJ45 uplink, DC input, USB 3.0 |
| Compliance | EN 55024, EN 55032 Class A, FCC Class A, RCM, IEC/EN 62368‑1, IP3X environmental, NDAA Section 889 |
