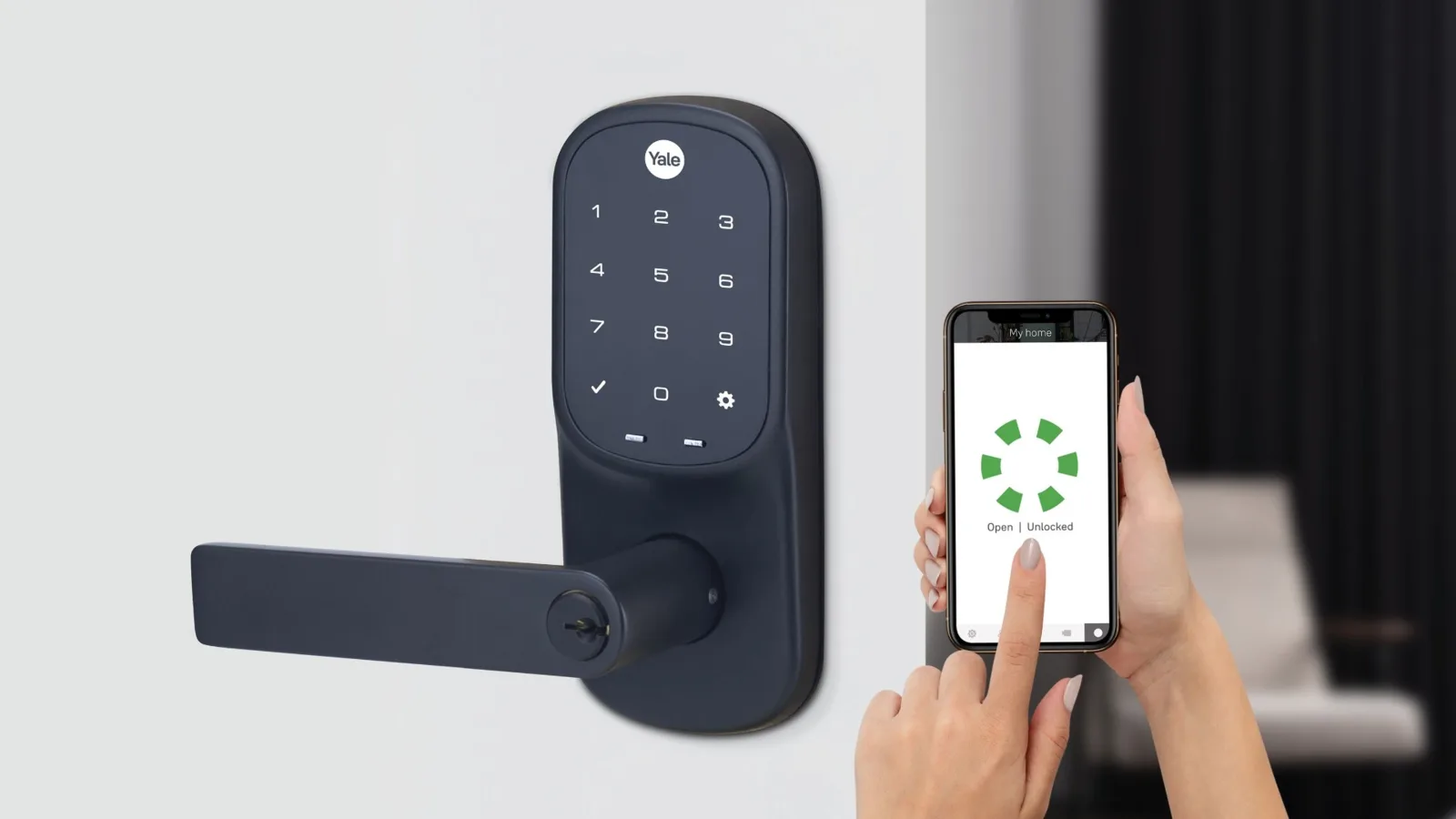

Yale Assure Keyed Lever Matt Black with Yale Home Module
A smart digital lever lock with keypad, C4 key override, Yale Home App control, auto‑unlock, and compatibility with major smart home ecosystems.
$462.83
Available Colours
Yale Assure Keyed Digital Lever (Matt Black)
The Yale Assure Lever is a modern smart lever lock designed to replace existing knobs or levers on single‑hole doors. With a sleek touchscreen keypad, built‑in smart module, and mechanical key override, it delivers the perfect blend of convenience, security, and flexibility for homes and small businesses. Ideal for side doors, garage entry doors, internal offices, and rental properties, it installs in minutes using only a screwdriver.
The included Yale Home module enables app‑based control, activity tracking, auto‑unlock, and seamless integration with Apple HomeKit. With the optional Yale Connect Plus Hub 2, the lock can be controlled remotely and integrated with Google Assistant, Amazon Alexa, Samsung SmartThings, and other smart home ecosystems.
Key Features
- Smart touchscreen keypad for key‑free entry
- Mechanical C4 key override for traditional access
- Yale Home App control for locking, unlocking, and managing access
- Auto‑unlock as you approach the door
- One‑touch locking when leaving
- Up to 25 unique PIN codes for family, guests, or staff
- Activity history and audit trails via the app
- Door position sensor to detect open/closed state
- Compatible with major smart home platforms (HomeKit included; others via Connect Plus Hub 2)
- Supports Z‑Wave Plus and ZigBee modules (sold separately)
- Easy retrofit installation on standard lever/knob prep doors
Smart Home Integration
With the included Yale Home module, the Assure Lever supports:
- Apple HomeKit
- Bluetooth control
- Yale Home App for access sharing, logs, and automation
With the optional Yale Connect Plus Hub 2, it expands to:
- Google Assistant
- Amazon Alexa
- Samsung SmartThings
- Remote access from anywhere
- Voice assistant control
Mechanical & Build Features
- C4 keyway for keyed‑alike convenience
- Zinc construction for durability
- Deadlatch lever mechanism
- Matt Black premium finish
- Concealed fixing for a clean, modern look
Installation Requirements
- Door thickness: 35–45 mm
- Backset: 60–70 mm adjustable
- Door prep: 25 mm latch hole + 54 mm lock hole
- Installs with a standard screwdriver
Reliability & Security
- ANSI/BHMA A156.39 Grade A certified
- RCM compliant
- Tamper alarm and low‑battery alerts
- Up to 1 year battery life (4 × AA alkaline)
- Operating temperature: ‑25°C to 60°C
- Operating humidity: up to 95%
Warranty
- 3‑year electromechanical warranty
- 10‑year mechanical warranty
Specifications
| Backset | Adjustable 60–70 mm |
| Power | 4 × AA alkaline batteries |
| Body / Case Material | Zinc |
| Lock Type / Function | Deadlatch lever |
| Door Thickness Range | 35–45 mm |
| Door Preparation | 25 mm latch hole, 54 mm lock hole |
| Standard Finish | Matt Black, Satin Chrome |
| Key Profile | C4 (keyed version) |
| Mechanical Key Override | Yes |
| Operational Temperature Range | -25°C to 60°C |
| Operating Humidity | Up to 95% |
| Approvals | RCM compliant (EN 61000.6.3:2012 & EN 55032:2016), ANSI/BHMA A156.39 Grade A |
| Connectivity | Yale Home module included (Bluetooth + Apple HomeKit) |
| Smart Home Compatibility | Apple HomeKit, Google Assistant, Amazon Alexa, Samsung SmartThings (via Yale Connect Plus Hub 2) |
| Additional Module Support | Z‑Wave Plus, ZigBee (sold separately) |
| Auto Unlock | Yes |
| One Touch Locking | Yes |
| PIN Codes | Up to 25 unique PIN codes |
| Audit Trails | Yes (via Yale Home App) |
| Door Position Sensor | Yes |
| Mobile App | Yale Home App |
| Battery Life | Approx. 1 year |
| Tamper Alarm | Yes |
| Low Battery Indicator | Yes |
| Dimensions | Standard lever set footprint |
| Warranty | 3‑year electromechanical, 10‑year mechanical |
